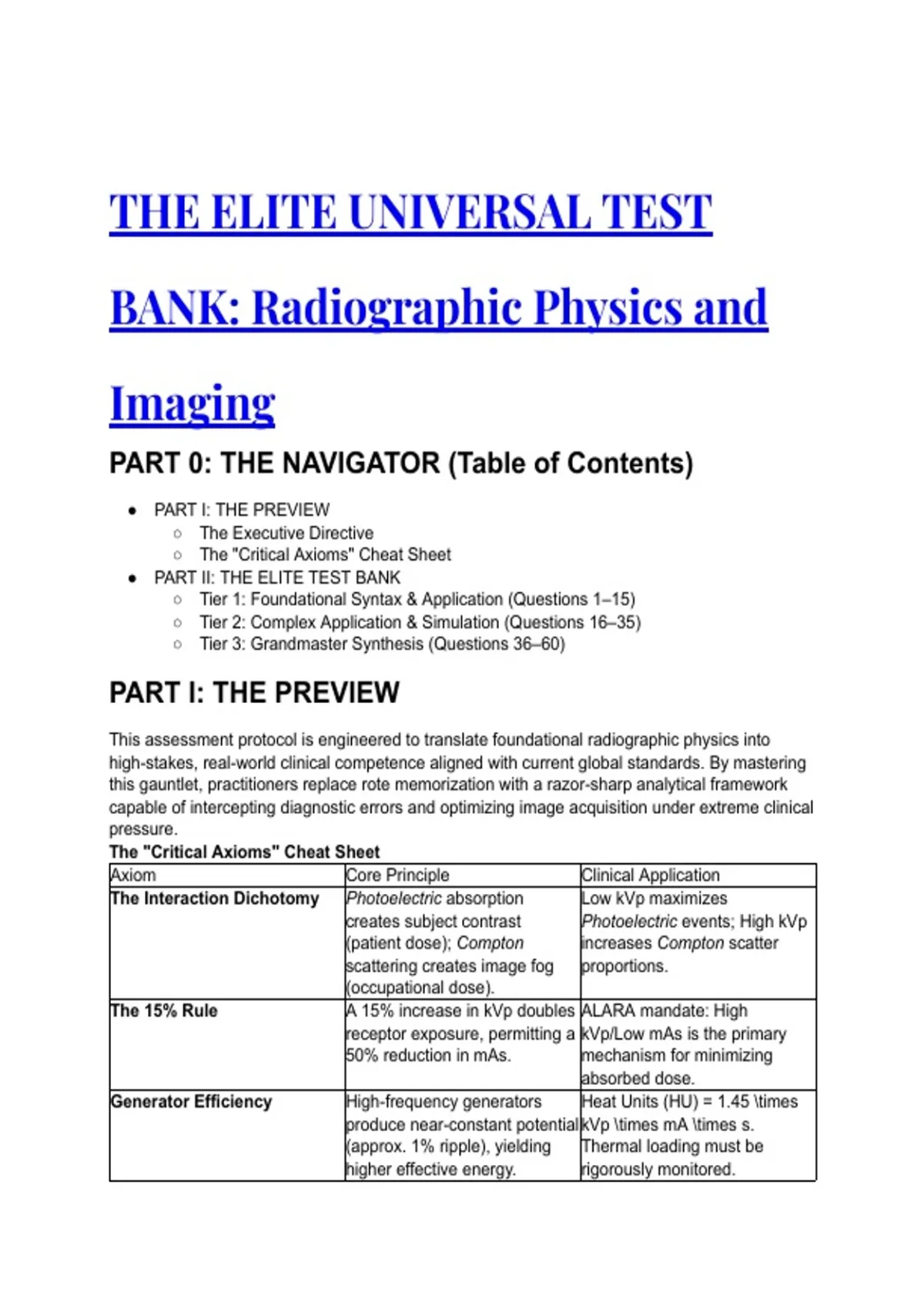

THE ELITE UNIVERSAL TEST
BANK: Radiographic Physics and
Imaging
PART 0: THE NAVIGATOR (Table of Contents)
● PART I: THE PREVIEW
○ The Executive Directive
○ The "Critical Axioms" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–15)
○ Tier 2: Complex Application & Simulation (Questions 16–35)
○ Tier 3: Grandmaster Synthesis (Questions 36–60)
PART I: THE PREVIEW
This assessment protocol is engineered to translate foundational radiographic physics into
high-stakes, real-world clinical competence aligned with current global standards. By mastering
this gauntlet, practitioners replace rote memorization with a razor-sharp analytical framework
capable of intercepting diagnostic errors and optimizing image acquisition under extreme clinical
pressure.
The "Critical Axioms" Cheat Sheet
Axiom Core Principle Clinical Application
The Interaction Dichotomy Photoelectric absorption Low kVp maximizes
creates subject contrast Photoelectric events; High kVp
(patient dose); Compton increases Compton scatter
scattering creates image fog proportions.
(occupational dose).
The 15% Rule A 15% increase in kVp doubles ALARA mandate: High
receptor exposure, permitting a kVp/Low mAs is the primary
50% reduction in mAs. mechanism for minimizing
absorbed dose.
Generator Efficiency High-frequency generators Heat Units (HU) = 1.45 \times
produce near-constant potential kVp \times mA \times s.
(approx. 1% ripple), yielding Thermal loading must be
higher effective energy. rigorously monitored.
,Axiom Core Principle Clinical Application
Digital Resolution Spatial resolution in flat-panel The matrix must be maximized
systems is restricted by the and pixel pitch minimized to
physical Detector Element preserve geometric sharpness.
(DEL) size and sampling
frequency.
The Dose Creep Trap Digital receptors possess a The Exposure Indicator (EI) is
massive dynamic range. the only reliable metric to
Histogram rescaling prevent insidious patient
automatically corrects extreme overexposure.
overexposures.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A radiographer selects a specific technical factor on the operating console that alters the
electric potential across the x-ray tube. Based on the principles of electrodynamics, which action
is MOST ACCURATE regarding this selection? A) Adjusting the rheostat in the filament circuit to
increase amperage. B) Modifying the autotransformer to dictate kilovoltage peak. C) Engaging
the solid-state rectifiers to convert alternating current to direct current. D) Activating the line
compensator to stabilize incoming voltage.
● The Answer: B (Modifying the autotransformer to dictate kilovoltage peak.)
● Distractor Analysis:
○ A is incorrect: The rheostat regulates current (mA) in the filament circuit, not electric
potential across the tube.
○ C is incorrect: Rectifiers change current direction; they do not dictate the
user-selected potential.
○ D is incorrect: The line compensator stabilizes facility power automatically; it does
not dictate the exposure potential.
The Mentor's Analysis: Electric potential is the force that accelerates electrons. By adjusting
the autotransformer on the primary side of the circuit, the radiographer dictates the kilovoltage
peak (kVp), directly controlling beam penetrability. Professional/Academic Intuition: The
autotransformer is the mechanical heart of kVp selection.
Q2: During an exposure, an immense amount of heat is generated at the anode. Which specific
structural design principle is MOST APPROPRIATE for maximizing heat dissipation while
maintaining a small effective focal spot? A) The Space Charge Effect B) The Anode Heel Effect
C) The Line-Focus Principle D) Thermionic Emission
● The Answer: C (The Line-Focus Principle)
● Distractor Analysis:
○ A is incorrect: The space charge effect refers to the electron cloud limiting further
electron emission at the cathode.
○ B is incorrect: The anode heel effect is a consequence of target angle causing
variable beam intensity, not a heat dissipation strategy.
○ D is incorrect: Thermionic emission is the boiling off of electrons, unrelated to anode
heat dispersal.
The Mentor's Analysis: Heat destroys x-ray tubes. The Line-Focus Principle utilizes an angled
target face to spread heat over a large actual focal spot while projecting a small effective focal
, spot toward the patient, preserving spatial resolution. Professional/Academic Intuition: Angle
the target to beat the heat; a smaller angle equals higher resolution but lower thermal capacity.
Q3: An incoming high-speed filament electron passes near the tungsten nucleus, sharply
decelerates, and changes trajectory without colliding with an orbital electron. Which specific
outcome is the MOST LOGICAL result? A) The production of a K-shell characteristic photon. B)
The emission of a photoelectron. C) The generation of a bremsstrahlung photon. D) The
occurrence of coherent scattering.
● The Answer: C (The generation of a bremsstrahlung photon.)
● Distractor Analysis:
○ A is incorrect: Characteristic photons require a direct collision with an inner-shell
electron.
○ B is incorrect: A photoelectron is ejected during a photoelectric interaction in the
patient, not the tube.
○ D is incorrect: Coherent scattering occurs in tissue with very low-energy photons.
The Mentor's Analysis: X-ray production relies on kinetic energy conversion. The electrostatic
attraction of the positive nucleus slows the negative electron, converting lost kinetic energy into
a bremsstrahlung photon. Professional/Academic Intuition: "Brems" means braking; nuclear
deceleration dictates the continuous x-ray emission spectrum.
Q4: A radiograph of a dense bony structure is required. The incoming x-ray photon completely
transfers its energy to an inner-shell electron of a calcium atom in the patient, ejecting the
electron. Which principle is FIRST demonstrated here? A) The Compton Effect B) The
Photoelectric Effect C) Pair Production D) Photodisintegration
● The Answer: B (The Photoelectric Effect)
● Distractor Analysis:
○ A is incorrect: Compton interactions involve outer-shell electrons and partial energy
transfer.
○ C is incorrect: Pair production requires energies above 1.02 MeV, far exceeding
diagnostic ranges.
○ D is incorrect: Photodisintegration requires energies above 10 MeV.
The Mentor's Analysis: Radiographic contrast exists solely because tissues absorb radiation
differently. The photoelectric effect results in total photon absorption, creating the clear, bright
(radiopaque) areas on an image. Professional/Academic Intuition: Photoelectric interactions
are the undisputed architects of subject contrast.
Q5: An incoming x-ray photon interacts with an outer-shell electron of a tissue atom, ejecting it
and proceeding in a new direction with diminished energy. Based on the physics of attenuation,
which phenomenon has IMMEDIATELY occurred? A) Coherent scattering B) The Photoelectric
effect C) Compton scattering D) Thermionic emission
● The Answer: C (Compton scattering)
● Distractor Analysis:
○ A is incorrect: Coherent scattering involves excitation without ionization (no electron
is ejected).
○ B is incorrect: The photoelectric effect involves total absorption at the inner shell.
○ D is incorrect: Thermionic emission occurs at the cathode, not within patient tissue.
The Mentor's Analysis: Compton scattering is a partial-energy transfer event. The ejected
electron (Compton electron) and the deflected photon carry away the remaining energy. This
scattered photon strikes the receptor randomly, producing image fog. Professional/Academic
Intuition: Compton is the enemy of contrast and the primary source of occupational exposure.
Q6: A technologist evaluates the spatial resolution of a digital imaging system. Which specific
