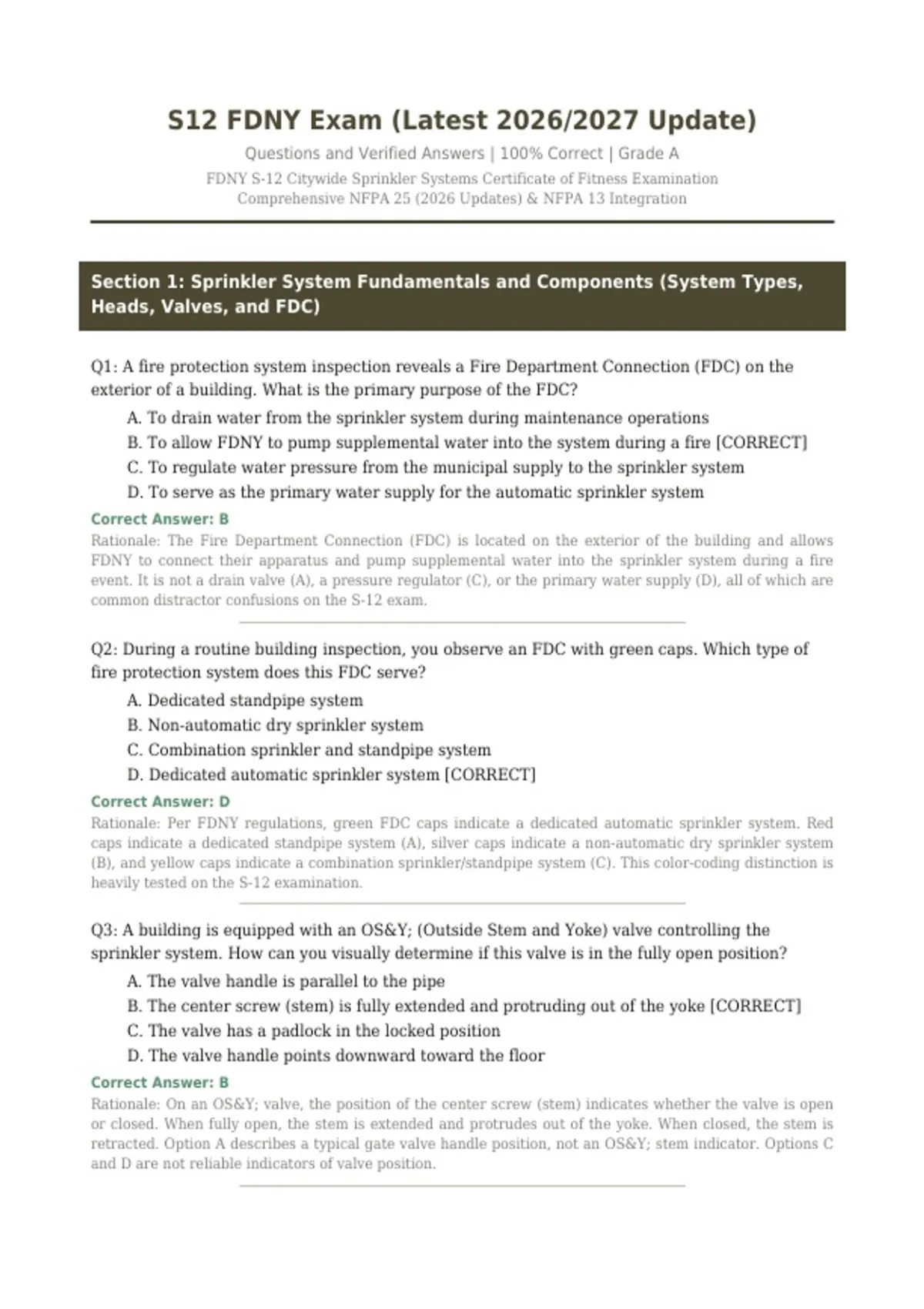

S12 FDNY Exam (Latest 2026/2027 Update)
Questions and Verified Answers | 100% Correct | Grade A
FDNY S-12 Citywide Sprinkler Systems Certificate of Fitness Examination
Comprehensive NFPA 25 (2026 Updates) & NFPA 13 Integration
Section 1: Sprinkler System Fundamentals and Components (System Types,
Heads, Valves, and FDC)
Q1: A fire protection system inspection reveals a Fire Department Connection (FDC) on the
exterior of a building. What is the primary purpose of the FDC?
A. To drain water from the sprinkler system during maintenance operations
B. To allow FDNY to pump supplemental water into the system during a fire [CORRECT]
C. To regulate water pressure from the municipal supply to the sprinkler system
D. To serve as the primary water supply for the automatic sprinkler system
Correct Answer: B
Rationale: The Fire Department Connection (FDC) is located on the exterior of the building and allows
FDNY to connect their apparatus and pump supplemental water into the sprinkler system during a fire
event. It is not a drain valve (A), a pressure regulator (C), or the primary water supply (D), all of which are
common distractor confusions on the S-12 exam.
Q2: During a routine building inspection, you observe an FDC with green caps. Which type of
fire protection system does this FDC serve?
A. Dedicated standpipe system
B. Non-automatic dry sprinkler system
C. Combination sprinkler and standpipe system
D. Dedicated automatic sprinkler system [CORRECT]
Correct Answer: D
Rationale: Per FDNY regulations, green FDC caps indicate a dedicated automatic sprinkler system. Red
caps indicate a dedicated standpipe system (A), silver caps indicate a non-automatic dry sprinkler system
(B), and yellow caps indicate a combination sprinkler/standpipe system (C). This color-coding distinction is
heavily tested on the S-12 examination.
Q3: A building is equipped with an OS&Y; (Outside Stem and Yoke) valve controlling the
sprinkler system. How can you visually determine if this valve is in the fully open position?
A. The valve handle is parallel to the pipe
B. The center screw (stem) is fully extended and protruding out of the yoke [CORRECT]
C. The valve has a padlock in the locked position
D. The valve handle points downward toward the floor
Correct Answer: B
Rationale: On an OS&Y; valve, the position of the center screw (stem) indicates whether the valve is open
or closed. When fully open, the stem is extended and protrudes out of the yoke. When closed, the stem is
retracted. Option A describes a typical gate valve handle position, not an OS&Y; stem indicator. Options C
and D are not reliable indicators of valve position.
,Q4: A Certificate of Fitness holder is conducting a visual inspection of the sprinkler system.
Which maintenance task is required annually for an OS&Y; valve?
A. Replacement of the valve gasket
B. Full replacement of the OS&Y; valve assembly
C. Lubrication of the valve stem [CORRECT]
D. Hydrostatic pressure testing of the valve body
Correct Answer: C
Rationale: Per NFPA 25 and FDNY regulations, OS&Y; valve stems must be lubricated annually to ensure
proper operation and prevent seizing. Gasket replacement (A) is not an annual requirement, full valve
replacement (B) is only necessary upon failure, and hydrostatic testing (D) is performed on the entire
system every 5 years, not specifically on the valve annually.
Q5: A backflow preventer is installed on a sprinkler system. What is its primary function?
A. To prevent water from flowing backward into the municipal water supply and
contaminating it [CORRECT]
B. To increase water pressure to the sprinkler system during normal operation
C. To automatically shut off the sprinkler system when a fire is detected
D. To reduce the downstream water pressure under both flowing and static conditions
Correct Answer: A
Rationale: A backflow preventer prevents contaminated water from flowing backward from the sprinkler
system into the municipal potable water supply. It does not increase pressure (B) as that is the function of a
fire pump or booster pump. It does not shut off the system (C), and pressure reduction (D) is the function of
a Pressure Reducing Valve (PRV), a common confusion point on the S-12 exam.
Q6: A Pressure Reducing Valve (PRV) is found on the sprinkler system piping. Which statement
correctly describes its function?
A. It relieves excess water or air pressure from the system
B. It prevents water from flowing in the opposite direction
C. It reduces downstream water pressure under both flowing and static conditions
[CORRECT]
D. It prevents freezing in the FDC connection line
Correct Answer: C
Rationale: A Pressure Reducing Valve (PRV) reduces downstream water pressure under both flowing
(dynamic) and static conditions. Option A describes a Pressure Relief Valve, option B describes a Check
Valve, and option D describes an Automatic Ball Drip. Distinguishing between these four valve types is
critical for the S-12 examination.
Q7: Where is the automatic ball drip valve located, and what is its purpose?
A. Between the backflow preventer and the system control valve; to reduce water pressure
B. Between the lower check valve and the FDC; to prevent freezing in the line [CORRECT]
C. At the highest point of the sprinkler piping; to release trapped air
D. At the base of the standpipe; to drain water after testing
Correct Answer: B
Rationale: The automatic ball drip is located between the lower check valve and the FDC, and its purpose is
to prevent water from remaining in the FDC connection line, which could freeze during cold weather. It is
not a pressure-reducing device (A), an air release valve (C), or a drain valve (D). This specific location and
function are frequently tested.
, Q8: A hydraulic placard (nameplate) is found attached to a sprinkler system. What information
does this placard display?
A. The date of the last hydrostatic test and the name of the testing contractor
B. The design density, GPM, and pressure for the hydraulically calculated system
[CORRECT]
C. The temperature rating and RTI classification of all sprinkler heads in the system
D. The name of the building owner and the Certificate of Fitness holder
Correct Answer: B
Rationale: The hydraulic placard (nameplate) is a sign attached to hydraulically calculated sprinkler
systems that displays the design density, GPM, and pressure. It does not show test dates (A), sprinkler
head specifications (C), or personnel information (D). Per NFPA 25, this placard must be inspected
quarterly.
Q9: A commercial building has a sprinkler system with 750 sprinkler heads installed. According
to FDNY regulations, how many spare sprinkler heads must be maintained on the premises?
A. 6 spare sprinkler heads
B. 12 spare sprinkler heads [CORRECT]
C. 18 spare sprinkler heads
D. 24 spare sprinkler heads
Correct Answer: B
Rationale: The spare sprinkler head requirements are: fewer than 300 heads = 6 spares; 300 to 1,000
heads = 12 spares; more than 1,000 heads = 24 spares. Since this building has 750 heads (falling in the
300-1,000 range), 12 spare heads are required. Option A applies to systems under 300 heads, and option D
applies to systems over 1,000 heads.
Q10: At what interval must spare sprinkler heads and sprinkler wrenches be inspected
according to NFPA 25?
A. Monthly
B. Quarterly
C. Semi-annually
D. Annually [CORRECT]
Correct Answer: D
Rationale: Spare sprinkler heads and sprinkler wrenches must be inspected annually to ensure the correct
number and types of spares are available and that the appropriate wrenches are on hand. This is a direct
recall question, and candidates often confuse annual inspection with quarterly or semi-annual intervals
that apply to other system components.
Q11: Which of the following best describes the function of a check valve in a sprinkler system?
A. It automatically adjusts water flow based on fire detection signals
B. It prevents water from flowing in the opposite direction [CORRECT]
C. It reduces water pressure to safe operating levels
D. It allows air to escape from the system while retaining water
Correct Answer: B
Rationale: A check valve prevents water from flowing in the opposite direction within the sprinkler system
piping. A swing check valve specifically allows full, unobstructed flow in one direction. Option A describes
a deluge or pre-action valve function, option C describes a PRV, and option D describes an air vent.
Understanding each valve type is essential for the S-12 exam.
