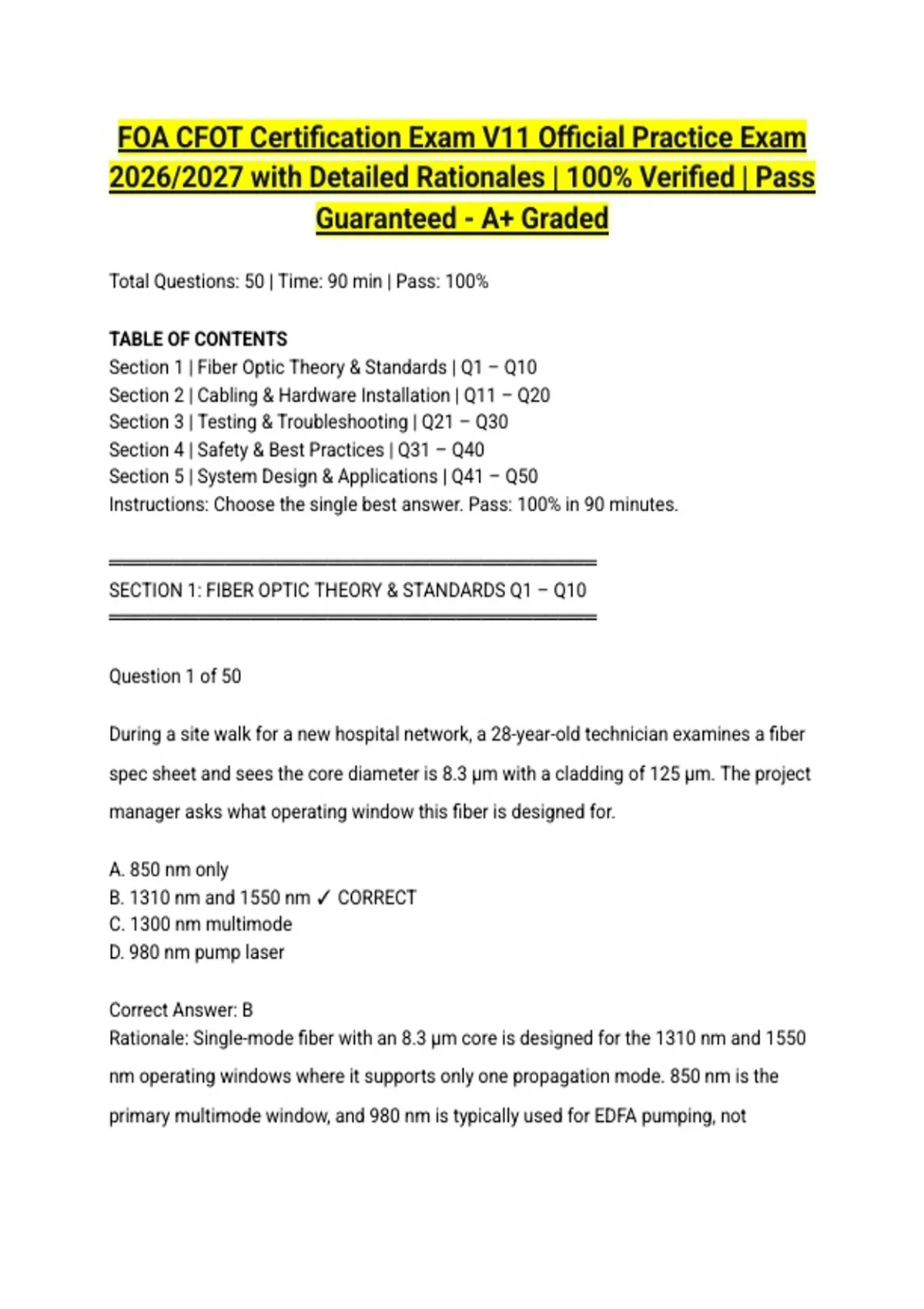

FOA CFOT Certification Exam V11 Official Practice Exam
2026/2027 with Detailed Rationales | 100% Verified | Pass
Guaranteed - A+ Graded
Total Questions: 50 | Time: 90 min | Pass: 100%
TABLE OF CONTENTS
Section 1 | Fiber Optic Theory & Standards | Q1 – Q10
Section 2 | Cabling & Hardware Installation | Q11 – Q20
Section 3 | Testing & Troubleshooting | Q21 – Q30
Section 4 | Safety & Best Practices | Q31 – Q40
Section 5 | System Design & Applications | Q41 – Q50
Instructions: Choose the single best answer. Pass: 100% in 90 minutes.
══════════════════════════════════════
SECTION 1: FIBER OPTIC THEORY & STANDARDS Q1 – Q10
══════════════════════════════════════
Question 1 of 50
During a site walk for a new hospital network, a 28-year-old technician examines a fiber
spec sheet and sees the core diameter is 8.3 µm with a cladding of 125 µm. The project
manager asks what operating window this fiber is designed for.
A. 850 nm only
B. 1310 nm and 1550 nm ✓ CORRECT
C. 1300 nm multimode
D. 980 nm pump laser
Correct Answer: B
Rationale: Single-mode fiber with an 8.3 µm core is designed for the 1310 nm and 1550
nm operating windows where it supports only one propagation mode. 850 nm is the
primary multimode window, and 980 nm is typically used for EDFA pumping, not
,standard transmission. In practice, installers should always verify the fiber type against
the transceiver wavelength to avoid modal mismatch.
Question 2 of 50
A test engineer at a fiber manufacturer measures the acceptance cone of a multimode
graded-index fiber and finds the half-angle is 12.5°. What is the approximate numerical
aperture?
A. 0.10
B. 0.15
C. 0.32
D. 0.22 ✓ CORRECT
Correct Answer: D
Rationale: Numerical aperture is the sine of the acceptance half-angle, so sin(12.5°) ≈
0.22. A common mistake is to use the full acceptance angle instead of the half-angle,
which would yield an incorrect value around 0.43. This spec determines how much light
the fiber can gather from an LED source.
Question 3 of 50
A 45-year-old installer is pulling a 12-fiber indoor distribution cable and notices the
fibers are color-coded blue, orange, green, brown, slate, white, red, black, yellow, violet,
rose, and aqua. According to TIA-598-C, what position is the red fiber?
A. Fiber 7 ✓ CORRECT
B. Fiber 6
C. Fiber 8
D. Fiber 10
Correct Answer: A
Rationale: TIA-598-C assigns red to fiber position 7 in a 12-fiber sequence, following
white in position 6 and preceding black in position 8. Confusing red with black is a
, common field error because both are dark colors, especially under poor lighting. Always
verify with a fiber identifier before splicing.
Question 4 of 50
During a pre-installation meeting for a university data center, the engineer specifies
OFNP-rated cable for the plenum spaces above the drop ceilings. A junior tech asks
what the primary advantage of OFNP is.
A. It is rated for outdoor UV exposure
B. It provides the highest pulling tension rating
C. It meets NEC plenum fire-resistance and low-smoke requirements ✓ CORRECT
D. It is the lowest-cost indoor cable option
Correct Answer: C
Rationale: OFNP (Optical Fiber Nonconductive Plenum) is specifically rated for
installation in air-handling plenums per NEC Article 770 and produces minimal smoke
and toxic gases when exposed to flame. OFNR is for risers, and outdoor cables require
different UV-resistant jackets, so confusing the two can lead to code violations.
Question 5 of 50
A technician measures attenuation on a new single-mode spool and records 0.35
dB/km at 1310 nm. The manufacturer lists 0.20 dB/km at 1550 nm. What physical
phenomenon explains this difference?
A. Rayleigh scattering is independent of wavelength
B. Rayleigh scattering is inversely proportional to the fourth power of wavelength,
causing higher loss at 1310 nm ✓ CORRECT
C. Bending losses are negligible at 1310 nm
D. Absorption by OH- ions is lower at 1310 nm
Correct Answer: B
