AVIXA CTS-D: Determine Image Specifications Questions and Answers with Verified Solutions | Latest 2026 Update

Content preview

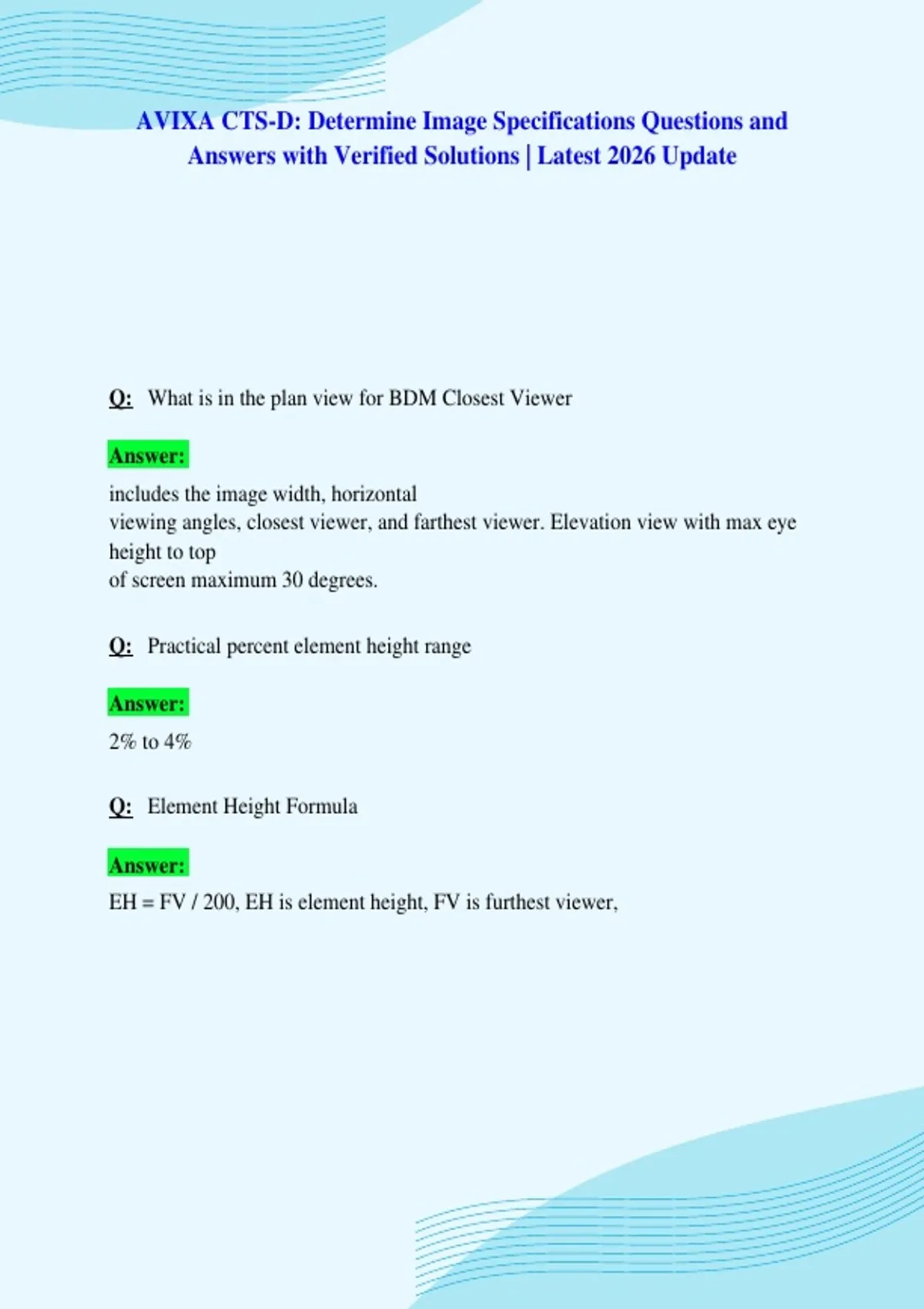

AVIXA CTS-D: Determine Image Specifications Questions and
Answers with Verified Solutions | Latest 2026 Update




Q: What is in the plan view for BDM Closest Viewer

Answer:
includes the image width, horizontal
viewing angles, closest viewer, and farthest viewer. Elevation view with max eye
height to top
of screen maximum 30 degrees.

Q: Practical percent element height range

Answer:
2% to 4%

Q: Element Height Formula

Answer:
EH = FV / 200, EH is element height, FV is furthest viewer,

, AVIXA CTS-D: Determine Image Specifications Questions and
Answers with Verified Solutions | Latest 2026 Update




Q: ADM Image Height Formula

Answer:
IH = (IR x FV) / 3438

Q: Where

Answer:
IH is the image height
IR is the vertical image resolution
FV is the farthest viewer distance
3438 is the acuity factor for ADM (20/20 Vision)

Q: ADM Farthest Viewer Formula

Answer:
FV = (IH / IR) x 3438
Where:

, AVIXA CTS-D: Determine Image Specifications Questions and
Answers with Verified Solutions | Latest 2026 Update




Q: FV is the farthest viewer distance

Answer:


Q: IR is the vertical image resolution

Answer:


Q: IH is the image height

Answer:


Q: 3438 is the acuity factor for ADM

Answer:
