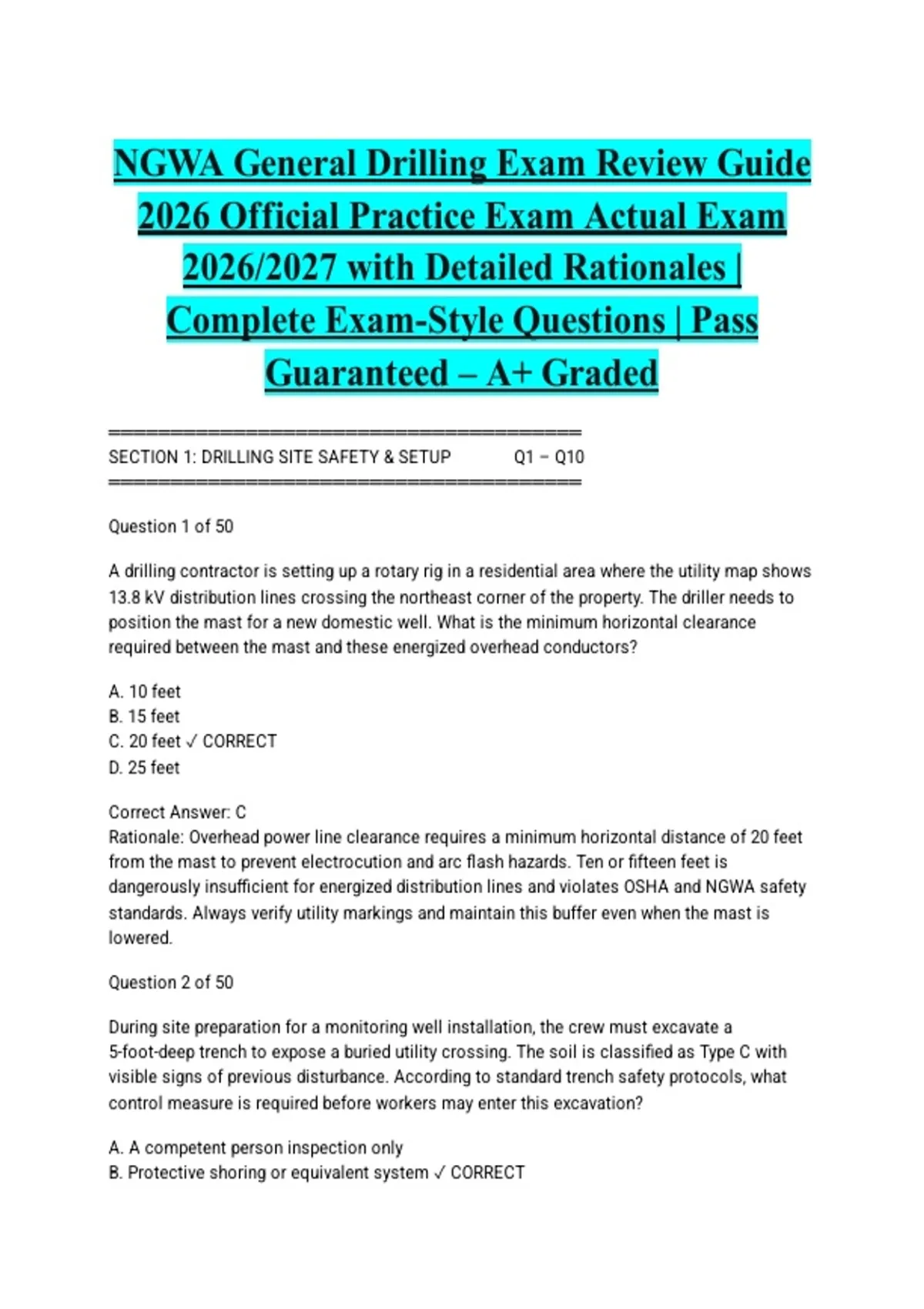

NGWA General Drilling Exam Review Guide
2026 Official Practice Exam Actual Exam
2026/2027 with Detailed Rationales |
Complete Exam-Style Questions | Pass
Guaranteed – A+ Graded
══════════════════════════════════════
SECTION 1: DRILLING SITE SAFETY & SETUP Q1 – Q10
══════════════════════════════════════
Question 1 of 50
A drilling contractor is setting up a rotary rig in a residential area where the utility map shows
13.8 kV distribution lines crossing the northeast corner of the property. The driller needs to
position the mast for a new domestic well. What is the minimum horizontal clearance
required between the mast and these energized overhead conductors?
A. 10 feet
B. 15 feet
C. 20 feet ✓ CORRECT
D. 25 feet
Correct Answer: C
Rationale: Overhead power line clearance requires a minimum horizontal distance of 20 feet
from the mast to prevent electrocution and arc flash hazards. Ten or fifteen feet is
dangerously insufficient for energized distribution lines and violates OSHA and NGWA safety
standards. Always verify utility markings and maintain this buffer even when the mast is
lowered.
Question 2 of 50
During site preparation for a monitoring well installation, the crew must excavate a
5-foot-deep trench to expose a buried utility crossing. The soil is classified as Type C with
visible signs of previous disturbance. According to standard trench safety protocols, what
control measure is required before workers may enter this excavation?
A. A competent person inspection only
B. Protective shoring or equivalent system ✓ CORRECT
,C. A ladder placed every 15 feet
D. Continuous atmospheric monitoring
Correct Answer: B
Rationale: Trenches deeper than 4 feet in Type C soil require protective shoring, sloping, or a
trench box to prevent cave-in injuries and fatalities. Relying solely on a competent person
inspection without physical protection is inadequate for excavations of this depth. This
requirement is fundamental to OSHA excavation standards and drilling site safety.
Question 3 of 50
Before mobilizing a cable tool rig to a former agricultural site scheduled for conversion to a
commercial development, the foreman gathers the crew for a pre-job briefing. He walks
through each task step, identifies potential hazards, and documents control measures. This
process is formally known as:
A. A Job Safety Analysis ✓ CORRECT
B. A toolbox talk
C. A site hazard assessment
D. A pre-startup checklist
Correct Answer: A
Rationale: A Job Safety Analysis systematically identifies hazards and establishes controls
before work begins, making it a cornerstone of drilling safety programs. A toolbox talk is
valuable but does not replace the structured hazard identification process of a JSA.
Documenting your JSA protects both workers and the company during regulatory
inspections.
Question 4 of 50
A driller is preparing to start the diesel engine on a direct-drive rotary table after completing
morning maintenance. The clutch linkage was just adjusted. Before engaging the starter, the
driller must verify that the clutch is disengaged and the transmission is in what position?
A. First gear to prevent rolling
B. Reverse gear for engine braking
C. The highest forward gear
D. Neutral ✓ CORRECT
Correct Answer: D
Rationale: Starting engines only with clutches disengaged and gears in neutral prevents
sudden equipment movement and catastrophic mechanical damage. Starting in any gear
risks immediate rig movement that could injure nearby workers or damage the mast. This is
a non-negotiable step in every driller's pre-startup routine.
, Question 5 of 50
A mechanic needs to replace a worn drive belt on the mast hoist of a top-head drive rig. The
driller has shut down the engine and removed the key. Before the mechanic reaches into the
drive assembly, what additional safety procedure must be completed to prevent accidental
energization?
A. Lockout/tagout of the power source ✓ CORRECT
B. Posting a warning sign at the rig entrance
C. Assigning a safety observer only
D. Grounding the mast electrically
Correct Answer: A
Rationale: Lockout/tagout before adjustments to clutches or drive shafts ensures that stored
energy cannot be accidentally released while hands are in the machinery. A warning sign
alone does not physically prevent someone from restarting the engine. Never bypass this
procedure even for quick adjustments.
Question 6 of 50
Two drillers are working on a remote site in mountainous terrain where cellular service is
unavailable. One driller descends into a 12-foot-deep cellar to repair a broken foot valve while
the other remains at the rig controls. The driller at the surface maintains visual contact and
has a rope ready. This arrangement best describes:
A. A confined space entry permit
B. The buddy system ✓ CORRECT
C. A two-person lift protocol
D. A manual hoisting procedure
Correct Answer: B
Rationale: The buddy system ensures workers assist each other in emergencies, which is
critical when communication devices are ineffective and outside help is distant. A confined
space permit is a documentation process, not the physical arrangement of mutual
assistance. Never work alone in situations where rapid rescue is impossible.
Question 7 of 50
A rig is being positioned on a sloped clay site for a community water well. The ground is soft
from recent rain. To prevent settling and maintain mast plumb during drilling, the operator
places steel jack pads under the outriggers and adjusts the rig to achieve:
A. Maximum leveling regardless of pad placement
B. A 2-degree tilt toward the sump pit
