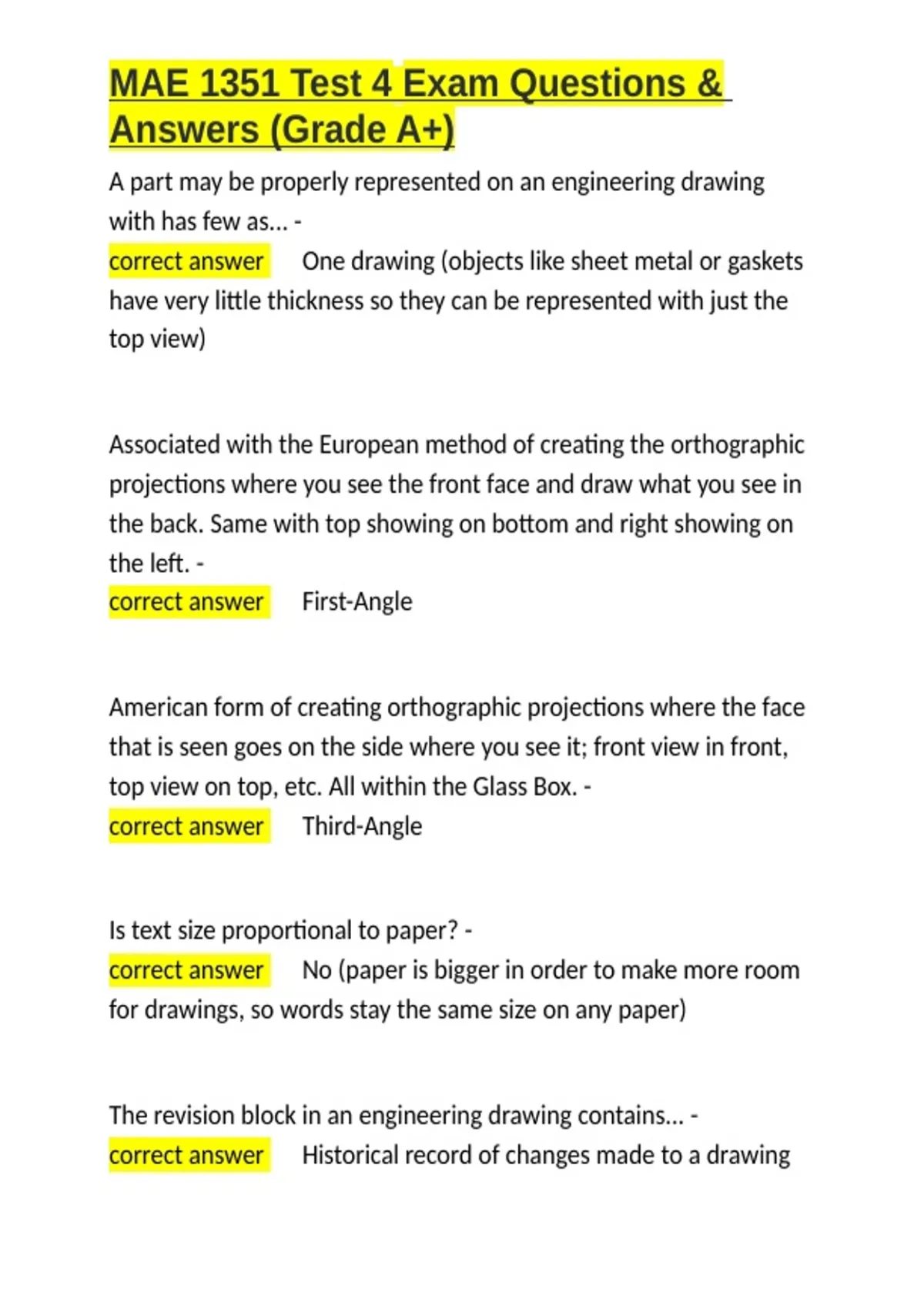

MAE 1351 Test 4 Exam Questions &
Answers (Grade A+)
A part may be properly represented on an engineering drawing
with has few as... -
correct answer ✅One drawing (objects like sheet metal or gaskets
have very little thickness so they can be represented with just the
top view)
Associated with the European method of creating the orthographic
projections where you see the front face and draw what you see in
the back. Same with top showing on bottom and right showing on
the left. -
correct answer ✅First-Angle
American form of creating orthographic projections where the face
that is seen goes on the side where you see it; front view in front,
top view on top, etc. All within the Glass Box. -
correct answer ✅Third-Angle
Is text size proportional to paper? -
correct answer ✅No (paper is bigger in order to make more room
for drawings, so words stay the same size on any paper)
The revision block in an engineering drawing contains... -
correct answer ✅Historical record of changes made to a drawing
, MAE 1351 Test 4 Exam Questions &
Answers (Grade A+)
(block that is placed in the top right corner of drawing, not within
the title block. Don't make any changes to a drawing without
marking down any revisions; don't throw away any changes, keep
proper record)
Engineering drawings should always have a front, top, and right
view. -
correct answer ✅No (you don't use views which are redundant are
non-contributive)
Sectional views must retain the same scale as the part from which
they are created and must be aligned with the source view. True? -
correct answer ✅No (sectional views are a way to increase the
visualization of the object. The scale can be changed, but
orientation and alignment must be kept.)
Instead of using multiple sections for different features, I can
cluster them under a single section using... -
correct answer ✅Offset section
If a standard view has any hidden lines, then creating a sectional
view is always recommended. True? -
