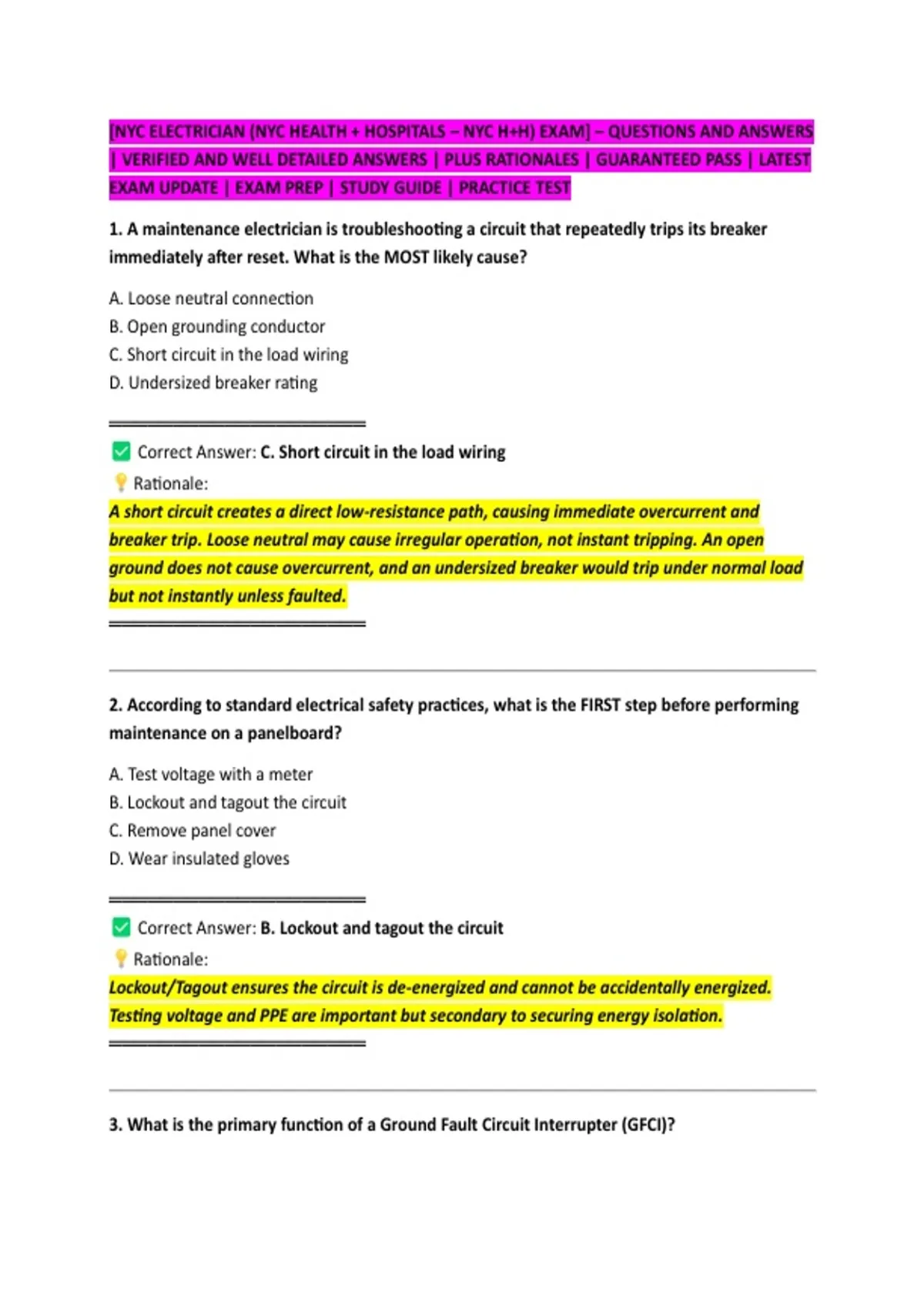

[NYC ELECTRICIAN (NYC HEALTH + HOSPITALS – NYC H+H) EXAM] – QUESTIONS AND ANSWERS
| VERIFIED AND WELL DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST
EXAM UPDATE | EXAM PREP | STUDY GUIDE | PRACTICE TEST
1. A maintenance electrician is troubleshooting a circuit that repeatedly trips its breaker
immediately after reset. What is the MOST likely cause?
A. Loose neutral connection
B. Open grounding conductor
C. Short circuit in the load wiring
D. Undersized breaker rating
════════════════════
Correct Answer: C. Short circuit in the load wiring
Rationale:
A short circuit creates a direct low-resistance path, causing immediate overcurrent and
breaker trip. Loose neutral may cause irregular operation, not instant tripping. An open
ground does not cause overcurrent, and an undersized breaker would trip under normal load
but not instantly unless faulted.
════════════════════
2. According to standard electrical safety practices, what is the FIRST step before performing
maintenance on a panelboard?
A. Test voltage with a meter
B. Lockout and tagout the circuit
C. Remove panel cover
D. Wear insulated gloves
════════════════════
Correct Answer: B. Lockout and tagout the circuit
Rationale:
Lockout/Tagout ensures the circuit is de-energized and cannot be accidentally energized.
Testing voltage and PPE are important but secondary to securing energy isolation.
════════════════════
3. What is the primary function of a Ground Fault Circuit Interrupter (GFCI)?
,A. Protect against overloads
B. Protect against short circuits
C. Detect leakage current to ground
D. Increase circuit capacity
════════════════════
Correct Answer: C. Detect leakage current to ground
Rationale:
A GFCI monitors imbalance between hot and neutral conductors and trips when leakage to
ground is detected, preventing electric shock hazards.
════════════════════
4. A 20-amp breaker is protecting a lighting circuit. What is the maximum continuous load
allowed under NEC guidelines?
A. 10 amps
B. 12 amps
C. 16 amps
D. 20 amps
════════════════════
Correct Answer: C. 16 amps
Rationale:
NEC recommends continuous loads not exceed 80% of breaker rating. 20A × 0.8 = 16A
maximum continuous load.
════════════════════
5. When measuring voltage in a live circuit, what is the MOST important safety precaution?
A. Use a clamp meter only
B. Set meter to highest voltage range
C. Verify meter is rated for the circuit voltage
D. Touch probes together before use
════════════════════
Correct Answer: C. Verify meter is rated for the circuit voltage
Rationale:
Using a properly rated meter prevents equipment failure and shock hazards. Range selection
,and probe testing are secondary precautions.
════════════════════
6. What is the purpose of a conduit in electrical installations?
A. Increase current capacity
B. Provide mechanical protection for conductors
C. Reduce voltage drop
D. Ground the system
════════════════════
Correct Answer: B. Provide mechanical protection for conductors
Rationale:
Conduits protect wiring from physical damage and environmental exposure but do not affect
electrical performance like voltage drop or grounding.
════════════════════
7. A motor is overheating during operation. What is the FIRST check an electrician should
perform?
A. Replace the motor
B. Check load conditions
C. Increase breaker size
D. Replace wiring
════════════════════
Correct Answer: B. Check load conditions
Rationale:
Overheating is commonly caused by overload conditions. Replacement or wiring changes
should only follow diagnostic confirmation.
════════════════════
8. What does Ohm’s Law state?
A. Power equals voltage times current
B. Current equals voltage divided by resistance
C. Voltage equals power times resistance
D. Resistance equals voltage times current
, ════════════════════
Correct Answer: B. Current equals voltage divided by resistance
Rationale:
Ohm’s Law defines I = V/R, fundamental for circuit analysis and troubleshooting.
════════════════════
9. What is the function of a circuit breaker?
A. Store electrical energy
B. Regulate voltage
C. Interrupt excessive current flow
D. Increase resistance
════════════════════
Correct Answer: C. Interrupt excessive current flow
Rationale:
Circuit breakers protect circuits by opening when overcurrent conditions occur.
════════════════════
10. What color is typically used for grounding conductors in standard electrical wiring?
A. White
B. Green
C. Black
D. Red
════════════════════
Correct Answer: B. Green
Rationale:
Green (or green with yellow stripe) identifies grounding conductors per electrical code
standards.
════════════════════
11. A breaker trips intermittently without a consistent load pattern. What is the MOST likely
cause?
