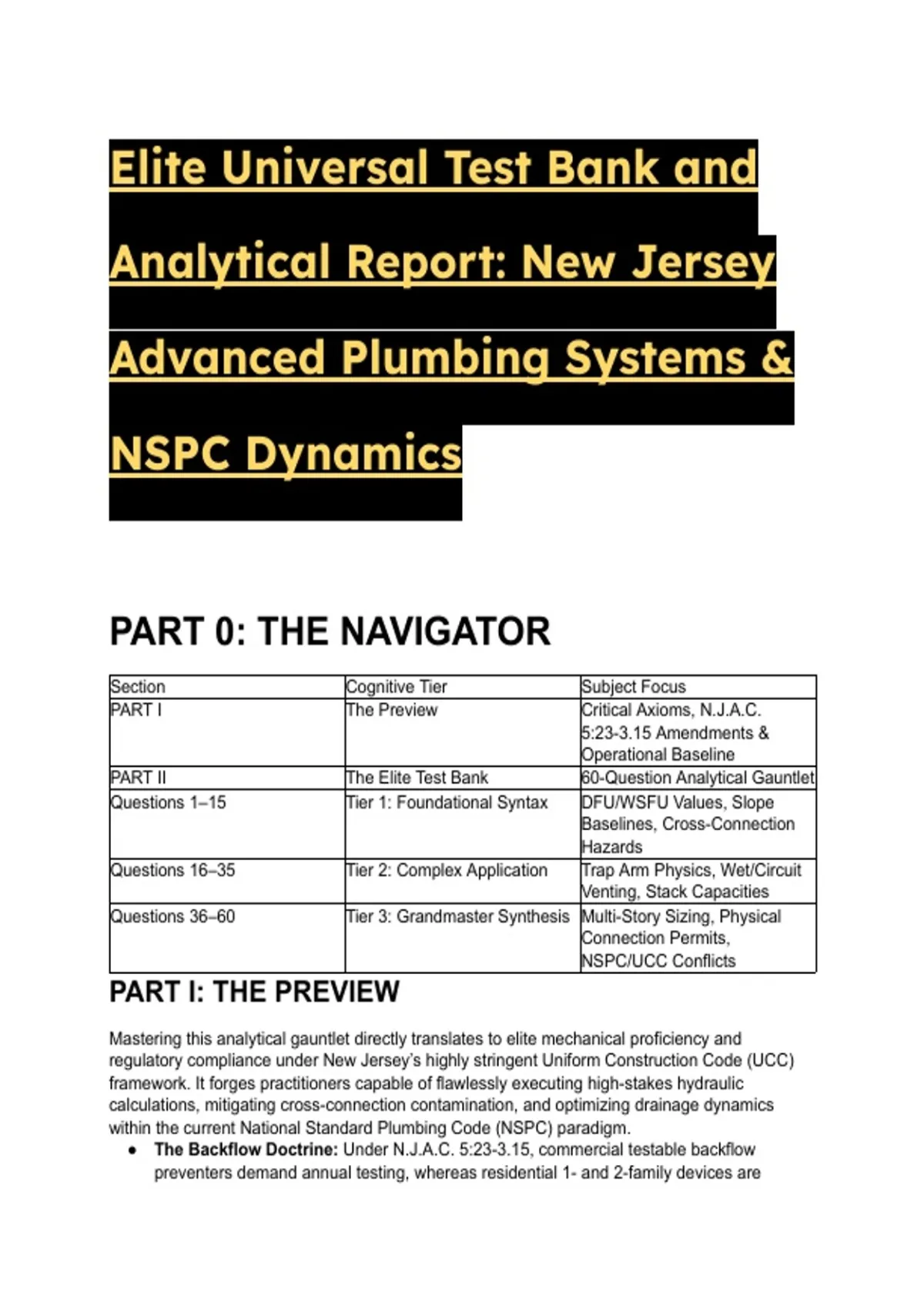

Elite Universal Test Bank and
Analytical Report: New Jersey
Advanced Plumbing Systems &
NSPC Dynamics
PART 0: THE NAVIGATOR
Section Cognitive Tier Subject Focus
PART I The Preview Critical Axioms, N.J.A.C.
5:23-3.15 Amendments &
Operational Baseline
PART II The Elite Test Bank 60-Question Analytical Gauntlet
Questions 1–15 Tier 1: Foundational Syntax DFU/WSFU Values, Slope
Baselines, Cross-Connection
Hazards
Questions 16–35 Tier 2: Complex Application Trap Arm Physics, Wet/Circuit
Venting, Stack Capacities
Questions 36–60 Tier 3: Grandmaster Synthesis Multi-Story Sizing, Physical
Connection Permits,
NSPC/UCC Conflicts
PART I: THE PREVIEW
Mastering this analytical gauntlet directly translates to elite mechanical proficiency and
regulatory compliance under New Jersey’s highly stringent Uniform Construction Code (UCC)
framework. It forges practitioners capable of flawlessly executing high-stakes hydraulic
calculations, mitigating cross-connection contamination, and optimizing drainage dynamics
within the current National Standard Plumbing Code (NSPC) paradigm.
● The Backflow Doctrine: Under N.J.A.C. 5:23-3.15, commercial testable backflow
preventers demand annual testing, whereas residential 1- and 2-family devices are
, exempt. Conversely, unapproved sources interfacing with public supplies require a DEP
Physical Connection Permit and quarterly testing.
● The DFU/WSFU Loading Hierarchy: A Water Closet strictly dictates foundational sizing;
it demands a minimum 3-inch pipe and contributes 4 DFU (Gravity). Hot and cold water
supply fixture units (WSFU) splits are calculated at 75% of the total fixture demand.
● The Wet Vent Imperative: New Jersey’s specific amendment to Section 12.10 mandates
a strict 2-inch minimum pipe diameter for any wet vent serving a water closet within a
single bathroom group.
● The Friction & Velocity Constant: Gravity drainage relies on self-scouring velocity
(approx. 2 ft/sec). Pipes 2-1/2 inches or smaller require a 1/4-inch per foot slope; pipes 3
to 6 inches require an 1/8-inch per foot slope.
Core Baseline Data Tables
Fixture Type (Non-Dwelling) Minimum Trap Size DFU Load
Lavatory 1-1/4" 1 DFU
Kitchen Sink (Domestic) 1-1/2" 2 DFU
Water Closet (1.6 GPF Gravity) 3" 4 DFU
Urinal (1.0 GPF) 2" 4 DFU
Shower (Group, per head) 2" 5 DFU
Data sourced from NSPC Table 11.4.1.
Horizontal Branch Size Max DFU Load Max Water Closets
2-inch 6 DFU 0
3-inch 20 DFU 4
4-inch 160 DFU Unlimited (within DFU)
Data sourced from NSPC Table 11.5.1B & Sizing Limits.
---
PART II: THE ELITE TEST BANK
Q1: An engineer is sizing a horizontal branch drain for a commercial restroom containing five
1.6 GPF gravity water closets. Based on the principles of NSPC Table 11.5.1B, which
conclusion regarding the branch size is the MOST ACCURATE? A) A 3-inch pipe is sufficient
because it can handle up to 20 DFU. B) A 3-inch pipe is prohibited because it cannot carry more
than three water closets. C) A 4-inch pipe is mandatory because a 3-inch horizontal branch is
limited to a maximum of four water closets. D) A 4-inch pipe is required solely because
commercial applications prohibit 3-inch soil branches entirely.
● The Answer: C (A 4-inch pipe is mandatory because a 3-inch horizontal branch is limited
to a maximum of four water closets.)
● Distractor Analysis:
○ A is incorrect: While five water closets total 20 DFU (which mathematically fits a
3-inch pipe's 20 DFU limit), NSPC restrictions cap a 3-inch pipe at a maximum of
four water closets. * B is incorrect: The strict maximum is four water closets, not
three.
○ D is incorrect: There is no blanket ban on 3-inch soil branches in commercial
settings; the limitation is based strictly on fixture count and DFU load.
The Mentor's Analysis: Hydraulic loading is restricted by both volume and solid waste density.
, When facing Soil Branch Sizing, the immediate priority is verifying fixture maximums, not just
DFU arithmetic. By utilizing the Water Closet Limitation Rule, you bypass the common trap of
mathematically overloading a pipe that will physically choke. Professional/Academic Intuition:
Always upgrade to 4-inch pipe upon reaching the fifth water closet on a horizontal
branch, regardless of total DFU.
Q2: A technician is inspecting an initial installation of a Reduced Pressure Zone (RPZ) backflow
assembly on a dedicated commercial fire protection line. Based on the principles of N.J.A.C.
5:23-3.15, which procedural action is MANDATORY? A) The plumbing subcode official must
personally perform a forward flow test. B) A certified tester must perform a field test prior to final
inspection, and the owner must submit a Certificate of Compliance. C) The fire official assumes
sole jurisdiction and waives the initial RPZ test. D) The device must be tested quarterly per
Department of Environmental Protection standards.
● The Answer: B (A certified tester must perform a field test prior to final inspection, and
the owner must submit a Certificate of Compliance.)
● Distractor Analysis:
○ A is incorrect: Inspectors are explicitly forbidden from performing the test
themselves; they only witness or verify certification.
○ C is incorrect: NFPA 25 and UCC dictate that cross-connection control remains
highly regulated; tests are never waived.
○ D is incorrect: Quarterly testing applies to DEP Physical Connection permits
involving unapproved water sources, not standard UCC fire line protection.
The Mentor's Analysis: Regulatory enforcement relies on third-party verification. When facing
Cross-Connection Commissioning, the immediate priority is obtaining certified test results. By
utilizing Certified Third-Party Testers, you bypass the common trap of municipal liability
assumption. Professional/Academic Intuition: Plumbing officials verify compliance;
certified technicians execute the testing.
Q3: A residential bathroom group features a lavatory (1 DFU) wet-venting a bathtub (2 DFU)
and a 1.6 GPF water closet (4 DFU). Based on the principles of New Jersey’s specific
amendment to NSPC Section 12.10, what is the MINIMUM allowable diameter for this wet vent?
A) 1-1/4 inches B) 1-1/2 inches C) 2 inches D) 3 inches
● The Answer: C (2 inches)
● Distractor Analysis:
○ A is incorrect: This is the minimum trap size for a lavatory, insufficient for a wet vent
serving a toilet.
○ B is incorrect: While legacy or alternate model codes sometimes permit 1-1/2 inch
wet vents under specific hydraulic loads, the NJ amendment strictly forbids this for
water closets.
○ D is incorrect: 3 inches is the minimum size for the soil drain, not the wet vent.
The Mentor's Analysis: Local amendments supersede base model codes to address regional
hydraulic priorities. When facing Wet Venting in NJ, the immediate priority is applying the
state-specific sizing floor. By utilizing a 2-inch minimum diameter, you bypass the common trap
of failing a municipal inspection due to utilizing standard national tables.
Professional/Academic Intuition: In New Jersey, if a wet vent serves a water closet, it is
unequivocally 2 inches minimum.
Q4: An installer is routing a 2-inch horizontal sanitary drainage pipe to a vertical stack. Based
on the principles of NSPC Section 11.3.1, which slope configuration is the MOST ACCURATE?
A) 1/8-inch per foot (1%) B) 1/4-inch per foot (2%) C) 1/2-inch per foot (4%) D) Level, provided
the run is under 5 feet.
