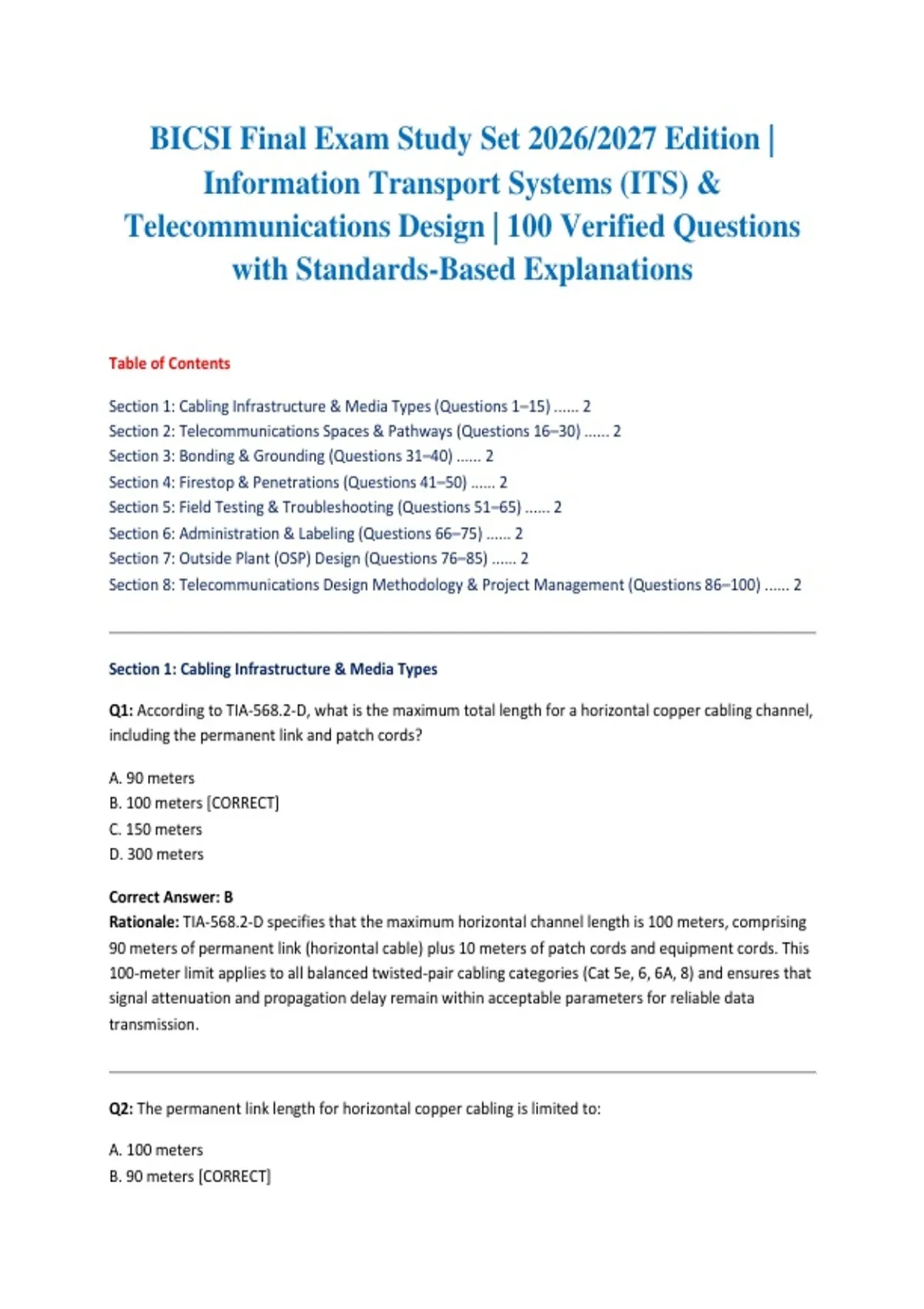

BICSI Final Exam Study Set 2026/2027 Edition |
Information Transport Systems (ITS) &
Telecommunications Design | 100 Verified Questions
with Standards-Based Explanations
Table of Contents
Section 1: Cabling Infrastructure & Media Types (Questions 1–15) ...... 2
Section 2: Telecommunications Spaces & Pathways (Questions 16–30) ...... 2
Section 3: Bonding & Grounding (Questions 31–40) ...... 2
Section 4: Firestop & Penetrations (Questions 41–50) ...... 2
Section 5: Field Testing & Troubleshooting (Questions 51–65) ...... 2
Section 6: Administration & Labeling (Questions 66–75) ...... 2
Section 7: Outside Plant (OSP) Design (Questions 76–85) ...... 2
Section 8: Telecommunications Design Methodology & Project Management (Questions 86–100) ...... 2
Section 1: Cabling Infrastructure & Media Types
Q1: According to TIA-568.2-D, what is the maximum total length for a horizontal copper cabling channel,
including the permanent link and patch cords?
A. 90 meters
B. 100 meters [CORRECT]
C. 150 meters
D. 300 meters
Correct Answer: B
Rationale: TIA-568.2-D specifies that the maximum horizontal channel length is 100 meters, comprising
90 meters of permanent link (horizontal cable) plus 10 meters of patch cords and equipment cords. This
100-meter limit applies to all balanced twisted-pair cabling categories (Cat 5e, 6, 6A, 8) and ensures that
signal attenuation and propagation delay remain within acceptable parameters for reliable data
transmission.
Q2: The permanent link length for horizontal copper cabling is limited to:
A. 100 meters
B. 90 meters [CORRECT]
,C. 80 meters
D. 70 meters
Correct Answer: B
Rationale: TIA-568.2-D defines the permanent link as the installed horizontal cabling from the
telecommunications outlet to the horizontal cross-connect, excluding patch cords and equipment cords.
The maximum permanent link length is 90 meters, which, when combined with up to 10 meters of patch
cords, yields the maximum 100-meter channel length.
Q3: What is the minimum bend radius for a Category 6A UTP cable during installation?
A. 2 times the cable diameter
B. 4 times the cable diameter [CORRECT]
C. 6 times the cable diameter
D. 8 times the cable diameter
Correct Answer: B
Rationale: TIA-568.2-D specifies that the minimum bend radius for Category 6A UTP cable during
installation is 4 times the outside cable diameter. This requirement prevents excessive deformation of
the cable geometry, which could increase crosstalk (NEXT, FEXT) and return loss, degrading performance
at frequencies up to 500 MHz.
Q4: What is the minimum bend radius for standard single-mode optical fiber cable during installation?
A. 5 times the cable diameter
B. 10 times the cable diameter
C. 20 times the cable diameter [CORRECT]
D. 30 times the cable diameter
Correct Answer: C
Rationale: TIA-568.3-D specifies that standard single-mode optical fiber cable has a minimum bend
radius of 20 times the outside cable diameter during installation. This prevents microbending and
macrobending losses that increase attenuation. Bend-insensitive fiber (such as ITU-T G.657) reduces this
requirement to 10 times the diameter for certain applications.
Q5: What is the minimum bend radius for bend-insensitive single-mode optical fiber cable?
A. 5 times the cable diameter
B. 10 times the cable diameter [CORRECT]
,C. 15 times the cable diameter
D. 20 times the cable diameter
Correct Answer: B
Rationale: TIA-568.3-D and ITU-T G.657 specify that bend-insensitive single-mode optical fiber has a
minimum bend radius of 10 times the outside cable diameter during installation. This reduced bend
radius, compared to standard fiber's 20x requirement, enables tighter cable routing in high-density
environments such as data centers and telecommunications rooms without significantly increasing
attenuation.
Q6: Which TIA standard governs the specifications for optical fiber cabling components?
A. TIA-568.2
B. TIA-568.3 [CORRECT]
C. TIA-569
D. TIA-606
Correct Answer: B
Rationale: TIA-568.3-D, "Optical Fiber Cabling Components Standard," governs the specifications for
optical fiber cabling systems, including single-mode and multimode fiber, connectors, patch cords, and
transmission performance requirements. It complements TIA-568.2-D (copper cabling) and TIA-568.1-D
(general requirements) within the TIA-568 series of structured cabling standards.
Q7: Which TIA standard governs the specifications for balanced twisted-pair copper cabling
components?
A. TIA-568.1
B. TIA-568.2 [CORRECT]
C. TIA-568.3
D. TIA-569
Correct Answer: B
Rationale: TIA-568.2-D, "Balanced Twisted-Pair Telecommunications Cabling and Components
Standard," specifies the requirements for copper cabling categories (Cat 5e, 6, 6A, 8), including
transmission performance, cable construction, connecting hardware, patch cords, and testing
parameters. It is the primary reference for copper structured cabling design and installation.
Q8: What is the maximum operating frequency specified for Category 6A cabling?
, A. 100 MHz
B. 250 MHz
C. 500 MHz [CORRECT]
D. 1000 MHz
Correct Answer: C
Rationale: TIA-568.2-D specifies that Category 6A (Augmented Category 6) cabling is characterized up to
500 MHz. This extended bandwidth, compared to Cat 6's 250 MHz and Cat 5e's 100 MHz, enables
10GBASE-T (10 Gigabit Ethernet over twisted-pair) transmission over the full 100-meter channel while
controlling alien crosstalk (AXT) through improved cable construction and shielding options.
Q9: What is the maximum operating frequency specified for Category 6 cabling?
A. 100 MHz
B. 250 MHz [CORRECT]
C. 500 MHz
D. 600 MHz
Correct Answer: B
Rationale: TIA-568.2-D specifies that Category 6 cabling is characterized up to 250 MHz. This bandwidth
supports 1GBASE-T (Gigabit Ethernet) over the full 100-meter channel and 10GBASE-T over shorter
distances (up to 55 meters). The 250 MHz specification requires tighter manufacturing tolerances and
improved crosstalk performance compared to Cat 5e.
Q10: What is the maximum operating frequency specified for Category 5e cabling?
A. 100 MHz [CORRECT]
B. 250 MHz
C. 500 MHz
D. 1000 MHz
Correct Answer: A
Rationale: TIA-568.2-D specifies that Category 5e (Enhanced Category 5) cabling is characterized up to
100 MHz. This bandwidth supports 100BASE-TX (Fast Ethernet) and 1GBASE-T (Gigabit Ethernet) over
the full 100-meter channel. Cat 5e improved upon original Cat 5 by adding performance requirements
for return loss, NEXT, and equal-level far-end crosstalk (ELFEXT).
Q11: Which fiber type is specified for 10 Gigabit Ethernet over 300 meters using 850 nm laser-optimized
multimode fiber?
