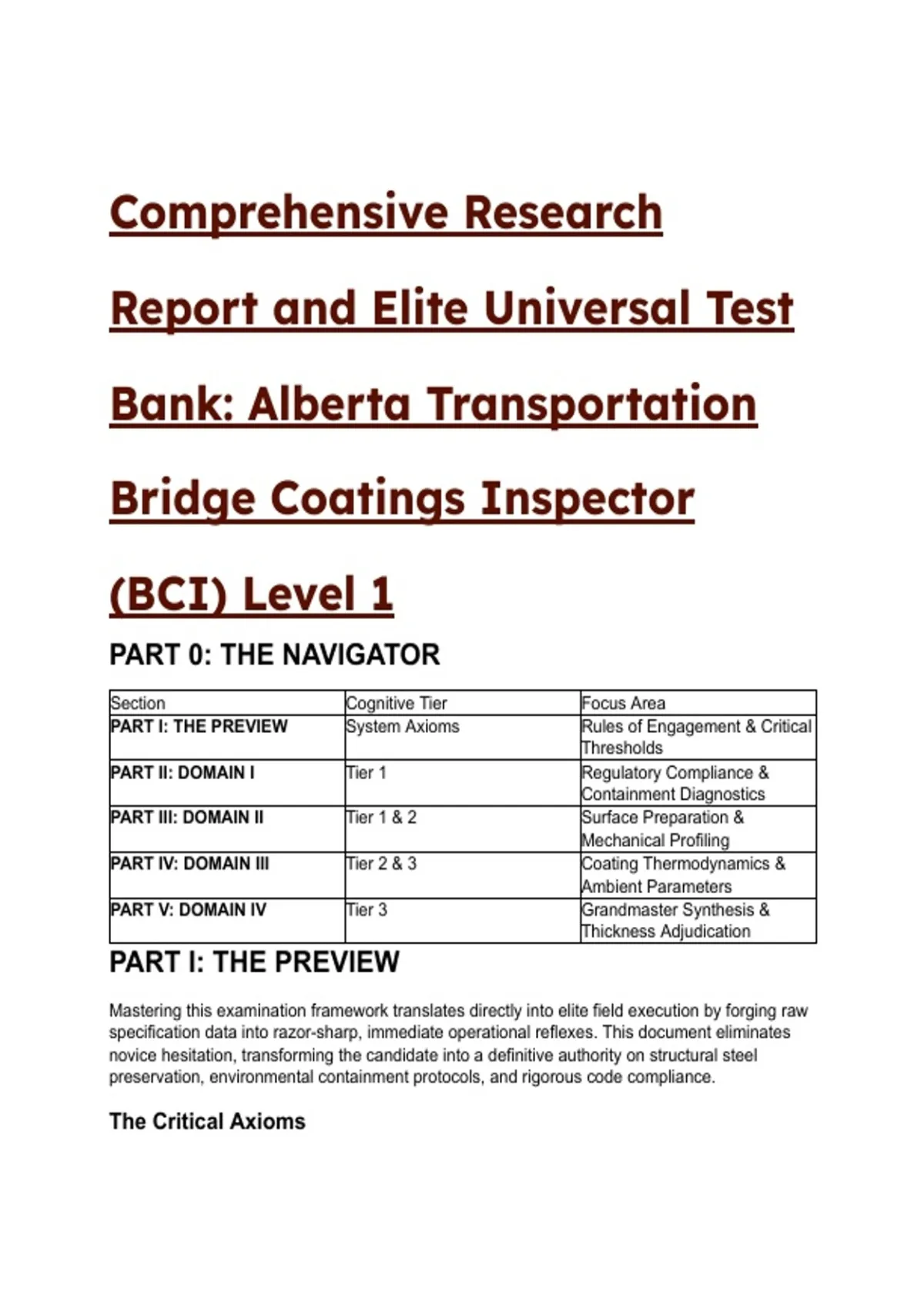

Comprehensive Research
Report and Elite Universal Test
Bank: Alberta Transportation
Bridge Coatings Inspector
(BCI) Level 1
PART 0: THE NAVIGATOR
Section Cognitive Tier Focus Area
PART I: THE PREVIEW System Axioms Rules of Engagement & Critical
Thresholds
PART II: DOMAIN I Tier 1 Regulatory Compliance &
Containment Diagnostics
PART III: DOMAIN II Tier 1 & 2 Surface Preparation &
Mechanical Profiling
PART IV: DOMAIN III Tier 2 & 3 Coating Thermodynamics &
Ambient Parameters
PART V: DOMAIN IV Tier 3 Grandmaster Synthesis &
Thickness Adjudication
PART I: THE PREVIEW
Mastering this examination framework translates directly into elite field execution by forging raw
specification data into razor-sharp, immediate operational reflexes. This document eliminates
novice hesitation, transforming the candidate into a definitive authority on structural steel
preservation, environmental containment protocols, and rigorous code compliance.
The Critical Axioms
,Axiom Category Critical Threshold / Governing Principle
Requirement
Ambient Parameters Steel must be ≥ 3°C above dew Eliminates micro-condensation
point. Max RH: 85%. Max and flash rust prior to polymer
Temp: 52°C. application.
Substrate Profiling Shop blast profile must Guarantees mechanical
measure 5 to 15 µm. Chamfer adhesion and prevents
edges to 1.0 mm. peak-rusting and edge retreat.
Thickness Adjudication Evaluate 5 locations per 9 m². Averages out blast profile
Take 3 readings per location. anomalies. Strict tolerance:
80% to 150% of specified DFT.
Exclusion Zones Mask 100 mm from field welds,
75 mm from open holes.
Hazardous Abatement CQ1 mandatory (SSPC-QP2). Isolates toxic particulates (lead)
Visual negative pressure from the surrounding
(concave tarps). ecosystem and civilian
infrastructure.
PART II: DOMAIN I - REGULATORY COMPLIANCE &
CONTAINMENT DIAGNOSTICS
The foundation of bridge coating inspection rests upon the absolute legal and environmental
framework governing the contractor's operations. The classification of a contractor's
competency is not a mere administrative hurdle; it is a rigid statutory gateway that dictates the
scope of their operational authority. Under the governing standards, Contractor Qualifications
(CQ) are stratified into four distinct tiers. CQ1 represents the highest echelon, legally mandating
that the contractor and any associated subcontractors maintain an active SSPC-QP2
certification. This specific certification is the industry standard for the removal of hazardous
materials, such as lead-based legacy paints. Standard painting operations that do not involve
hazardous abatement fall under the CQ2 designation, requiring an SSPC-QP1 certification,
which verifies baseline operational competency and quality control.
Furthermore, the environmental containment structures utilized during these operations are
critical fail-safes. The enclosure is designed not merely to hide the work, but to actively manage
the micro-atmosphere and capture hazardous blasting spoil. The integrity of this containment is
visually verified by the inspector through the observation of negative pressure; tarpaulins must
exhibit a concave, inward appearance. This physical geometry confirms that the internal
extraction blowers are drawing ambient air into the enclosure through any potential seams,
thereby preventing the escape of lead-laden dust into the surrounding aquatic or civilian
environment. If the tarps billow outward, the system has suffered a catastrophic pressure
inversion, necessitating an immediate suspension of work.
Q1: A contractor is preparing to bid on an infrastructure rehabilitation project that involves the
removal of a deteriorating lead-based alkyd system over a sensitive fish habitat. Based on the
governing specifications for Contractor Qualifications, which certification level is MANDATORY
for this operation? A) CQ2 featuring an active SSPC-QP1 certification. B) CQ4 featuring
documented experience in abrasive blasting over waterways. C) CQ1 featuring an active
SSPC-QP2 certification. D) CQ3 featuring an approved negative-pressure containment
methodology.
, ● The Answer: C (CQ1 featuring an active SSPC-QP2 certification.)
● Distractor Analysis:
○ A is incorrect: CQ2 (SSPC-QP1) evaluates the qualifications of painting contractors
for standard applications and non-hazardous surface preparation, making it legally
insufficient for lead abatement. * B is incorrect: CQ4 requires no specific
pre-qualification and is entirely inadequate and illegal for hazardous environmental
abatement. * D is incorrect: While CQ3 relies on documented experience and
containment plans, it is overridden by the strict requirement that hazardous paint
removal categorically necessitates CQ1 (SSPC-QP2).
The Mentor's Analysis: The elite inspector recognizes that hazardous material abatement
fundamentally shifts the liability framework of a project. When lead is present, standard painting
competency (QP1) is insufficient. By enforcing the CQ1 requirement, the agency ensures the
contractor possesses the specialized environmental, health, and containment infrastructure
required for toxic removal. Professional/Academic Intuition: Hazardous abatement
categorically mandates SSPC-QP2 (CQ1) certification; standard coating operations
default to SSPC-QP1 (CQ2).
Q2: An inspector arrives at a bridge site undergoing abrasive blasting for hazardous paint
removal. Looking at the containment tarps from the exterior scaffolding, the inspector notes they
are billowing outward into the wind. What does this visual evidence MOST LIKELY indicate? A)
The containment is functioning optimally, actively exhausting internal abrasive dust into the
filtration unit. B) The required negative pressure within the containment has failed, constituting
an environmental breach. C) The ambient relative humidity inside the containment has
exceeded 85%, expanding the internal air volume. D) The contractor is properly utilizing
SSPC-SP 7 Brush-Off Blast Cleaning techniques, which require positive pressure.
● The Answer: B (The required negative pressure within the containment has failed,
constituting an environmental breach.)
● Distractor Analysis:
○ A is incorrect: Outward billowing means internal air (laden with hazardous dust) is
pushing against the boundaries and escaping into the environment, representing a
total containment failure.
○ C is incorrect: Relative humidity affects the paint curing process and dew point
calculations, but it does not dictate the physical barometric pressure dynamics of a
heavy-duty containment structure.
○ D is incorrect: SSPC-SP 7 refers to the cleanliness level of the substrate (Brush-Off
Blast), not the integrity or pressure requirements of the environmental containment
enclosure.
The Mentor's Analysis: Containment systems must operate under negative pressure so that
any breach in the tarp seams draws clean outside air in, rather than pushing contaminated air
out. A concave, inward appearance of the tarps is the immediate, undeniable visual proof that
negative pressure is established and holding. Professional/Academic Intuition: Outward
billowing tarps equal an immediate environmental breach. The blasting operation must
be immediately suspended.
Q3: During the review of a contractor's work proposal for a standard (non-hazardous) bridge
recoating project, the contractor submits documentation proving CQ2 competency. The
contractor plans to use recycled steel grit for abrasive blasting. Which secondary testing
protocol must the inspector ensure is being continuously executed to validate this method? A)
The contractor must provide daily SSPC-QP2 environmental air monitoring logs. B) The
contractor must test the recycled grit for cleanliness, confirming it is devoid of
