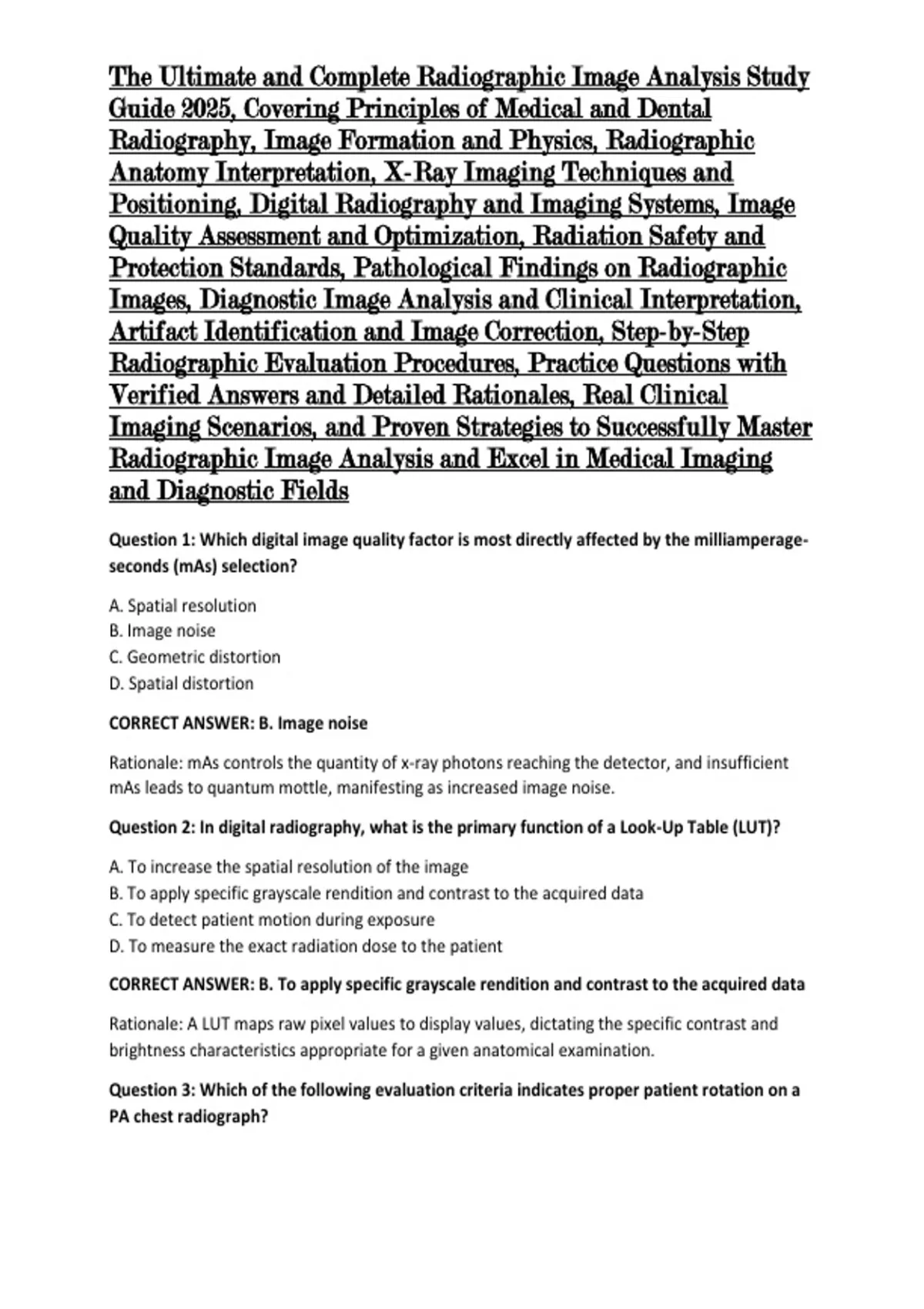

Question 1: Which digital image quality factor is most directly affected by the milliamperage-
seconds (mAs) selection?
A. Spatial resolution
B. Image noise
C. Geometric distortion
D. Spatial distortion
CORRECT ANSWER: B. Image noise
Rationale: mAs controls the quantity of x-ray photons reaching the detector, and insufficient
mAs leads to quantum mottle, manifesting as increased image noise.
Question 2: In digital radiography, what is the primary function of a Look-Up Table (LUT)?
A. To increase the spatial resolution of the image
B. To apply specific grayscale rendition and contrast to the acquired data
C. To detect patient motion during exposure
D. To measure the exact radiation dose to the patient
CORRECT ANSWER: B. To apply specific grayscale rendition and contrast to the acquired data
Rationale: A LUT maps raw pixel values to display values, dictating the specific contrast and
brightness characteristics appropriate for a given anatomical examination.
Question 3: Which of the following evaluation criteria indicates proper patient rotation on a
PA chest radiograph?
,A. The clavicles are equidistant from the spinous processes
B. The diaphragm is clearly visualized
C. The trachea is midline
D. The scapulae are projected outside the lung fields
CORRECT ANSWER: A. The clavicles are equidistant from the spinous processes
Rationale: Equidistant medial clavicular margins from the vertebral spinous processes indicate
the absence of patient rotation on a PA chest radiograph.
Question 4: What is the expected radiographic appearance of grid cutoff when using a
focused grid off-level?
A. Increased density on one side of the image
B. Decreased density across the entire image
C. Increased density across the entire image
D. No change in image density
CORRECT ANSWER: B. Decreased density across the entire image
Rationale: An off-level focused grid intercepts primary radiation across the entire image
receptor, resulting in a uniform decrease in image density or increased brightness in digital
systems.
Question 5: Which factor has the greatest impact on spatial resolution in radiographic
imaging?
A. Kilovoltage peak (kVp)
B. Focal spot size
C. Milliamperage-seconds (mAs)
D. Patient thickness
CORRECT ANSWER: B. Focal spot size
Rationale: A smaller focal spot size reduces geometric unsharpness, thereby improving spatial
resolution and recorded detail.
Question 6: On a lateral chest radiograph, which finding indicates inadequate inspiration?
A. Visualization of 10 posterior ribs
B. Superimposition of the hemidiaphragms
C. Visualization of fewer than 9 posterior ribs
D. Clear visualization of the retrosternal space
CORRECT ANSWER: C. Visualization of fewer than 9 posterior ribs
,Rationale: Adequate inspiration on a lateral chest radiograph is demonstrated by the
visualization of at least 9 to 10 posterior ribs above the diaphragm.
Question 7: What is the primary cause of a Moiré artifact in digital radiography?
A. Patient motion during exposure
B. Interference pattern between the grid lines and the detector scanning frequency
C. Insufficient mAs
D. Excessive kVp
CORRECT ANSWER: B. Interference pattern between the grid lines and the detector scanning
frequency
Rationale: A Moiré artifact occurs when the frequency of the grid lines aligns closely with the
sampling frequency of the digital detector, creating a wavy interference pattern.
Question 8: Which anatomical landmark confirms proper inclusion on an AP abdomen (KUB)
radiograph?
A. The xiphoid process at the top and the symphysis pubis at the bottom
B. The iliac crests at the top and the greater trochanters at the bottom
C. The diaphragm at the top and the symphysis pubis at the bottom
D. The lower ribs at the top and the ischial tuberosities at the bottom
CORRECT ANSWER: C. The diaphragm at the top and the symphysis pubis at the bottom
Rationale: A properly collimated AP abdomen radiograph must include the diaphragm
superiorly and the symphysis pubis inferiorly to ensure all relevant abdominal structures are
visualized.
Question 9: In digital imaging, what does a high Exposure Index (EI) typically indicate?
A. Underexposure of the image receptor
B. Overexposure of the image receptor
C. Poor spatial resolution
D. Excessive patient motion
CORRECT ANSWER: B. Overexposure of the image receptor
Rationale: A significantly high Exposure Index generally indicates that the image receptor
received more radiation than the target value, suggesting patient overexposure.
Question 10: Which positioning error results in the petrous ridges projecting into the
maxillary sinuses on a Waters method radiograph?
A. Excessive chin extension
B. Insufficient chin extension
, C. Patient rotation
D. Central ray angled cephalad
CORRECT ANSWER: B. Insufficient chin extension
Rationale: Insufficient chin extension causes the petrous ridges to project inferiorly, overlapping
the maxillary sinuses on a Waters projection.
Question 11: On a PA chest radiograph, which finding indicates patient rotation to the right?
A. The right clavicle is closer to the spinous processes than the left
B. The left clavicle is closer to the spinous processes than the right
C. The right hemidiaphragm is higher than the left
D. The trachea is deviated to the left
CORRECT ANSWER: A. The right clavicle is closer to the spinous processes than the left
Rationale: When a patient is rotated to the right, the right sternoclavicular joint moves closer to
the thoracic spine, appearing closer to the spinous processes.
Question 12: What is the primary indicator of adequate inspiration on a PA chest radiograph?
A. 5 anterior ribs visible above the diaphragm
B. 10 posterior ribs visible above the diaphragm
C. The clavicles are horizontal
D. The scapulae are outside the lung fields
CORRECT ANSWER: B. 10 posterior ribs visible above the diaphragm
Rationale: Adequate inspiration is confirmed by visualizing at least 10 posterior ribs above the
diaphragm, ensuring optimal lung expansion for diagnostic evaluation.
Question 13: On a lateral chest radiograph, proper alignment is demonstrated by the
superimposition of which structures?
A. The clavicles
B. The posterior ribs
C. The hemidiaphragms
D. The scapulae
CORRECT ANSWER: C. The hemidiaphragms
Rationale: True lateral positioning of the chest is evaluated by the superimposition of the right
and left hemidiaphragms, indicating no patient rotation.
Question 14: Which finding on an AP abdomen radiograph indicates patient rotation?
