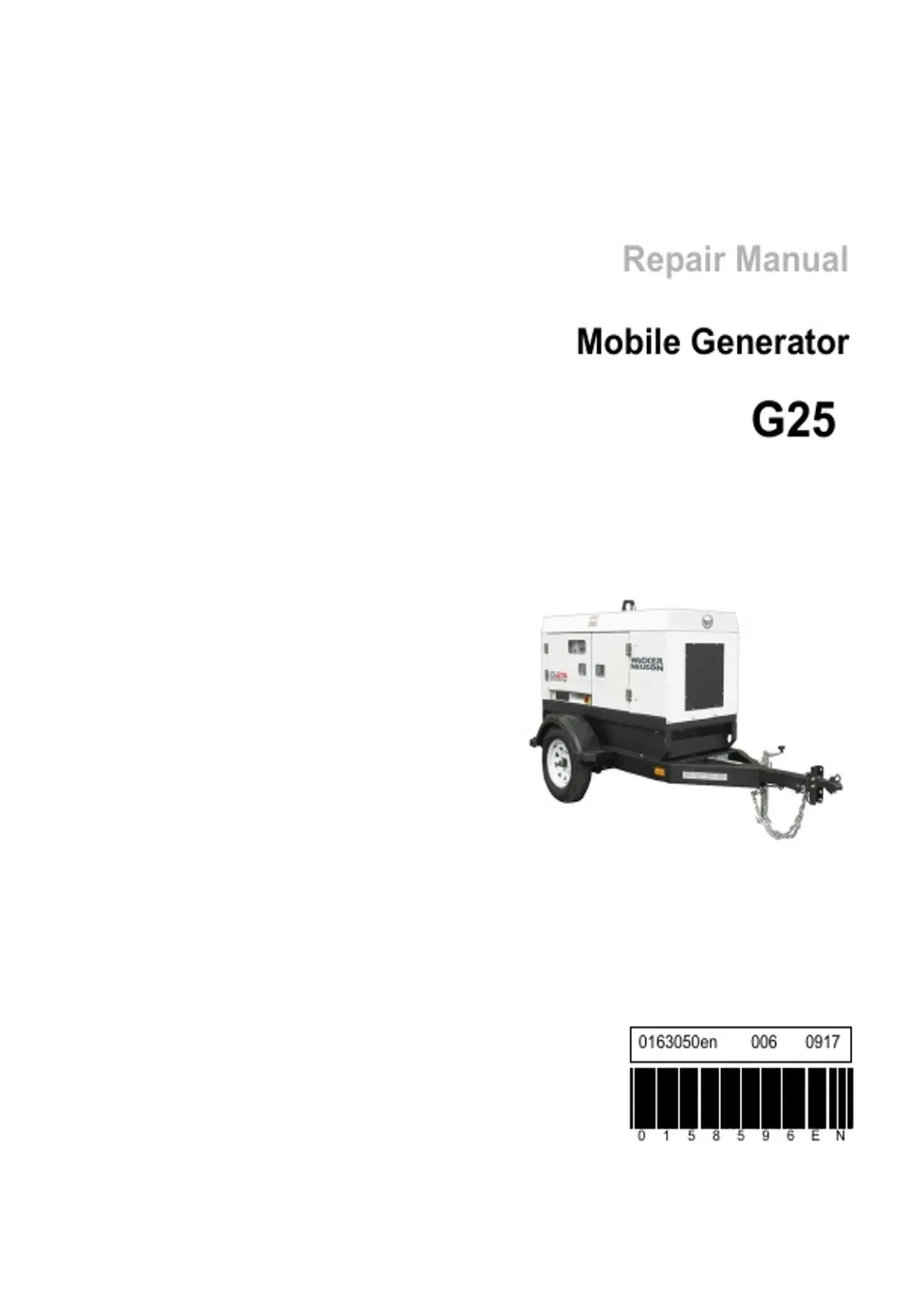

Repair Manual
Mobile Generator
G25
0163050en 006 0917
0 1 5 8 5 9 6 E N
,Copyright © Copyright 2017 by Wacker Neuson Corporation.
notice All rights, including copying and distribution rights, are reserved.
This publication may be photocopied by the original purchaser of the machine. Any
other type of reproduction is prohibited without express written permission from
Wacker Neuson Corporation.
Any type of reproduction or distribution not authorized by Wacker Neuson Corporation
represents an infringement of valid copyrights. Violators will be prosecuted.
Trademarks All trademarks referenced in this manual are the property of their respective owners.
Manufacturer Wacker Neuson Corporation
N92W15000 Anthony Avenue
Menomonee Falls, WI 53051 U.S.A.
Tel: (262) 255-0500 · Fax: (262) 255-0550 · Tel: (800) 770-0957
,G 25 Foreword
Foreword
Machines covered by this manual
0009368, 0009466, 0620004, 0620344, 0620345, 0620346, 0620706
Machine documentation
• From this point forward in this documentation, Wacker Neuson
Production Americas LLC will be referred to as Wacker Neuson.
• Keep a copy of the Operator’s Manual with the machine at all
times.
• For spare parts information, please see your Wacker Neuson
Dealer, or visit the Wacker Neuson website at http://www.wacker-
neuson.com/.
• When ordering parts or requesting service information, be pre-
pared to provide the machine model number, item number, revi-
sion number, and serial number.
Expectations for information in this manual
• This manual provides information and procedures to safely oper-
ate and maintain the above Wacker Neuson model(s). For your
own safety and to reduce the risk of injury, carefully read, under-
stand, and observe all instructions described in this manual.
• Wacker Neuson expressly reserves the right to make technical
modifications, even without notice, which improve the perfor-
mance or safety standards of its machines.
• The information contained in this manual is based on machines
manufactured up until the time of publication. Wacker Neuson
reserves the right to change any portion of this information with-
out notice.
• The illustrations, parts, and procedures in this manual refer to
Wacker Neuson factory-installed components. Your machine may
vary depending on the requirements of your specific region.
CALIFORNIA Proposition 65 Warning
Combustion exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproductive
harm.
wc_tx001275gb.fm 3
, Foreword G 25
Laws pertaining to spark arresters
NOTICE: State Health Safety Codes and Public Resources Codes
specify that in certain locations spark arresters be used on internal
combustion engines that use hydrocarbon fuels. A spark arrester is a
device designed to prevent accidental discharge of sparks or flames
from the engine exhaust. Spark arresters are qualified and rated by
the United States Forest Service for this purpose. In order to comply
with local laws regarding spark arresters, consult the engine distribu-
tor or the local Health and Safety Administrator.
Manufacturer’s approval
This manual contains references to approved parts, attachments, and
modifications. The following definitions apply:
• Approved parts or attachments are those either manufactured or
provided by Wacker Neuson.
• Approved modifications are those performed by an authorized
Wacker Neuson service center according to written instructions
published by Wacker Neuson.
• Unapproved parts, attachments, and modifications are those that
do not meet the approved criteria.
Unapproved parts, attachments, or modifications may have the
following consequences:
• Serious injury hazards to the operator and persons in the work
area
• Permanent damage to the machine which will not be covered
under warranty
Contact your Wacker Neuson dealer immediately if you have
questions about approved or unapproved parts, attachments, or
modifications.
4 wc_tx001275gb.fm
