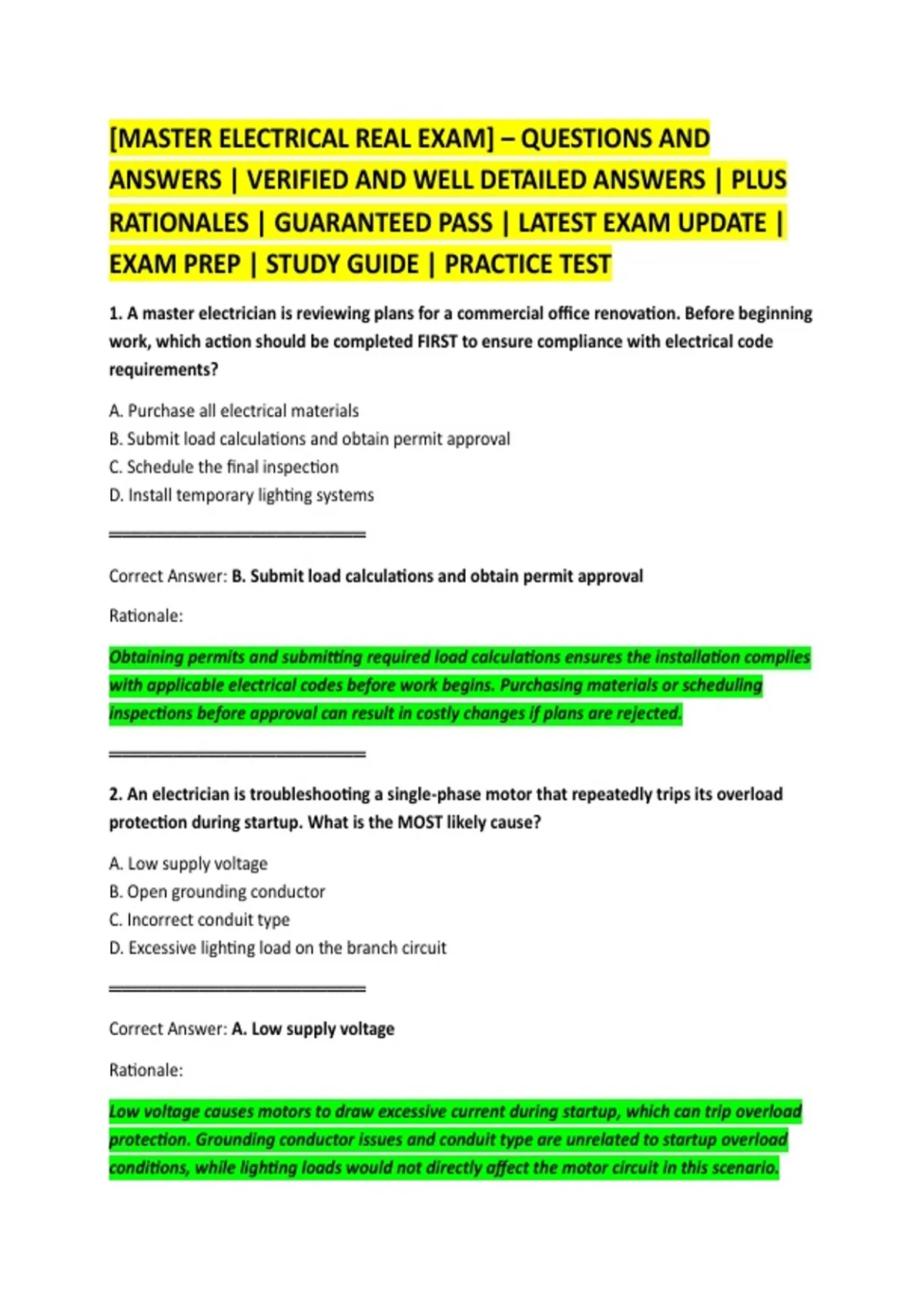

[MASTER ELECTRICAL REAL EXAM] – QUESTIONS AND
ANSWERS | VERIFIED AND WELL DETAILED ANSWERS | PLUS
RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE |
EXAM PREP | STUDY GUIDE | PRACTICE TEST
1. A master electrician is reviewing plans for a commercial office renovation. Before beginning
work, which action should be completed FIRST to ensure compliance with electrical code
requirements?
A. Purchase all electrical materials
B. Submit load calculations and obtain permit approval
C. Schedule the final inspection
D. Install temporary lighting systems
════════════════════
Correct Answer: B. Submit load calculations and obtain permit approval
Rationale:
Obtaining permits and submitting required load calculations ensures the installation complies
with applicable electrical codes before work begins. Purchasing materials or scheduling
inspections before approval can result in costly changes if plans are rejected.
════════════════════
2. An electrician is troubleshooting a single-phase motor that repeatedly trips its overload
protection during startup. What is the MOST likely cause?
A. Low supply voltage
B. Open grounding conductor
C. Incorrect conduit type
D. Excessive lighting load on the branch circuit
════════════════════
Correct Answer: A. Low supply voltage
Rationale:
Low voltage causes motors to draw excessive current during startup, which can trip overload
protection. Grounding conductor issues and conduit type are unrelated to startup overload
conditions, while lighting loads would not directly affect the motor circuit in this scenario.
,════════════════════
3. During a service upgrade, a customer requests additional receptacles in a residential
kitchen. According to standard code practice, countertop receptacles must generally be
protected by which device?
A. AFCI breaker only
B. Standard thermal breaker
C. GFCI protection
D. Isolated grounding system
════════════════════
Correct Answer: C. GFCI protection
Rationale:
Kitchen countertop receptacles are commonly required to have GFCI protection because of the
increased shock hazard near water sources. AFCI protection may also apply in some locations,
but GFCI protection is specifically intended to reduce electrocution risk.
════════════════════
4. A facility manager reports flickering lights in one area of a warehouse whenever large
machinery starts operating. What should the electrician investigate FIRST?
A. Lamp color temperature
B. Shared neutral and voltage drop issues
C. Ceiling tile spacing
D. Emergency exit signage placement
════════════════════
Correct Answer: B. Shared neutral and voltage drop issues
Rationale:
Large machinery startup can create temporary voltage drops, especially if circuits share
neutrals or are undersized. This commonly causes lighting flicker. Color temperature and
signage placement have no relationship to voltage fluctuation problems.
════════════════════
5. An electrical contractor discovers that a junior technician bypassed lockout/tagout
procedures to quickly test energized equipment. What is the MOST appropriate response?
,A. Ignore the issue if no injury occurred
B. Continue testing to avoid delays
C. Document the violation and enforce safety procedures immediately
D. Remove all warning labels from the panel
════════════════════
Correct Answer: C. Document the violation and enforce safety procedures immediately
Rationale:
Lockout/tagout violations create serious safety hazards and must be addressed immediately
through corrective action and documentation. Ignoring unsafe behavior increases the risk of
injury, liability, and regulatory penalties.
════════════════════
6. What is the primary purpose of bonding metal electrical enclosures in a commercial
installation?
A. Reduce lighting intensity
B. Improve power factor
C. Increase conductor insulation resistance
D. Provide a low-impedance fault current path
════════════════════
Correct Answer: D. Provide a low-impedance fault current path
Rationale:
Bonding ensures metal enclosures remain at the same electrical potential and provides a safe
path for fault current, helping overcurrent devices operate quickly during faults. This reduces
shock hazards and fire risks.
════════════════════
7. A three-phase motor rotates in the wrong direction after installation. What is the MOST
effective way to correct the issue?
A. Increase conductor size
B. Replace the disconnect switch
C. Reverse any two phase conductors
D. Install a larger overload relay
════════════════════
, Correct Answer: C. Reverse any two phase conductors
Rationale:
Swapping any two phase conductors changes the phase sequence, reversing motor rotation.
Increasing conductor size or changing overload devices will not alter motor direction.
════════════════════
8. An electrician measuring current on a branch circuit notices the neutral conductor carries
nearly the same current as the ungrounded conductors. What condition is MOST likely
present?
A. Balanced three-phase load
B. Open equipment grounding conductor
C. Parallel grounding path
D. Significant nonlinear loads generating harmonics
════════════════════
Correct Answer: D. Significant nonlinear loads generating harmonics
Rationale:
Nonlinear electronic loads can generate harmonic currents that accumulate on the neutral
conductor, causing unexpectedly high neutral current. Balanced systems typically reduce
neutral current rather than increase it.
════════════════════
9. Which conductor type is MOST commonly used for branch-circuit wiring inside residential
structures?
A. Bare copper only
B. THHN in raceway exclusively
C. NM cable
D. Aluminum bus bar
════════════════════
Correct Answer: C. NM cable
Rationale:
Nonmetallic-sheathed (NM) cable is widely used in residential branch-circuit wiring because it
is cost-effective and suitable for dry interior locations. Bare copper alone cannot serve as the
full wiring method.
