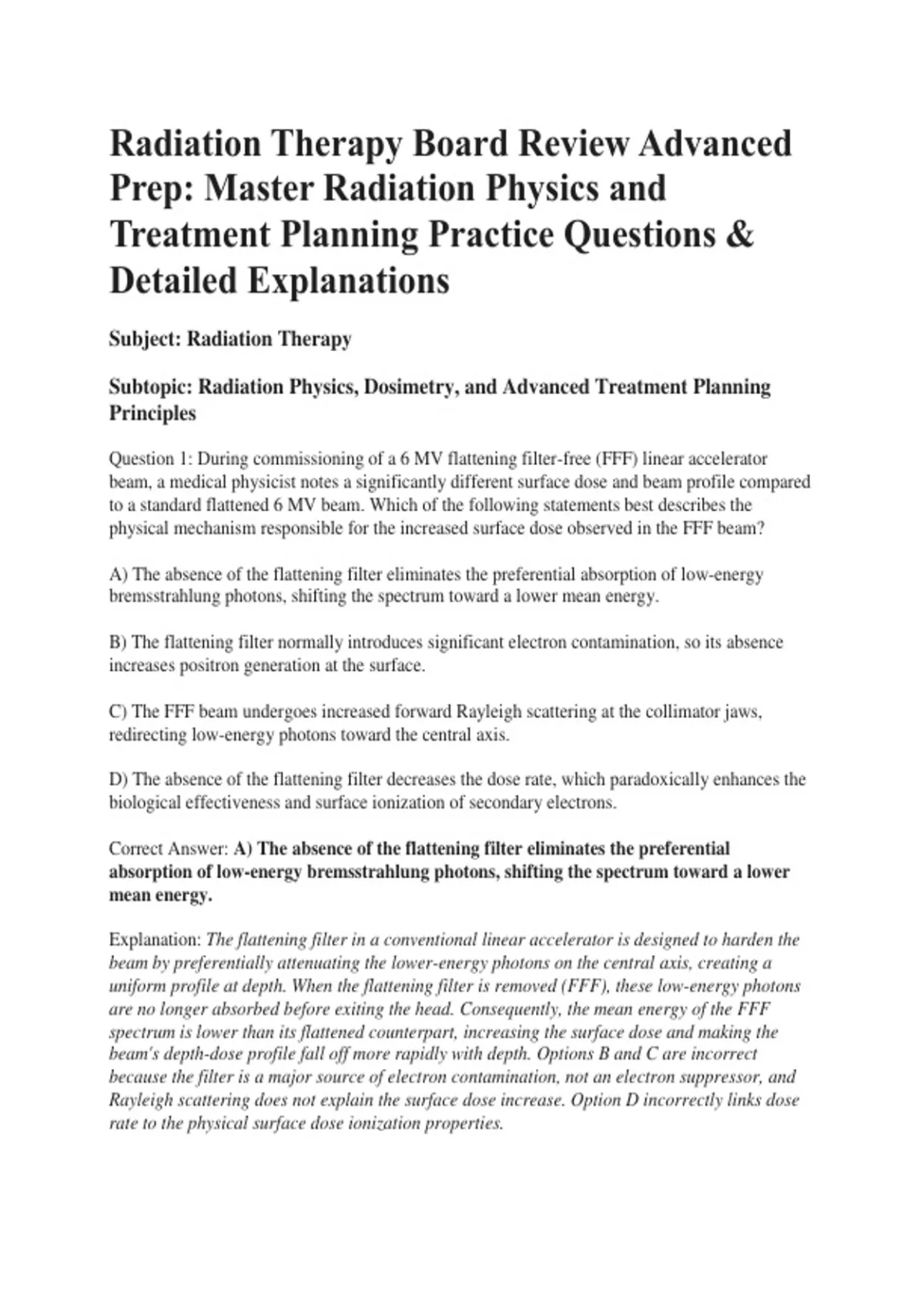

Radiation Therapy Board Review Advanced
Prep: Master Radiation Physics and
Treatment Planning Practice Questions &
Detailed Explanations
Subject: Radiation Therapy
Subtopic: Radiation Physics, Dosimetry, and Advanced Treatment Planning
Principles
Question 1: During commissioning of a 6 MV flattening filter-free (FFF) linear accelerator
beam, a medical physicist notes a significantly different surface dose and beam profile compared
to a standard flattened 6 MV beam. Which of the following statements best describes the
physical mechanism responsible for the increased surface dose observed in the FFF beam?
A) The absence of the flattening filter eliminates the preferential absorption of low-energy
bremsstrahlung photons, shifting the spectrum toward a lower mean energy.
B) The flattening filter normally introduces significant electron contamination, so its absence
increases positron generation at the surface.
C) The FFF beam undergoes increased forward Rayleigh scattering at the collimator jaws,
redirecting low-energy photons toward the central axis.
D) The absence of the flattening filter decreases the dose rate, which paradoxically enhances the
biological effectiveness and surface ionization of secondary electrons.
Correct Answer: A) The absence of the flattening filter eliminates the preferential
absorption of low-energy bremsstrahlung photons, shifting the spectrum toward a lower
mean energy.
Explanation: The flattening filter in a conventional linear accelerator is designed to harden the
beam by preferentially attenuating the lower-energy photons on the central axis, creating a
uniform profile at depth. When the flattening filter is removed (FFF), these low-energy photons
are no longer absorbed before exiting the head. Consequently, the mean energy of the FFF
spectrum is lower than its flattened counterpart, increasing the surface dose and making the
beam's depth-dose profile fall off more rapidly with depth. Options B and C are incorrect
because the filter is a major source of electron contamination, not an electron suppressor, and
Rayleigh scattering does not explain the surface dose increase. Option D incorrectly links dose
rate to the physical surface dose ionization properties.
,Question 2: A concrete barrier is being designed to shield a 15 MV linear accelerator vault. The
secondary structural barrier must protect an adjacent controlled area from scatter radiation. If the
workload (W) is 500 Gy/week at 1 meter, the use factor (U) for the secondary barrier is 1, and
the occupancy factor (T) is 1, which of the following adjustments would require the largest
increase in shielding thickness?
A) Switching the primary beam energy from 15 MV to 18 MV while maintaining the same
workload.
B) Moving the adjacent controlled area boundary closer to the target by a factor of two.
C) Changing the adjacent area designation from a controlled area to an uncontrolled public
waiting room.
D) Increasing the patient throughput such that the weekly workload increases by 50%.
Correct Answer: C) Changing the adjacent area designation from a controlled area to an
uncontrolled public waiting room.
Explanation: The design limit for a controlled area is typically 0.1 mSv/week (or 5 mSv/year),
whereas the limit for an uncontrolled area is 0.02 mSv/week (or 1 mSv/year). Changing the
designation from a controlled to an uncontrolled area reduces the allowed dose limit by a factor
of 5, which requires a substantial increase in concrete thickness (roughly more than two half-
value layers). Moving the boundary closer by a factor of two increases the dose by a factor of 4
due to the inverse square law. Increasing the workload by 50% only increases the dose by a
factor of 1.5. Increasing the beam energy from 15 MV to 18 MV alters the photoneutron and
scatter spectrum, but the absolute change in secondary barrier requirements for scatter is
outpaced by the 5-fold strictness jump of an uncontrolled area designation.
Question 3: A patient is undergoing an unflattened 10 MV FFF stereotactic body radiation
therapy (SBRT) treatment for a lung lesion. The planning system utilizes an Analytical
Anisotropic Algorithm (AAA) for dose calculation. In the presence of a low-density lung-tissue
interface, how does AAA typically perform relative to Monte Carlo (MC) simulations, and what
is the underlying physical rationale?
A) AAA overestimates the dose to the center of the tumor because it does not model the primary
photon attenuation of the FFF beam correctly.
B) AAA overestimates the dose at the tissue-lung interface because it under-corrects for the loss
of lateral electronic equilibrium.
C) AAA underestimates the dose inside the lung parenchyma due to an overestimation of
secondary electron range in low-density mediums.
D) AAA matches Monte Carlo exactly because both utilize deterministic solutions to the linear
Boltzmann transport equation across heterogeneous media.
, Correct Answer: B) AAA overestimates the dose at the tissue-lung interface because it
under-corrects for the loss of lateral electronic equilibrium.
Explanation: The Analytical Anisotropic Algorithm (AAA) uses a pencil-beam convolution model
with scaling based on radiological path length. In low-density tissues like lung, high-energy
secondary electrons travel farther laterally than they would in water. This leads to a local loss of
lateral electronic equilibrium. AAA does not model this secondary electron transport as
accurately as Monte Carlo (MC) simulations, which track individual particle histories.
Consequently, AAA tends to overestimate the dose inside or at the interface of a lung tumor
because it fails to fully account for the "washout" or lateral spread of electrons away from the
core. Option D is incorrect because AAA is not a deterministic Boltzmann solver like Acuros XB.
Question 4: A radioactive source of Iridium-192 ($^{192}\text{Ir}$) is utilized in a high-dose-
rate (HDR) brachytherapy remote afterloader. The initial air-kerma strength of the source is
$40,000 \, \mu\text{Gy}\cdot\text{m}^2\cdot\text{h}^{-1}$. Given that the half-life of
$^{192}\text{Ir}$ is approximately 74 days, what will the approximate air-kerma strength of the
source be after 148 days, and how does its photon energy spectrum change over time?
A) $20,000 \, \mu\text{Gy}\cdot\text{m}^2\cdot\text{h}^{-1}$; the average photon energy
shifts higher due to preferential decay of low-energy isomers.
B) $10,000 \, \mu\text{Gy}\cdot\text{m}^2\cdot\text{h}^{-1}$; the average photon energy
remains virtually unchanged because the isotopic decay path is identical for all atoms.
C) $10,000 \, \mu\text{Gy}\cdot\text{m}^2\cdot\text{h}^{-1}$; the average photon energy
shifts lower due to the accumulation of stable Osmium-192 daughter products.
D) $5,000 \, \mu\text{Gy}\cdot\text{m}^2\cdot\text{h}^{-1}$; the average photon energy
increases because bremsstrahlung interactions within the capsule scale nonlinearly.
Correct Answer: B) $10,000 \, \mu\text{Gy}\cdot\text{m}^2\cdot\text{h}^{-1}$; the average
photon energy remains virtually unchanged because the isotopic decay path is identical for
all atoms.
Explanation: A period of 148 days represents exactly two half-lives of Iridium-192 ($74 \times 2
= 148$). The air-kerma strength will therefore drop by half twice: from 40,000 to 20,000, and
then down to 10,000 $\mu\text{Gy}\cdot\text{m}^2\cdot\text{h}^{-1}$. Because radioactive
decay is an intrinsic nuclear property, every atom of $^{192}\text{Ir}$ has the exact same
probability of decay and emits the same spectrum of gamma rays throughout its lifespan. The
accumulation of the stable daughter isotope ($^{192}\text{Os}$ or $^{192}\text{Pt}$) does not
change the emitted spectrum of the remaining un-decayed radioactive nuclei. Therefore, options
A, C, and D contain false assertions regarding spectral shifts.
Question 5: When performing quality assurance on a multi-leaf collimator (MLC) system, a
physicist measures the transmission through the leaves. If the leaf transmission is found to be
