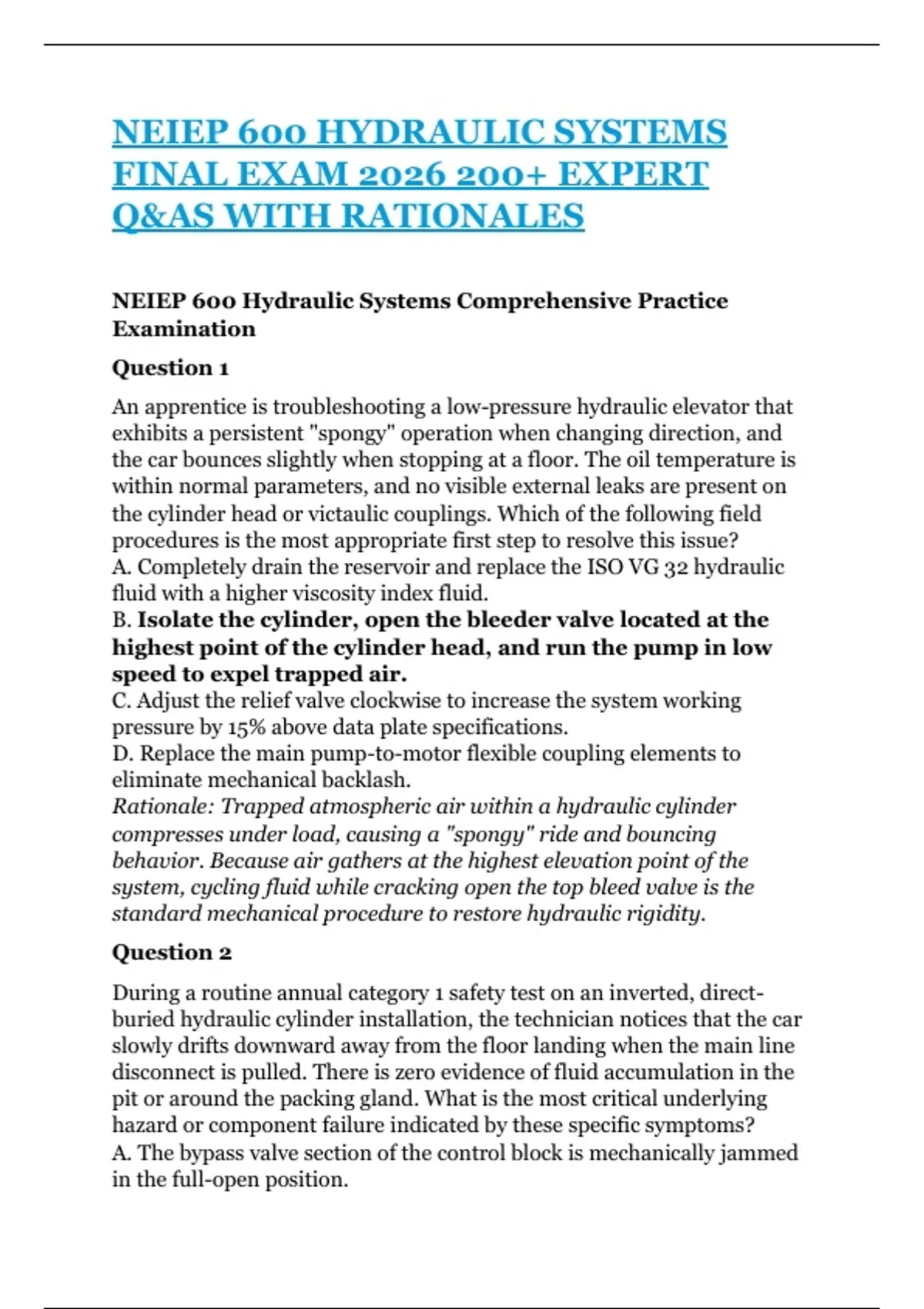

NEIEP 600 Hydraulic Systems Comprehensive Practice
Examination
Question 1
An apprentice is troubleshooting a low-pressure hydraulic elevator that
exhibits a persistent "spongy" operation when changing direction, and
the car bounces slightly when stopping at a floor. The oil temperature is
within normal parameters, and no visible external leaks are present on
the cylinder head or victaulic couplings. Which of the following field
procedures is the most appropriate first step to resolve this issue?
A. Completely drain the reservoir and replace the ISO VG 32 hydraulic
fluid with a higher viscosity index fluid.
B. Isolate the cylinder, open the bleeder valve located at the
highest point of the cylinder head, and run the pump in low
speed to expel trapped air.
C. Adjust the relief valve clockwise to increase the system working
pressure by 15% above data plate specifications.
D. Replace the main pump-to-motor flexible coupling elements to
eliminate mechanical backlash.
Rationale: Trapped atmospheric air within a hydraulic cylinder
compresses under load, causing a "spongy" ride and bouncing
behavior. Because air gathers at the highest elevation point of the
system, cycling fluid while cracking open the top bleed valve is the
standard mechanical procedure to restore hydraulic rigidity.
Question 2
During a routine annual category 1 safety test on an inverted, direct-
buried hydraulic cylinder installation, the technician notices that the car
slowly drifts downward away from the floor landing when the main line
disconnect is pulled. There is zero evidence of fluid accumulation in the
pit or around the packing gland. What is the most critical underlying
hazard or component failure indicated by these specific symptoms?
A. The bypass valve section of the control block is mechanically jammed
in the full-open position.
,B. An underground rupture or microscopic perforation has
developed in the cylinder wall or bottom bulkhead, leaking
fluid directly into the earth.
C. The check valve spring has lost tension, allowing high-pressure fluid
to return freely to the tank.
D. Atmospheric air has compromised the seal on the suction line
between the pump and the tank.
Rationale: When a hydraulic car drifts down with the power
disconnected and no fluid is visible in the pit or valve room, fluid is
escaping the closed system subterraneanly. This indicates an
underground cylinder failure, which poses catastrophic safety and
environmental risks.
Question 3
An elevator mechanic is evaluating a hydraulic power unit that has been
tripping its thermal overload relays during peak building traffic hours. A
digital thermometer indicates the oil temperature inside the reservoir
has reached \(145^{\circ }\text{F}\) (\(63^{\circ }\text{C}\)). Which of
the following operational conditions is the primary catalyst for this
excessive heat generation?
A. The viscosity of the oil is too high, preventing efficient flow through
the silencer.
B. The relief valve is set too low or is leaking internally,
causing high-pressure fluid to constantly bypass back to the
reservoir during up travel.
C. The pump is spinning in the reverse direction due to an accidental
line-side phase reversal.
D. The tank fluid level is exactly halfway between the minimum and
maximum marks on the dipstick.
Rationale: When a relief valve fails to seal completely or is adjusted
below peak operating pressures, pressurized fluid passes across a
restriction directly back to the tank. This conversion of
mechanical/fluid energy into thermal energy rapidly overheats the oil
reservoir.
Question 4
A technician needs to confirm the code-compliant setting of a hydraulic
elevator's system relief valve according to ASME A17.1 safety standards.
If the working pressure indicated on the data plate during a full-load up
run is exactly 300 PSI, what is the maximum allowable pressure at which
,the relief valve must be set to open and bypass fluid?
A. 330 PSI
B. 450 PSI
C. 525 PSI
D. 600 PSI
Rationale: Under ASME A17.1 regulations, the relief valve must be
adjusted to open at no more than 150% of the maximum design working
pressure (\(300\text{ PSI} \times 1.50 = 450\text{ PSI}\)).
Question 5
While adjusting a three-valve or four-valve hydraulic control block (such
as a Maxton or EEV valve), the elevator car experiences a harsh, jarring
stop when leveling into a floor from a down run. To achieve a smoother
deceleration and a soft landing, which of the following mechanical
adjustments should be performed?
A. Turn the up-start adjustment screw inward to delay pump motor
activation.
B. Turn the down-deceleration adjustment screw outward
(counterclockwise) to extend the transition time from high
speed to leveling speed.
C. Loosen the main relief valve adjustment to soften the overall system
structural rigidity.
D. Increase the sizing of the tank return line to minimize fluid
backpressure.
Rationale: Adjusting the down-deceleration control alters the rate at
which the valve spool restricts down fluid flow. Turning it to increase
transition time dampens kinetic energy, eliminating harsh stops.
Question 6
An modern electronic valve utilizes closed-loop feedback to maintain
consistent floor-to-floor run profiles regardless of changing car loads or
oil temperature variations. Which set of feedback sensors does the
controller monitor to continuously modulate the stepper motors or
proportional coils on the valve block?
A. Pit float switches and reservoir ambient temperature sensors.
B. Oil temperature sensors and pressure transducers mounted
within the valve body.
C. Motor RPM tachometers and car-top encoder bands exclusively.
D. Main line current transformers and magnetic limit switches.
Rationale: Closed-loop electronic control valves continuously sample
, fluid temperature and pressure data to dynamically alter spool
positioning, ensuring identical ride dynamics across varying viscosity
regimes.
Question 7
During the installation of a new twin-post direct-plunger hydraulic
freight elevator, the alignment of the plungers relative to the guide rails
must be verified. If the plungers are out of parallel or cross-binding with
the rails, what long-term mechanical failure will manifest during
operation?
A. The pump motor will draw less current during up runs due to
localized binding.
B. Premature and uneven wear of the cylinder packing glands,
scoring of the plunger surface, and severe car vibration.
C. The oil will rapidly lose its anti-foaming properties due to physical
friction.
D. The control valve will experience internal pilot contamination from
guide shoe debris.
Rationale: Misalignment between guide rails and plungers introduces
severe eccentric loads. This forces the plunger against the head bearing,
destroying seals and scoring metal surfaces.
Question 8
A technician is performing maintenance on a residential hydraulic
elevator equipped with a manual lowering valve. According to safety
protocols, what is the explicit purpose of this valve, and how must it be
engineered to operate?
A. It allows the car to be pumped up manually during a total power
outage; it must automatically lock after use.
B. It permits authorized personnel to lower the car to a lower
landing during power failure; it must be a dead-man type that
closes when released.
C. It vents air from the system automatically; it must remain cracked
open during normal operation.
D. It calibrates the leveling speed under empty car conditions; it must be
adjusted with an Allen wrench.
Rationale: Manual lowering valves are critical emergency rescue
devices. They must utilize a "dead-man" spring-return design so that
fluid flow halts instantly if the operator lets go, protecting passengers
from uncontrolled descents.
FINAL EXAM 2026 200+ EXPERT
Q&AS WITH RATIONALES
NEIEP 600 Hydraulic Systems Comprehensive Practice
Examination
Question 1
An apprentice is troubleshooting a low-pressure hydraulic elevator that
exhibits a persistent "spongy" operation when changing direction, and
the car bounces slightly when stopping at a floor. The oil temperature is
within normal parameters, and no visible external leaks are present on
the cylinder head or victaulic couplings. Which of the following field
procedures is the most appropriate first step to resolve this issue?
A. Completely drain the reservoir and replace the ISO VG 32 hydraulic
fluid with a higher viscosity index fluid.
B. Isolate the cylinder, open the bleeder valve located at the
highest point of the cylinder head, and run the pump in low
speed to expel trapped air.
C. Adjust the relief valve clockwise to increase the system working
pressure by 15% above data plate specifications.
D. Replace the main pump-to-motor flexible coupling elements to
eliminate mechanical backlash.
Rationale: Trapped atmospheric air within a hydraulic cylinder
compresses under load, causing a "spongy" ride and bouncing
behavior. Because air gathers at the highest elevation point of the
system, cycling fluid while cracking open the top bleed valve is the
standard mechanical procedure to restore hydraulic rigidity.
Question 2
During a routine annual category 1 safety test on an inverted, direct-
buried hydraulic cylinder installation, the technician notices that the car
slowly drifts downward away from the floor landing when the main line
disconnect is pulled. There is zero evidence of fluid accumulation in the
pit or around the packing gland. What is the most critical underlying
hazard or component failure indicated by these specific symptoms?
A. The bypass valve section of the control block is mechanically jammed
in the full-open position.
,B. An underground rupture or microscopic perforation has
developed in the cylinder wall or bottom bulkhead, leaking
fluid directly into the earth.
C. The check valve spring has lost tension, allowing high-pressure fluid
to return freely to the tank.
D. Atmospheric air has compromised the seal on the suction line
between the pump and the tank.
Rationale: When a hydraulic car drifts down with the power
disconnected and no fluid is visible in the pit or valve room, fluid is
escaping the closed system subterraneanly. This indicates an
underground cylinder failure, which poses catastrophic safety and
environmental risks.
Question 3
An elevator mechanic is evaluating a hydraulic power unit that has been
tripping its thermal overload relays during peak building traffic hours. A
digital thermometer indicates the oil temperature inside the reservoir
has reached \(145^{\circ }\text{F}\) (\(63^{\circ }\text{C}\)). Which of
the following operational conditions is the primary catalyst for this
excessive heat generation?
A. The viscosity of the oil is too high, preventing efficient flow through
the silencer.
B. The relief valve is set too low or is leaking internally,
causing high-pressure fluid to constantly bypass back to the
reservoir during up travel.
C. The pump is spinning in the reverse direction due to an accidental
line-side phase reversal.
D. The tank fluid level is exactly halfway between the minimum and
maximum marks on the dipstick.
Rationale: When a relief valve fails to seal completely or is adjusted
below peak operating pressures, pressurized fluid passes across a
restriction directly back to the tank. This conversion of
mechanical/fluid energy into thermal energy rapidly overheats the oil
reservoir.
Question 4
A technician needs to confirm the code-compliant setting of a hydraulic
elevator's system relief valve according to ASME A17.1 safety standards.
If the working pressure indicated on the data plate during a full-load up
run is exactly 300 PSI, what is the maximum allowable pressure at which
,the relief valve must be set to open and bypass fluid?
A. 330 PSI
B. 450 PSI
C. 525 PSI
D. 600 PSI
Rationale: Under ASME A17.1 regulations, the relief valve must be
adjusted to open at no more than 150% of the maximum design working
pressure (\(300\text{ PSI} \times 1.50 = 450\text{ PSI}\)).
Question 5
While adjusting a three-valve or four-valve hydraulic control block (such
as a Maxton or EEV valve), the elevator car experiences a harsh, jarring
stop when leveling into a floor from a down run. To achieve a smoother
deceleration and a soft landing, which of the following mechanical
adjustments should be performed?
A. Turn the up-start adjustment screw inward to delay pump motor
activation.
B. Turn the down-deceleration adjustment screw outward
(counterclockwise) to extend the transition time from high
speed to leveling speed.
C. Loosen the main relief valve adjustment to soften the overall system
structural rigidity.
D. Increase the sizing of the tank return line to minimize fluid
backpressure.
Rationale: Adjusting the down-deceleration control alters the rate at
which the valve spool restricts down fluid flow. Turning it to increase
transition time dampens kinetic energy, eliminating harsh stops.
Question 6
An modern electronic valve utilizes closed-loop feedback to maintain
consistent floor-to-floor run profiles regardless of changing car loads or
oil temperature variations. Which set of feedback sensors does the
controller monitor to continuously modulate the stepper motors or
proportional coils on the valve block?
A. Pit float switches and reservoir ambient temperature sensors.
B. Oil temperature sensors and pressure transducers mounted
within the valve body.
C. Motor RPM tachometers and car-top encoder bands exclusively.
D. Main line current transformers and magnetic limit switches.
Rationale: Closed-loop electronic control valves continuously sample
, fluid temperature and pressure data to dynamically alter spool
positioning, ensuring identical ride dynamics across varying viscosity
regimes.
Question 7
During the installation of a new twin-post direct-plunger hydraulic
freight elevator, the alignment of the plungers relative to the guide rails
must be verified. If the plungers are out of parallel or cross-binding with
the rails, what long-term mechanical failure will manifest during
operation?
A. The pump motor will draw less current during up runs due to
localized binding.
B. Premature and uneven wear of the cylinder packing glands,
scoring of the plunger surface, and severe car vibration.
C. The oil will rapidly lose its anti-foaming properties due to physical
friction.
D. The control valve will experience internal pilot contamination from
guide shoe debris.
Rationale: Misalignment between guide rails and plungers introduces
severe eccentric loads. This forces the plunger against the head bearing,
destroying seals and scoring metal surfaces.
Question 8
A technician is performing maintenance on a residential hydraulic
elevator equipped with a manual lowering valve. According to safety
protocols, what is the explicit purpose of this valve, and how must it be
engineered to operate?
A. It allows the car to be pumped up manually during a total power
outage; it must automatically lock after use.
B. It permits authorized personnel to lower the car to a lower
landing during power failure; it must be a dead-man type that
closes when released.
C. It vents air from the system automatically; it must remain cracked
open during normal operation.
D. It calibrates the leveling speed under empty car conditions; it must be
adjusted with an Allen wrench.
Rationale: Manual lowering valves are critical emergency rescue
devices. They must utilize a "dead-man" spring-return design so that
fluid flow halts instantly if the operator lets go, protecting passengers
from uncontrolled descents.
