1

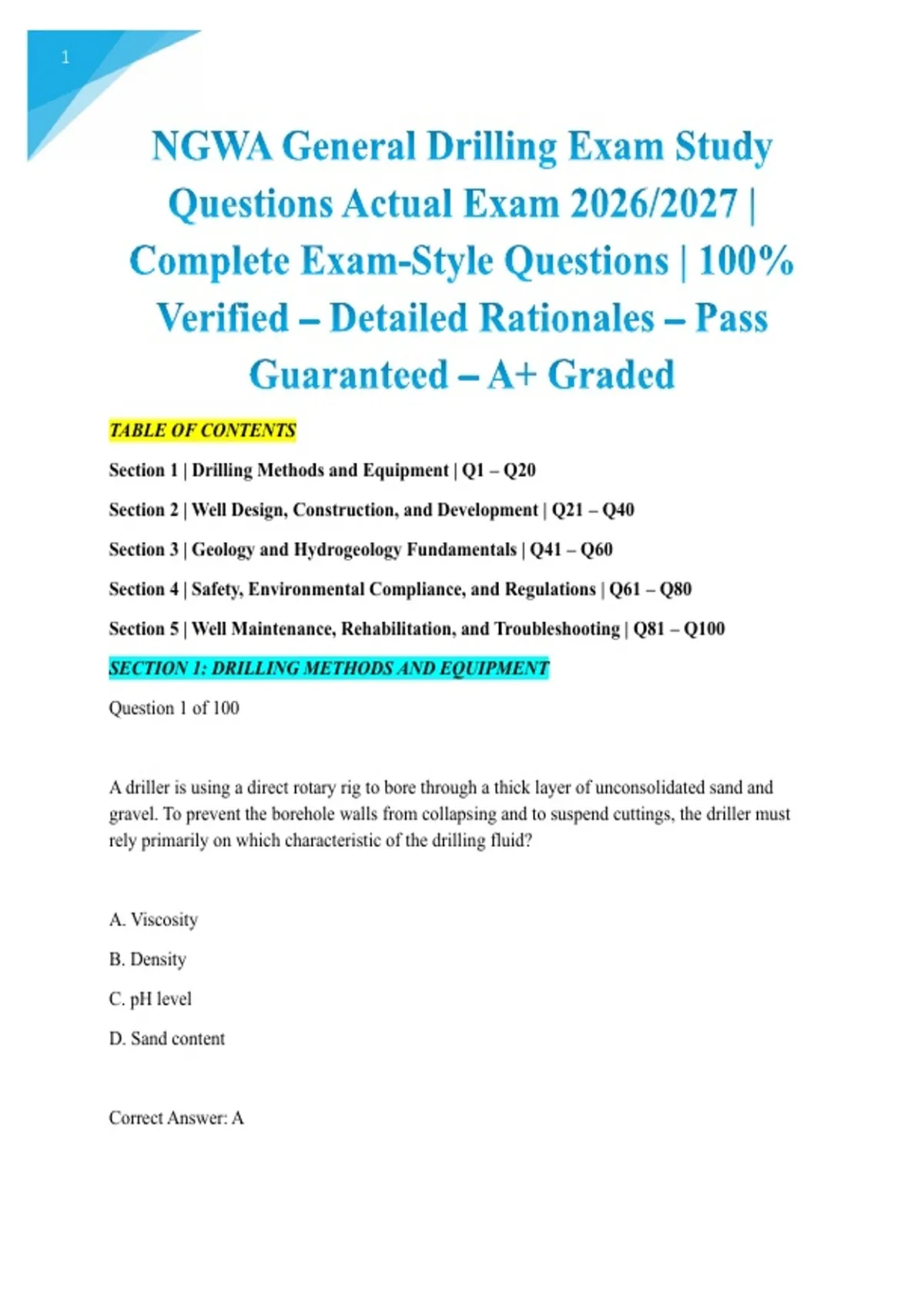

NGWA General Drilling Exam Study
Questions Actual Exam 2026/2027 |
Complete Exam-Style Questions | 100%
Verified – Detailed Rationales – Pass
Guaranteed – A+ Graded
TABLE OF CONTENTS
Section 1 | Drilling Methods and Equipment | Q1 – Q20
Section 2 | Well Design, Construction, and Development | Q21 – Q40
Section 3 | Geology and Hydrogeology Fundamentals | Q41 – Q60
Section 4 | Safety, Environmental Compliance, and Regulations | Q61 – Q80
Section 5 | Well Maintenance, Rehabilitation, and Troubleshooting | Q81 – Q100
SECTION 1: DRILLING METHODS AND EQUIPMENT
Question 1 of 100
A driller is using a direct rotary rig to bore through a thick layer of unconsolidated sand and
gravel. To prevent the borehole walls from collapsing and to suspend cuttings, the driller must
rely primarily on which characteristic of the drilling fluid?
A. Viscosity
B. Density
C. pH level
D. Sand content
Correct Answer: A
,2
Rationale: Viscosity is the primary property required to suspend cuttings and form a filter cake
on the borehole walls in unconsolidated formations. While density is critical for controlling
formation pressures in deep or fluid-bearing zones, it is the viscosity that provides the carrying
capacity for the cuttings in this specific scenario. Field personnel often check viscosity using a
marsh funnel to ensure the mud is thick enough to lift gravel but thin enough to circulate freely.
Question 2 of 100
While operating a cable tool rig, the driller notices that the drill bit is bouncing excessively
instead of chipping the rock effectively. The driller is most likely encountering which subsurface
condition?
A. Soft clay
B. Solid granite
C. Loose cobble
D. Saturated sand
Correct Answer: C
Rationale: Loose cobble or boulders cause the cable tool bit to bounce chaotically because the
formation lacks the structural integrity to resist the impact, preventing effective crushing. In solid
granite, the bit would chip steadily with a rhythmic sound, whereas soft clay would offer
damping resistance. Drillers often refer to this difficult drilling condition as "bouldering" and
may switch to a churn bit or switch methods if possible.
Question 3 of 100
A drilling crew is setting up a mast over a borehole and needs to calculate the total hoisting load
to select the appropriate wire cable. In addition to the weight of the drill string and casing, what
other critical factor must be included in this calculation?
A. Wind speed at the top of the mast
,3
B. The buoyancy of the drilling mud
C. The frictional drag of the borehole walls
D. The temperature gradient of the formation
Correct Answer: C
Rationale: Frictional drag between the drill string or casing and the borehole walls can
significantly increase the load, especially in deviated holes or when pulling stuck pipe. Ignoring
drag can lead to cable failure, even if the static weight of the string is well within the cable's
rated capacity. Always apply a safety factor of at least 1.5 to the calculated hoisting load to
account for these dynamic field conditions.
Question 4 of 100
During a reverse circulation drilling project in a large-diameter borehole, the drilling fluid and
cuttings are transported to the surface through the inner drill rods. To ensure efficient cuttings
transport in this system, the velocity of the fluid inside the rods must be maintained at what
minimum level?
A. 10 feet per second
B. 25 feet per second
C. 50 feet per second
D. 100 feet per second
Correct Answer: C
Rationale: A minimum upward velocity of 50 feet per second is generally required in reverse
circulation to lift large-diameter cuttings effectively through the relatively small inner diameter
of the drill pipe. Lower velocities, such as 10 or 25 feet per second, would allow the heavier
cuttings to settle back down the hole or plug the bit. Ensuring the mud pump has sufficient
volume to maintain this velocity is crucial for hole cleaning in large-diameter wells.
Question 5 of 100
, 4
A driller is using a down-the-hole (DTH) hammer in a hard rock formation and observes that the
penetration rate has suddenly dropped significantly while air pressure remains constant. The
most likely mechanical cause for this decrease is:
A. The bit buttons are worn flat
B. The air compressor is leaking
C. The formation is too soft
D. The water table is too deep
Correct Answer: A
Rationale: Worn button bits lose their concave shape and gauge clearance, reducing the
efficiency of the impact energy transfer and causing the hammer to "polish" the rock rather than
crush it. A compressor leak would result in a drop in pressure, and a soft formation would
typically increase the penetration rate up to a point. Regular inspection of the carbide buttons is
necessary to prevent this costly loss of efficiency.
Question 6 of 100
When preparing to grout a well, the driller decides to use a neat cement slurry. To prevent flash
setting of the cement during the mixing process, which additive should be introduced to the mix
water?
A. Accelerator
B. Retarder
C. Bentonite
D. Calcium chloride
Correct Answer: B
