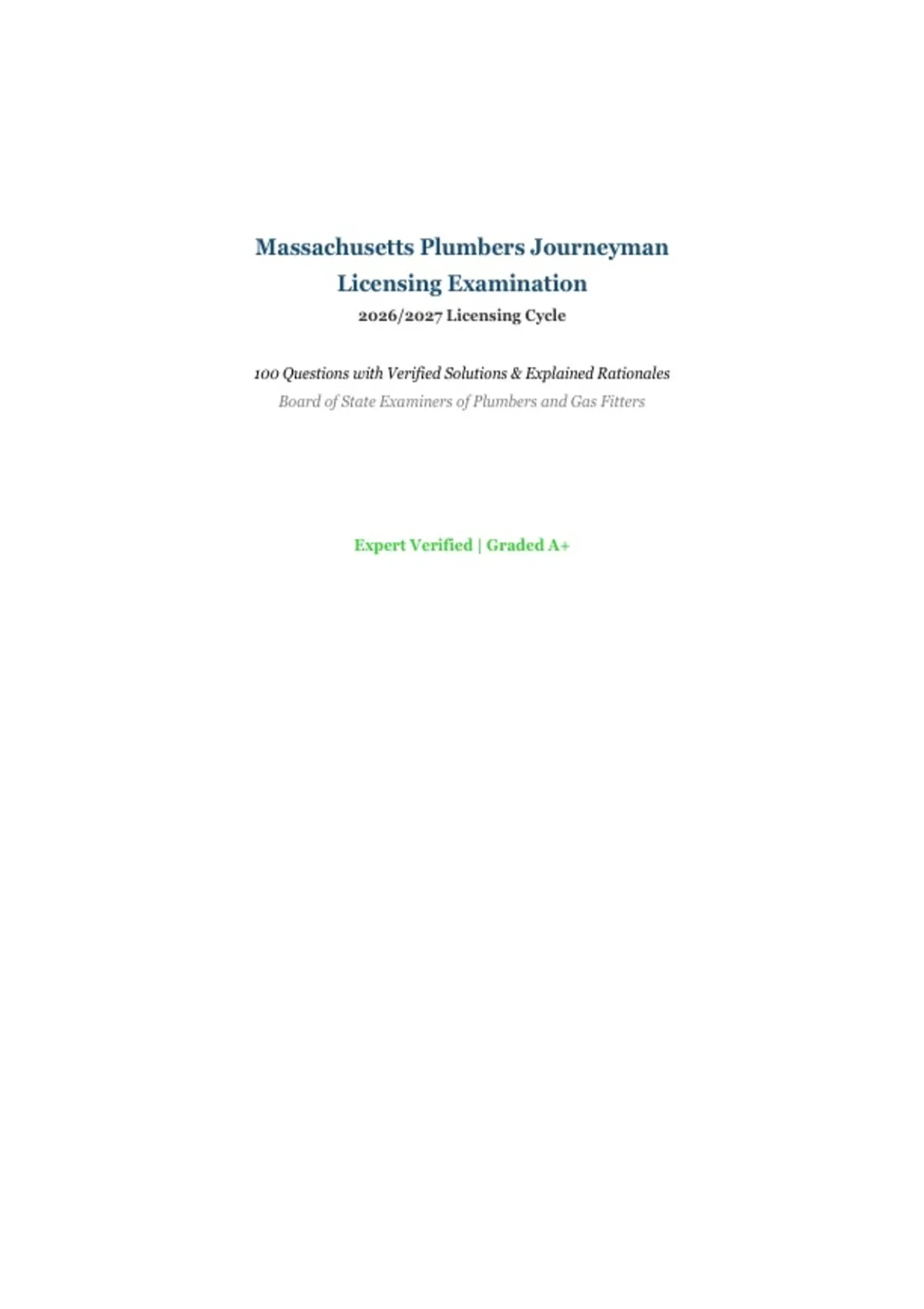

Massachusetts Plumbers Journeyman
Licensing Examination
2026/2027 Licensing Cycle
100 Questions with Verified Solutions & Explained Rationales
Board of State Examiners of Plumbers and Gas Fitters
Expert Verified | Graded A+
,Introduction
This Massachusetts Plumbers Journeyman Exam study set for the 2026/2027 licensing cycle
contains 100 comprehensive questions with 100% verified correct answers and detailed
rationales. Content covers the Massachusetts State Plumbing Code (248 CMR), water supply
systems, sanitary drainage, gas piping (NFPA 54), backflow prevention, blueprint reading,
plumbing calculations, material selection, and safety standards (OSHA) as required by the Board
of State Examiners of Plumbers and Gas Fitters.
,Section 1: Massachusetts State Plumbing Code (248 CMR)
Q1. According to 248 CMR, what is the minimum horizontal distance required
between a water service pipe and a building sewer?
2 feet
5 feet
10 feet
25 feet
Rationale: 248 CMR 10.08(3) requires a minimum horizontal separation of 10 feet
between a water service pipe and a building sewer. This separation prevents cross-
contamination of the potable water supply from sewage in the event of a leak in either
pipe. When the 10-foot separation cannot be achieved due to site constraints, the water
service pipe must be laid at a higher elevation than the building sewer with a minimum
vertical separation of 18 inches of undisturbed or compacted earth between the two
pipes.
Q2. Under 248 CMR, what is the maximum allowable water velocity in a copper
water distribution pipe for a residential building?
4 feet per second
8 feet per second
12 feet per second
15 feet per second
Rationale: 248 CMR 10.08(6)(c) limits water velocity in copper tubing to a maximum
of 8 feet per second (fps). Excessive water velocity causes erosion corrosion, increased
noise (water hammer), and accelerated wear on fittings and valves. For Type M copper,
the maximum velocity is further restricted by the pipe size and system pressure. Velocity
is calculated using the flow rate and the internal pipe diameter. Maintaining velocities
below 8 fps protects the piping system from premature failure and ensures acceptable
noise levels.
Q3. According to 248 CMR, which type of trap is prohibited for installation in a
plumbing drainage system?
P-trap
S-trap
Drum trap
Both S-traps and drum traps are prohibited
Rationale: 248 CMR 10.12(4) prohibits S-traps because their configuration allows the
water seal to be siphoned out by the flow of waste from the fixture, breaking the trap
seal and allowing sewer gases to enter the building. 248 CMR also prohibits drum traps
except where specifically allowed for special conditions. Only P-traps and accepted
manufactured traps are permitted for fixture connections. S-traps were commonly
installed in older buildings but have been prohibited in modern codes for decades due to
their inherent self-siphoning problem.
Q4. Under 248 CMR 10.11(7), what is the maximum horizontal distance a trap arm
may extend from the trap weir to the vent connection for a 1-1/2 inch trap arm?
3 feet
5 feet
6 feet
8 feet
, Rationale: 248 CMR 10.11(7) specifies that a 1-1/2 inch trap arm must not exceed 6 feet
in developed length from the trap weir to the vent. Exceeding the maximum trap arm
length allows the momentum of the waste flow to siphon the trap seal. The maximum
developed length is determined by the pipe diameter: 1-1/4 inch = 3 feet 6 inches, 1-1/2
inch = 5 feet (some tables show 6 feet), 2 inch = 8 feet, 3 inch = 10 feet, 4 inch = 12 feet.
The vent must be connected within this distance to protect the trap seal.
Q5. According to 248 CMR, what is the minimum size of a building sewer for a
single-family residence?
3 inches
4 inches
6 inches
8 inches
Rationale: 248 CMR 10.08(4) requires a minimum building sewer size of 4 inches for
any building, including single-family residences. The building sewer carries all waste
from the building drainage system to the public sewer or private septic system. A 4-inch
minimum ensures adequate capacity, prevents clogging, and provides sufficient slope
for self-cleaning velocities. The size may need to be increased based on the total fixture
unit load, but the minimum is 4 inches regardless of the building size or number of
fixtures.
