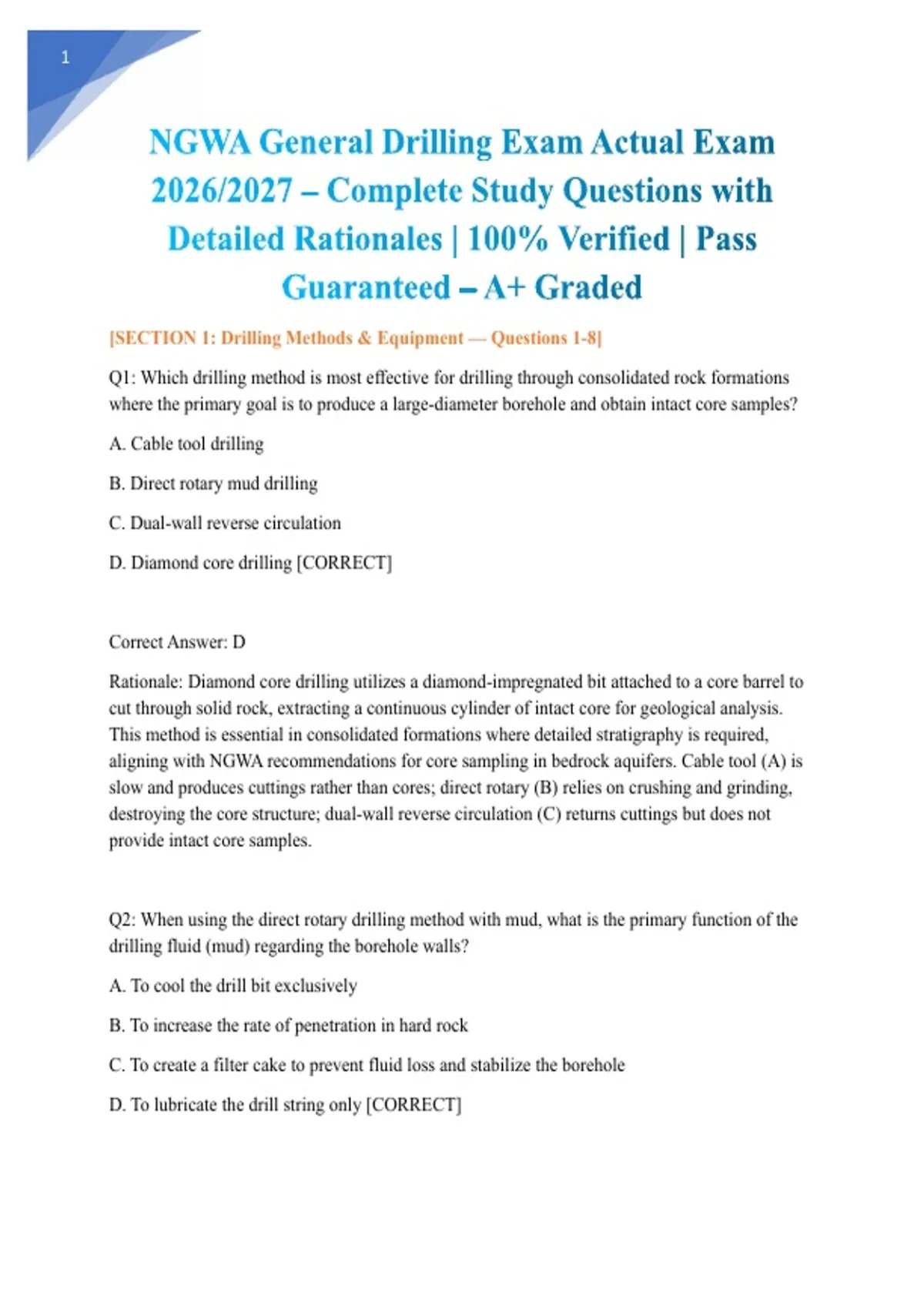

NGWA General Drilling Exam Actual Exam
2026/2027 – Complete Study Questions with
Detailed Rationales | 100% Verified | Pass
Guaranteed – A+ Graded
[SECTION 1: Drilling Methods & Equipment — Questions 1-8]
Q1: Which drilling method is most effective for drilling through consolidated rock formations
where the primary goal is to produce a large-diameter borehole and obtain intact core samples?
A. Cable tool drilling
B. Direct rotary mud drilling
C. Dual-wall reverse circulation
D. Diamond core drilling [CORRECT]
Correct Answer: D
Rationale: Diamond core drilling utilizes a diamond-impregnated bit attached to a core barrel to
cut through solid rock, extracting a continuous cylinder of intact core for geological analysis.
This method is essential in consolidated formations where detailed stratigraphy is required,
aligning with NGWA recommendations for core sampling in bedrock aquifers. Cable tool (A) is
slow and produces cuttings rather than cores; direct rotary (B) relies on crushing and grinding,
destroying the core structure; dual-wall reverse circulation (C) returns cuttings but does not
provide intact core samples.
Q2: When using the direct rotary drilling method with mud, what is the primary function of the
drilling fluid (mud) regarding the borehole walls?
A. To cool the drill bit exclusively
B. To increase the rate of penetration in hard rock
C. To create a filter cake to prevent fluid loss and stabilize the borehole
D. To lubricate the drill string only [CORRECT]
,2
Correct Answer: C
Rationale: The primary function of drilling mud in direct rotary operations is to exert hydrostatic
pressure against the formation walls and deposit a low-permeability filter cake (mud cake),
which prevents the borehole from collapsing and stops fluid loss into permeable zones. This
stabilization is critical in unconsolidated formations, as outlined in standard drilling fluid
engineering guidelines. While cooling (A) and lubrication (D) are secondary benefits, they are
not the primary reason for using fluid wall stabilization; increasing penetration (B) is actually
often slowed by excessive fluid viscosity.
Q3: In Down-the-Hole (DTH) hammer drilling, which mechanism is primarily responsible for
breaking the rock?
A. Rotational torque of the drill rig
B. Hydraulic pressure from the mud pump
C. High-frequency percussive blows delivered by the piston
D. The weight of the drill string alone [CORRECT]
Correct Answer: C
Rationale: DTH hammer drilling relies on a pneumatic piston inside the hammer assembly that
strikes the bit at high frequency, delivering powerful percussive blows that fracture hard rock
efficiently. While rotation (A) is used to index the bit between blows to prevent chip re-grinding,
the actual rock fragmentation is achieved through impact energy. Hydraulic pressure (B) applies
to fluid hammers, not standard pneumatic DTH, and drill string weight (D) merely keeps the bit
on the bottom but does not provide the crushing force.
Q4: When selecting a drill bit for a direct rotary rig in a soft, sticky clay formation, which bit
type would provide the best penetration rate and prevent "balling up"?
A. Mill-tooth tricone bit
B. Impregnated diamond bit
C. Drag bit [CORRECT]
D. Polycrystalline Diamond Compact (PDC) bit
, 3
Correct Answer: C
Rationale: Drag bits, featuring hardened steel blades or wings, are designed for soft,
unconsolidated formations like clay and sand because they shear the material efficiently without
the crushing action required for rock. In sticky clays, roller cone bits (A) can clog or "ball up,"
drastically reducing efficiency, while diamond bits (B) are designed for hard, consolidated rock
and will skate in soft formations. While PDC bits (D) can work in soft formations, a simple drag
bit is often more cost-effective and aggressive for pure clay.
Q5: A driller is operating in a formation that consists of large boulders and cobbles. Which
drilling method provides the best capability to advance the casing through these obstructions
while drilling?
A. Standard air rotary
B. Hollow stem auger
C. Cable tool [CORRECT]
D. Sonic drilling
Correct Answer: C
Rationale: Cable tool drilling is exceptionally effective in boulder-laden formations because the
heavy, reciprocating string can smash and pulverize large obstructions (boulders) that would jam
or damage rotary bits or augers. The casing can be driven simultaneously with the drilling tool,
ensuring the hole stays open through erratic glacial till. Standard air rotary (A) may deviate
around boulders, and hollow stem augers (B) often cannot penetrate large boulders; sonic (D) is
effective but cable tool remains the traditional, robust method for this specific difficult geology.
Q6: What is the primary advantage of using dual-wall reverse circulation (RC) drilling over
standard direct rotary drilling for water well exploration?
A. It allows for deeper drilling depths than any other method.
B. It eliminates the need for a mud pit and mud pumps.
C. It provides continuous, uncontaminated samples in difficult geological conditions.
D. It uses significantly less air volume than standard rotary. [CORRECT]
