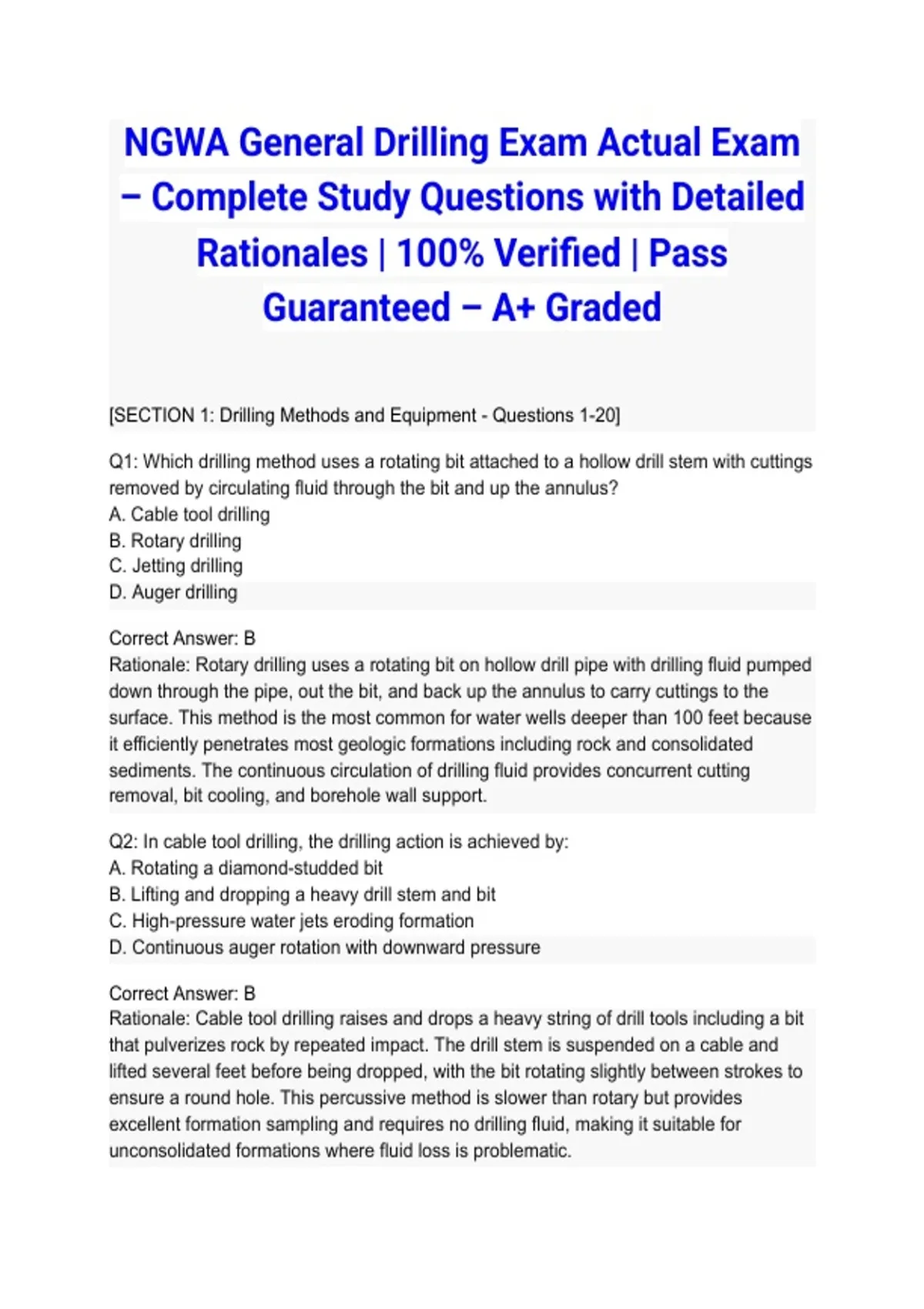

NGWA General Drilling Exam Actual Exam
– Complete Study Questions with Detailed
Rationales | 100% Verified | Pass
Guaranteed – A+ Graded
[SECTION 1: Drilling Methods and Equipment - Questions 1-20]
Q1: Which drilling method uses a rotating bit attached to a hollow drill stem with cuttings
removed by circulating fluid through the bit and up the annulus?
A. Cable tool drilling
B. Rotary drilling
C. Jetting drilling
D. Auger drilling
Correct Answer: B
Rationale: Rotary drilling uses a rotating bit on hollow drill pipe with drilling fluid pumped
down through the pipe, out the bit, and back up the annulus to carry cuttings to the
surface. This method is the most common for water wells deeper than 100 feet because
it efficiently penetrates most geologic formations including rock and consolidated
sediments. The continuous circulation of drilling fluid provides concurrent cutting
removal, bit cooling, and borehole wall support.
Q2: In cable tool drilling, the drilling action is achieved by:
A. Rotating a diamond-studded bit
B. Lifting and dropping a heavy drill stem and bit
C. High-pressure water jets eroding formation
D. Continuous auger rotation with downward pressure
Correct Answer: B
Rationale: Cable tool drilling raises and drops a heavy string of drill tools including a bit
that pulverizes rock by repeated impact. The drill stem is suspended on a cable and
lifted several feet before being dropped, with the bit rotating slightly between strokes to
ensure a round hole. This percussive method is slower than rotary but provides
excellent formation sampling and requires no drilling fluid, making it suitable for
unconsolidated formations where fluid loss is problematic.
,Q3: What is the primary function of the drill bit's cone shape in roller cone bits?
A. To reduce manufacturing cost
B. To allow the bit to self-clean and provide gouging-scraping action
C. To increase bit weight without adding steel
D. To prevent bit from overheating
Correct Answer: B
Rationale: The cone shape of roller cone bit cones allows them to rotate independently
as the bit rotates, creating a gouging and scraping action that efficiently breaks rock
while preventing cuttings from packing between the teeth. This self-cleaning design is
essential because packed cuttings would prevent further penetration and potentially
cause bit failure. The offset cone design in some bits creates a tearing action that
enhances drilling speed in softer formations.
Q4: A driller encounters a formation where the borehole continues to collapse after
drilling. Which action is most appropriate?
A. Reduce drilling speed immediately
B. Install casing or increase drilling fluid viscosity
C. Switch to a larger diameter bit
D. Abandon the borehole entirely
Correct Answer: B
Rationale: Collapsing formations require immediate borehole stabilization using casing
to physically support the wall or increased drilling fluid viscosity and density to exert
greater hydrostatic pressure against the formation. The choice between casing and fluid
modification depends on formation type and well design, with unconsolidated sands
typically requiring casing while fractured rock may respond to fluid adjustments. Failure
to address collapse risks losing the drill string or requiring expensive fishing operations.
Q5: The term "rathole" in drilling operations refers to:
A. A hole drilled for blasting explosives
B. A shallow hole drilled ahead of the main borehole to set surface casing
C. A term for abandoned exploratory wells
D. An inspection hole in finished well casing
Correct Answer: B
Rationale: A rathole is a shallow, large-diameter hole drilled to set surface casing that
protects the main borehole from collapse and provides a foundation for the drilling rig.
This preliminary hole is typically drilled to depths of 20-50 feet depending on local
geology and rig requirements. Proper rathole construction is essential for rig stability
and preventing surface contamination from entering the annulus.
,Q6: Which drilling method is most advantageous for installing monitoring wells because
it minimizes fluid invasion into the formation?
A. Mud rotary drilling
B. Dual-tube reverse circulation drilling
C. Cable tool drilling
D. Auger drilling
Correct Answer: B
Rationale: Dual-tube reverse circulation uses concentric drill rods where air flows down
the outer annulus and returns cuttings up the inner tube, preventing drilling fluid from
contacting the borehole wall. This method significantly reduces the risk of contaminating
the formation with drilling fluids, providing high-quality samples for environmental
monitoring. It is faster than cable tool and provides better sample integrity than standard
rotary methods.
Q7: When using a hollow-stem auger, what is the primary limitation regarding depth and
formation type?
A. It cannot drill through bedrock
B. It can only be used in dry conditions
C. It requires large amounts of water
D. It creates a borehole that is too small for casing
Correct Answer: A
Rationale: Hollow-stem augers are effective in unconsolidated soils, clays, and soft
sediments but cannot penetrate solid bedrock or dense hardpan formations. The auger
flights physically move the cuttings to the surface, and when hard rock is encountered,
the auger cannot advance further without switching to a different method. This limitation
makes auger drilling ideal for shallow monitoring wells and geotechnical drilling in
overburden.
Q8: What is the function of the drill collar in a rotary drilling rig?
A. To connect the drill pipe to the hoisting cable
B. To provide weight on the bit to aid in crushing rock
C. To seal the annulus around the drill pipe
D. To filter the drilling fluid returning to the surface
Correct Answer: B
Rationale: Drill collars are heavy-walled, thick steel pipes located between the drill pipe
and the bit that provide the necessary weight (Weight on Bit) to crush the rock. Placing
this weight at the bottom of the drill string keeps the drill pipe in tension to prevent
buckling and ensure straight drilling. The stiffness of the collars also helps maintain hole
deviation control.
, Q9: Which type of drill bit is most effective in drilling through hard, abrasive rock
formations like granite or quartzite?
A. Drag bit
B. Tricone roller bit with milled teeth
C. Diamond impregnated bit
D. Earth bit
Correct Answer: C
Rationale: Diamond impregnated bits use industrial diamonds embedded in a matrix to
grind away hard, abrasive rock through abrasion rather than crushing or shearing.
These bits are essential for very hard formations where steel teeth would wear down
rapidly or fail to penetrate effectively. While slower in softer formations, diamond bits
provide the durability and cutting power needed for crystalline rocks.
Q10: In a rotary drilling setup, what is the primary function of the kelly bushing?
A. To hold the drill bit in place
B. To transmit rotation from the rotary table to the kelly and drill string
C. To circulate drilling fluid
D. To control the hoisting speed of the drill string
Correct Answer: B
Rationale: The kelly bushing is a驱动设备 that fits into the master bushing of the rotary
table and engages the square or hexagonal kelly. As the rotary table turns, the kelly
bushing turns the kelly, which in turn rotates the entire drill string and bit. It allows the
drill string to rotate while sliding through the table to drill downward.
Q11: A driller notices that drilling fluid is being lost rapidly into the formation. This
condition is known as:
A. Viscosity break
B. Lost circulation
C. Mud thinning
D. Bit balling
Correct Answer: B
Rationale: Lost circulation occurs when drilling fluid flows into fractures, caverns, or
highly permeable zones instead of returning up the annulus. This condition can lead to a
drop in fluid level, reduced hydrostatic pressure, and potential borehole collapse or well
control issues. Remedial measures include adding fibrous or flaky materials to the mud
or using cement plugs to seal the loss zone.
Q12: Which component of the circulating system connects the rotary hose to the drill
string and allows for rotation while pumping fluid?
