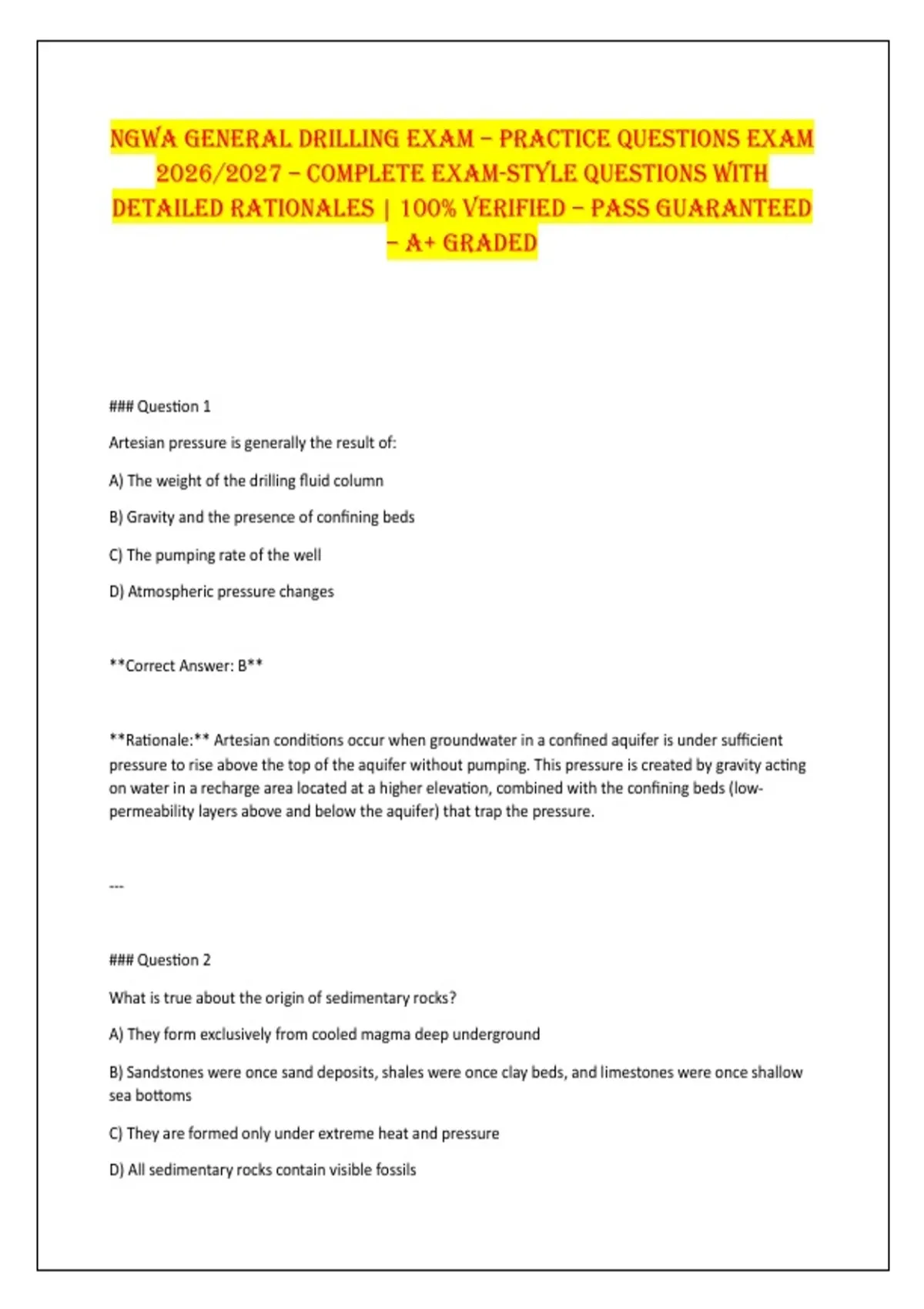

NGWA GeNerAl DrilliNG exAm – PrActice QuestioNs exAm
2026/2027 – comPlete exAm-style QuestioNs With
DetAileD rAtioNAles | 100% VerifieD – PAss GuArANteeD
– A+ GrADeD
### Question 1
Artesian pressure is generally the result of:
A) The weight of the drilling fluid column
B) Gravity and the presence of confining beds
C) The pumping rate of the well
D) Atmospheric pressure changes
**Correct Answer: B**
**Rationale:** Artesian conditions occur when groundwater in a confined aquifer is under sufficient
pressure to rise above the top of the aquifer without pumping. This pressure is created by gravity acting
on water in a recharge area located at a higher elevation, combined with the confining beds (low-
permeability layers above and below the aquifer) that trap the pressure.
---
### Question 2
What is true about the origin of sedimentary rocks?
A) They form exclusively from cooled magma deep underground
B) Sandstones were once sand deposits, shales were once clay beds, and limestones were once shallow
sea bottoms
C) They are formed only under extreme heat and pressure
D) All sedimentary rocks contain visible fossils
, **Correct Answer: B**
**Rationale:** Sedimentary rocks form through the accumulation and lithification (compaction and
cementation) of sediments. Sandstones originate from sand deposits (river, beach, or dune sands),
shales develop from compacted clay beds, and limestones typically form from the accumulation of
marine organisms and sediments on ancient shallow sea floors. Sedimentary formations may extend to
depths of a mile or more.
---
### Question 3
Before setting up the drilling rig, you must ensure there are no overhead power lines within what
minimum distance of the mast?
A) 10 feet
B) 20 feet
C) 50 feet
D) 100 feet
**Correct Answer: B**
**Rationale:** Industry safety standards, including those followed by NGWA and OSHA, require a
minimum clearance of 20 feet between the drilling mast and any overhead power lines. This standard is
critical to prevent electrocution, which is one of the most serious hazards on a drilling site.
---
### Question 4
A well is drilled through a cavernous hard rock formation for a domestic water supply. Which drilling
method is best suited for this application?
A) Mud rotary drilling
B) Air rotary drilling
2026/2027 – comPlete exAm-style QuestioNs With
DetAileD rAtioNAles | 100% VerifieD – PAss GuArANteeD
– A+ GrADeD
### Question 1
Artesian pressure is generally the result of:
A) The weight of the drilling fluid column
B) Gravity and the presence of confining beds
C) The pumping rate of the well
D) Atmospheric pressure changes
**Correct Answer: B**
**Rationale:** Artesian conditions occur when groundwater in a confined aquifer is under sufficient
pressure to rise above the top of the aquifer without pumping. This pressure is created by gravity acting
on water in a recharge area located at a higher elevation, combined with the confining beds (low-
permeability layers above and below the aquifer) that trap the pressure.
---
### Question 2
What is true about the origin of sedimentary rocks?
A) They form exclusively from cooled magma deep underground
B) Sandstones were once sand deposits, shales were once clay beds, and limestones were once shallow
sea bottoms
C) They are formed only under extreme heat and pressure
D) All sedimentary rocks contain visible fossils
, **Correct Answer: B**
**Rationale:** Sedimentary rocks form through the accumulation and lithification (compaction and
cementation) of sediments. Sandstones originate from sand deposits (river, beach, or dune sands),
shales develop from compacted clay beds, and limestones typically form from the accumulation of
marine organisms and sediments on ancient shallow sea floors. Sedimentary formations may extend to
depths of a mile or more.
---
### Question 3
Before setting up the drilling rig, you must ensure there are no overhead power lines within what
minimum distance of the mast?
A) 10 feet
B) 20 feet
C) 50 feet
D) 100 feet
**Correct Answer: B**
**Rationale:** Industry safety standards, including those followed by NGWA and OSHA, require a
minimum clearance of 20 feet between the drilling mast and any overhead power lines. This standard is
critical to prevent electrocution, which is one of the most serious hazards on a drilling site.
---
### Question 4
A well is drilled through a cavernous hard rock formation for a domestic water supply. Which drilling
method is best suited for this application?
A) Mud rotary drilling
B) Air rotary drilling
