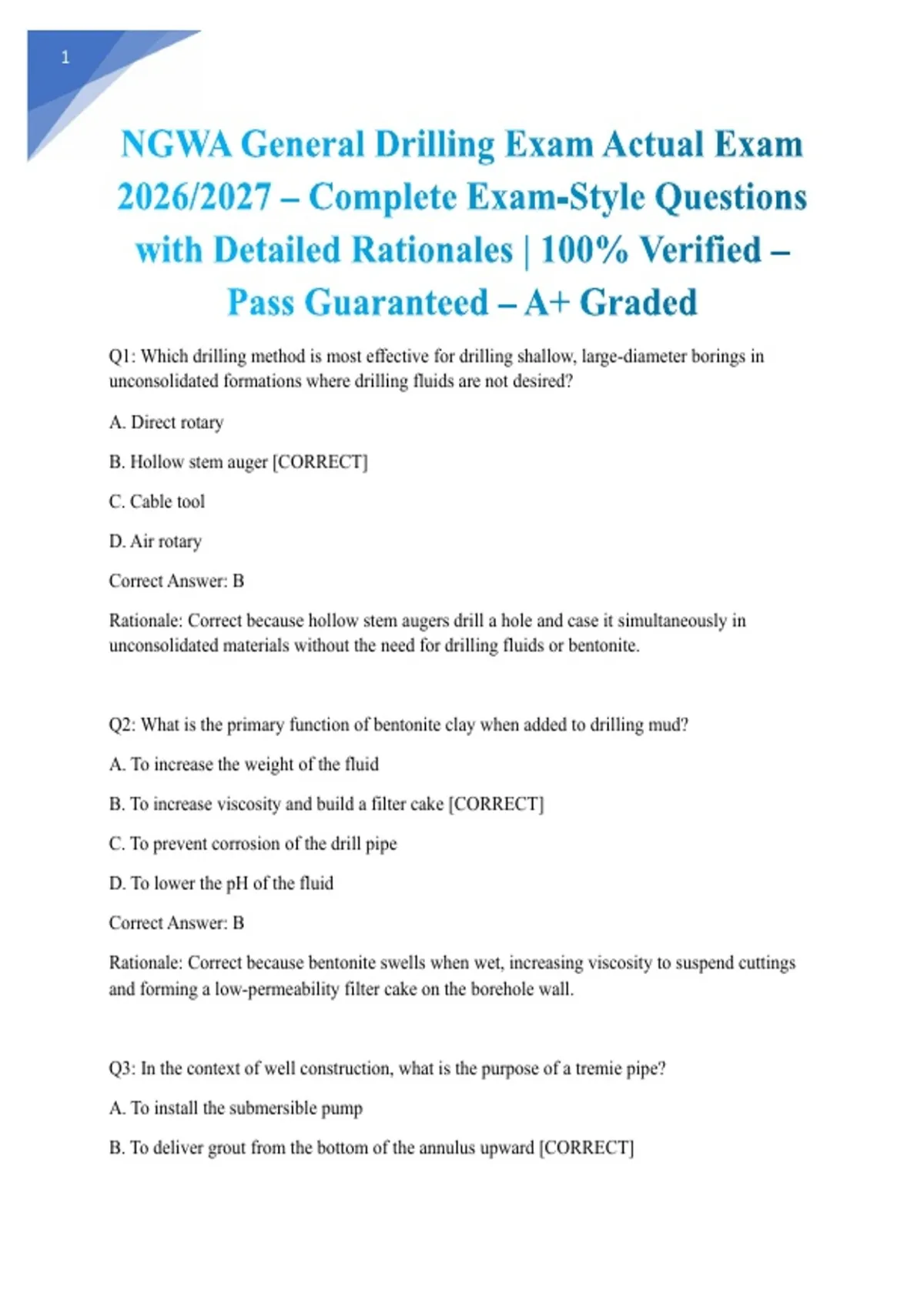

NGWA General Drilling Exam Actual Exam
2026/2027 – Complete Exam-Style Questions
with Detailed Rationales | 100% Verified –
Pass Guaranteed – A+ Graded
Q1: Which drilling method is most effective for drilling shallow, large-diameter borings in
unconsolidated formations where drilling fluids are not desired?
A. Direct rotary
B. Hollow stem auger [CORRECT]
C. Cable tool
D. Air rotary
Correct Answer: B
Rationale: Correct because hollow stem augers drill a hole and case it simultaneously in
unconsolidated materials without the need for drilling fluids or bentonite.
Q2: What is the primary function of bentonite clay when added to drilling mud?
A. To increase the weight of the fluid
B. To increase viscosity and build a filter cake [CORRECT]
C. To prevent corrosion of the drill pipe
D. To lower the pH of the fluid
Correct Answer: B
Rationale: Correct because bentonite swells when wet, increasing viscosity to suspend cuttings
and forming a low-permeability filter cake on the borehole wall.
Q3: In the context of well construction, what is the purpose of a tremie pipe?
A. To install the submersible pump
B. To deliver grout from the bottom of the annulus upward [CORRECT]
,2
C. To measure the depth of the well
D. To seal the top of the casing
Correct Answer: B
Rationale: Correct because a tremie pipe ensures that grout is placed at the bottom of the
borehole to prevent bridging and voids as it rises, creating a continuous seal.
Q4: Which of the following describes "specific capacity"?
A. The total depth of the well divided by the diameter
B. The pumping rate divided by the drawdown [CORRECT]
C. The maximum yield of a well in gallons per minute
D. The amount of water stored in the aquifer
Correct Answer: B
Rationale: Correct because specific capacity is a measure of well efficiency, defined as the yield
of the well (typically in GPM) per unit of drawdown (in feet).
Q5: When drilling through a confined aquifer, which pressure reading represents the
potentiometric surface?
A. The water level in the borehole before drilling starts
B. The level to which water rises in a well cased through the confining bed [CORRECT]
C. The bottom of the confining layer
D. The static water level of the overlying unconfined aquifer
Correct Answer: B
Rationale: Correct because the potentiometric surface (or piezometric surface) is the level to
which water will rise in a well penetrating a confined aquifer, reflecting the artesian pressure.
Q6: What is the primary advantage of using a "down-the-hole" (DTH) hammer in hard rock
formations?
A. It requires no air compressor
B. It provides rapid penetration through percussive crushing [CORRECT]
, 3
C. It eliminates the need for casing
D. It uses less water than rotary methods
Correct Answer: B
Rationale: Correct because a DTH hammer delivers rapid, high-impact blows directly to the bit
face, shattering hard rock much faster than rotary tricone bits alone.
Q7: Which grout material is typically required to be neat cement when sealing a well to prevent
contamination from surface sources?
A. Sand and gravel mix
B. Bentonite chips
C. Neat cement or cement-bentonite slurry [CORRECT]
D. Drill cuttings
Correct Answer: C
Rationale: Correct because neat cement provides a high-strength, low-permeability seal
necessary for the sanitary seal near the surface to protect against contaminant migration.
Q8: A well is pumping at 400 GPM with a drawdown of 40 feet. What is the specific capacity?
A. 10 GPM/ft [CORRECT]
B. 100 GPM/ft
C. 4 GPM/ft
D. 0.1 GPM/ft
Correct Answer: A
Rationale: Correct because specific capacity is calculated by dividing the pumping rate (400
GPM) by the drawdown (40 ft), which equals 10 GPM per foot.
Q9: Which type of well screen slot is best suited for a homogeneous fine sand formation?
A. Continuous slot
B. Bridge slot
