1

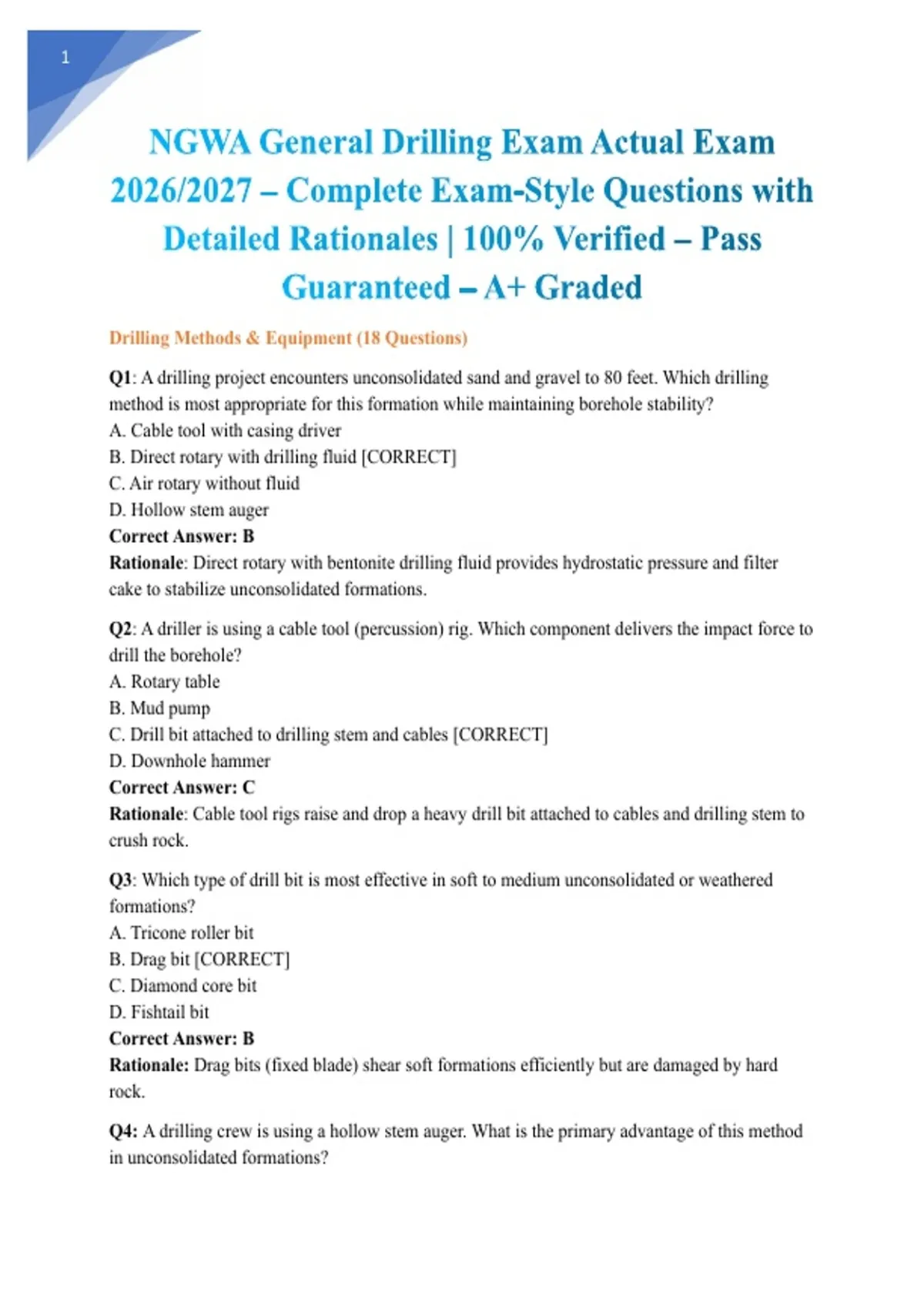

NGWA General Drilling Exam Actual Exam
2026/2027 – Complete Exam-Style Questions with
Detailed Rationales | 100% Verified – Pass
Guaranteed – A+ Graded
Drilling Methods & Equipment (18 Questions)
Q1: A drilling project encounters unconsolidated sand and gravel to 80 feet. Which drilling
method is most appropriate for this formation while maintaining borehole stability?
A. Cable tool with casing driver
B. Direct rotary with drilling fluid [CORRECT]
C. Air rotary without fluid
D. Hollow stem auger
Correct Answer: B
Rationale: Direct rotary with bentonite drilling fluid provides hydrostatic pressure and filter
cake to stabilize unconsolidated formations.
Q2: A driller is using a cable tool (percussion) rig. Which component delivers the impact force to
drill the borehole?
A. Rotary table
B. Mud pump
C. Drill bit attached to drilling stem and cables [CORRECT]
D. Downhole hammer
Correct Answer: C
Rationale: Cable tool rigs raise and drop a heavy drill bit attached to cables and drilling stem to
crush rock.
Q3: Which type of drill bit is most effective in soft to medium unconsolidated or weathered
formations?
A. Tricone roller bit
B. Drag bit [CORRECT]
C. Diamond core bit
D. Fishtail bit
Correct Answer: B
Rationale: Drag bits (fixed blade) shear soft formations efficiently but are damaged by hard
rock.
Q4: A drilling crew is using a hollow stem auger. What is the primary advantage of this method
in unconsolidated formations?
,2
A. Fastest method in rock
B. No drilling fluid required, and casing is built into the auger [CORRECT]
C. Lowest equipment cost
D. Can drill to any depth
Correct Answer: B
Rationale: Hollow stem augers advance casing with the auger, allowing sampling and well
installation without fluids.
Q5: During air rotary drilling in a hard rock formation, the penetration rate suddenly drops to
zero. What is the most likely cause?
A. Bit balling
B. Worn out bit teeth or bearing failure [CORRECT]
C. Low air pressure
D. Too much water injection
Correct Answer: B
Rationale: In hard rock, sudden stoppage usually indicates mechanical failure of the bit or
hammer.
Q6: What is the function of a swivel in a rotary drilling rig?
A. To rotate the drill string
B. To support the drill string weight and allow rotation while maintaining a seal [CORRECT]
C. To circulate drilling fluid
D. To lift the casing
Correct Answer: B
Rationale: The swivel hangs from the hoist line, supports the kelly/drill string, and allows
rotation.
Q7: Which drilling fluid additive is used to increase viscosity and improve cuttings suspension?
A. Caustic soda
B. Bentonite clay [CORRECT]
C. Barite
D. Polymer flocculant
Correct Answer: B
Rationale: Bentonite clay hydrates to increase viscosity, yield point, and gel strength for cuttings
suspension.
Q8: A driller encounters a boulder at 30 feet that cannot be penetrated by the current bit. Which
tool is used in cable tool drilling to break through boulders?
A. Fishtail bit
B. Drag bit
C. Drive shoe
D. Clay spud or chopping bit [CORRECT]
, 3
Correct Answer: D
Rationale: A heavy clay spud or chopping bit delivers concentrated impact to break boulders in
cable tool drilling.
Q9: In rotary drilling, "reaming" is performed to:
A. Drill faster
B. Enlarge the borehole to allow casing to be set without bridging [CORRECT]
C. Take a core sample
D. Fix a stuck bit
Correct Answer: B
Rationale: Reaming enlarges the hole to ensure the casing string can be run to bottom without
obstruction.
Q10: What is the primary purpose of a kelly bar (drive bar) in cable tool drilling?
A. To circulate fluid
B. To transmit impact force from the cable to the drill stem [CORRECT]
C. To measure depth
D. To stabilize the rig
Correct Answer: B
Rationale: The kelly bar engages the drill stem to transfer the percussive blow.
Q11: When using a downhole hammer (DTH) with air rotary, what is the primary advantage?
A. Excellent penetration rates in hard rock [CORRECT]
B. Best for soft clay
C. Prevents dust
D. Cheapest method for shallow wells
Correct Answer: A
Rationale: DTH hammers deliver percussive impact with rotation, achieving fast penetration in
competent rock.
Q12: A drilling fluid with a Marsh funnel viscosity that is too high may cause which problem?
A. Faster drilling rate
B. Reduced hydrostatic pressure
C. Lost circulation and formation damage [CORRECT]
D. Improved cuttings removal
Correct Answer: C
Rationale: Excessively viscous fluid can fracture formations, cause lost circulation, and plug
pore spaces.
Q13: Which tool is used to measure the deviation (verticality) of a borehole?
A. Caliper log
B. Inclinometer or gyroscopic survey tool [CORRECT]
C. Gamma ray tool
