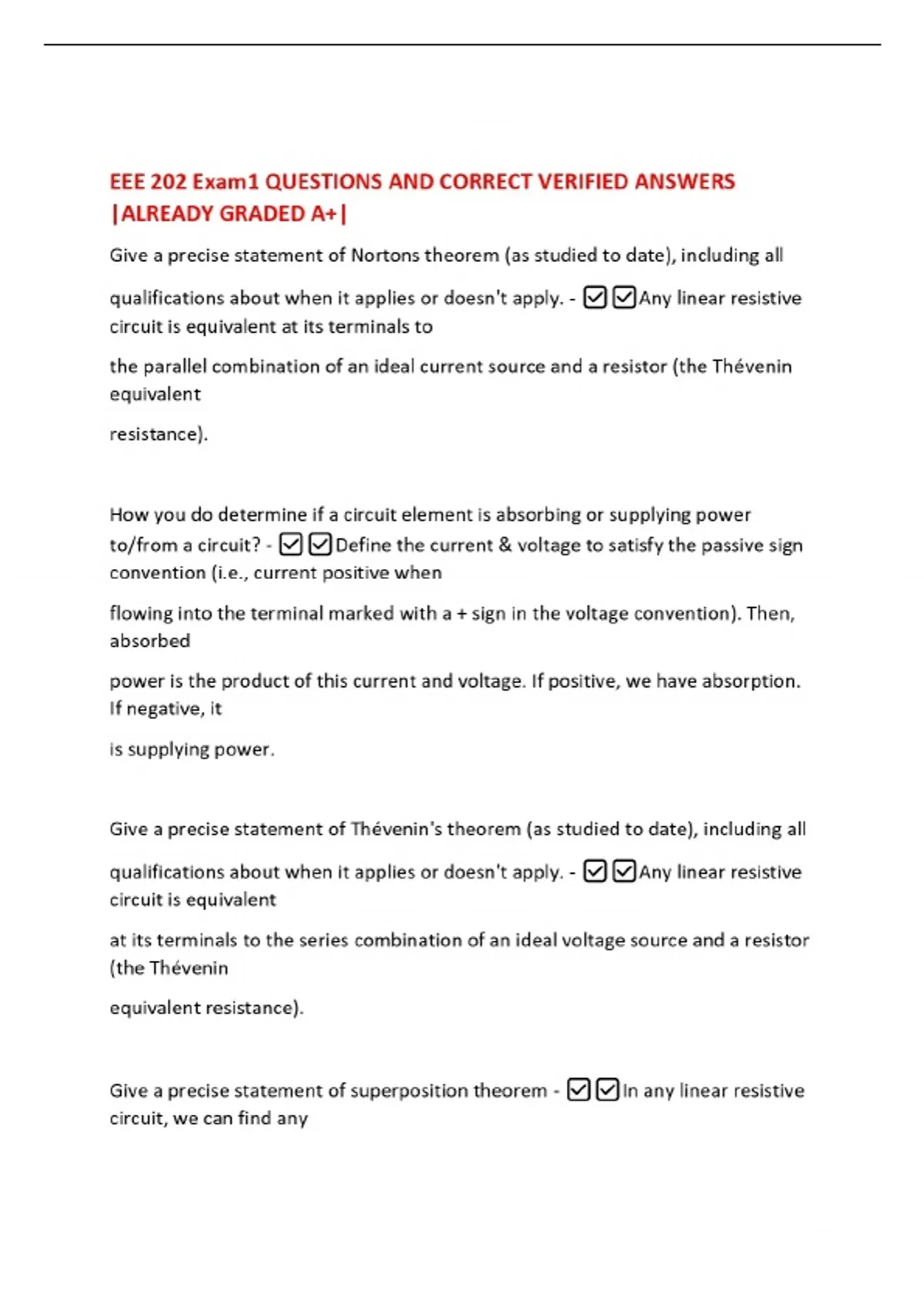

EEE 202 Exam1 QUESTIONS AND CORRECT VERIFIED ANSWERS |ALREADY GRADED A+| Give a precise statement of Nortons theorem (as studied to date), including all qualifications about when it applies or doesn't apply. - Any linear resistive circuit is equivalent at its terminals to the parallel combination of an ideal current source and a resistor (the Thévenin equivalent resistance). How you do determine if a circuit element is absorbing or supplying power to/from a circuit? - Define the current & voltage to satisfy the passive sign convention (i.e., current positive when flowing into the terminal marked with a + sign in the voltage convention). Then, absorbed power is the product of this current and voltage. If positive, we have absorption. If negative, it is supplying power. Give a precise statement of Thévenin's the
