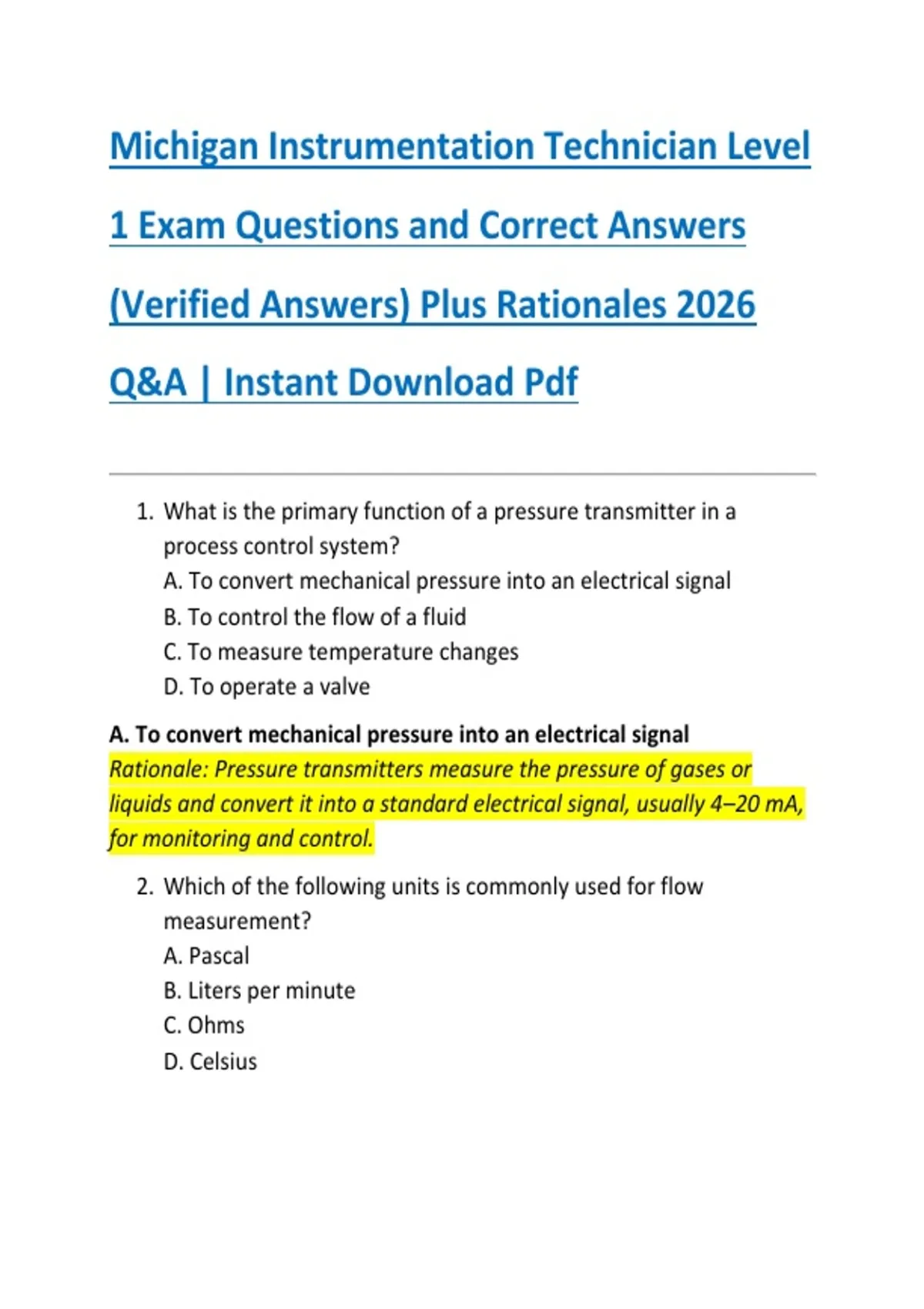

Michigan Instrumentation Technician Level
1 Exam Questions and Correct Answers
(Verified Answers) Plus Rationales 2026
Q&A | Instant Download Pdf
1. What is the primary function of a pressure transmitter in a
process control system?
A. To convert mechanical pressure into an electrical signal
B. To control the flow of a fluid
C. To measure temperature changes
D. To operate a valve
A. To convert mechanical pressure into an electrical signal
Rationale: Pressure transmitters measure the pressure of gases or
liquids and convert it into a standard electrical signal, usually 4–20 mA,
for monitoring and control.
2. Which of the following units is commonly used for flow
measurement?
A. Pascal
B. Liters per minute
C. Ohms
D. Celsius
,B. Liters per minute
Rationale: Flow rates are typically expressed in volumetric units per
time, such as liters per minute or gallons per minute.
3. What type of sensor is a thermocouple?
A. Resistive
B. Inductive
C. Temperature
D. Pressure
C. Temperature
Rationale: A thermocouple measures temperature by producing a
voltage proportional to the temperature difference between its
junctions.
4. In instrumentation, what does “4–20 mA signal” represent?
A. Voltage range
B. Standard current loop signal
C. Resistance range
D. Temperature measurement
B. Standard current loop signal
Rationale: 4–20 mA is a standard analog current signal in
instrumentation used to represent process variables such as pressure,
temperature, or flow.
5. Which device is used to measure liquid level in a tank?
A. Pressure switch
B. Level transmitter
C. Flowmeter
D. Thermocouple
,B. Level transmitter
Rationale: Level transmitters detect the level of liquid in a vessel and
provide a corresponding electrical signal for control or monitoring.
6. What is the main purpose of a control valve in a process system?
A. To transmit signals
B. To regulate the flow of fluid
C. To measure pressure
D. To measure temperature
B. To regulate the flow of fluid
Rationale: Control valves adjust the flow rate, pressure, or level of fluids
in a process system in response to a control signal.
7. Which of the following instruments is considered a primary
sensor?
A. PLC
B. Thermocouple
C. Indicator
D. Recorder
B. Thermocouple
Rationale: Primary sensors directly measure the process variable, such
as temperature, pressure, or flow.
8. What does the term “span” mean in instrumentation?
A. Maximum input range minus minimum input range
B. Minimum value of input
C. Output signal type
D. Measurement units
A. Maximum input range minus minimum input range
Rationale: Span is the difference between the highest and lowest values
that an instrument can measure accurately.
, 9. A differential pressure transmitter is commonly used to measure:
A. Voltage
B. Liquid level in pressurized tanks
C. Flow in a pipe
D. Resistance
C. Flow in a pipe
Rationale: Differential pressure transmitters measure the pressure drop
across an orifice or venturi to calculate flow rate.
10. What is the advantage of using 4–20 mA over 0–10 V
signals?
A. Less electrical interference
B. Easier to install
C. Cheaper wiring
D. Requires more voltage
A. Less electrical interference
Rationale: Current signals (4–20 mA) are less affected by electrical noise
over long distances compared to voltage signals.
11. Which component converts a physical measurement into a
standardized output signal?
A. Sensor
B. Transmitter
C. Actuator
D. Controller
B. Transmitter
Rationale: Transmitters take the raw signal from a sensor and convert it
into a standardized signal (e.g., 4–20 mA) for process control.
12. Which type of pressure measurement uses a diaphragm?
A. Absolute pressure
