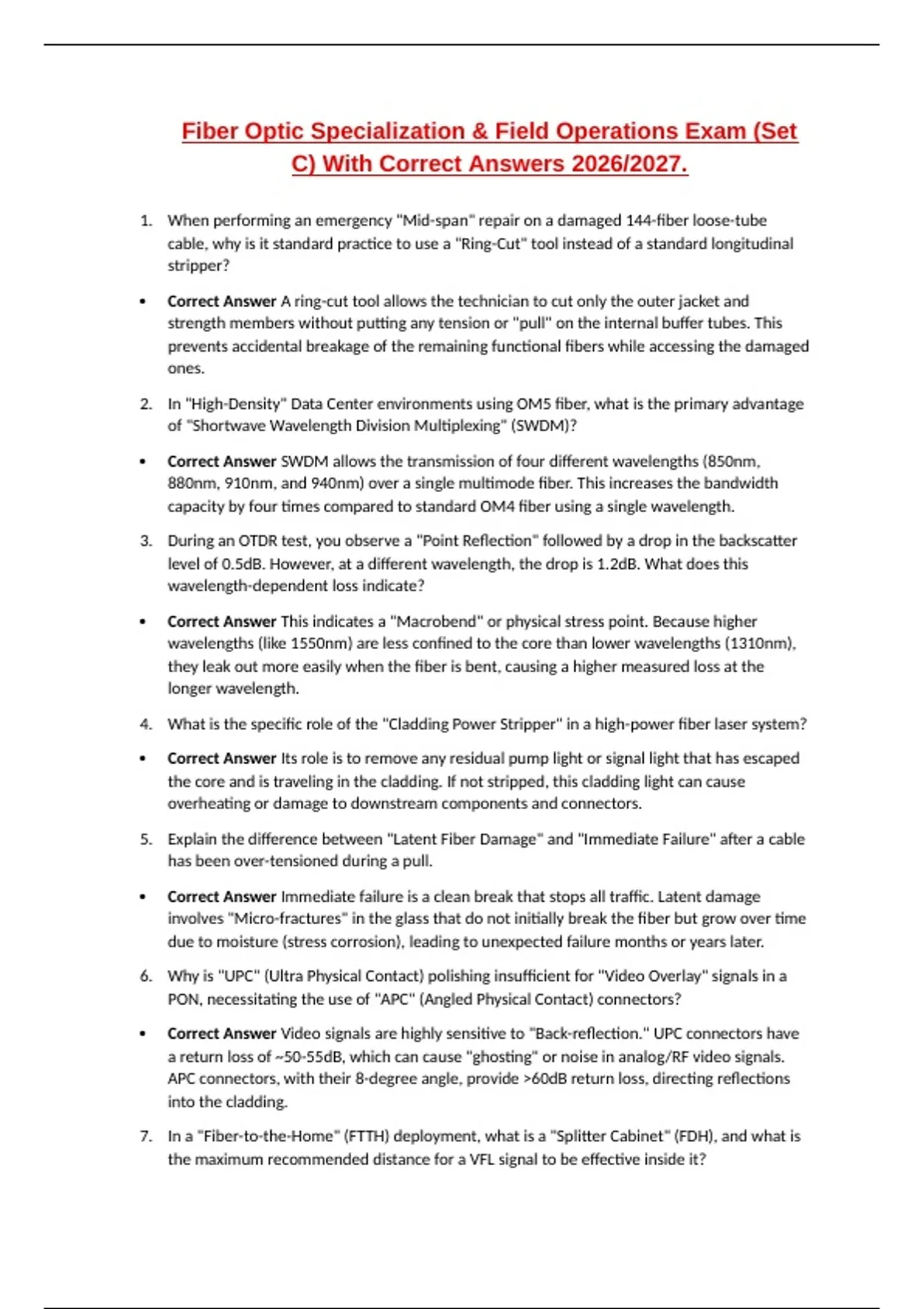

Fiber Optic Specialization & Field Operations Exam (Set
C) With Correct Answers 2026/2027.
1. When performing an emergency "Mid-span" repair on a damaged 144-fiber loose-tube
cable, why is it standard practice to use a "Ring-Cut" tool instead of a standard longitudinal
stripper?
Correct Answer A ring-cut tool allows the technician to cut only the outer jacket and
strength members without putting any tension or "pull" on the internal buffer tubes. This
prevents accidental breakage of the remaining functional fibers while accessing the damaged
ones.
2. In "High-Density" Data Center environments using OM5 fiber, what is the primary advantage
of "Shortwave Wavelength Division Multiplexing" (SWDM)?
Correct Answer SWDM allows the transmission of four different wavelengths (850nm,
880nm, 910nm, and 940nm) over a single multimode fiber. This increases the bandwidth
capacity by four times compared to standard OM4 fiber using a single wavelength.
3. During an OTDR test, you observe a "Point Reflection" followed by a drop in the backscatter
level of 0.5dB. However, at a different wavelength, the drop is 1.2dB. What does this
wavelength-dependent loss indicate?
Correct Answer This indicates a "Macrobend" or physical stress point. Because higher
wavelengths (like 1550nm) are less confined to the core than lower wavelengths (1310nm),
they leak out more easily when the fiber is bent, causing a higher measured loss at the
longer wavelength.
4. What is the specific role of the "Cladding Power Stripper" in a high-power fiber laser system?
Correct Answer Its role is to remove any residual pump light or signal light that has escaped
the core and is traveling in the cladding. If not stripped, this cladding light can cause
overheating or damage to downstream components and connectors.
5. Explain the difference between "Latent Fiber Damage" and "Immediate Failure" after a cable
has been over-tensioned during a pull.
Correct Answer Immediate failure is a clean break that stops all traffic. Latent damage
involves "Micro-fractures" in the glass that do not initially break the fiber but grow over time
due to moisture (stress corrosion), leading to unexpected failure months or years later.
6. Why is "UPC" (Ultra Physical Contact) polishing insufficient for "Video Overlay" signals in a
PON, necessitating the use of "APC" (Angled Physical Contact) connectors?
Correct Answer Video signals are highly sensitive to "Back-reflection." UPC connectors have
a return loss of ~50-55dB, which can cause "ghosting" or noise in analog/RF video signals.
APC connectors, with their 8-degree angle, provide >60dB return loss, directing reflections
into the cladding.
7. In a "Fiber-to-the-Home" (FTTH) deployment, what is a "Splitter Cabinet" (FDH), and what is
the maximum recommended distance for a VFL signal to be effective inside it?
, Correct Answer An FDH (Fiber Distribution Hub) is a centralized cabinet housing the optical
splitters. A VFL is generally effective only for 2–5km; inside a cabinet, its primary use is
"Tracing" or identifying a specific port rather than finding breaks miles away.
8. What is the "Mode Field Mismatch" loss, and how does it affect the splicing of a G.652
standard fiber to a G.657 bend-insensitive fiber?
Correct Answer Mode Field Mismatch occurs because the light-carrying area (MFD) is slightly
different between the two fiber types. When spliced, this causes a consistent, small loss
(usually 0.1dB to 0.2dB) that cannot be eliminated by better alignment.
9. Define "Differential Group Delay" (DGD) and explain its relationship to Polarization Mode
Dispersion (PMD).
Correct Answer DGD is the actual time difference between the two fastest and slowest
polarization modes at a specific moment. PMD is the statistical average of these DGD values
over time and across different wavelengths.
10. When using an "Auto-Splicer," what does the "Arc Calibration" (or Power Set) function do,
and why must it be performed when moving from sea level to a high-altitude mountain site?
Correct Answer Arc calibration adjusts the intensity of the electric discharge. Because air is
thinner at high altitudes, the resistance changes; without calibration, the arc might be too
"hot" or "cold," resulting in weak or high-loss splices.
11. Why is "Bi-directional Loss Testing" mandatory for certifying long-haul spans that contain
multiple different fiber manufacturers?
Correct Answer Different manufacturers use slightly different glass recipes, resulting in
different "Backscatter Coefficients." A splice might look like a "Gainer" from one side and a
"Large Loss" from the other; only the average of the two directions provides the true physical
loss.
12. What is the "Effective Refractive Index" (neff), and why is it used instead of the "Bulk
Refractive Index" for OTDR distance calculations?
Correct Answer The neff accounts for the fact that light travels both in the core and slightly
in the cladding. Since the cladding has a different index than the core, the "Effective" index
provides a more accurate speed of light for the entire mode.
13. Describe a "High-Reflection" fault. What is the standard "Reflectance" limit for a high-quality
single-mode connector in a 100G network?
Correct Answer A high-reflection fault is a point where too much light is bouncing back
(usually due to a gap or dirt). For 100G networks, connectors should generally have a
reflectance of better than -45dB (for UPC) or -65dB (for APC).
14. What is "Spectral Attenuation," and how does it differ from a standard single-wavelength
attenuation test?
Correct Answer Spectral attenuation measures the loss across a continuous range of
wavelengths (e.g., 1250nm to 1650nm) rather than just at 1310nm or 1550nm. It is used to
identify "Water Peaks" or "Bending" issues across the whole fiber spectrum.
