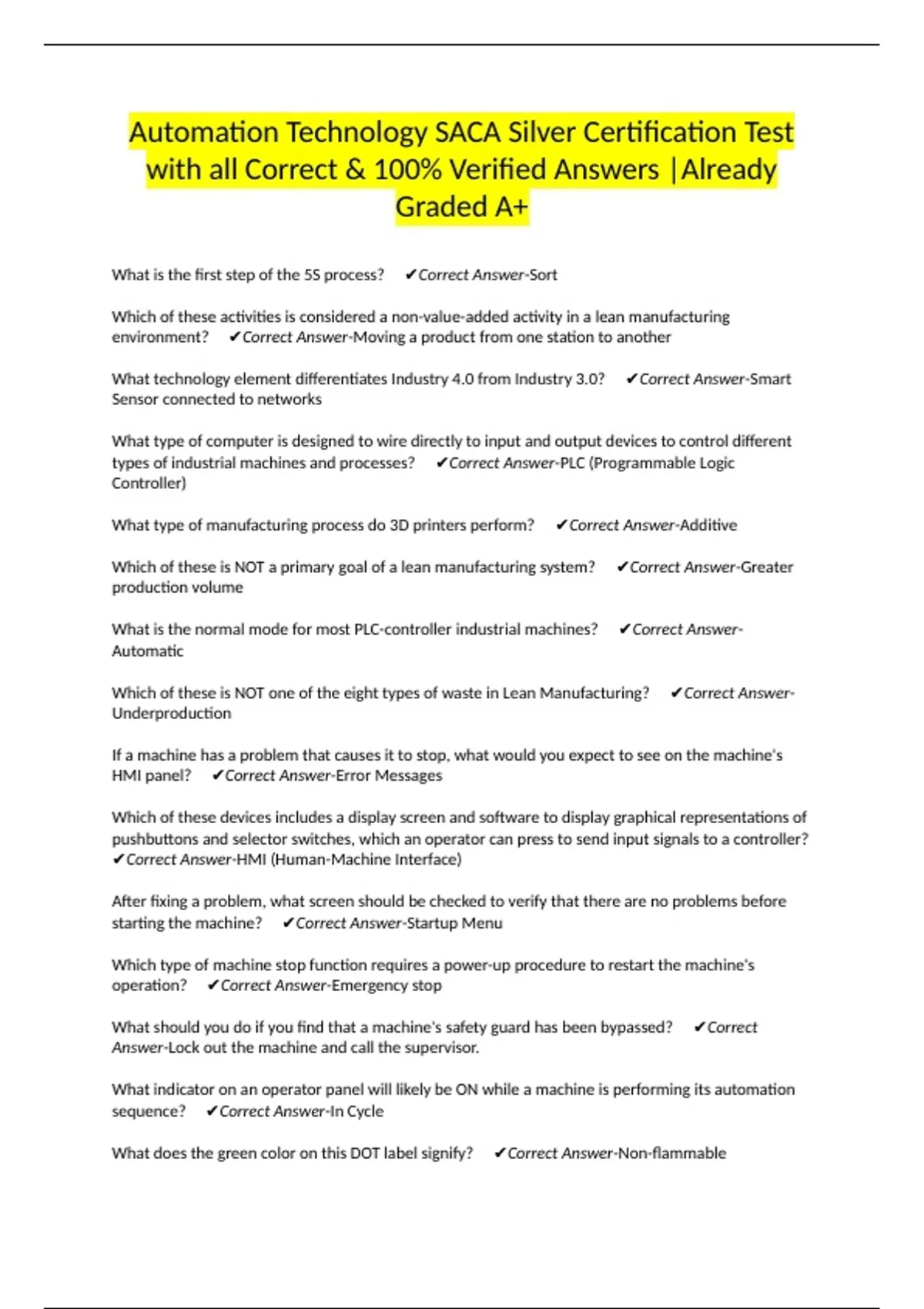

Automation Technology SACA Silver Certification Test
with all Correct & 100% Verified Answers |Already
Graded A+
What is the first step of the 5S process? ✔Correct Answer-Sort
Which of these activities is considered a non-value-added activity in a lean manufacturing
environment? ✔Correct Answer-Moving a product from one station to another
What technology element differentiates Industry 4.0 from Industry 3.0? ✔Correct Answer-Smart
Sensor connected to networks
What type of computer is designed to wire directly to input and output devices to control different
types of industrial machines and processes? ✔Correct Answer-PLC (Programmable Logic
Controller)
What type of manufacturing process do 3D printers perform? ✔Correct Answer-Additive
Which of these is NOT a primary goal of a lean manufacturing system? ✔Correct Answer-Greater
production volume
What is the normal mode for most PLC-controller industrial machines? ✔Correct Answer-
Automatic
Which of these is NOT one of the eight types of waste in Lean Manufacturing? ✔Correct Answer-
Underproduction
If a machine has a problem that causes it to stop, what would you expect to see on the machine's
HMI panel? ✔Correct Answer-Error Messages
Which of these devices includes a display screen and software to display graphical representations of
pushbuttons and selector switches, which an operator can press to send input signals to a controller?
✔Correct Answer-HMI (Human-Machine Interface)
After fixing a problem, what screen should be checked to verify that there are no problems before
starting the machine? ✔Correct Answer-Startup Menu
Which type of machine stop function requires a power-up procedure to restart the machine's
operation? ✔Correct Answer-Emergency stop
What should you do if you find that a machine's safety guard has been bypassed? ✔Correct
Answer-Lock out the machine and call the supervisor.
What indicator on an operator panel will likely be ON while a machine is performing its automation
sequence? ✔Correct Answer-In Cycle
What does the green color on this DOT label signify? ✔Correct Answer-Non-flammable
, In what position should a pneumatic lockout valve be placed to perform a lockout? ✔Correct
Answer-Closed
In addition to Medical and Environmental what is another category of emergency in a company?
✔Correct Answer-Hostile Threats
If a worker gets a chemical in an eye, what is the FIRST action they should take? ✔Correct Answer-
Go to the eyewash station
What air pressure should be used when compressed air is used to clean or blow parts? ✔Correct
Answer-Below 30 PSI
What feature should safety glasses have when used with a welding mask? ✔Correct Answer-Side
Shields
What type of gloves should be used when they are required to operate a process with moving
machine parts? ✔Correct Answer-Tight Fitting
What is the proper operation sequence of the fire extinguisher? ✔Correct Answer-pull, aim,
squeeze, sweep (PASS)
What is the hazardous material classification system that uses pictograms to identify the danger of a
material? ✔Correct Answer-GHS
What is the first step in an electrical lockout/tagout procedure? ✔Correct Answer-Shut down all
energy sources.
An employee should be retrained if they do not perform which of these tasks after a lockout tagout is
removed? ✔Correct Answer-Test the machine.
What do SDS sheets do? ✔Correct Answer-Specify material hazards.
A class B fire extinguisher is used to put out all fires involving all of the following materials except?
✔Correct Answer-Magnesium.
Which type of tool has a cross-shaped head to engage and tighten a fastener? ✔Correct Answer-
Phillips screwdriver
What is the pitch in the bolt designation shown? ✔Correct Answer-The pitch represents the
distance between adjacent threads and is indicated as 2.5 in the bolt designation.
When a click-type torque wrench clicks at the set point, what should you do to apply the proper
torque? ✔Correct Answer-stop turning the wrench
What is the upper and lower limits of a part with a length of 8.5mm and tolerances of +0.05, -0.02?
✔Correct Answer-8.55, 8.48, The upper limit is calculated by adding the tolerance (+0.05) to the
nominal dimension (8.5), resulting in 8.55 mm. The lower limit is calculated by subtracting the
tolerance (-0.02) from the nominal dimension (8.5), resulting in 8.48 mm.
