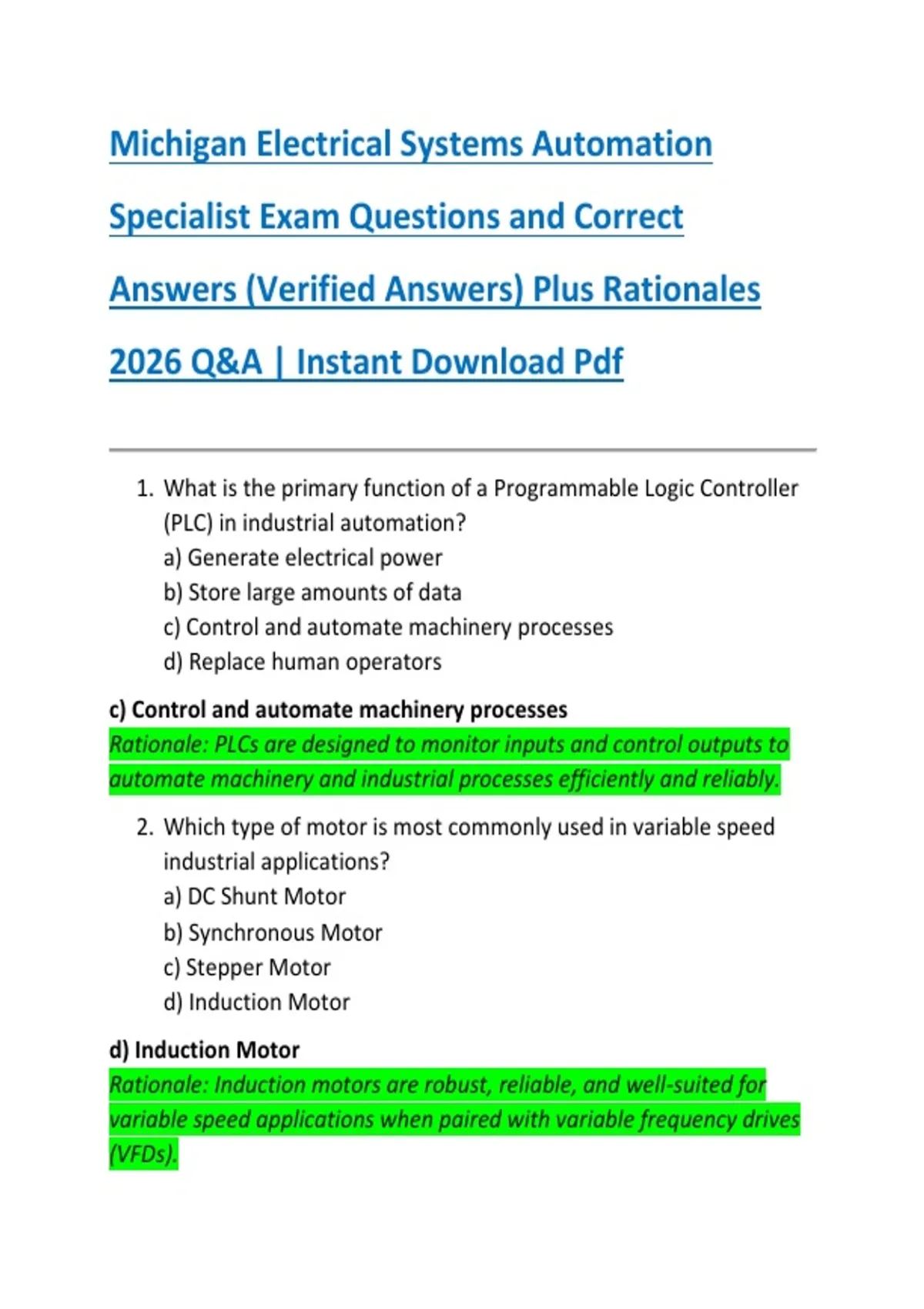

Michigan Electrical Systems Automation
Specialist Exam Questions and Correct
Answers (Verified Answers) Plus Rationales
2026 Q&A | Instant Download Pdf
1. What is the primary function of a Programmable Logic Controller
(PLC) in industrial automation?
a) Generate electrical power
b) Store large amounts of data
c) Control and automate machinery processes
d) Replace human operators
c) Control and automate machinery processes
Rationale: PLCs are designed to monitor inputs and control outputs to
automate machinery and industrial processes efficiently and reliably.
2. Which type of motor is most commonly used in variable speed
industrial applications?
a) DC Shunt Motor
b) Synchronous Motor
c) Stepper Motor
d) Induction Motor
d) Induction Motor
Rationale: Induction motors are robust, reliable, and well-suited for
variable speed applications when paired with variable frequency drives
(VFDs).
, 3. In ladder logic, what does a normally open (NO) contact
represent?
a) The circuit is always closed
b) The circuit is open until the input condition is true
c) The output is always energized
d) A short circuit
b) The circuit is open until the input condition is true
Rationale: A NO contact only allows current to flow when the input
condition it represents is active, which is standard in PLC programming.
4. What is the standard voltage level for most industrial PLC digital
inputs?
a) 120 V AC
b) 24 V DC
c) 5 V DC
d) 480 V AC
b) 24 V DC
Rationale: 24 V DC is the standard for industrial digital input devices
because it is safe, reliable, and compatible with PLCs.
5. What device is used to convert analog signals to digital signals in
automation systems?
a) DAC
b) ADC
c) Transformer
d) Contactor
b) ADC (Analog-to-Digital Converter)
Rationale: ADCs convert continuous analog signals into discrete digital
values for PLCs and control systems to process.
, 6. Which of the following is a common industrial communication
protocol for automation networks?
a) HTTP
b) Modbus
c) SMTP
d) FTP
b) Modbus
Rationale: Modbus is widely used for industrial automation because it
allows communication between devices like PLCs, sensors, and HMIs.
7. What is the primary role of a Human-Machine Interface (HMI) in
electrical automation?
a) To supply power to motors
b) To allow operators to monitor and control processes
c) To increase circuit voltage
d) To act as a backup PLC
b) To allow operators to monitor and control processes
Rationale: HMIs provide an interface for human operators to interact
with automated systems, display data, and issue commands.
8. In a three-phase motor, what is the primary purpose of a star-
delta starter?
a) To change the rotation direction
b) To reduce starting current
c) To increase full-load speed
d) To convert AC to DC
b) To reduce starting current
Rationale: Star-delta starters reduce the initial inrush current when
starting large motors, preventing electrical and mechanical stress.
, 9. Which component protects an electrical circuit from overload
conditions?
a) Relay
b) Contactor
c) Circuit breaker
d) Transformer
c) Circuit breaker
Rationale: Circuit breakers automatically interrupt power to prevent
damage from excessive current or short circuits.
10. Which type of sensor detects proximity without physical
contact?
a) Limit switch
b) Inductive sensor
c) Thermocouple
d) Strain gauge
b) Inductive sensor
Rationale: Inductive sensors detect metallic objects using
electromagnetic fields, making them ideal for non-contact detection.
11. What is the main advantage of using a variable frequency
drive (VFD) with an induction motor?
a) Reduces energy consumption
b) Increases motor size
c) Converts DC to AC
d) Eliminates the need for sensors
a) Reduces energy consumption
Rationale: VFDs allow precise motor speed control, optimizing energy
use and process efficiency.
