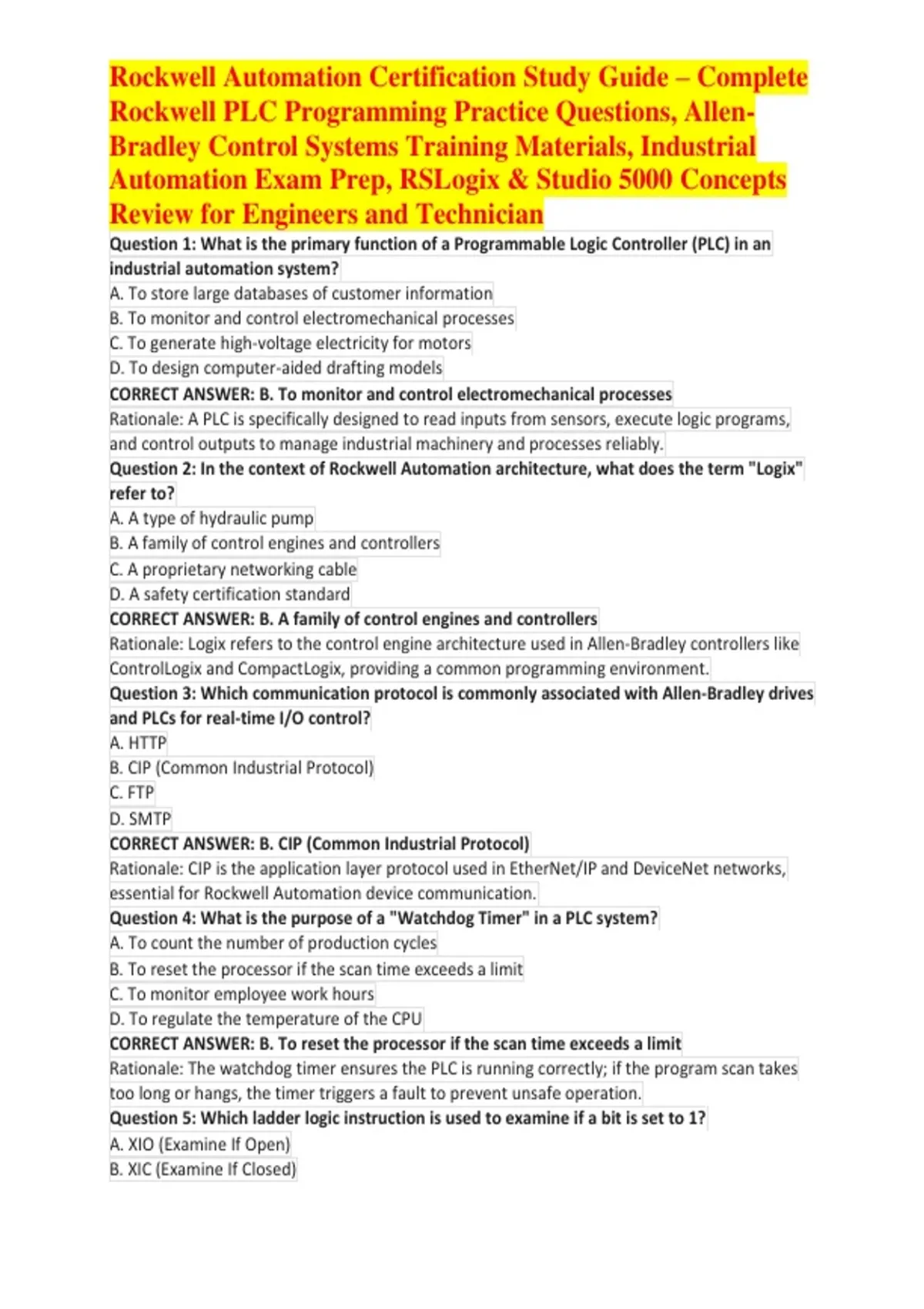

Rockwell Automation Certification Study Guide – Complete
Rockwell PLC Programming Practice Questions, Allen-
Bradley Control Systems Training Materials, Industrial
Automation Exam Prep, RSLogix & Studio 5000 Concepts
Review for Engineers and Technician
Question 1: What is the primary function of a Programmable Logic Controller (PLC) in an
industrial automation system?
A. To store large databases of customer information
B. To monitor and control electromechanical processes
C. To generate high-voltage electricity for motors
D. To design computer-aided drafting models
CORRECT ANSWER: B. To monitor and control electromechanical processes
Rationale: A PLC is specifically designed to read inputs from sensors, execute logic programs,
and control outputs to manage industrial machinery and processes reliably.
Question 2: In the context of Rockwell Automation architecture, what does the term "Logix"
refer to?
A. A type of hydraulic pump
B. A family of control engines and controllers
C. A proprietary networking cable
D. A safety certification standard
CORRECT ANSWER: B. A family of control engines and controllers
Rationale: Logix refers to the control engine architecture used in Allen-Bradley controllers like
ControlLogix and CompactLogix, providing a common programming environment.
Question 3: Which communication protocol is commonly associated with Allen-Bradley drives
and PLCs for real-time I/O control?
A. HTTP
B. CIP (Common Industrial Protocol)
C. FTP
D. SMTP
CORRECT ANSWER: B. CIP (Common Industrial Protocol)
Rationale: CIP is the application layer protocol used in EtherNet/IP and DeviceNet networks,
essential for Rockwell Automation device communication.
Question 4: What is the purpose of a "Watchdog Timer" in a PLC system?
A. To count the number of production cycles
B. To reset the processor if the scan time exceeds a limit
C. To monitor employee work hours
D. To regulate the temperature of the CPU
CORRECT ANSWER: B. To reset the processor if the scan time exceeds a limit
Rationale: The watchdog timer ensures the PLC is running correctly; if the program scan takes
too long or hangs, the timer triggers a fault to prevent unsafe operation.
Question 5: Which ladder logic instruction is used to examine if a bit is set to 1?
A. XIO (Examine If Open)
B. XIC (Examine If Closed)
,C. OTE (Output Energize)
D. TON (Timer On-Delay)
CORRECT ANSWER: B. XIC (Examine If Closed)
Rationale: XIC evaluates to true if the referenced bit address contains a logic 1 (closed circuit
condition).
Question 6: What voltage level is typically considered "High" for a standard 24V DC industrial
input card?
A. 0V to 5V
B. 10V to 15V
C. 15V to 30V
D. 40V to 50V
CORRECT ANSWER: C. 15V to 30V
Rationale: Industrial 24V DC inputs generally recognize voltages above 15V as a logical high
state to ensure noise immunity.
Question 7: In Studio 5000, what is a "Tag"?
A. A physical label on the machine
B. A symbolic name for a memory location
C. A type of network switch
D. A safety interlock device
CORRECT ANSWER: B. A symbolic name for a memory location
Rationale: Tags are symbolic identifiers used in Logix controllers to represent data elements,
replacing traditional absolute addresses.
Question 8: Which network topology is most commonly used for EtherNet/IP in industrial
settings?
A. Ring
B. Star
C. Bus
D. Mesh
CORRECT ANSWER: B. Star
Rationale: While rings are used for redundancy, the star topology via switches is the most
common standard layout for EtherNet/IP connections.
Question 9: What is the function of an HMI (Human Machine Interface)?
A. To execute high-speed logic scans
B. To provide a graphical interface for operator interaction
C. To convert AC power to DC power
D. To store long-term archival data only
CORRECT ANSWER: B. To provide a graphical interface for operator interaction
Rationale: HMIs allow operators to visualize process status, acknowledge alarms, and input
commands to the control system.
Question 10: What does the acronym "SCADA" stand for?
A. System Control and Data Acquisition
B. Supervisory Control and Data Acquisition
,C. Safety Control and Digital Automation
D. Sequential Control and Data Analysis
CORRECT ANSWER: B. Supervisory Control and Data Acquisition
Rationale: SCADA systems are used for high-level supervision of industrial processes, gathering
data from remote locations.
Question 11: Which safety standard specifically addresses the functional safety of
electrical/electronic/programmable electronic safety-related systems?
A. ISO 9001
B. IEC 61508
C. NEC Article 100
D. IEEE 802.3
CORRECT ANSWER: B. IEC 61508
Rationale: IEC 61508 is the overarching international standard for functional safety of E/E/PE
systems.
Question 12: In a VFD (Variable Frequency Drive), what parameter controls the motor speed?
A. Input Voltage Amplitude
B. Output Frequency
C. Cable Length
D. Ground Resistance
CORRECT ANSWER: B. Output Frequency
Rationale: VFDs control AC motor speed by varying the frequency of the electrical power
supplied to the motor.
Question 13: What is the primary benefit of using a "Producer/Consumer" model in network
communications?
A. It reduces wiring costs
B. It allows multiple nodes to consume data from a single producer simultaneously
C. It increases voltage levels
D. It eliminates the need for controllers
CORRECT ANSWER: B. It allows multiple nodes to consume data from a single producer
simultaneously
Rationale: This model optimizes network traffic by broadcasting data once, allowing multiple
consumers to access it without separate requests.
Question 14: Which component is used to isolate high voltage circuits from low voltage
control circuits?
A. Resistor
B. Opto-isolator
C. Capacitor
D. Inductor
CORRECT ANSWER: B. Opto-isolator
Rationale: Opto-isolators use light to transfer signals, providing electrical isolation to protect
sensitive control electronics from high voltage spikes.
, Question 15: What is the default IP address configuration method for many new industrial
devices before assignment?
A. Static IP hardcoded to 192.168.1.1
B. DHCP or BOOTP
C. Manual DIP switch setting only
D. Fiber optic default
CORRECT ANSWER: B. DHCP or BOOTP
Rationale: Many industrial devices default to DHCP or BOOTP to obtain an IP address
automatically upon first connection.
Question 16: In ladder logic, what does an OTE instruction do?
A. Examines a bit status
B. Sets a bit to 1 if the rung is true
C. Resets a bit to 0 always
D. Timers the scan cycle
CORRECT ANSWER: B. Sets a bit to 1 if the rung is true
Rationale: OTE (Output Energize) writes a logic 1 to the tag if the preceding logic on the rung
evaluates to true.
Question 17: Which type of sensor detects metal objects without physical contact?
A. Capacitive Proximity Sensor
B. Inductive Proximity Sensor
C. Photoelectric Sensor
D. Thermocouple
CORRECT ANSWER: B. Inductive Proximity Sensor
Rationale: Inductive sensors generate an electromagnetic field and detect changes caused by
metallic targets.
Question 18: What is the purpose of a "Fault Routine" in a PLC program?
A. To shut down the plant immediately
B. To handle specific error conditions gracefully
C. To increase the scan time
D. To delete user programs
CORRECT ANSWER: B. To handle specific error conditions gracefully
Rationale: Fault routines allow the controller to execute specific logic when a major or minor
fault occurs, potentially saving data or safe-stopping machinery.
Question 19: Which cable category is minimum recommended for Gigabit EtherNet/IP
connections?
A. Cat 3
B. Cat 5
C. Cat 5e or Cat 6
D. Coaxial
CORRECT ANSWER: C. Cat 5e or Cat 6
Rationale: Cat 5e and Cat 6 cables support the bandwidth required for Gigabit Ethernet
communications.
Rockwell PLC Programming Practice Questions, Allen-
Bradley Control Systems Training Materials, Industrial
Automation Exam Prep, RSLogix & Studio 5000 Concepts
Review for Engineers and Technician
Question 1: What is the primary function of a Programmable Logic Controller (PLC) in an
industrial automation system?
A. To store large databases of customer information
B. To monitor and control electromechanical processes
C. To generate high-voltage electricity for motors
D. To design computer-aided drafting models
CORRECT ANSWER: B. To monitor and control electromechanical processes
Rationale: A PLC is specifically designed to read inputs from sensors, execute logic programs,
and control outputs to manage industrial machinery and processes reliably.
Question 2: In the context of Rockwell Automation architecture, what does the term "Logix"
refer to?
A. A type of hydraulic pump
B. A family of control engines and controllers
C. A proprietary networking cable
D. A safety certification standard
CORRECT ANSWER: B. A family of control engines and controllers
Rationale: Logix refers to the control engine architecture used in Allen-Bradley controllers like
ControlLogix and CompactLogix, providing a common programming environment.
Question 3: Which communication protocol is commonly associated with Allen-Bradley drives
and PLCs for real-time I/O control?
A. HTTP
B. CIP (Common Industrial Protocol)
C. FTP
D. SMTP
CORRECT ANSWER: B. CIP (Common Industrial Protocol)
Rationale: CIP is the application layer protocol used in EtherNet/IP and DeviceNet networks,
essential for Rockwell Automation device communication.
Question 4: What is the purpose of a "Watchdog Timer" in a PLC system?
A. To count the number of production cycles
B. To reset the processor if the scan time exceeds a limit
C. To monitor employee work hours
D. To regulate the temperature of the CPU
CORRECT ANSWER: B. To reset the processor if the scan time exceeds a limit
Rationale: The watchdog timer ensures the PLC is running correctly; if the program scan takes
too long or hangs, the timer triggers a fault to prevent unsafe operation.
Question 5: Which ladder logic instruction is used to examine if a bit is set to 1?
A. XIO (Examine If Open)
B. XIC (Examine If Closed)
,C. OTE (Output Energize)
D. TON (Timer On-Delay)
CORRECT ANSWER: B. XIC (Examine If Closed)
Rationale: XIC evaluates to true if the referenced bit address contains a logic 1 (closed circuit
condition).
Question 6: What voltage level is typically considered "High" for a standard 24V DC industrial
input card?
A. 0V to 5V
B. 10V to 15V
C. 15V to 30V
D. 40V to 50V
CORRECT ANSWER: C. 15V to 30V
Rationale: Industrial 24V DC inputs generally recognize voltages above 15V as a logical high
state to ensure noise immunity.
Question 7: In Studio 5000, what is a "Tag"?
A. A physical label on the machine
B. A symbolic name for a memory location
C. A type of network switch
D. A safety interlock device
CORRECT ANSWER: B. A symbolic name for a memory location
Rationale: Tags are symbolic identifiers used in Logix controllers to represent data elements,
replacing traditional absolute addresses.
Question 8: Which network topology is most commonly used for EtherNet/IP in industrial
settings?
A. Ring
B. Star
C. Bus
D. Mesh
CORRECT ANSWER: B. Star
Rationale: While rings are used for redundancy, the star topology via switches is the most
common standard layout for EtherNet/IP connections.
Question 9: What is the function of an HMI (Human Machine Interface)?
A. To execute high-speed logic scans
B. To provide a graphical interface for operator interaction
C. To convert AC power to DC power
D. To store long-term archival data only
CORRECT ANSWER: B. To provide a graphical interface for operator interaction
Rationale: HMIs allow operators to visualize process status, acknowledge alarms, and input
commands to the control system.
Question 10: What does the acronym "SCADA" stand for?
A. System Control and Data Acquisition
B. Supervisory Control and Data Acquisition
,C. Safety Control and Digital Automation
D. Sequential Control and Data Analysis
CORRECT ANSWER: B. Supervisory Control and Data Acquisition
Rationale: SCADA systems are used for high-level supervision of industrial processes, gathering
data from remote locations.
Question 11: Which safety standard specifically addresses the functional safety of
electrical/electronic/programmable electronic safety-related systems?
A. ISO 9001
B. IEC 61508
C. NEC Article 100
D. IEEE 802.3
CORRECT ANSWER: B. IEC 61508
Rationale: IEC 61508 is the overarching international standard for functional safety of E/E/PE
systems.
Question 12: In a VFD (Variable Frequency Drive), what parameter controls the motor speed?
A. Input Voltage Amplitude
B. Output Frequency
C. Cable Length
D. Ground Resistance
CORRECT ANSWER: B. Output Frequency
Rationale: VFDs control AC motor speed by varying the frequency of the electrical power
supplied to the motor.
Question 13: What is the primary benefit of using a "Producer/Consumer" model in network
communications?
A. It reduces wiring costs
B. It allows multiple nodes to consume data from a single producer simultaneously
C. It increases voltage levels
D. It eliminates the need for controllers
CORRECT ANSWER: B. It allows multiple nodes to consume data from a single producer
simultaneously
Rationale: This model optimizes network traffic by broadcasting data once, allowing multiple
consumers to access it without separate requests.
Question 14: Which component is used to isolate high voltage circuits from low voltage
control circuits?
A. Resistor
B. Opto-isolator
C. Capacitor
D. Inductor
CORRECT ANSWER: B. Opto-isolator
Rationale: Opto-isolators use light to transfer signals, providing electrical isolation to protect
sensitive control electronics from high voltage spikes.
, Question 15: What is the default IP address configuration method for many new industrial
devices before assignment?
A. Static IP hardcoded to 192.168.1.1
B. DHCP or BOOTP
C. Manual DIP switch setting only
D. Fiber optic default
CORRECT ANSWER: B. DHCP or BOOTP
Rationale: Many industrial devices default to DHCP or BOOTP to obtain an IP address
automatically upon first connection.
Question 16: In ladder logic, what does an OTE instruction do?
A. Examines a bit status
B. Sets a bit to 1 if the rung is true
C. Resets a bit to 0 always
D. Timers the scan cycle
CORRECT ANSWER: B. Sets a bit to 1 if the rung is true
Rationale: OTE (Output Energize) writes a logic 1 to the tag if the preceding logic on the rung
evaluates to true.
Question 17: Which type of sensor detects metal objects without physical contact?
A. Capacitive Proximity Sensor
B. Inductive Proximity Sensor
C. Photoelectric Sensor
D. Thermocouple
CORRECT ANSWER: B. Inductive Proximity Sensor
Rationale: Inductive sensors generate an electromagnetic field and detect changes caused by
metallic targets.
Question 18: What is the purpose of a "Fault Routine" in a PLC program?
A. To shut down the plant immediately
B. To handle specific error conditions gracefully
C. To increase the scan time
D. To delete user programs
CORRECT ANSWER: B. To handle specific error conditions gracefully
Rationale: Fault routines allow the controller to execute specific logic when a major or minor
fault occurs, potentially saving data or safe-stopping machinery.
Question 19: Which cable category is minimum recommended for Gigabit EtherNet/IP
connections?
A. Cat 3
B. Cat 5
C. Cat 5e or Cat 6
D. Coaxial
CORRECT ANSWER: C. Cat 5e or Cat 6
Rationale: Cat 5e and Cat 6 cables support the bandwidth required for Gigabit Ethernet
communications.
