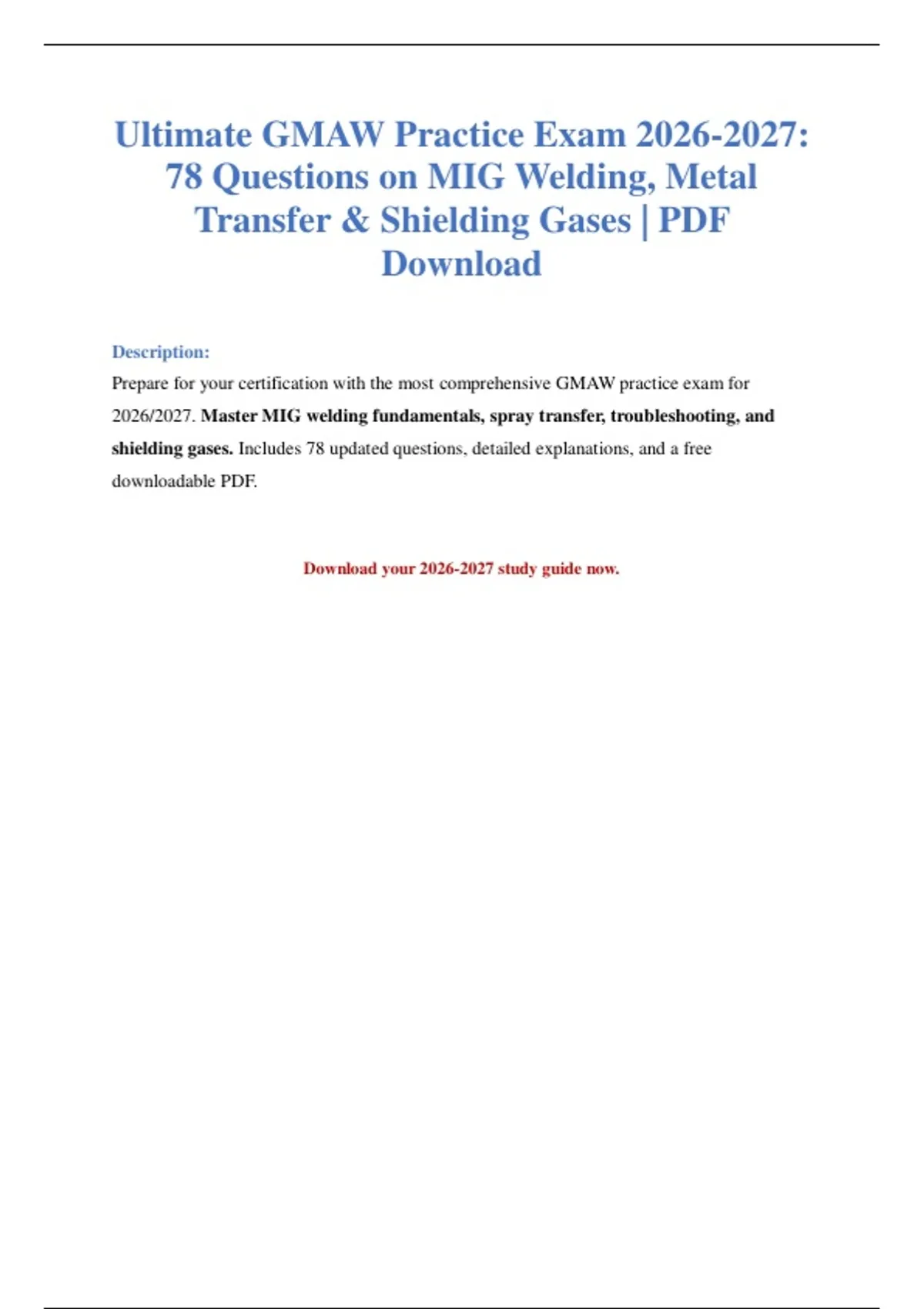

Ultimate GMAW Practice Exam 2026-2027:
78 Questions on MIG Welding, Metal
Transfer & Shielding Gases | PDF
Download
Description:
Prepare for your certification with the most comprehensive GMAW practice exam for
2026/2027. Master MIG welding fundamentals, spray transfer, troubleshooting, and
shielding gases. Includes 78 updated questions, detailed explanations, and a free
downloadable PDF.
Download your 2026-2027 study guide now.
, GMAW Exam Questions & Answers PDF (2026-2027)
Instructions: Read each question carefully and select the best possible answer from the
options provided. This examination covers fundamental principles, equipment, process
parameters, and applications of the Gas Metal Arc Welding process.
Section 1: Fundamentals and Terminology
1. What is the correct abbreviation for the welding process that uses a continuously fed solid
electrode wire and requires an external shielding gas?
A. GTAW
B. SMAW
C. FCAW
D. GMAW
Answer: D
Explanation: GMAW is the standard acronym for Gas Metal Arc Welding. GTAW stands for
Gas Tungsten Arc Welding, SMAW for Shielded Metal Arc Welding, and FCAW for Flux-
Cored Arc Welding.
2. In the Gas Metal Arc Welding (GMAW) process, the primary function of the externally
supplied gas is to:
A. Increase the temperature of the arc.
B. Protect the molten weld pool from atmospheric contamination.
C. Act as a flux to remove impurities.
D. Increase the deposition rate of the filler metal.
Answer: B
Explanation: The shielding gas in GMAW displaces the atmosphere around the arc and weld
pool, preventing harmful gases like oxygen and nitrogen from causing porosity or
embrittlement.
3. The electrode wire used in standard GMAW is best described as:
A. Flux-cored.
B. Solid, continuous, and consumable.
C. A non-consumable tungsten rod.
D. A coated stick electrode.
, Answer: B
Explanation: GMAW utilizes a solid, continuous wire that is consumed to become the filler
metal. This distinguishes it from processes like FCAW (flux-cored) and GTAW (non-
consumable).
Section 2: Equipment and Setup
4. What type of power source is predominantly used for the GMAW process to maintain a
consistent arc length?
A. Constant Current (CC)
B. Variable Voltage (VV)
C. Constant Voltage (CV)
D. Pulsed DC
Answer: C
Explanation: A Constant Voltage (CV) power source, also known as a Constant Potential
(CP) machine, is standard for GMAW. It allows the amperage (and thus wire burn-off rate) to
change automatically to maintain a relatively constant arc length if the torch-to-work distance
varies slightly.
5. The electrical current required to melt the electrode wire is transferred from the power
source to the wire through which component?
A. The gas nozzle.
B. The drive rolls.
C. The contact tube (or tip).
D. The wire spool hub.
Answer: C
Explanation: The contact tube, usually made of copper, is threaded into the torch and makes
physical contact with the electrode wire, transferring the welding current to it.
6. A critical factor for proper contact tube function is that its internal diameter must be:
A. Significantly larger than the wire to ensure easy feeding.
B. Sized to closely match the diameter of the electrode wire.
C. Slightly smaller than the wire to create a pressure fit.
D. Universal, as one size fits all standard wires.
