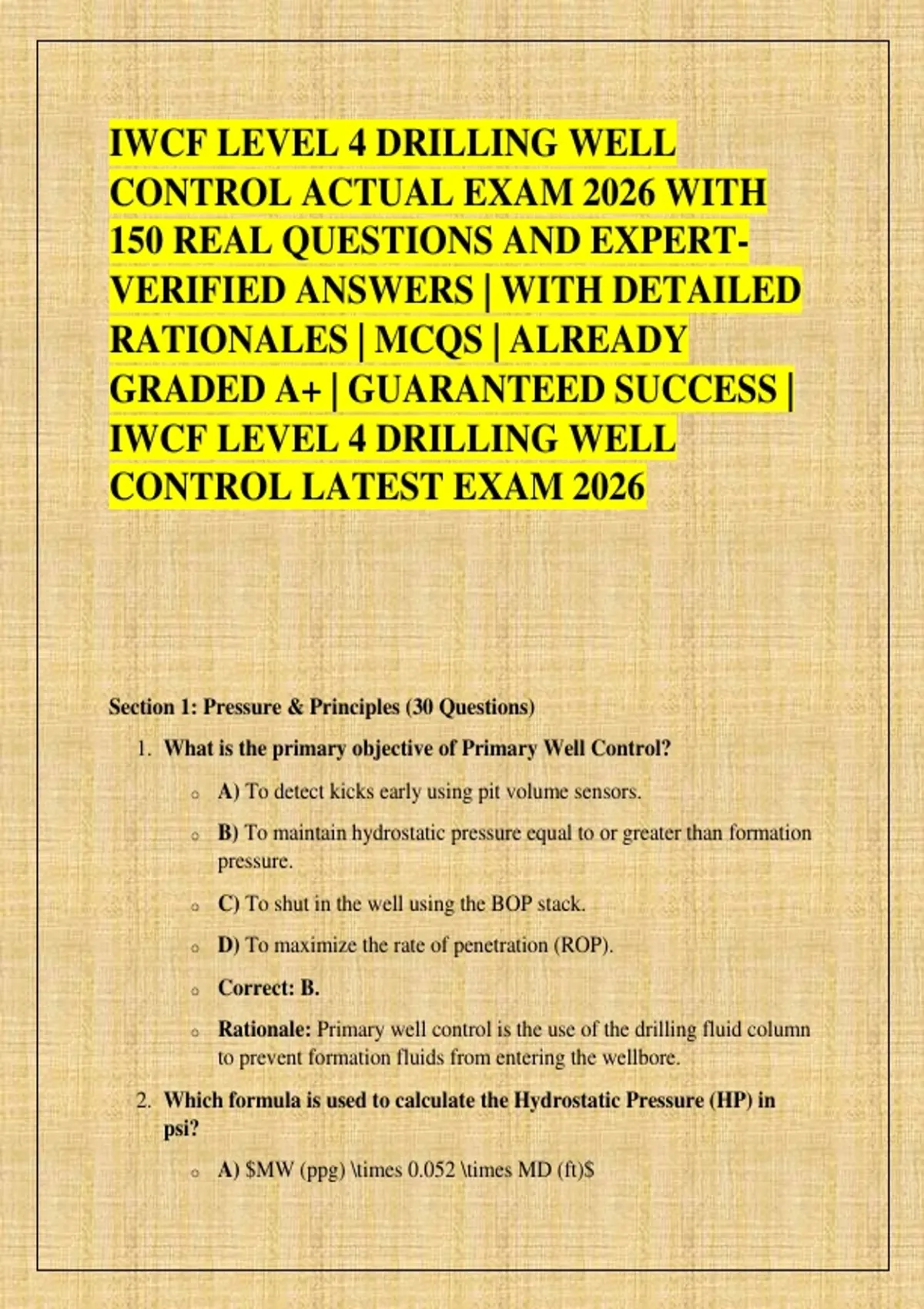

IWCF LEVEL 4 DRILLING WELL
CONTROL ACTUAL EXAM 2026 WITH
150 REAL QUESTIONS AND EXPERT-
VERIFIED ANSWERS | WITH DETAILED
RATIONALES | MCQS | ALREADY
GRADED A+ | GUARANTEED SUCCESS |
IWCF LEVEL 4 DRILLING WELL
CONTROL LATEST EXAM 2026
Section 1: Pressure & Principles (30 Questions)
1. What is the primary objective of Primary Well Control?
o A) To detect kicks early using pit volume sensors.
o B) To maintain hydrostatic pressure equal to or greater than formation
pressure.
o C) To shut in the well using the BOP stack.
o D) To maximize the rate of penetration (ROP).
o Correct: B.
o Rationale: Primary well control is the use of the drilling fluid column
to prevent formation fluids from entering the wellbore.
2. Which formula is used to calculate the Hydrostatic Pressure (HP) in
psi?
o A) $MW (ppg) \times 0.052 \times MD (ft)$
, o B) $MW (ppg) \times 0.052 \times TVD (ft)$
o C) $MW (ppg) \div 0.052 \times TVD (ft)$
o D) $SICP + SIDPP$
o Correct: B.
o Rationale: Hydrostatic pressure is dependent on the vertical depth
(TVD), not the measured depth (MD).
3. Define "Equivalent Circulating Density" (ECD).
o A) The density of the kill mud.
o B) The effective density exerted on the formation when the pumps are
running.
o C) The density of the mud including the weight of cuttings.
o D) The pressure required to fracture the formation.
o Correct: B.
o Rationale: ECD = Mud Weight + (Annular Pressure Loss ÷ 0.052 ÷
TVD). It accounts for the friction pressure in the annulus.
4. What is the "Bubble Point"?
o A) The pressure at which a gas kick reaches the surface.
o B) The pressure at which gas begins to come out of solution in the
drilling fluid.
o C) The pressure required to burst the casing.
o D) The temperature at which the mud boils.
o Correct: B.
o Rationale: This is critical in Oil Based Mud (OBM) where gas
remains dissolved until it reaches a specific pressure/depth.
5. If the Mud Weight is 12.0 ppg and the TVD is 10,000 ft, what is the
Hydrostatic Pressure?
o A) 6,240 psi
, o B) 5,200 psi
o C) 1,200 psi
o D) 6,000 psi
o Correct: A.
o Rationale: $12.0 \times 0.052 \times 10,000 = 6,240 \text{ psi}$.
Section 2: Kick Detection & Shut-In (40 Questions)
6. Which of the following is a primary (positive) indicator of a kick while
drilling?
o A) Increase in torque and drag.
o B) Decrease in pump pressure.
o C) Increase in pit volume.
o D) Change in cuttings size.
o Correct: C.
o Rationale: An increase in pit volume (pit gain) means formation fluid
is actively entering the wellbore.
7. What is the first action a Driller should take upon seeing a "Drilling
Break"?
o A) Shut in the well immediately.
o B) Increase pump speed to increase ECD.
o C) Stop drilling, pick up off bottom, and perform a flow check.
o D) Wait for 5 minutes to see if pit volume increases.
o Correct: C.
o Rationale: A drilling break is a potential indicator of a higher
porosity/pressure zone; a flow check confirms if the well is flowing.
, 8. During a flow check, the well is flowing with the pumps off. What is the
next step?
o A) Resume drilling cautiously.
o B) Perform a Hard Shut-In or Soft Shut-In according to rig policy.
o C) Circulate "bottoms up" to clean the hole.
o D) Increase the mud weight in the active pits.
o Correct: B.
o Rationale: Positive flow with pumps off is a kick; the well must be
secured immediately.
9. Why is the "Hard Shut-In" method often preferred over "Soft Shut-
In"?
o A) It is easier on the BOP equipment.
o B) It results in a smaller influx volume by closing the well faster.
o C) It prevents any pressure from showing on the gauges.
o D) It is only used for subsea wells.
o Correct: B.
o Rationale: Minimizing influx volume is critical to keeping SICP and
pressures low throughout the kill process.
10.While tripping out of the hole, the hole does not take the correct amount
of mud. What does this indicate?
o A) The mud density is too high.
o B) The formation is taking fluid (losses).
o C) Swabbed influx (kick).
o D) The bit is balled up.
o Correct: C.
o Rationale: If the volume of mud required to fill the hole is less than
the volume of steel removed, an influx has likely entered.
