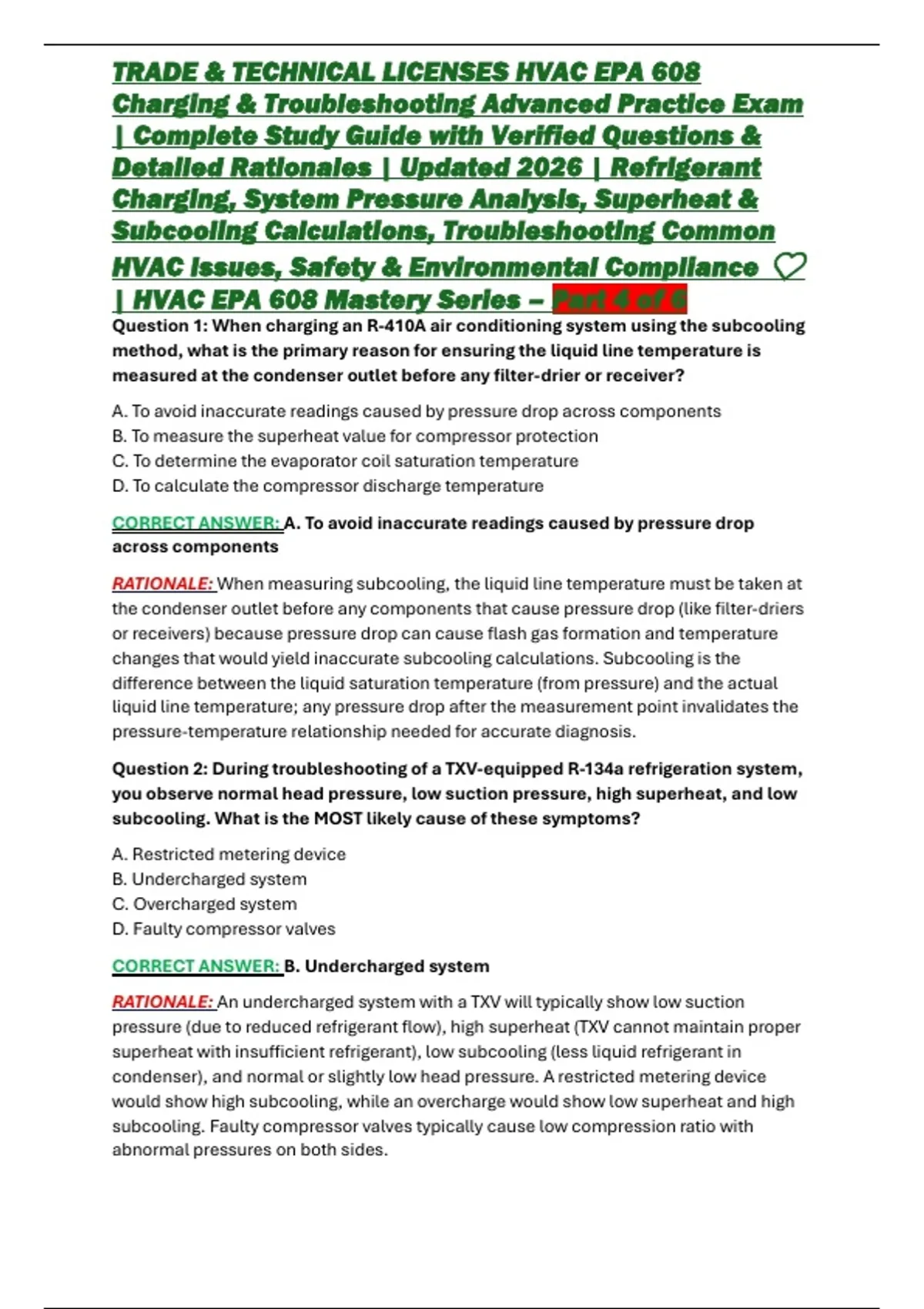

TRADE & TECHNICAL LICENSES HVAC EPA 608
Charging & Troubleshooting Advanced Practice Exam
| Complete Study Guide with Verified Questions &
Detailed Rationales | Updated 2026 | Refrigerant
Charging, System Pressure Analysis, Superheat &
Subcooling Calculations, Troubleshooting Common
HVAC Issues, Safety & Environmental Compliance ❤️
| HVAC EPA 608 Mastery Series – Part 4 of 6
Question 1: When charging an R-410A air conditioning system using the subcooling
method, what is the primary reason for ensuring the liquid line temperature is
measured at the condenser outlet before any filter-drier or receiver?
A. To avoid inaccurate readings caused by pressure drop across components
B. To measure the superheat value for compressor protection
C. To determine the evaporator coil saturation temperature
D. To calculate the compressor discharge temperature
CORRECT ANSWER: A. To avoid inaccurate readings caused by pressure drop
across components
RATIONALE: When measuring subcooling, the liquid line temperature must be taken at
the condenser outlet before any components that cause pressure drop (like filter-driers
or receivers) because pressure drop can cause flash gas formation and temperature
changes that would yield inaccurate subcooling calculations. Subcooling is the
difference between the liquid saturation temperature (from pressure) and the actual
liquid line temperature; any pressure drop after the measurement point invalidates the
pressure-temperature relationship needed for accurate diagnosis.
Question 2: During troubleshooting of a TXV-equipped R-134a refrigeration system,
you observe normal head pressure, low suction pressure, high superheat, and low
subcooling. What is the MOST likely cause of these symptoms?
A. Restricted metering device
B. Undercharged system
C. Overcharged system
D. Faulty compressor valves
CORRECT ANSWER: B. Undercharged system
RATIONALE: An undercharged system with a TXV will typically show low suction
pressure (due to reduced refrigerant flow), high superheat (TXV cannot maintain proper
superheat with insufficient refrigerant), low subcooling (less liquid refrigerant in
condenser), and normal or slightly low head pressure. A restricted metering device
would show high subcooling, while an overcharge would show low superheat and high
subcooling. Faulty compressor valves typically cause low compression ratio with
abnormal pressures on both sides.
,Question 3: According to EPA Section 608 regulations, what is the maximum
allowable leak rate for commercial refrigeration systems containing 50 or more
pounds of refrigerant before mandatory repair is required?
A. 10% of the charge per year
B. 20% of the charge per year
C. 30% of the charge per year
D. 35% of the charge per year
CORRECT ANSWER: B. 20% of the charge per year
RATIONALE: EPA Section 608 mandates that commercial refrigeration systems
containing 50 pounds or more of refrigerant must be repaired if the leak rate exceeds
20% of the total charge per year. This threshold triggers mandatory leak repair,
verification testing, and recordkeeping requirements to minimize refrigerant emissions
and environmental impact.
Question 4: When performing a deep vacuum evacuation on an HVAC system, what
is the primary purpose of holding the vacuum at 500 microns for a specified period?
A. To verify the system is free of non-condensable gases and moisture
B. To cool the compressor oil for better circulation
C. To pre-charge the system with nitrogen for leak testing
D. To calibrate the micron gauge before final charging
CORRECT ANSWER: A. To verify the system is free of non-condensable gases and
moisture
RATIONALE: Holding a vacuum at 500 microns (or lower) for a specified duration
(typically 10-30 minutes) allows technicians to confirm that the system is properly
dehydrated and free of non-condensables. A rising micron reading during the hold
indicates residual moisture boiling off or a leak, requiring further evacuation or leak
repair before charging.
Question 5: In an R-22 system operating with a fixed orifice metering device, what
effect does a dirty air filter on the evaporator coil have on superheat?
A. Superheat decreases due to reduced airflow
B. Superheat increases due to reduced heat load
C. Superheat remains unchanged as the orifice compensates
D. Superheat fluctuates unpredictably
CORRECT ANSWER: B. Superheat increases due to reduced heat load
RATIONALE: A dirty air filter reduces airflow across the evaporator coil, decreasing the
heat load. With a fixed orifice, refrigerant flow remains relatively constant while less
heat is absorbed, causing the refrigerant to absorb more sensible heat and exit the
evaporator at a higher temperature, thus increasing superheat. This can lead to poor
cooling performance and potential compressor overheating.
,Question 6: Which refrigerant property makes R-410A incompatible with mineral
oil, requiring the use of POE oil instead?
A. Higher operating pressures
B. Chemical incompatibility with chlorine atoms
C. Lack of miscibility with mineral oil
D. Lower global warming potential
CORRECT ANSWER: C. Lack of miscibility with mineral oil
RATIONALE: R-410A is a blend of HFC refrigerants (R-32 and R-125) that lacks chlorine
and is not miscible with traditional mineral oils. Polyolester (POE) oil is required
because it provides proper miscibility and lubrication return to the compressor. Using
mineral oil with R-410A would cause oil logging, poor lubrication, and compressor
failure.
Question 7: When using a digital micron gauge during evacuation, where should the
gauge be connected for the most accurate system vacuum reading?
A. At the compressor service valve
B. At the core of the system, farthest from the vacuum pump
C. Directly on the vacuum pump inlet
D. On the high-side service port only
CORRECT ANSWER: B. At the core of the system, farthest from the vacuum pump
RATIONALE: Connecting the micron gauge at the point farthest from the vacuum pump
(typically the core of the system) provides the most accurate representation of the
actual vacuum level throughout the entire system. This location is most likely to retain
moisture or non-condensables, ensuring the evacuation is truly complete before
charging.
Question 8: What is the primary purpose of installing a liquid line filter-drier after a
compressor burnout?
A. To increase subcooling for better efficiency
B. To remove acid, moisture, and contaminants from the system
C. To reduce head pressure during high ambient conditions
D. To prevent refrigerant fractionation during charging
CORRECT ANSWER: B. To remove acid, moisture, and contaminants from the
system
RATIONALE: After a compressor burnout, acids, moisture, and metal particles
contaminate the system. A liquid line filter-drier with an acid-core desiccant is essential
to absorb these contaminants, protect the new compressor, and prevent future failures.
It should be replaced after system cleanup to ensure ongoing protection.
, Question 9: During superheat charging of an R-410A system with a fixed orifice, if
the measured superheat is 15°F higher than the target value, what action should be
taken?
A. Recover refrigerant to reduce charge
B. Add refrigerant to lower superheat
C. Replace the metering device immediately
D. Increase evaporator airflow
CORRECT ANSWER: B. Add refrigerant to lower superheat
RATIONALE: High superheat indicates insufficient refrigerant flow through the
evaporator. Adding refrigerant increases the refrigerant charge, which lowers superheat
by allowing more liquid to enter the evaporator and absorb heat. Caution must be
exercised to avoid overcharging, which would cause low superheat and potential liquid
slugging.
Question 10: Which EPA 608 certification type is required for technicians who
service, maintain, or dispose of small appliances containing refrigerant?
A. Type I
B. Type II
C. Type III
D. Universal
CORRECT ANSWER: A. Type I
RATIONALE: EPA Section 608 Type I certification is specifically for technicians who
service small appliances (containing 5 pounds or less of refrigerant), such as household
refrigerators, window AC units, and vending machines. Type II covers high-pressure
appliances, Type III covers low-pressure appliances, and Universal covers all types.
Question 11: When troubleshooting a heat pump in heating mode that has iced-up
outdoor coil, low suction pressure, and high head pressure, what is the MOST
probable cause?
A. Reversing valve stuck in cooling position
B. Defrost control board failure
C. Outdoor fan motor not operating
D. All of the above
CORRECT ANSWER: D. All of the above
RATIONALE: An iced outdoor coil in heating mode with abnormal pressures can result
from multiple failures: a reversing valve stuck in cooling mode prevents proper heating
operation; defrost control failure prevents coil defrosting; and a non-operating outdoor
fan reduces heat absorption, causing icing and pressure abnormalities. Comprehensive
diagnostics are required to isolate the specific fault.
