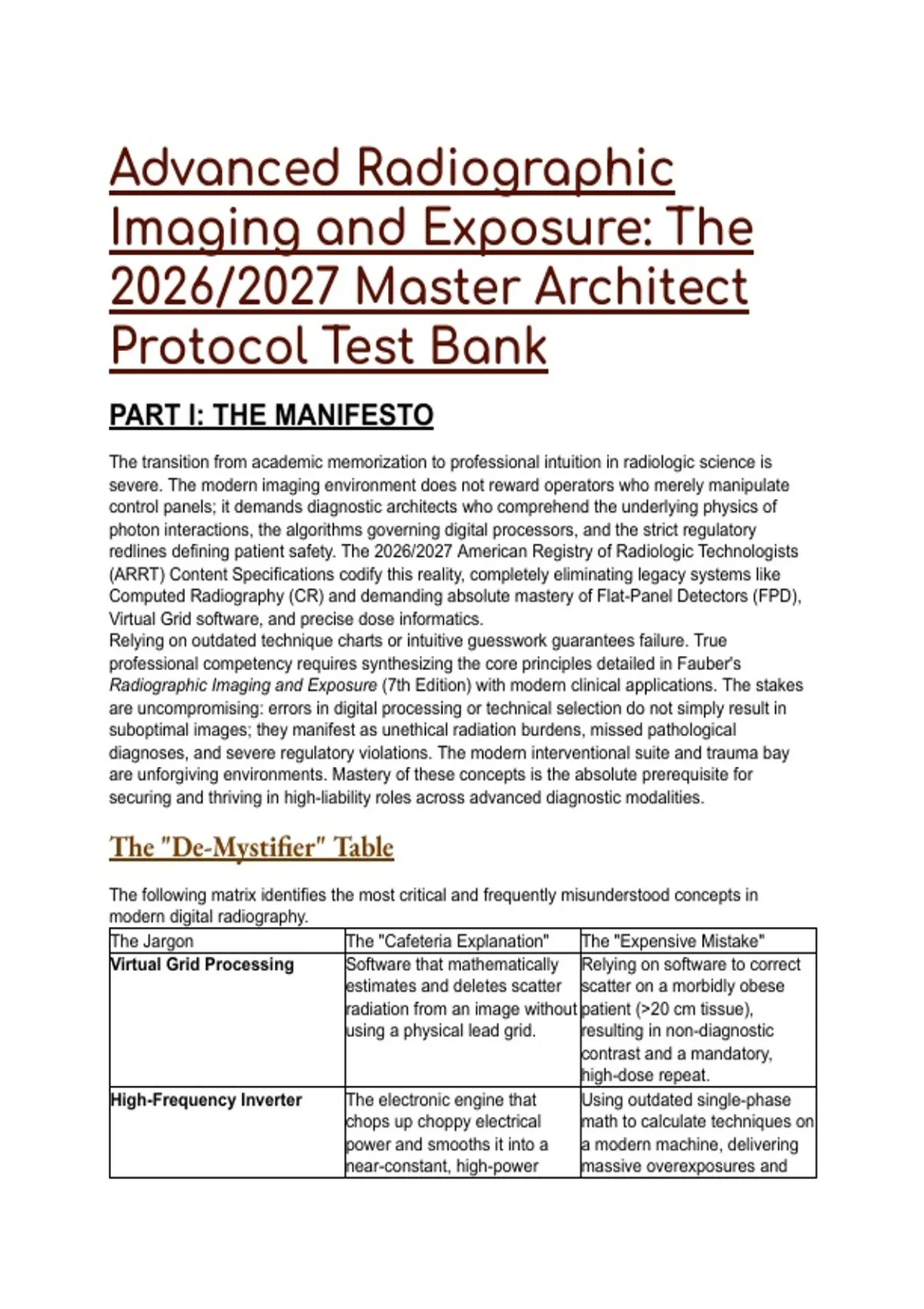

Advanced Radiographic
Imaging and Exposure: The
2026/2027 Master Architect
Protocol Test Bank
PART I: THE MANIFESTO
The transition from academic memorization to professional intuition in radiologic science is
severe. The modern imaging environment does not reward operators who merely manipulate
control panels; it demands diagnostic architects who comprehend the underlying physics of
photon interactions, the algorithms governing digital processors, and the strict regulatory
redlines defining patient safety. The 2026/2027 American Registry of Radiologic Technologists
(ARRT) Content Specifications codify this reality, completely eliminating legacy systems like
Computed Radiography (CR) and demanding absolute mastery of Flat-Panel Detectors (FPD),
Virtual Grid software, and precise dose informatics.
Relying on outdated technique charts or intuitive guesswork guarantees failure. True
professional competency requires synthesizing the core principles detailed in Fauber's
Radiographic Imaging and Exposure (7th Edition) with modern clinical applications. The stakes
are uncompromising: errors in digital processing or technical selection do not simply result in
suboptimal images; they manifest as unethical radiation burdens, missed pathological
diagnoses, and severe regulatory violations. The modern interventional suite and trauma bay
are unforgiving environments. Mastery of these concepts is the absolute prerequisite for
securing and thriving in high-liability roles across advanced diagnostic modalities.
The "De-Mystifier" Table
The following matrix identifies the most critical and frequently misunderstood concepts in
modern digital radiography.
The Jargon The "Cafeteria Explanation" The "Expensive Mistake"
Virtual Grid Processing Software that mathematically Relying on software to correct
estimates and deletes scatter scatter on a morbidly obese
radiation from an image without patient (>20 cm tissue),
using a physical lead grid. resulting in non-diagnostic
contrast and a mandatory,
high-dose repeat.
High-Frequency Inverter The electronic engine that Using outdated single-phase
chops up choppy electrical math to calculate techniques on
power and smooths it into a a modern machine, delivering
near-constant, high-power massive overexposures and
,The Jargon The "Cafeteria Explanation" The "Expensive Mistake"
stream for the x-ray tube. triggering institutional dose
audits.
AEC Masking Placing a radiopaque object or Attempting to shield a pediatric
lead shield over the automatic pelvis (violating NCRP 13),
exposure sensor, tricking the causing the machine to pump
machine into thinking the maximum radiation into the
patient is infinitely thick. child until the backup timer
trips.
Look-Up Table (LUT) The digital filter that Processing a portable chest
automatically maps raw, flat x-ray under a "rib" algorithm,
exposure data to the correct deleting the delicate lung
grayscale for a specific body interstitium and missing a
part. subtle pneumothorax.
Differential Absorption How air, fat, water, bone, and Failing to increase the
metal soak up x-rays at kilovoltage peak (kVp) for an
different rates based on their additive pathology (like pleural
atomic weight and density. effusion), resulting in an
under-penetrated, useless
image.
PART II: THE DEEP DIVE
Module 1: Radiation Production & The X-ray Circuitry
1. The Professional Analogy: Consider the modern x-ray generator as a high-performance
aerospace turbine. A standard engine (legacy single-phase equipment) sputters and drops
power between piston strokes, wasting energy. A high-frequency turbine (the inverter circuit)
spins so rapidly that the power output remains at an absolute, unyielding maximum, delivering
pure, uninterrupted kinetic energy to the target.
2. The "Hard Deck" (Technical Deep Work): The contemporary circuit architecture relies
exclusively on the High-Frequency Generator -> (A device utilizing an inverter to convert
low-frequency alternating current into high-frequency AC) -> (Ensuring the x-ray tube receives
continuous maximum voltage for shorter, motion-stopping exposure times). Standard 60 Hz
current is converted to frequencies up to 100 kHz. After passing through a high-voltage step-up
transformer and rectifiers, the resulting Voltage Ripple is less than 1%. Thermionic Emission
boils electrons from the tungsten cathode, while the applied kVp dictates the terminal kinetic
energy necessary for Bremsstrahlung and Characteristic interactions at the anode target.
3. The 2027 Redline: The ARRT standards now assume complete institutional reliance on
high-frequency generation. Calculations involving single-phase or three-phase generators are
obsolete. The modern curriculum focuses heavily on continuous output and falling-load
generator mechanics, where the system autonomously maximizes tube current (mA) to achieve
the shortest possible exposure duration without exceeding the anode's thermal capacity.
4. The "Trap" Alert: Amateurs think kVp solely controls image contrast. Professionals know
that in a digitally processed, high-frequency environment, kVp primarily dictates the absolute
maximum kinetic energy of the incident electrons, profoundly affecting both the quantity and
penetrability of the X-ray Emission Spectrum. Contrast is ultimately managed by the digital
,algorithms.
Module 2: Image Formation & The Five
Radiographic Substances
1. The Professional Analogy: Imagine projecting a high-intensity flashlight through various
materials placed in a row: a pane of glass (air), a block of wax (fat), a tank of water (soft tissue),
a brick (bone), and a solid sheet of steel (metal). The light that successfully traverses these
barriers to strike the wall behind them dictates the resulting shadow.
2. The "Hard Deck" (Technical Deep Work): Image formation is strictly governed by
Differential Absorption -> (The variance in x-ray photon attenuation based on tissue density
and atomic number) -> (Manipulating kVp to optimize subject contrast based on patient
pathology and habitus). This absorption profile is dependent on the atomic number (Z) and
mass density of the Five Radiographic Substances: Air, Fat, Water/Soft Tissue, Bone, and
Metal. The probability of the Photoelectric Effect is proportional to the third power of the atomic
number (Z^3). Consequently, bone (Z ≈ 13.8) absorbs exponentially more primary radiation than
adjacent soft tissue (Z ≈ 7.4).
3. The 2027 Redline: Pathological considerations heavily dictate technical parameter selection.
The 2027 specifications emphasize evaluating "Image Contrast and Subject Contrast" as
distinct entities based on specific medical conditions. Technologists must independently alter
baseline protocols for additive (sclerotic) or destructive (lytic) diseases to ensure adequate
signal reaches the detector.
4. The "Trap" Alert: Amateurs think a "grainy" image requires a higher kVp. Professionals know
that quantum mottle is a signal starvation issue caused by a lack of total photons (insufficient
mAs); increasing kVp without addressing total photon quantity will merely degrade subject
contrast through excessive Compton Scattering.
Module 3: Digital Image Acquisition & Processing
1. The Professional Analogy: A digital detector functions like a sprawling matrix of millions of
microscopic buckets collecting rain during a storm. If a bucket overflows (detector saturation),
the data is permanently lost. If a bucket collects too few drops (quantum mottle), the central
computer must guess how much rain fell, resulting in a noisy, mathematically estimated image.
2. The "Hard Deck" (Technical Deep Work): Digital Radiography (DR) utilizes Flat-Panel
Detectors (FPD). Indirect conversion relies on a Cesium Iodide (CsI) scintillator to convert
x-rays to light, followed by an Amorphous Silicon (a-Si) photodiode to convert light to
electrons. Direct conversion employs Amorphous Selenium (a-Se) to transform x-rays directly
into an electrical charge, preserving edge sharpness. This charge is localized and stored in a
Thin-Film Transistor (TFT) active matrix array. The raw data histogram is rescaled using a
Look-Up Table (LUT) -> (A mathematical formula applied to raw data) -> (Mapping specific
pixel values to an optimal diagnostic grayscale).
3. The 2027 Redline: Computed Radiography (CR)—including photostimulable phosphors and
laser readers—has been completely eradicated from the ARRT 2027 specifications. The domain
is now strictly focused on "Digital Detectors," mandating a comprehensive understanding of
Detective Quantum Efficiency (DQE) and non-linear exposure latitude.
4. The "Trap" Alert: Amateurs think windowing and leveling on a PACS monitor can rescue any
,exposure error. Professionals know that digital post-processing cannot recover anatomical data
lost to extreme underexposure (information absence) or extreme overexposure (pixel saturation
and electronic blooming).
Module 4: Scatter Mitigation & The Virtual Grid
Architecture
1. The Professional Analogy: A physical grid acts as a mechanical bouncer at the door of a
nightclub, physically blocking unruly patrons (scattered photons) from entering. A virtual grid
operates like advanced facial recognition software inside the club, digitally identifying and
erasing the unruly patrons from the security footage after they have already entered the room.
2. The "Hard Deck" (Technical Deep Work): Scatter radiation severely degrades the
Signal-to-Noise Ratio (SNR). While physical grids utilize angled lead septa to absorb divergent
photons, modern Virtual Grids -> (Deep-learning software models that analyze spatial
frequencies) -> (Estimating and mathematically subtracting scatter noise from raw image data).
This algorithmic approach enhances digital contrast without imposing the massive radiation
dose penalty associated with a physical grid's Bucky factor.
3. The 2027 Redline: "Virtual Grids" have been officially codified into the ARRT 2027 content
specifications, while legacy "Compensating Filters" have been deleted. The contemporary
diagnostic architect must explicitly differentiate when to deploy algorithmic scatter correction
versus mechanical physical filtration.
4. The "Trap" Alert: Amateurs think virtual grids render physical grids obsolete across all
examinations. Professionals know that for dense anatomy exceeding 20 cm in thickness, the
sheer volume of multidirectional scatter overwhelms the software's predictive modeling,
mandating a high-ratio physical grid to preserve diagnostic truth.
Module 5: Dose Informatics & The Regulatory Paradigm
1. The Professional Analogy: Radiation protection has evolved from a blunt "flak jacket"
mentality to a precision "sniper" mentality. The industry no longer indiscriminately throws lead
aprons over patients; instead, it utilizes precise beam collimation, high-yield digital detectors,
and strict algorithmic tracking of cumulative energy delivery.
2. The "Hard Deck" (Technical Deep Work): The primary biological risk in diagnostic imaging
involves Stochastic Effects (carcinogenesis, genetic mutations), which operate on a linear,
non-threshold model. Procedural dose is actively monitored via Reference Point Air Kerma
(K_{a,r}) and Kerma Area Product (KAP). The Automatic Exposure Control (AEC) serves
as the ultimate failsafe, terminating the exposure when the designated ionization chamber
receives a highly specific, pre-calibrated electrical charge.
3. The 2027 Redline: Based on unequivocal data from NCRP Statement 13, routine gonadal
and fetal shielding has been universally discontinued. The rationale is absolute: shielding
frequently obscures vital anatomy, induces catastrophic AEC malfunctions leading to massive
dose spikes, and the heritable genetic risk of modern primary beams is statistically negligible.
Furthermore, regulatory bodies demand strict informatics tracking of Peak Skin Dose (PSD) to
prevent deterministic tissue necrosis during prolonged fluoroscopy.
4. The "Trap" Alert: Amateurs think wrapping a pediatric patient's pelvis in a lead shield during
an abdominal series demonstrates excellent patient care. Professionals know this violates
,current NCRP standards, virtually guarantees AEC detector masking, and results in a
mandatory, high-dose repeat exposure that exponentially increases the child's stochastic risk.
PART III: THE 55-POINT GAUNTLET
Q1: What is the specific functional advantage of the high-frequency inverter circuit in a
modern radiographic generator?
The Answer: It converts low-frequency AC into high-frequency AC (up to 100 kHz), allowing the
step-up transformer to operate with maximum efficiency and suppressing the voltage ripple to
less than 1%.
The Mentor's Insight: The analysis indicates that by chopping the waveform into thousands of
micro-pulses per second before voltage escalation, the generator maintains a near-constant
peak kilovoltage. This constant potential ensures the continuous production of high-energy
photons, which increases beam penetrability and significantly reduces the patient's entrance
skin dose compared to legacy single-phase equipment.
Q2: Regarding the five radiographic substances, which two physical properties definitively
govern their differential absorption profiles?
The Answer: Atomic number (Z) and mass density.
The Mentor's Insight: The evidence suggests that photoelectric absorption remains the
primary driver of subject contrast. Because the probability of a photoelectric interaction is
proportional to the cube of the atomic number (Z^3), minor variations in tissue density and
atomic composition (e.g., bone vs. fat) create massive, quantifiable differences in beam
attenuation.
Q3: In the architecture of a digital Flat-Panel Detector (FPD), what is the exact function of the
Thin-Film Transistor (TFT) array?
The Answer: It temporarily isolates and stores the localized electrical charge generated by
x-ray interactions, releasing it pixel-by-pixel for analog-to-digital conversion.
The Mentor's Insight: The TFT operates as the electronic gatekeeper. Regardless of whether
the system uses a scintillator (indirect) or amorphous selenium (direct), the resulting electrons
must be trapped within the detector elements (DELs). The TFT switch releases this spatial
charge profile to the ADC, forming the digital matrix.
Q4: What specific technological shift prompted the total deletion of "Computed Radiography
(CR)" from the 2026/2027 ARRT content specifications?
The Answer: The global transition to digital Flat-Panel Detectors (FPDs), which provide
, superior Detective Quantum Efficiency (DQE) and instantaneous image readout without the
mechanical latency of cassette processing.
The Mentor's Insight: CR was a transitional technology. Its reliance on photostimulable
phosphor plates and mechanical laser readers introduced hardware failure points, alignment
errors, and lower dose efficiency. The profession has progressed entirely to direct digital routing.
Q5: According to the mandates of NCRP Statement 13, why is routine gonadal shielding
during abdominopelvic radiography explicitly discouraged?
The Answer: Shielding frequently obscures necessary diagnostic anatomy, provides negligible
protection against internally generated scatter, and can cause Automatic Exposure Control
(AEC) errors that drastically inflate total patient dose.
The Mentor's Insight: The primary dose burden to gonads originates from internal Compton
scatter, which a surface shield cannot mitigate. Furthermore, if a lead shield encroaches on an
active AEC ionization chamber, the system registers a false lack of penetration and drives the
mAs to the backup timer limit, massively overexposing the patient.
Q6: How does a falling-load generator algorithm minimize patient motion artifact during
extensive exposures?
The Answer: It automatically initiates the exposure at the maximum allowable tube current (mA)
for the selected kVp, progressively stepping down the mA as the anode heats up, ensuring the
absolute shortest exposure time.
The Mentor's Insight: Motion eradicates spatial resolution. The falling-load generator
eliminates human error in mA/time fractioning by forcing the x-ray tube to operate at its
maximum thermal threshold, compressing the required mAs delivery into milliseconds.
Q7: Distinguish the primary mechanism of bremsstrahlung radiation from that of characteristic
radiation production.
The Answer: Bremsstrahlung occurs when an incident electron decelerates near the target
nucleus, releasing a continuous spectrum of energy; characteristic radiation occurs when an
incident electron ejects an inner-shell electron, releasing discrete, specific-energy photons.
The Mentor's Insight: Bremsstrahlung constitutes the vast majority (roughly 85% at diagnostic
ranges) of the primary beam. Characteristic photons only become clinically relevant when the
applied kVp exceeds the k-shell binding energy of the tungsten target (69.5 keV).
Q8: What specific mathematical function does a Look-Up Table (LUT) execute on raw digital
image data?
The Answer: It applies a predetermined, non-linear contrast and brightness curve to the raw
Imaging and Exposure: The
2026/2027 Master Architect
Protocol Test Bank
PART I: THE MANIFESTO
The transition from academic memorization to professional intuition in radiologic science is
severe. The modern imaging environment does not reward operators who merely manipulate
control panels; it demands diagnostic architects who comprehend the underlying physics of
photon interactions, the algorithms governing digital processors, and the strict regulatory
redlines defining patient safety. The 2026/2027 American Registry of Radiologic Technologists
(ARRT) Content Specifications codify this reality, completely eliminating legacy systems like
Computed Radiography (CR) and demanding absolute mastery of Flat-Panel Detectors (FPD),
Virtual Grid software, and precise dose informatics.
Relying on outdated technique charts or intuitive guesswork guarantees failure. True
professional competency requires synthesizing the core principles detailed in Fauber's
Radiographic Imaging and Exposure (7th Edition) with modern clinical applications. The stakes
are uncompromising: errors in digital processing or technical selection do not simply result in
suboptimal images; they manifest as unethical radiation burdens, missed pathological
diagnoses, and severe regulatory violations. The modern interventional suite and trauma bay
are unforgiving environments. Mastery of these concepts is the absolute prerequisite for
securing and thriving in high-liability roles across advanced diagnostic modalities.
The "De-Mystifier" Table
The following matrix identifies the most critical and frequently misunderstood concepts in
modern digital radiography.
The Jargon The "Cafeteria Explanation" The "Expensive Mistake"
Virtual Grid Processing Software that mathematically Relying on software to correct
estimates and deletes scatter scatter on a morbidly obese
radiation from an image without patient (>20 cm tissue),
using a physical lead grid. resulting in non-diagnostic
contrast and a mandatory,
high-dose repeat.
High-Frequency Inverter The electronic engine that Using outdated single-phase
chops up choppy electrical math to calculate techniques on
power and smooths it into a a modern machine, delivering
near-constant, high-power massive overexposures and
,The Jargon The "Cafeteria Explanation" The "Expensive Mistake"
stream for the x-ray tube. triggering institutional dose
audits.
AEC Masking Placing a radiopaque object or Attempting to shield a pediatric
lead shield over the automatic pelvis (violating NCRP 13),
exposure sensor, tricking the causing the machine to pump
machine into thinking the maximum radiation into the
patient is infinitely thick. child until the backup timer
trips.
Look-Up Table (LUT) The digital filter that Processing a portable chest
automatically maps raw, flat x-ray under a "rib" algorithm,
exposure data to the correct deleting the delicate lung
grayscale for a specific body interstitium and missing a
part. subtle pneumothorax.
Differential Absorption How air, fat, water, bone, and Failing to increase the
metal soak up x-rays at kilovoltage peak (kVp) for an
different rates based on their additive pathology (like pleural
atomic weight and density. effusion), resulting in an
under-penetrated, useless
image.
PART II: THE DEEP DIVE
Module 1: Radiation Production & The X-ray Circuitry
1. The Professional Analogy: Consider the modern x-ray generator as a high-performance
aerospace turbine. A standard engine (legacy single-phase equipment) sputters and drops
power between piston strokes, wasting energy. A high-frequency turbine (the inverter circuit)
spins so rapidly that the power output remains at an absolute, unyielding maximum, delivering
pure, uninterrupted kinetic energy to the target.
2. The "Hard Deck" (Technical Deep Work): The contemporary circuit architecture relies
exclusively on the High-Frequency Generator -> (A device utilizing an inverter to convert
low-frequency alternating current into high-frequency AC) -> (Ensuring the x-ray tube receives
continuous maximum voltage for shorter, motion-stopping exposure times). Standard 60 Hz
current is converted to frequencies up to 100 kHz. After passing through a high-voltage step-up
transformer and rectifiers, the resulting Voltage Ripple is less than 1%. Thermionic Emission
boils electrons from the tungsten cathode, while the applied kVp dictates the terminal kinetic
energy necessary for Bremsstrahlung and Characteristic interactions at the anode target.
3. The 2027 Redline: The ARRT standards now assume complete institutional reliance on
high-frequency generation. Calculations involving single-phase or three-phase generators are
obsolete. The modern curriculum focuses heavily on continuous output and falling-load
generator mechanics, where the system autonomously maximizes tube current (mA) to achieve
the shortest possible exposure duration without exceeding the anode's thermal capacity.
4. The "Trap" Alert: Amateurs think kVp solely controls image contrast. Professionals know
that in a digitally processed, high-frequency environment, kVp primarily dictates the absolute
maximum kinetic energy of the incident electrons, profoundly affecting both the quantity and
penetrability of the X-ray Emission Spectrum. Contrast is ultimately managed by the digital
,algorithms.
Module 2: Image Formation & The Five
Radiographic Substances
1. The Professional Analogy: Imagine projecting a high-intensity flashlight through various
materials placed in a row: a pane of glass (air), a block of wax (fat), a tank of water (soft tissue),
a brick (bone), and a solid sheet of steel (metal). The light that successfully traverses these
barriers to strike the wall behind them dictates the resulting shadow.
2. The "Hard Deck" (Technical Deep Work): Image formation is strictly governed by
Differential Absorption -> (The variance in x-ray photon attenuation based on tissue density
and atomic number) -> (Manipulating kVp to optimize subject contrast based on patient
pathology and habitus). This absorption profile is dependent on the atomic number (Z) and
mass density of the Five Radiographic Substances: Air, Fat, Water/Soft Tissue, Bone, and
Metal. The probability of the Photoelectric Effect is proportional to the third power of the atomic
number (Z^3). Consequently, bone (Z ≈ 13.8) absorbs exponentially more primary radiation than
adjacent soft tissue (Z ≈ 7.4).
3. The 2027 Redline: Pathological considerations heavily dictate technical parameter selection.
The 2027 specifications emphasize evaluating "Image Contrast and Subject Contrast" as
distinct entities based on specific medical conditions. Technologists must independently alter
baseline protocols for additive (sclerotic) or destructive (lytic) diseases to ensure adequate
signal reaches the detector.
4. The "Trap" Alert: Amateurs think a "grainy" image requires a higher kVp. Professionals know
that quantum mottle is a signal starvation issue caused by a lack of total photons (insufficient
mAs); increasing kVp without addressing total photon quantity will merely degrade subject
contrast through excessive Compton Scattering.
Module 3: Digital Image Acquisition & Processing
1. The Professional Analogy: A digital detector functions like a sprawling matrix of millions of
microscopic buckets collecting rain during a storm. If a bucket overflows (detector saturation),
the data is permanently lost. If a bucket collects too few drops (quantum mottle), the central
computer must guess how much rain fell, resulting in a noisy, mathematically estimated image.
2. The "Hard Deck" (Technical Deep Work): Digital Radiography (DR) utilizes Flat-Panel
Detectors (FPD). Indirect conversion relies on a Cesium Iodide (CsI) scintillator to convert
x-rays to light, followed by an Amorphous Silicon (a-Si) photodiode to convert light to
electrons. Direct conversion employs Amorphous Selenium (a-Se) to transform x-rays directly
into an electrical charge, preserving edge sharpness. This charge is localized and stored in a
Thin-Film Transistor (TFT) active matrix array. The raw data histogram is rescaled using a
Look-Up Table (LUT) -> (A mathematical formula applied to raw data) -> (Mapping specific
pixel values to an optimal diagnostic grayscale).
3. The 2027 Redline: Computed Radiography (CR)—including photostimulable phosphors and
laser readers—has been completely eradicated from the ARRT 2027 specifications. The domain
is now strictly focused on "Digital Detectors," mandating a comprehensive understanding of
Detective Quantum Efficiency (DQE) and non-linear exposure latitude.
4. The "Trap" Alert: Amateurs think windowing and leveling on a PACS monitor can rescue any
,exposure error. Professionals know that digital post-processing cannot recover anatomical data
lost to extreme underexposure (information absence) or extreme overexposure (pixel saturation
and electronic blooming).
Module 4: Scatter Mitigation & The Virtual Grid
Architecture
1. The Professional Analogy: A physical grid acts as a mechanical bouncer at the door of a
nightclub, physically blocking unruly patrons (scattered photons) from entering. A virtual grid
operates like advanced facial recognition software inside the club, digitally identifying and
erasing the unruly patrons from the security footage after they have already entered the room.
2. The "Hard Deck" (Technical Deep Work): Scatter radiation severely degrades the
Signal-to-Noise Ratio (SNR). While physical grids utilize angled lead septa to absorb divergent
photons, modern Virtual Grids -> (Deep-learning software models that analyze spatial
frequencies) -> (Estimating and mathematically subtracting scatter noise from raw image data).
This algorithmic approach enhances digital contrast without imposing the massive radiation
dose penalty associated with a physical grid's Bucky factor.
3. The 2027 Redline: "Virtual Grids" have been officially codified into the ARRT 2027 content
specifications, while legacy "Compensating Filters" have been deleted. The contemporary
diagnostic architect must explicitly differentiate when to deploy algorithmic scatter correction
versus mechanical physical filtration.
4. The "Trap" Alert: Amateurs think virtual grids render physical grids obsolete across all
examinations. Professionals know that for dense anatomy exceeding 20 cm in thickness, the
sheer volume of multidirectional scatter overwhelms the software's predictive modeling,
mandating a high-ratio physical grid to preserve diagnostic truth.
Module 5: Dose Informatics & The Regulatory Paradigm
1. The Professional Analogy: Radiation protection has evolved from a blunt "flak jacket"
mentality to a precision "sniper" mentality. The industry no longer indiscriminately throws lead
aprons over patients; instead, it utilizes precise beam collimation, high-yield digital detectors,
and strict algorithmic tracking of cumulative energy delivery.
2. The "Hard Deck" (Technical Deep Work): The primary biological risk in diagnostic imaging
involves Stochastic Effects (carcinogenesis, genetic mutations), which operate on a linear,
non-threshold model. Procedural dose is actively monitored via Reference Point Air Kerma
(K_{a,r}) and Kerma Area Product (KAP). The Automatic Exposure Control (AEC) serves
as the ultimate failsafe, terminating the exposure when the designated ionization chamber
receives a highly specific, pre-calibrated electrical charge.
3. The 2027 Redline: Based on unequivocal data from NCRP Statement 13, routine gonadal
and fetal shielding has been universally discontinued. The rationale is absolute: shielding
frequently obscures vital anatomy, induces catastrophic AEC malfunctions leading to massive
dose spikes, and the heritable genetic risk of modern primary beams is statistically negligible.
Furthermore, regulatory bodies demand strict informatics tracking of Peak Skin Dose (PSD) to
prevent deterministic tissue necrosis during prolonged fluoroscopy.
4. The "Trap" Alert: Amateurs think wrapping a pediatric patient's pelvis in a lead shield during
an abdominal series demonstrates excellent patient care. Professionals know this violates
,current NCRP standards, virtually guarantees AEC detector masking, and results in a
mandatory, high-dose repeat exposure that exponentially increases the child's stochastic risk.
PART III: THE 55-POINT GAUNTLET
Q1: What is the specific functional advantage of the high-frequency inverter circuit in a
modern radiographic generator?
The Answer: It converts low-frequency AC into high-frequency AC (up to 100 kHz), allowing the
step-up transformer to operate with maximum efficiency and suppressing the voltage ripple to
less than 1%.
The Mentor's Insight: The analysis indicates that by chopping the waveform into thousands of
micro-pulses per second before voltage escalation, the generator maintains a near-constant
peak kilovoltage. This constant potential ensures the continuous production of high-energy
photons, which increases beam penetrability and significantly reduces the patient's entrance
skin dose compared to legacy single-phase equipment.
Q2: Regarding the five radiographic substances, which two physical properties definitively
govern their differential absorption profiles?
The Answer: Atomic number (Z) and mass density.
The Mentor's Insight: The evidence suggests that photoelectric absorption remains the
primary driver of subject contrast. Because the probability of a photoelectric interaction is
proportional to the cube of the atomic number (Z^3), minor variations in tissue density and
atomic composition (e.g., bone vs. fat) create massive, quantifiable differences in beam
attenuation.
Q3: In the architecture of a digital Flat-Panel Detector (FPD), what is the exact function of the
Thin-Film Transistor (TFT) array?
The Answer: It temporarily isolates and stores the localized electrical charge generated by
x-ray interactions, releasing it pixel-by-pixel for analog-to-digital conversion.
The Mentor's Insight: The TFT operates as the electronic gatekeeper. Regardless of whether
the system uses a scintillator (indirect) or amorphous selenium (direct), the resulting electrons
must be trapped within the detector elements (DELs). The TFT switch releases this spatial
charge profile to the ADC, forming the digital matrix.
Q4: What specific technological shift prompted the total deletion of "Computed Radiography
(CR)" from the 2026/2027 ARRT content specifications?
The Answer: The global transition to digital Flat-Panel Detectors (FPDs), which provide
, superior Detective Quantum Efficiency (DQE) and instantaneous image readout without the
mechanical latency of cassette processing.
The Mentor's Insight: CR was a transitional technology. Its reliance on photostimulable
phosphor plates and mechanical laser readers introduced hardware failure points, alignment
errors, and lower dose efficiency. The profession has progressed entirely to direct digital routing.
Q5: According to the mandates of NCRP Statement 13, why is routine gonadal shielding
during abdominopelvic radiography explicitly discouraged?
The Answer: Shielding frequently obscures necessary diagnostic anatomy, provides negligible
protection against internally generated scatter, and can cause Automatic Exposure Control
(AEC) errors that drastically inflate total patient dose.
The Mentor's Insight: The primary dose burden to gonads originates from internal Compton
scatter, which a surface shield cannot mitigate. Furthermore, if a lead shield encroaches on an
active AEC ionization chamber, the system registers a false lack of penetration and drives the
mAs to the backup timer limit, massively overexposing the patient.
Q6: How does a falling-load generator algorithm minimize patient motion artifact during
extensive exposures?
The Answer: It automatically initiates the exposure at the maximum allowable tube current (mA)
for the selected kVp, progressively stepping down the mA as the anode heats up, ensuring the
absolute shortest exposure time.
The Mentor's Insight: Motion eradicates spatial resolution. The falling-load generator
eliminates human error in mA/time fractioning by forcing the x-ray tube to operate at its
maximum thermal threshold, compressing the required mAs delivery into milliseconds.
Q7: Distinguish the primary mechanism of bremsstrahlung radiation from that of characteristic
radiation production.
The Answer: Bremsstrahlung occurs when an incident electron decelerates near the target
nucleus, releasing a continuous spectrum of energy; characteristic radiation occurs when an
incident electron ejects an inner-shell electron, releasing discrete, specific-energy photons.
The Mentor's Insight: Bremsstrahlung constitutes the vast majority (roughly 85% at diagnostic
ranges) of the primary beam. Characteristic photons only become clinically relevant when the
applied kVp exceeds the k-shell binding energy of the tungsten target (69.5 keV).
Q8: What specific mathematical function does a Look-Up Table (LUT) execute on raw digital
image data?
The Answer: It applies a predetermined, non-linear contrast and brightness curve to the raw
