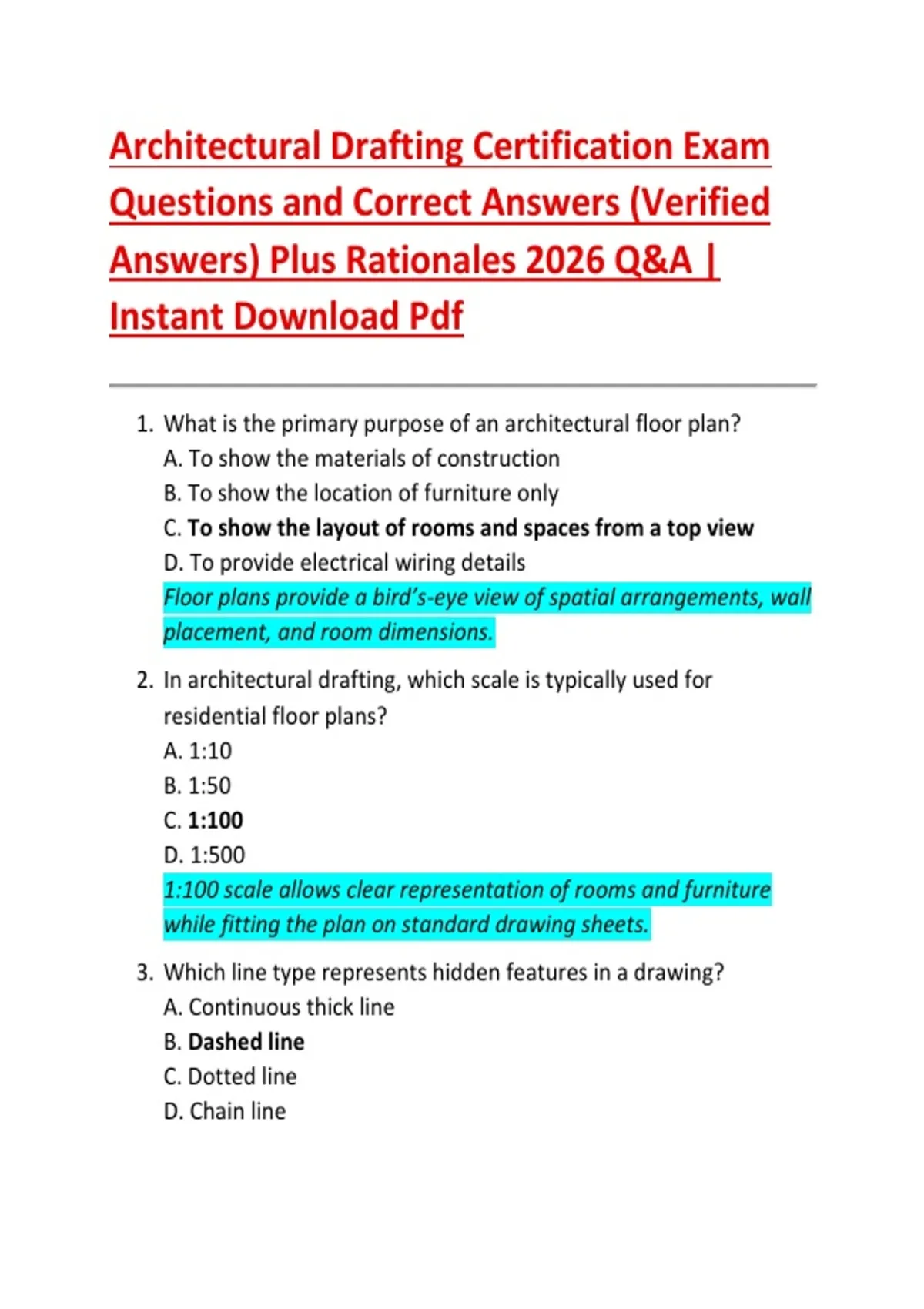

1. What is the primary purpose of an architectural floor plan?
A. To show the materials of construction
B. To show the location of furniture only
C. To show the layout of rooms and spaces from a top view
D. To provide electrical wiring details
Floor plans provide a bird’s-eye view of spatial arrangements, wall
placement, and room dimensions.
2. In architectural drafting, which scale is typically used for
residential floor plans?
A. 1:10
B. 1:50
C. 1:100
D. 1:500
1:100 scale allows clear representation of rooms and furniture
while fitting the plan on standard drawing sheets.
3. Which line type represents hidden features in a drawing?
A. Continuous thick line
B. Dashed line
C. Dotted line
D. Chain line
, Dashed lines indicate elements not visible in the current view, such
as beams or objects behind walls.
4. What is the purpose of a section drawing?
A. To show exterior finishes
B. To show a cut-through view of a building
C. To illustrate the site layout
D. To display landscaping details
Section drawings reveal internal construction details, such as floor
levels, wall thickness, and structural elements.
5. Which drawing shows the exterior appearance of a building?
A. Floor plan
B. Elevation
C. Section
D. Detail
Elevations illustrate the façade, height, materials, and
architectural features of a building.
6. Which drafting tool is commonly used to draw parallel lines
accurately?
A. Compass
B. Protractor
C. T-square
D. Divider
A T-square provides a straight edge aligned with the drawing
board for precise horizontal lines.
7. Which symbol represents a door swing in a floor plan?
A. Solid rectangle
B. Cross-hatch
C. Arc
D. Triangle
, An arc shows the direction and width of door movement, helping
visualize circulation in a room.
8. What is the purpose of a detail drawing?
A. To show the entire building layout
B. To illustrate a small part of the building in large scale
C. To provide zoning information
D. To show site grading
Detail drawings clarify construction methods, connections, and
finishes for small components.
9. Which line weight is used for primary structural elements in
architectural drawings?
A. Thin line
B. Dashed line
C. Thick line
D. Medium line
Thick lines highlight important structural components like walls
and columns for clarity.
10. In a title block, which information is NOT typically included?
A. Project name
B. Drawing scale
C. Employee salaries
D. Sheet number
Title blocks provide essential project and drawing information, but
personnel salaries are irrelevant.
11. What does HVAC stand for in architectural drawings?
A. Heat, Ventilation, and Color
B. High Voltage and Circuits
C. Heating, Ventilation, and Air Conditioning
D. Horizontal Vertical Alignment Control
Questions and Correct Answers (Verified
Answers) Plus Rationales 2026 Q&A |
Instant Download Pdf
1. What is the primary purpose of an architectural floor plan?
A. To show the materials of construction
B. To show the location of furniture only
C. To show the layout of rooms and spaces from a top view
D. To provide electrical wiring details
Floor plans provide a bird’s-eye view of spatial arrangements, wall
placement, and room dimensions.
2. In architectural drafting, which scale is typically used for
residential floor plans?
A. 1:10
B. 1:50
C. 1:100
D. 1:500
1:100 scale allows clear representation of rooms and furniture
while fitting the plan on standard drawing sheets.
3. Which line type represents hidden features in a drawing?
A. Continuous thick line
B. Dashed line
C. Dotted line
D. Chain line
, Dashed lines indicate elements not visible in the current view, such
as beams or objects behind walls.
4. What is the purpose of a section drawing?
A. To show exterior finishes
B. To show a cut-through view of a building
C. To illustrate the site layout
D. To display landscaping details
Section drawings reveal internal construction details, such as floor
levels, wall thickness, and structural elements.
5. Which drawing shows the exterior appearance of a building?
A. Floor plan
B. Elevation
C. Section
D. Detail
Elevations illustrate the façade, height, materials, and
architectural features of a building.
6. Which drafting tool is commonly used to draw parallel lines
accurately?
A. Compass
B. Protractor
C. T-square
D. Divider
A T-square provides a straight edge aligned with the drawing
board for precise horizontal lines.
7. Which symbol represents a door swing in a floor plan?
A. Solid rectangle
B. Cross-hatch
C. Arc
D. Triangle
, An arc shows the direction and width of door movement, helping
visualize circulation in a room.
8. What is the purpose of a detail drawing?
A. To show the entire building layout
B. To illustrate a small part of the building in large scale
C. To provide zoning information
D. To show site grading
Detail drawings clarify construction methods, connections, and
finishes for small components.
9. Which line weight is used for primary structural elements in
architectural drawings?
A. Thin line
B. Dashed line
C. Thick line
D. Medium line
Thick lines highlight important structural components like walls
and columns for clarity.
10. In a title block, which information is NOT typically included?
A. Project name
B. Drawing scale
C. Employee salaries
D. Sheet number
Title blocks provide essential project and drawing information, but
personnel salaries are irrelevant.
11. What does HVAC stand for in architectural drawings?
A. Heat, Ventilation, and Color
B. High Voltage and Circuits
C. Heating, Ventilation, and Air Conditioning
D. Horizontal Vertical Alignment Control
