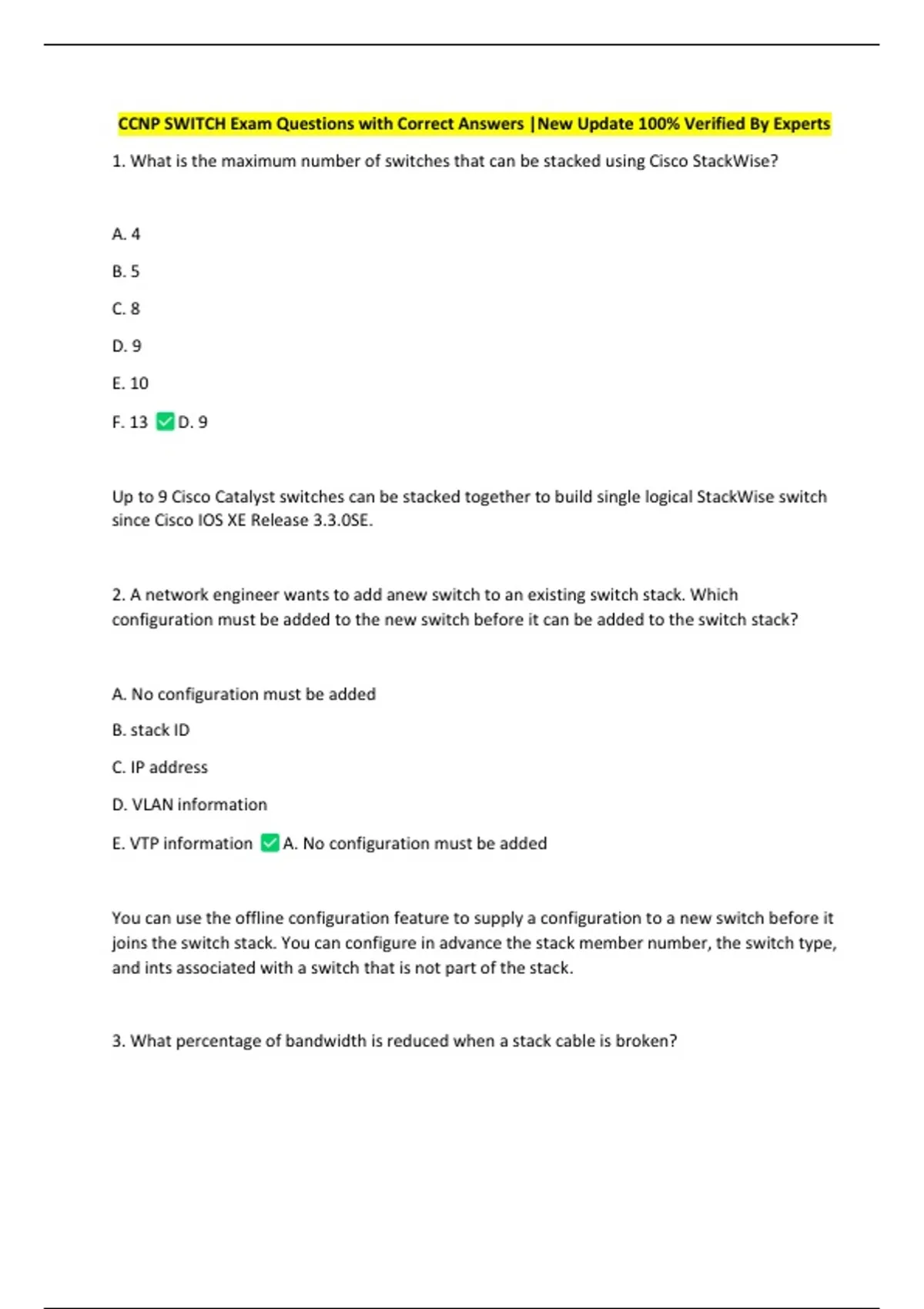

CCNP SWITCH Exam Questions with Correct Answers |New Update 100% Verified By Experts
1. What is the maximum number of switches that can be stacked using Cisco StackWise?
A. 4
B. 5
C. 8
D. 9
E. 10
F. 13 D. 9
Up to 9 Cisco Catalyst switches can be stacked together to build single logical StackWise switch
since Cisco IOS XE Release 3.3.0SE.
2. A network engineer wants to add anew switch to an existing switch stack. Which
configuration must be added to the new switch before it can be added to the switch stack?
A. No configuration must be added
B. stack ID
C. IP address
D. VLAN information
E. VTP information A. No configuration must be added
You can use the offline configuration feature to supply a configuration to a new switch before it
joins the switch stack. You can configure in advance the stack member number, the switch type,
and ints associated with a switch that is not part of the stack.
3. What percentage of bandwidth is reduced when a stack cable is broken?
,A. 0
B. 25
C. 50
D. 75
E. 100 C. 50
Switches are physically connected sequentially. A break will result in the stack bandwidth being
reduced to half its capacity.
4. Which set of configurations will result in all ports on both switches successfully bundling into
an EtherChannel?
A. switch1
channel-group 1 mode active
switch2
channel-group 1 mode auto
B. switch1
channel-group 1 mode desirable
switch2
channel-group 1 mode passive
C. switch1
channel-group 1 mode on
switch2
channel-group 1 mode auto
D. switch 1
channel-group 1 mode desirable
switch2
channel-group 1 mode auto D. switch1
channel-group 1 mode desirable
,switch2
channel-group 1 mode auto
Active - Passive
On - On
Desirable - desirable/auto
5. Refer to exhibit
How can the traffic that is mirrored out the Gi0/48 port be limited to only traffic that is received
or transmitted in VLAN 10 on the Gi0/1 port?
A. Change the configuration for Gi0/48 so that it is a member of VLAN 10
B. Add an access list to Gi0/48 to filter out traffic that is not in VLAN 10
C. Apply the monitor session filter globally to allow only traffic from VLAN 10
D. Change the monitor session source to VLAN 10 instead of the physical interface. C. Apply
the monitor session filter globally to allow only traffic from VLAN 10.
To start a new flow-based SPAN session or flow-based RSPAN source or destination session, or
to limit SPAN source traffic to specific VLANs, use the monitor session filter global configuration
command.
6. Refer to the exhibit
A network engineer wants to analyze all incoming and outgoing packets for an interface that is
connected to an access switch. Which three items must be configured to mirror traffic to a
packet sniffer that is connected to the distribution switch? (Choose 3)
A. A monitor session on the distribution switch with a physical interface as the source and the
remote SPAN VLAN as the destination
B. A remote SPAN VLAN on the distribution and access layer switch
, C. A monitor session on the access switch with a physical interface source and the remote SPAN
VLAN as the destination.
D. A monitor session on the distribution switch with a remote SPAN VLAN as the source and
physical interface as the destination
E. A monitor session on the access switch with a remote SPAN VLAN source and the physical
interface as the destination
F. A monitor session on the distribution switch with a physical interface as the s B. A remote
SPAN VLAN on the distribution and access layer switch
C. A monitor session on the access switch with a physical interface source and the remote SPAN
VLAN as the destination
D. A monitor session on the distribution switch with a remote SPAN VLAN as the source and
physical interface as the destination
You can analyze network traffic passing through ports or vlans by using SPAN or RSPAN to send
a copy of the traffic to another port on the switch or on another switch that has been
connected to a network analyzer or other monitoring or secruity device. SPAN copies straffic
received or sent on source ports or source VLANS to a destination port for analysis.
7. After an EtherChannel is configured between two Cisco switches, interface port channel 1 is
in the down/down state. Switch A is configured with channel-group 1 mode active, while switch
B is configured with channel-group 1 mode desirable. Why is the EtherChannel bundle not
working?
A. The switches are using mismatched EtherChannel negotation modes.
B. The switch ports are not configured in trunking mode
C. LACP priority must be configured on both switches
D. The channel group identifier must be different for Switch A and Switch B A. The switches
are using mismatched EtherChannel negotiation modes.
Here we have a situation where one switch is using active mode, which is an LACP mode, and
the other is using desirable, which is a PAGP mode. You can not mix the LACP and PAGP
protocols to form an etherchannel.
