CORRECT WELL DETAILED
ANSWERS|LATEST!!!!2025/2026|GUARANTEED

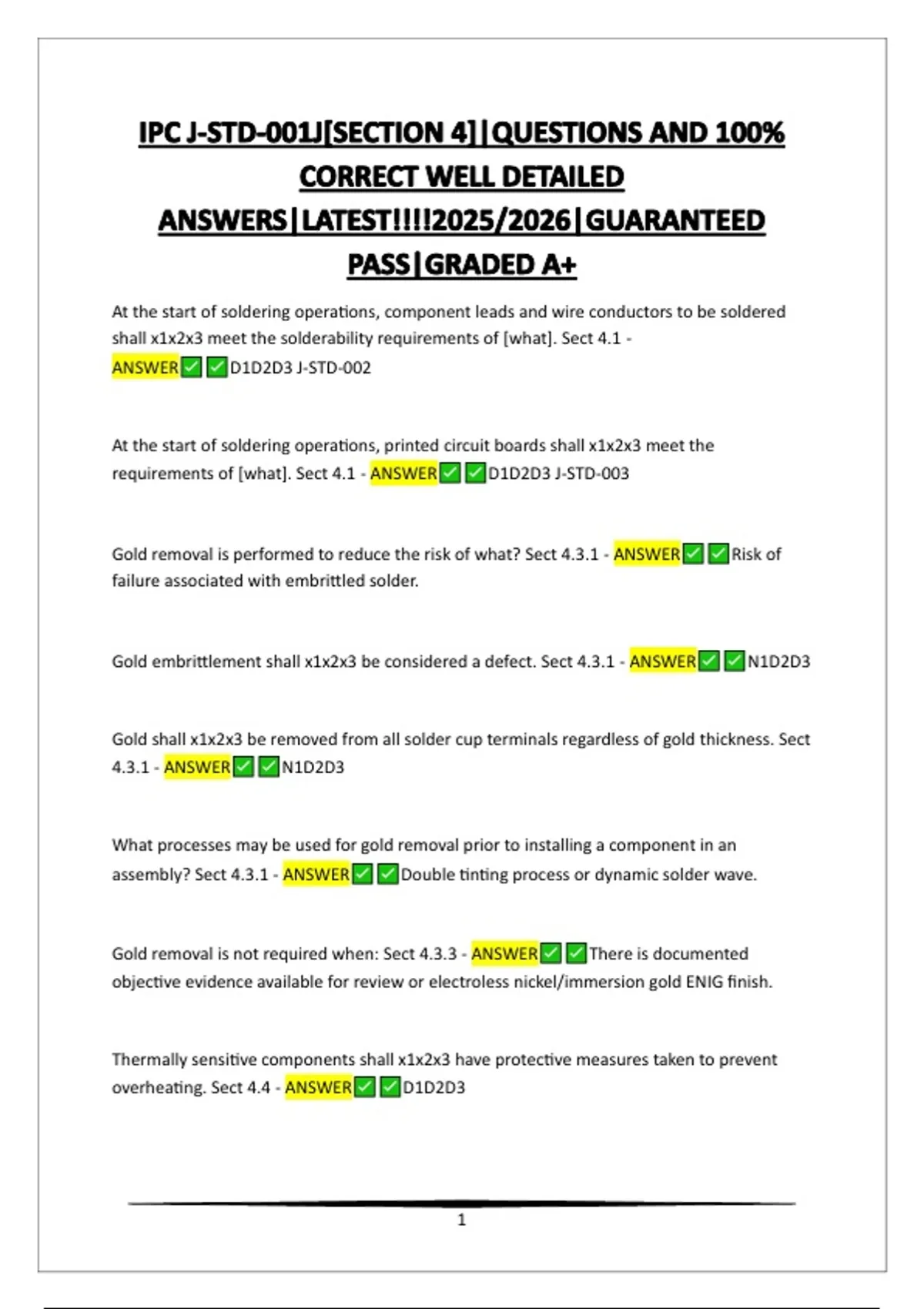

At the start of soldering operations, component leads and wire conductors to be soldered
shall x1x2x3 meet the solderability requirements of [what]. Sect 4.1 -
ANSWER D1D2D3 J-STD-002
At the start of soldering operations, printed circuit boards shall x1x2x3 meet the
requirements of [what]. Sect 4.1 - ANSWER D1D2D3 J-STD-003
Gold removal is performed to reduce the risk of what? Sect 4.3.1 - ANSWER Risk of
failure associated with embrittled solder.
Gold embrittlement shall x1x2x3 be considered a defect. Sect 4.3.1 - ANSWER N1D2D3
Gold shall x1x2x3 be removed from all solder cup terminals regardless of gold thickness. Sect
4.3.1 - ANSWER N1D2D3
What processes may be used for gold removal prior to installing a component in an
assembly? Sect 4.3.1 - ANSWER Double tinting process or dynamic solder wave.
Gold removal is not required when: Sect 4.3.3 - ANSWER There is documented
objective evidence available for review or electroless nickel/immersion gold ENIG finish.
Thermally sensitive components shall x1x2x3 have protective measures taken to prevent
overheating. Sect 4.4 - ANSWER D1D2D3
1
, If a solder iron tip makes direct contact with the end termination of a sensitive component
(i.e. ceramic cap), the component shall x1x2x3 be [what]? Sect 4.4.2 -
ANSWER D1D2D3 Replaced
When sleeving is required as protection for glass components that will be encapsulated or
staked, the sleeving shall x1x2x3 be placed... Sect 4.7 - ANSWER ... D1D2D3 on the
component prior to installation.
Uninsulated parts installed over exposed circuitry shall x1x2x3 have their leads formed to
provide a minimum of what distance between the bottom of the component body and
exposed circuitry? Sect 4.7 - ANSWER N1N2D3 0.25mm [0.010in]
Unless otherwise defined, the requirements for part installation apply to both what and
what? Sect 4.7.1 - ANSWER Wires and component leads
Leads shall not x1x2x3 have nicks or deformation exceeding what percentage of the
diameter? Sect 4.7.2 - ANSWER D1D2D3 10%
Parts shall x1x2x3 be installed such that they do not obstruct solder flow onto the solder
destination side. Sect 4.8 - ANSWER A1P2D3
Metal-cased components shall x1x2x3 be isolated from adjacent electrically conductive
elements. Sect 4.9 - ANSWER D1D2D3
Adhesive materials shall not x1x2x3 preclude the formation of an acceptable solder
connection. Sect 4.10 - ANSWER D1D2D3
Adhesive materials extending from under SMT components shall not x1x2x3 be visible in the
solder connection. Sect 4.10 - ANSWER A1P2D3
2
