IPC J-STD-001J[SECTION 6]|QUESTIONS AND 100% CORRECT WELL DETAILED ANSWERS|LATEST!!!!2025/2026|GUARANTEED PASS|GRADED A+

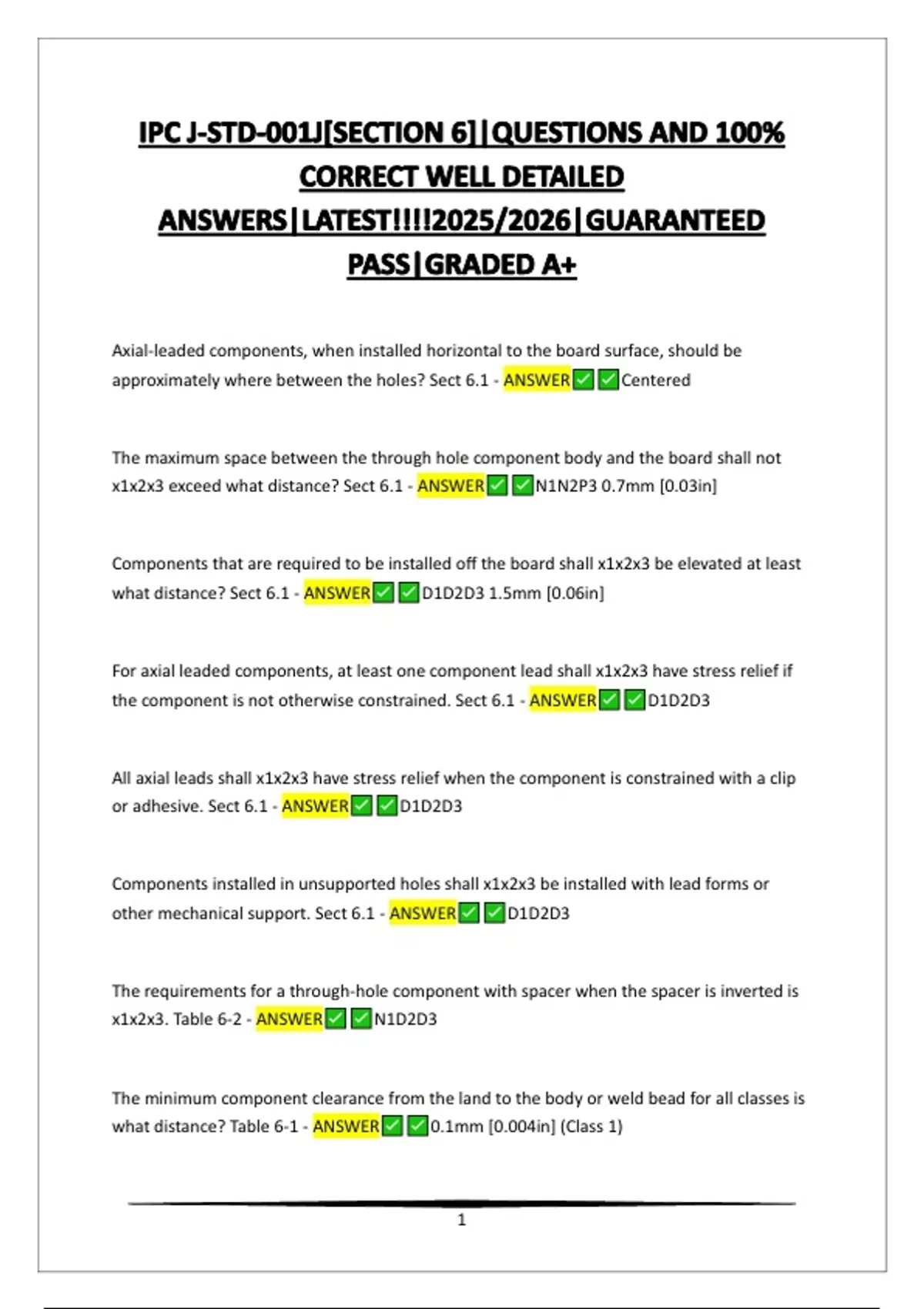

Content preview

CORRECT WELL DETAILED
ANSWERS|LATEST!!!!2025/2026|GUARANTEED



Axial-leaded components, when installed horizontal to the board surface, should be
approximately where between the holes? Sect 6.1 - ANSWER Centered



The maximum space between the through hole component body and the board shall not
x1x2x3 exceed what distance? Sect 6.1 - ANSWER N1N2P3 0.7mm [0.03in]



Components that are required to be installed off the board shall x1x2x3 be elevated at least
what distance? Sect 6.1 - ANSWER D1D2D3 1.5mm [0.06in]



For axial leaded components, at least one component lead shall x1x2x3 have stress relief if
the component is not otherwise constrained. Sect 6.1 - ANSWER D1D2D3



All axial leads shall x1x2x3 have stress relief when the component is constrained with a clip
or adhesive. Sect 6.1 - ANSWER D1D2D3



Components installed in unsupported holes shall x1x2x3 be installed with lead forms or
other mechanical support. Sect 6.1 - ANSWER D1D2D3



The requirements for a through-hole component with spacer when the spacer is inverted is
x1x2x3. Table 6-2 - ANSWER N1D2D3



The minimum component clearance from the land to the body or weld bead for all classes is
what distance? Table 6-1 - ANSWER 0.1mm [0.004in] (Class 1)
