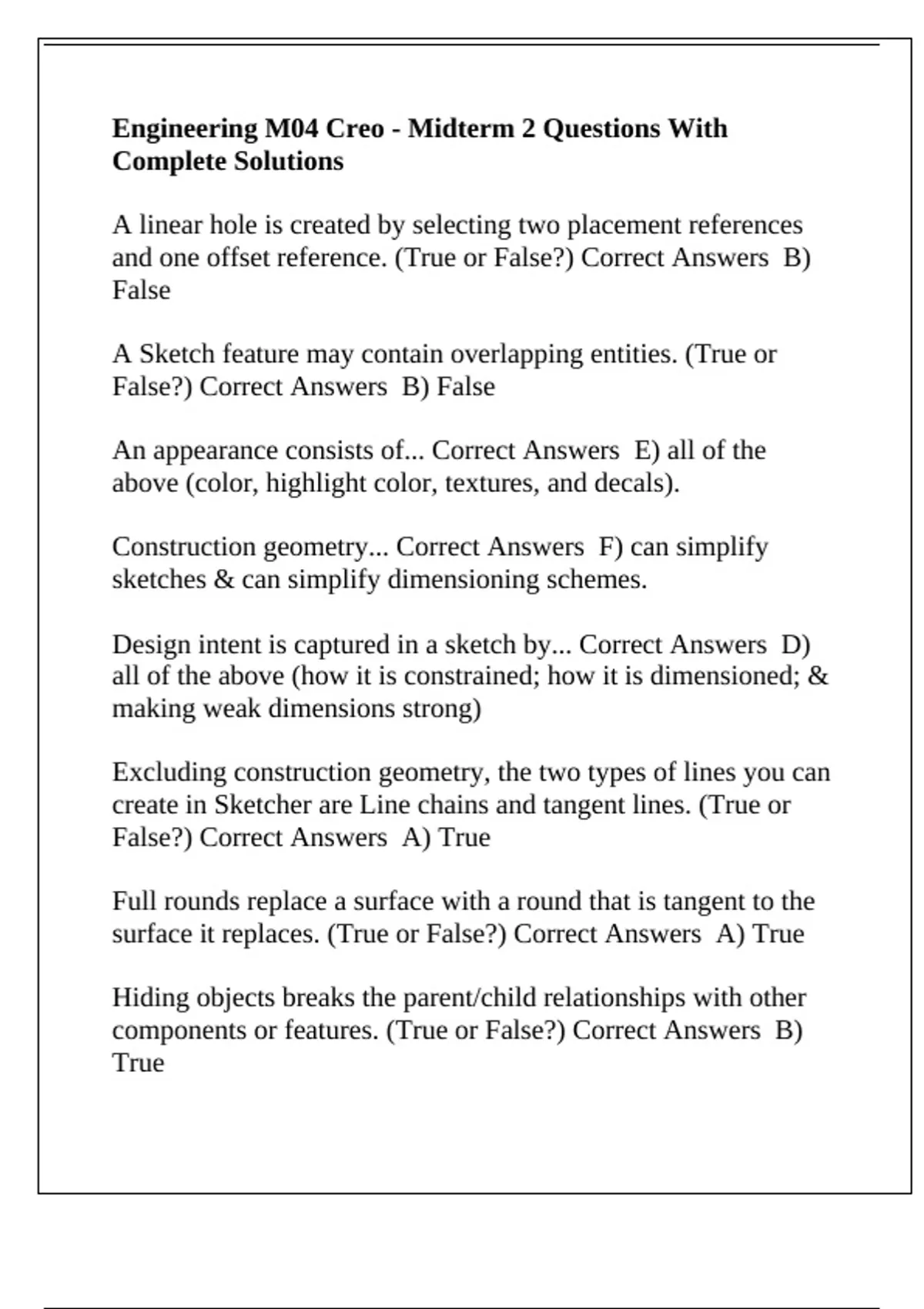

Engineering M04 Creo - Midterm 2 Questions With
Complete Solutions
A linear hole is created by selecting two placement references
and one offset reference. (True or False?) Correct Answers B)
False
A Sketch feature may contain overlapping entities. (True or
False?) Correct Answers B) False
An appearance consists of... Correct Answers E) all of the
above (color, highlight color, textures, and decals).
Construction geometry... Correct Answers F) can simplify
sketches & can simplify dimensioning schemes.
Design intent is captured in a sketch by... Correct Answers D)
all of the above (how it is constrained; how it is dimensioned; &
making weak dimensions strong)
Excluding construction geometry, the two types of lines you can
create in Sketcher are Line chains and tangent lines. (True or
False?) Correct Answers A) True
Full rounds replace a surface with a round that is tangent to the
surface it replaces. (True or False?) Correct Answers A) True
Hiding objects breaks the parent/child relationships with other
components or features. (True or False?) Correct Answers B)
True
, How many modifiable dimensions does thickening an edge
create? Correct Answers B) 2
If the placement (primary) reference for a hole is a cylindrical
surface, you can only create which type of hole? Correct
Answers B) Radial hole
Rounds add or remove material by creating smooth transitions
between existing geometry. Correct Answers A) True
The Folder Browser is divided into... Correct Answers E)
Common Folders & a Folder Tree.
The four display options available in Sketcher are... Correct
Answers D) dimensions, constraints, grid, and section vertices.
The Offset Edge option only allows you to offset geometry in
the positive direction. (True or False?) Correct Answers B)
False
The Window group in the View ribbon tab enables you to
perform which of the following operations? Correct Answers E)
all of the above (Activate windows, Open windows, Resize
windows, and Switch between open windows)
To avoid assembly failures, you must rename components
within the context of the
assembly instead of using Windows Explorer. (True or False?)
Correct Answers A) True
Complete Solutions
A linear hole is created by selecting two placement references
and one offset reference. (True or False?) Correct Answers B)
False
A Sketch feature may contain overlapping entities. (True or
False?) Correct Answers B) False
An appearance consists of... Correct Answers E) all of the
above (color, highlight color, textures, and decals).
Construction geometry... Correct Answers F) can simplify
sketches & can simplify dimensioning schemes.
Design intent is captured in a sketch by... Correct Answers D)
all of the above (how it is constrained; how it is dimensioned; &
making weak dimensions strong)
Excluding construction geometry, the two types of lines you can
create in Sketcher are Line chains and tangent lines. (True or
False?) Correct Answers A) True
Full rounds replace a surface with a round that is tangent to the
surface it replaces. (True or False?) Correct Answers A) True
Hiding objects breaks the parent/child relationships with other
components or features. (True or False?) Correct Answers B)
True
, How many modifiable dimensions does thickening an edge
create? Correct Answers B) 2
If the placement (primary) reference for a hole is a cylindrical
surface, you can only create which type of hole? Correct
Answers B) Radial hole
Rounds add or remove material by creating smooth transitions
between existing geometry. Correct Answers A) True
The Folder Browser is divided into... Correct Answers E)
Common Folders & a Folder Tree.
The four display options available in Sketcher are... Correct
Answers D) dimensions, constraints, grid, and section vertices.
The Offset Edge option only allows you to offset geometry in
the positive direction. (True or False?) Correct Answers B)
False
The Window group in the View ribbon tab enables you to
perform which of the following operations? Correct Answers E)
all of the above (Activate windows, Open windows, Resize
windows, and Switch between open windows)
To avoid assembly failures, you must rename components
within the context of the
assembly instead of using Windows Explorer. (True or False?)
Correct Answers A) True
