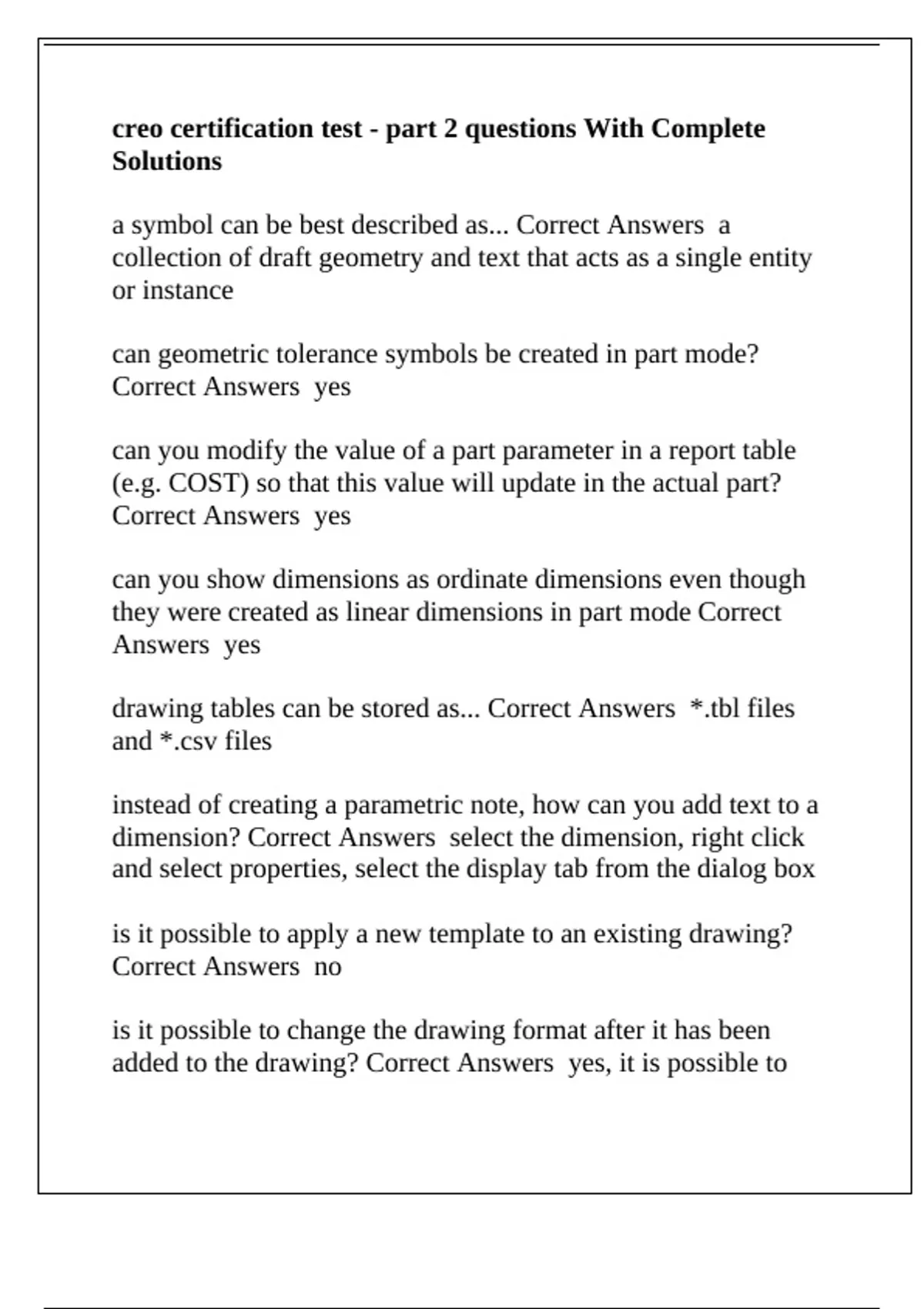

creo certification test - part 2 questions With Complete
Solutions
a symbol can be best described as... Correct Answers a
collection of draft geometry and text that acts as a single entity
or instance
can geometric tolerance symbols be created in part mode?
Correct Answers yes
can you modify the value of a part parameter in a report table
(e.g. COST) so that this value will update in the actual part?
Correct Answers yes
can you show dimensions as ordinate dimensions even though
they were created as linear dimensions in part mode Correct
Answers yes
drawing tables can be stored as... Correct Answers *.tbl files
and *.csv files
instead of creating a parametric note, how can you add text to a
dimension? Correct Answers select the dimension, right click
and select properties, select the display tab from the dialog box
is it possible to apply a new template to an existing drawing?
Correct Answers no
is it possible to change the drawing format after it has been
added to the drawing? Correct Answers yes, it is possible to
, change it to the same or different size of the current drawing
format
is it possible to display a layer in a particular view if the layer is
blanked in the drawing and the part? Correct Answers yes
true or false: a symbol placed with the attribute variable - text
related will change its size proportional to the text specified
Correct Answers true
true or false: in a multi-model drawing, deleting all the views of
a given model will result in disassociating the model from the
drawing Correct Answers false
true or false: on a drawing, created dimensions, often called
driven dimensions, can be used to modify the size of the model
shown on that drawing Correct Answers false
true or false: once the drawing size has been specified, it cannot
be changed without starting over Correct Answers false
true or false: the file > drawing options option controls drawing
setup options and drawing models Correct Answers false
true or false: to make a two page drawing you must make two
separate drawing files; one per page Correct Answers false
true or false: when you open a drawing in a view only mode the
design models are opened in the background in case you need
them Correct Answers false
