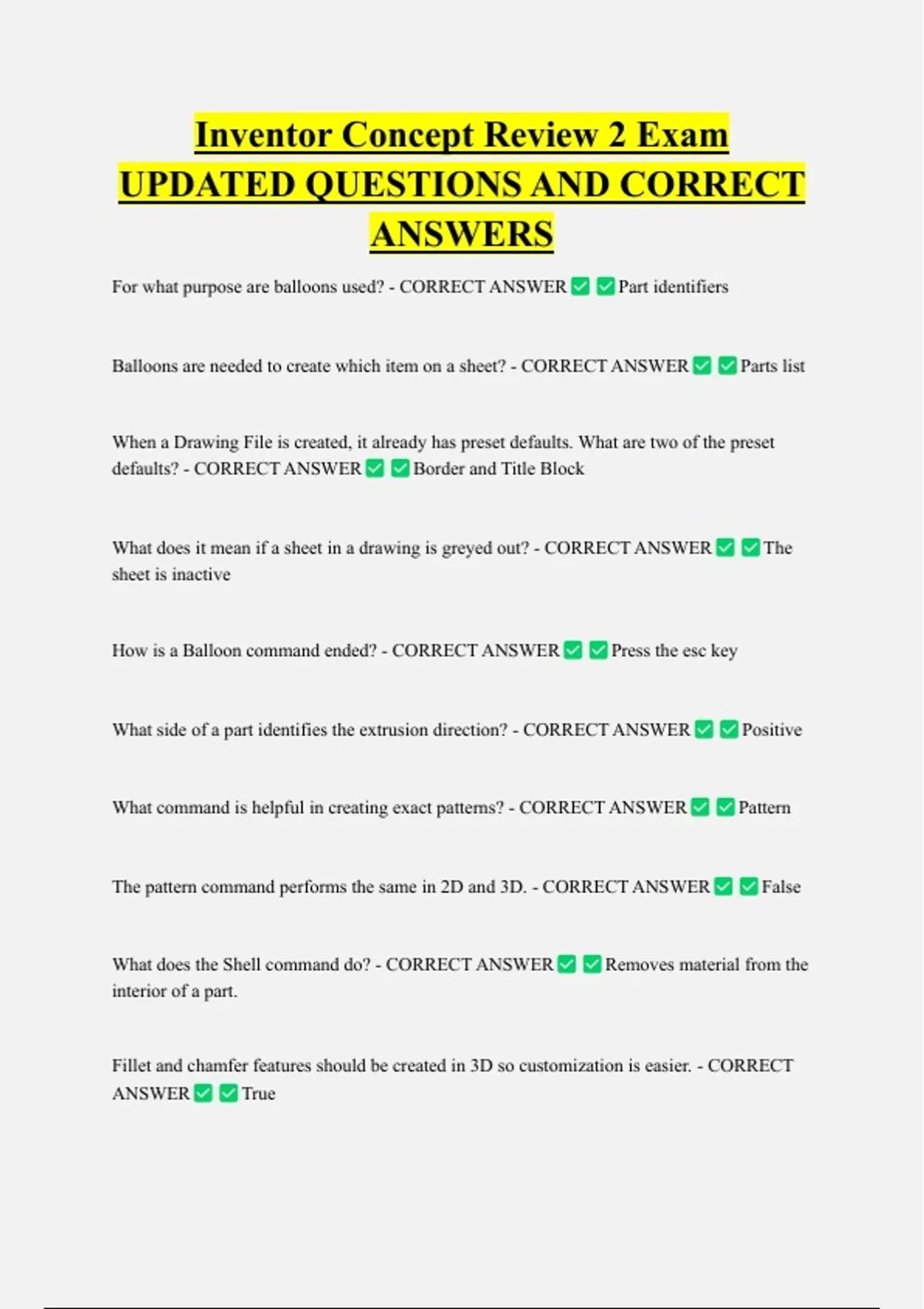

Inventor Concept Review 2 Exam
UPDATED QUESTIONS AND CORRECT
ANSWERS
For what purpose are balloons used? - CORRECT ANSWER Part identifiers
Balloons are needed to create which item on a sheet? - CORRECT ANSWER Parts list
When a Drawing File is created, it already has preset defaults. What are two of the preset
defaults? - CORRECT ANSWER Border and Title Block
What does it mean if a sheet in a drawing is greyed out? - CORRECT ANSWER The
sheet is inactive
How is a Balloon command ended? - CORRECT ANSWER Press the esc key
What side of a part identifies the extrusion direction? - CORRECT ANSWER Positive
What command is helpful in creating exact patterns? - CORRECT ANSWER Pattern
The pattern command performs the same in 2D and 3D. - CORRECT ANSWER False
What does the Shell command do? - CORRECT ANSWER Removes material from the
interior of a part.
Fillet and chamfer features should be created in 3D so customization is easier. - CORRECT
ANSWER True
, What panel on the 3D model tab contains the hole, fillet, chamfer, and shell buttons? -
CORRECT ANSWER Modify
What is an unconsumed 2D sketch? - CORRECT ANSWER There are no 3D features
on the sketch.
What is the thread command typically used on? - CORRECT ANSWER External
feature and cylinder face.
What happens to the dimensions of a created extrusion when the ok button is clicked in the
extrusion dialog box? - CORRECT ANSWER Dimensions are stored in the Inventor
database.
What type of sketch is needed to create a revolve feature? - CORRECT ANSWER 2D
unconsumed sketch
What tab helps create geometry for a 2D sketch such as lines, rectangles, and circles? -
CORRECT ANSWER Sketch tab
Which type of constraint creates relationships between points and objects? - CORRECT
ANSWER Coincidental
Little grid with magnet - CORRECT ANSWER Snaps cursor to a specified grid
spacing when a sketch command is active
Lightbulb - CORRECT ANSWER Displays all sketch constraints
Dimension line with +/- - CORRECT ANSWER Displays sketch dimensions with a
specified tolerance
Plane against rectangle - CORRECT ANSWER Displays the available degrees of
freedom for the sketch geometry
UPDATED QUESTIONS AND CORRECT
ANSWERS
For what purpose are balloons used? - CORRECT ANSWER Part identifiers
Balloons are needed to create which item on a sheet? - CORRECT ANSWER Parts list
When a Drawing File is created, it already has preset defaults. What are two of the preset
defaults? - CORRECT ANSWER Border and Title Block
What does it mean if a sheet in a drawing is greyed out? - CORRECT ANSWER The
sheet is inactive
How is a Balloon command ended? - CORRECT ANSWER Press the esc key
What side of a part identifies the extrusion direction? - CORRECT ANSWER Positive
What command is helpful in creating exact patterns? - CORRECT ANSWER Pattern
The pattern command performs the same in 2D and 3D. - CORRECT ANSWER False
What does the Shell command do? - CORRECT ANSWER Removes material from the
interior of a part.
Fillet and chamfer features should be created in 3D so customization is easier. - CORRECT
ANSWER True
, What panel on the 3D model tab contains the hole, fillet, chamfer, and shell buttons? -
CORRECT ANSWER Modify
What is an unconsumed 2D sketch? - CORRECT ANSWER There are no 3D features
on the sketch.
What is the thread command typically used on? - CORRECT ANSWER External
feature and cylinder face.
What happens to the dimensions of a created extrusion when the ok button is clicked in the
extrusion dialog box? - CORRECT ANSWER Dimensions are stored in the Inventor
database.
What type of sketch is needed to create a revolve feature? - CORRECT ANSWER 2D
unconsumed sketch
What tab helps create geometry for a 2D sketch such as lines, rectangles, and circles? -
CORRECT ANSWER Sketch tab
Which type of constraint creates relationships between points and objects? - CORRECT
ANSWER Coincidental
Little grid with magnet - CORRECT ANSWER Snaps cursor to a specified grid
spacing when a sketch command is active
Lightbulb - CORRECT ANSWER Displays all sketch constraints
Dimension line with +/- - CORRECT ANSWER Displays sketch dimensions with a
specified tolerance
Plane against rectangle - CORRECT ANSWER Displays the available degrees of
freedom for the sketch geometry
