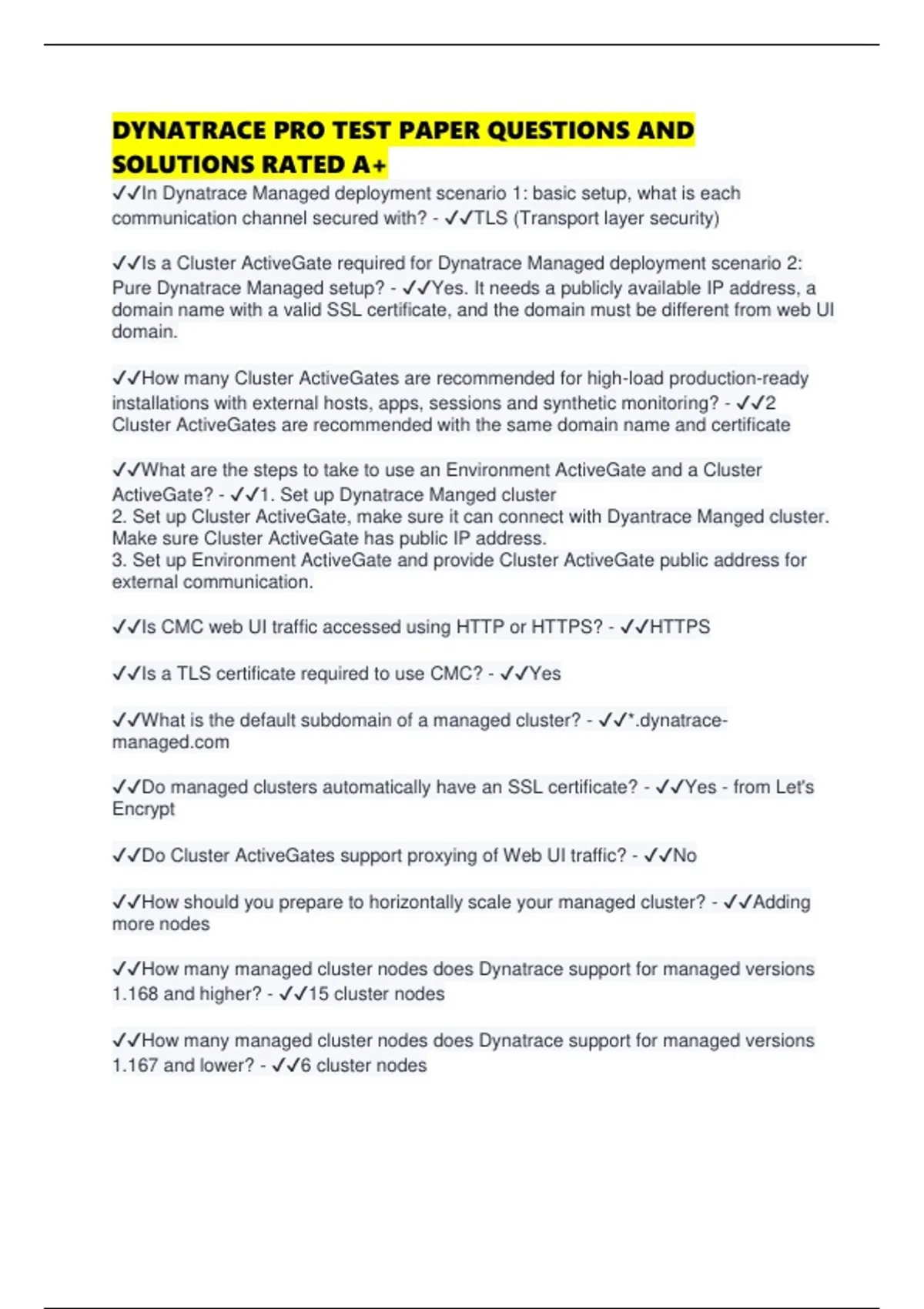

DYNATRACE PRO TEST PAPER QUESTIONS AND
SOLUTIONS RATED A+
✔✔In Dynatrace Managed deployment scenario 1: basic setup, what is each
communication channel secured with? - ✔✔TLS (Transport layer security)
✔✔Is a Cluster ActiveGate required for Dynatrace Managed deployment scenario 2:
Pure Dynatrace Managed setup? - ✔✔Yes. It needs a publicly available IP address, a
domain name with a valid SSL certificate, and the domain must be different from web UI
domain.
✔✔How many Cluster ActiveGates are recommended for high-load production-ready
installations with external hosts, apps, sessions and synthetic monitoring? - ✔✔2
Cluster ActiveGates are recommended with the same domain name and certificate
✔✔What are the steps to take to use an Environment ActiveGate and a Cluster
ActiveGate? - ✔✔1. Set up Dynatrace Manged cluster
2. Set up Cluster ActiveGate, make sure it can connect with Dyantrace Manged cluster.
Make sure Cluster ActiveGate has public IP address.
3. Set up Environment ActiveGate and provide Cluster ActiveGate public address for
external communication.
✔✔Is CMC web UI traffic accessed using HTTP or HTTPS? - ✔✔HTTPS
✔✔Is a TLS certificate required to use CMC? - ✔✔Yes
✔✔What is the default subdomain of a managed cluster? - ✔✔*.dynatrace-
managed.com
✔✔Do managed clusters automatically have an SSL certificate? - ✔✔Yes - from Let's
Encrypt
✔✔Do Cluster ActiveGates support proxying of Web UI traffic? - ✔✔No
✔✔How should you prepare to horizontally scale your managed cluster? - ✔✔Adding
more nodes
✔✔How many managed cluster nodes does Dynatrace support for managed versions
1.168 and higher? - ✔✔15 cluster nodes
✔✔How many managed cluster nodes does Dynatrace support for managed versions
1.167 and lower? - ✔✔6 cluster nodes
,✔✔How should you prepare to vertically scale your managed cluster? - ✔✔Provisioning
more RAM/CPU per node, resize disk volume for storage size as required.
✔✔What resources must be made exclusively available for Dynatrace in a managed
cluster node? - ✔✔CPU and RAM
✔✔Can managed cluster node CPUs have power saving mode enabled? - ✔✔No,
power saving mode must be disabled
✔✔What is the minimum CPU clock speed of a manged cluster node? - ✔✔2GHz
✔✔What is the minimum amount of RAM a managed cluster node should have? - ✔✔32
GB
✔✔How is storage done in multi-node clusters? - ✔✔Storage per node is divided by the
number of nodes.
✔✔Do we recommend Dynatrace binaries and data store to be on the same mount
point in Dynatrace Managed? - ✔✔No - separate mount points to allow the data store to
be resized independently.
✔✔Do we recommend keeping Dynatrace data storage on the root volume in Dynatrace
Managed? - ✔✔No, avoid additional complexity when resizing disk later, if required
✔✔Does Dynatrace recommend creating resizable disk partitions for Dynatrace
Managed? - ✔✔Yes (e.g. Logical Volume Manager)
✔✔Is OneAgent self-monitoring enabled by default for Dynatrace Managed? - ✔✔Yes,
an opt-out installation parameter is available
✔✔What operating systems can a managed cluster node be? - ✔✔All nodes must be
on same Linux distribution.
✔✔Do we recommend all managed cluster nodes to have the same hardware
configuration? - ✔✔Yes
✔✔Do we recommend that all managed cluster nodes are synchronized with NTP? -
✔✔Yes
✔✔Do we recommend all managed cluster nodes to be in the same time zone? -
✔✔Yes
,✔✔Can you install Dynatrace Managed on a 32 bit Linux distribution? - ✔✔No, you
must install Dynatrace Managed on a 64 bit Linux distribution.
✔✔Can you install Dynatrace Managed on a virtualized host? - ✔✔Yes
✔✔Can you install Dynatrace Managed on a container? - ✔✔No
✔✔Does Dynatrace support encrypted private keys when installing your own SSL
certificate? - ✔✔No
✔✔How many days must Mission Control be unavailable before all monitored hosts are
disabled? - ✔✔14 days
✔✔What data is exchanged between Managed Clusters and Mission Control? -
✔✔Installation, registration, license, health check, consumption, heartbeat, updates.
✔✔How frequently is installation data exchanged between Managed Clusters and
Mission Control? - ✔✔Once during installation and during every upgrade
✔✔What data is required from the cluster when sending installation data to Mission
Control? - ✔✔License key
✔✔What installation data is returned from Mission Control to Managed Clusters? -
✔✔Account name, license name, OneAgent installation flag (true / false), OneAgent
download URL.
✔✔How frequently is registration data exchanged between between Mission Control
and Managed Clusters? - ✔✔Once after first startup
✔✔What registration data do Managed Clusters send to Mission Control? - ✔✔License
key, cluster ID
✔✔What registration data does Mission Control send to Managed Clusters? -
✔✔Registration status, username, password
✔✔How frequently is license data exchanged between Managed Clusters and Mission
Control? - ✔✔Once every 5 minutes
✔✔What license data do Managed Clusters send to Mission Control? - ✔✔Nothing!
✔✔What license data does Mission Control send to Managed Clusters - ✔✔License
status, cluster ID, license key, license details, license model.
, ✔✔How frequently is health check data exchanged between Managed Clusters and
Mission Control? - ✔✔Once every 5 minutes
✔✔What health check data do Managed Clusters send to Mission Control? - ✔✔Cluster
ID, privacy settings, time zone, traffic size, update/maintenance window, each cluster
node adds OS name and version, number of CPU cores, CPU load, total RAM, free
RAM, total disk storage, used disk storage, server state, master node flag (true/false),
startup time stamp, each cluster ActiveGate adds version, OS name and version,
certificate issuer, type (e.g. beacon forwarder)
✔✔What health check data does Mission Control send to Managed Clusters? -
✔✔Health status, message
✔✔How frequently is consumption data exchange between Mission Control and
Managed Clusters? - ✔✔Once every hour
✔✔What consumption data do Managed Clusters send to Mission Control? - ✔✔Cluster
ID, consumption timeframe, each environment adds number of new problems, number
of RUM sessions, number of synthetic monitors, each host adds category, list of
monitored technologies, monitored timeframes, each synthetic monitor adds ID,
description, type, success count, failure count, action count
✔✔What consumption data does Mission Control send to Managed Clusters? -
✔✔Status, remaining RUM sessions, consumed RUM overage, host units overage,
remaining synthetic monitors, consumed synthetic monitors overage, for each
environment: id, consumed RUM sessions, consumed synthetic monitors, host units.
✔✔How frequently is heartbeat data exchanged between Managed Clusters and
Mission Control? - ✔✔Once every minute, or every 5 minutes if remote access is
disabled.
✔✔What heartbeat data do Managed Clusters send to Mission Control? - ✔✔Cluster ID,
node ID, source type (e.g. server)
✔✔What heartbeat data does Mission Control send to Managed clusters? - ✔✔Remote
UI request flag (true/false), websocket URLs
✔✔How frequently is update data exchanged between Managed Clusters and Mission
Control? - ✔✔Once every hour
✔✔What update data do Managed Clusters send to Mission Control? - ✔✔Nothing
