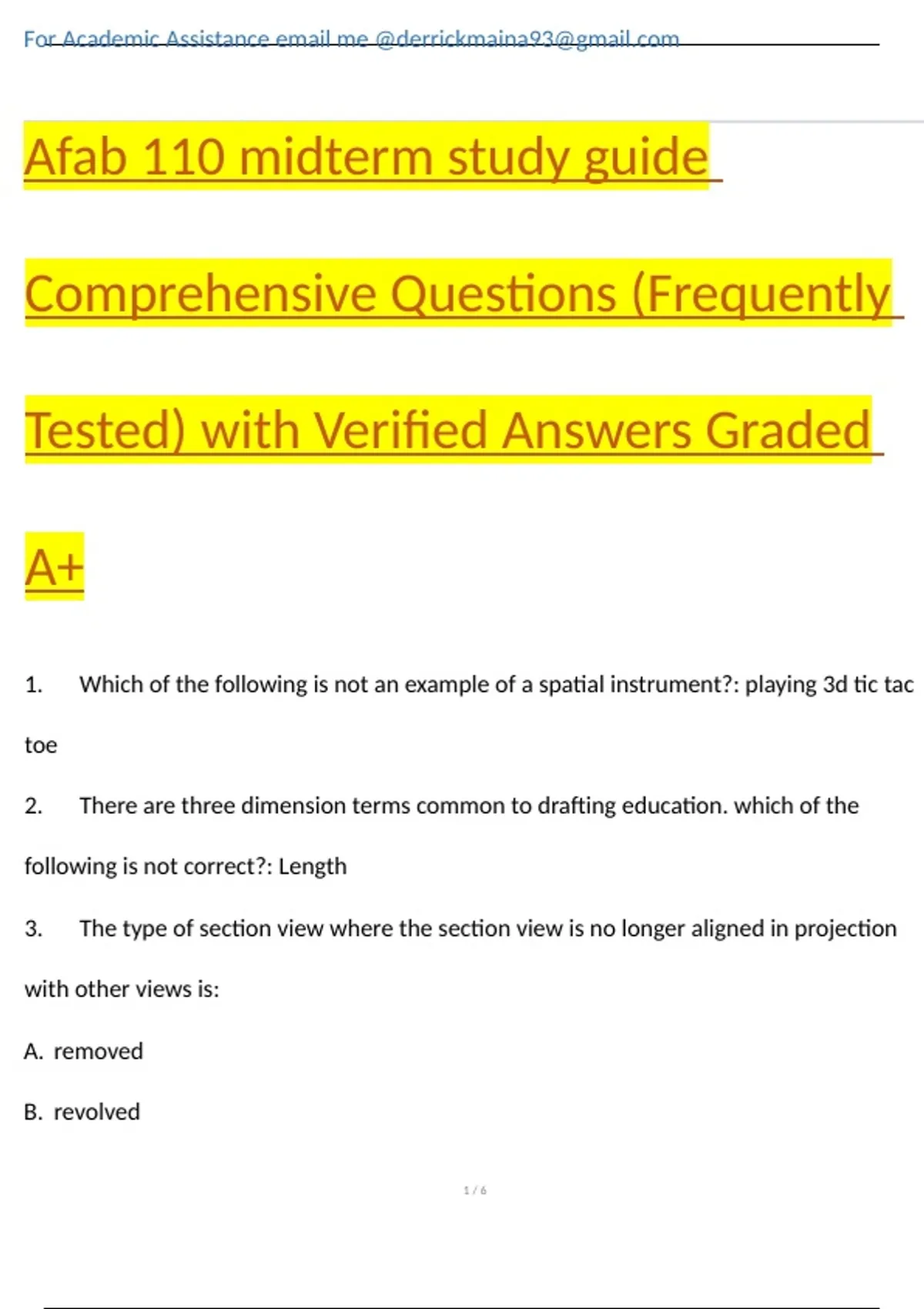

Afab 110 midterm study guide
Comprehensive Questions (Frequently
Tested) with Verified Answers Graded
A+
1. Which of the following is not an example of a spatial instrument?: playing 3d tic tac
toe
2. There are three dimension terms common to drafting education. which of the
following is not correct?: Length
3. The type of section view where the section view is no longer aligned in projection
with other views is:
A. removed
B. revolved
1/6
, C. broken-out
D. offset: offset
4. Cylindrical object with an odd number of features, such as spokes or holes on a bolt
circle, could be better described with a ---- section.: Aligned
5. The broken-out section requires another type of line from the alphabet of lines to
help show where the removed portion was broken off in a jagged sort of way. this is the
--- line.: Short break
6. When a --- section is created, it can be overlaid on the view or short break lines can
be used on each side of th e view to seperate it from the other visible lines.: Revolved
7. Type of section wherein the section view is probably located out of projection with
the other regular or auxiliary views is a --- section.: Removed
8. There is a conventional practice that allows the drafter to leave a feature
unhatched, even though the cutting-plane line passes through it. Which of the following
is not relevent to this conventional practice?: Hole
9. If there is a large area that needs to receive section lines, the ____ section allows for
the section lines to only be applied around the perimeter.: outline
2/6
