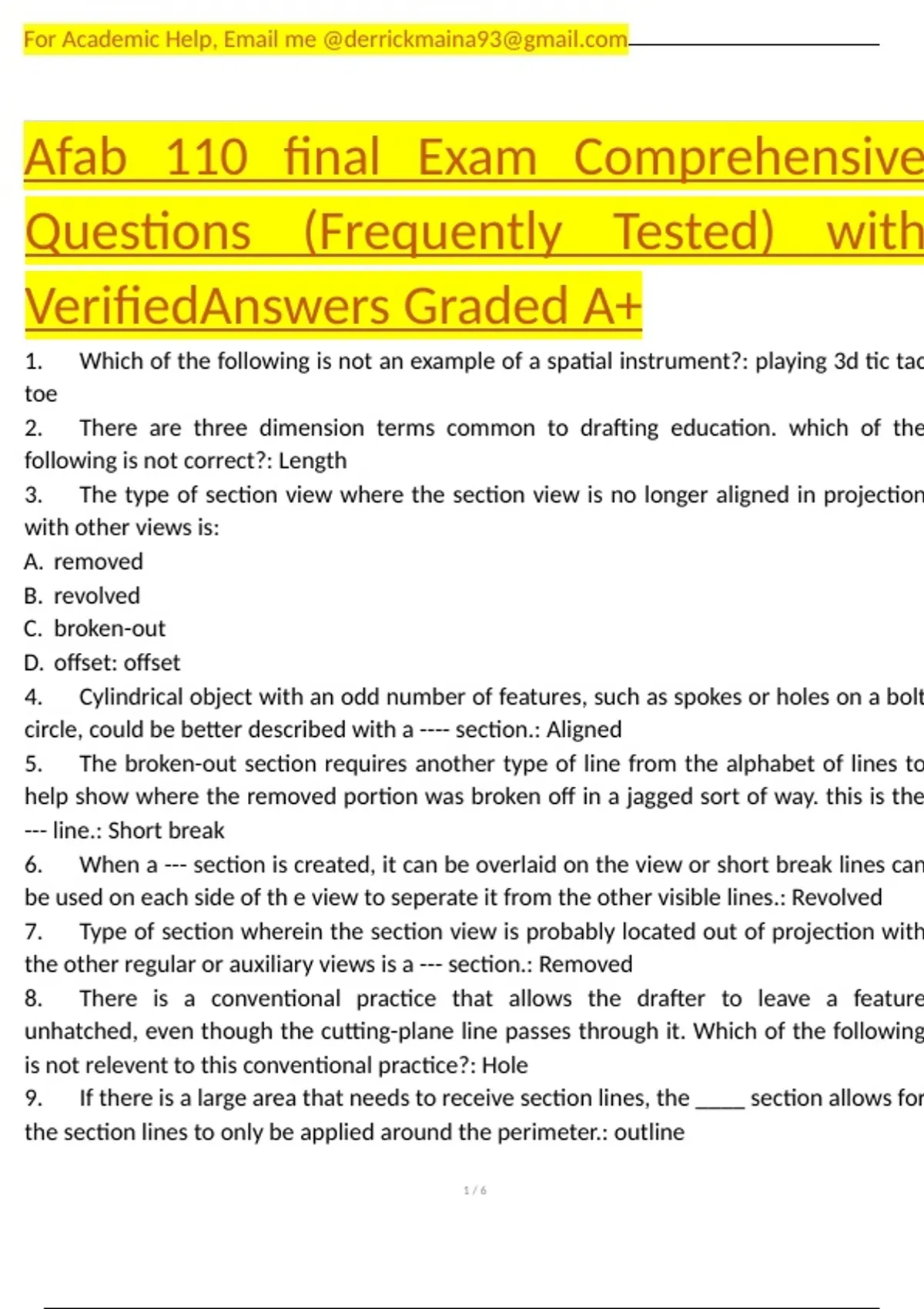

Afab 110 final Exam Comprehensive
Questions (Frequently Tested) with
VerifiedAnswers Graded A+
1. Which of the following is not an example of a spatial instrument?: playing 3d tic tac
toe
2. There are three dimension terms common to drafting education. which of the
following is not correct?: Length
3. The type of section view where the section view is no longer aligned in projection
with other views is:
A. removed
B. revolved
C. broken-out
D. offset: offset
4. Cylindrical object with an odd number of features, such as spokes or holes on a bolt
circle, could be better described with a ---- section.: Aligned
5. The broken-out section requires another type of line from the alphabet of lines to
help show where the removed portion was broken off in a jagged sort of way. this is the
--- line.: Short break
6. When a --- section is created, it can be overlaid on the view or short break lines can
be used on each side of th e view to seperate it from the other visible lines.: Revolved
7. Type of section wherein the section view is probably located out of projection with
the other regular or auxiliary views is a --- section.: Removed
8. There is a conventional practice that allows the drafter to leave a feature
unhatched, even though the cutting-plane line passes through it. Which of the following
is not relevent to this conventional practice?: Hole
9. If there is a large area that needs to receive section lines, the ____ section allows for
the section lines to only be applied around the perimeter.: outline
1/6
, Afab 110 final Exam Comprehensive Questions (Frequently Tested) with VerifiedAnswers
Graded A+
Study online at https://quizlet.com/_huxffg
.
10. In assembly drawings, there may be some parts that do not receive section lines,
but rather the area cut by the cutting-plane line is filled-in solid. Which of the following is
not relevant to this conventional practice?: Springs
11. T/F each type of line in the standards has one, and only one, option for its
appearance.: False
12 t/f In recent years, the standards have only recommended two line weights: thick and
thin.
: True
13. T/F Sometimes, hidden lines are omitted on complex views when the drawing is
clear without them.: true
14. T/F The latest standards set forth the appearance of each line available for industrial
prints, including exact line thickness and exact dash and space lengths.: false
15. T/F Paths of motion can be indicated on a print with the chain line: false
16. T/F Some textbooks and CAD software programs refer to extension lines as witness
lines, although that term is not used in the standards.: true
17. T/f In dimensioning, a leader is used to point to a feature with a local note.: true
18. T/f In engineering drawings and industrial prints, the text and numeric information
is referred to as printing.: false
19. T/F The text found on prints is most commonly done in lowercase letters, as that
takes up less space.: false
20. T/F Text created by hand is identified as single-stroke Gothic because the letters are
to be created with one continuous stroke.: false
21. The study of print reading is closely related to the study of ___, the general term for
creating drawings of objects in the technical field.: drafting
22. Before copy machines, it was common to use ___ for the original drawing, due to
the durability and transparency of the media, although plastic film was also common in
some settings: vellum
23. The standardized list of line types, perhaps in the form of a chart, is defined in many
references as the: alphabet of lines
2/6
