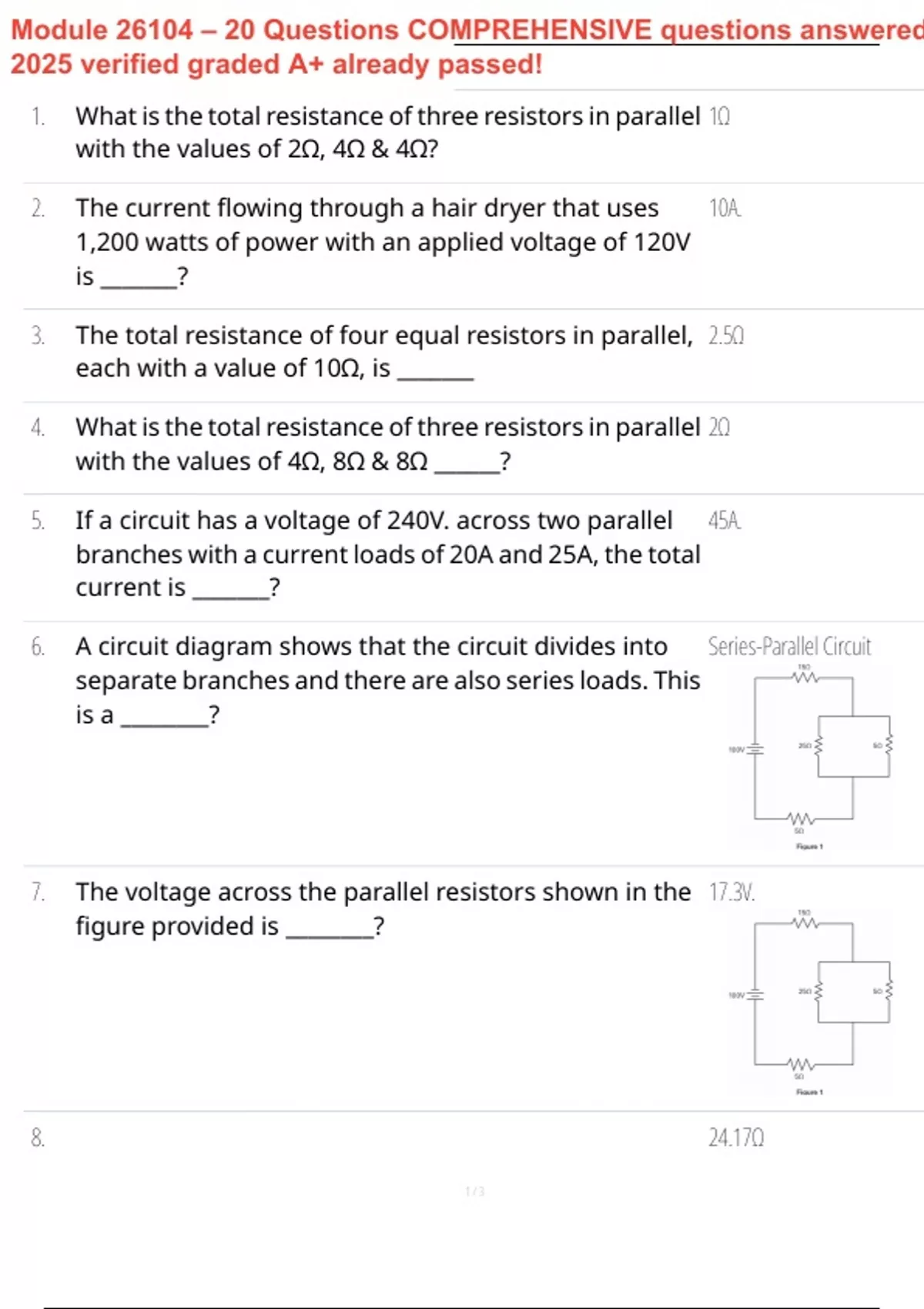

Module 26104 – 20 Questions COMPREHENSIVE questions answered, 2025 verified graded A+ already passed!

ModuleModule
26104 26104 – 20 Questions
- 20 COMPREHENSIVE questions answered
2025 verified
Study online atgraded A+ already passed!
https://quizlet.com/_97gemk

1. What is the total resistance of three resistors in parallel 1Ω
with the values of 2Ω, 4Ω & 4Ω?

2. The current flowing through a hair dryer that uses 10A.
1,200 watts of power with an applied voltage of 120V
is _______?

3. The total resistance of four equal resistors in parallel, 2.5Ω
each with a value of 10Ω, is _______

4. What is the total resistance of three resistors in parallel 2Ω
with the values of 4Ω, 8Ω & 8Ω ______?

5. If a circuit has a voltage of 240V. across two parallel 45A.
branches with a current loads of 20A and 25A, the total
current is _______?

6. A circuit diagram shows that the circuit divides into Series-Parallel Circuit
separate branches and there are also series loads. This
is a ________?




7. The voltage across the parallel resistors shown in the 17.3V.
figure provided is ________?




8. 24.17Ω
