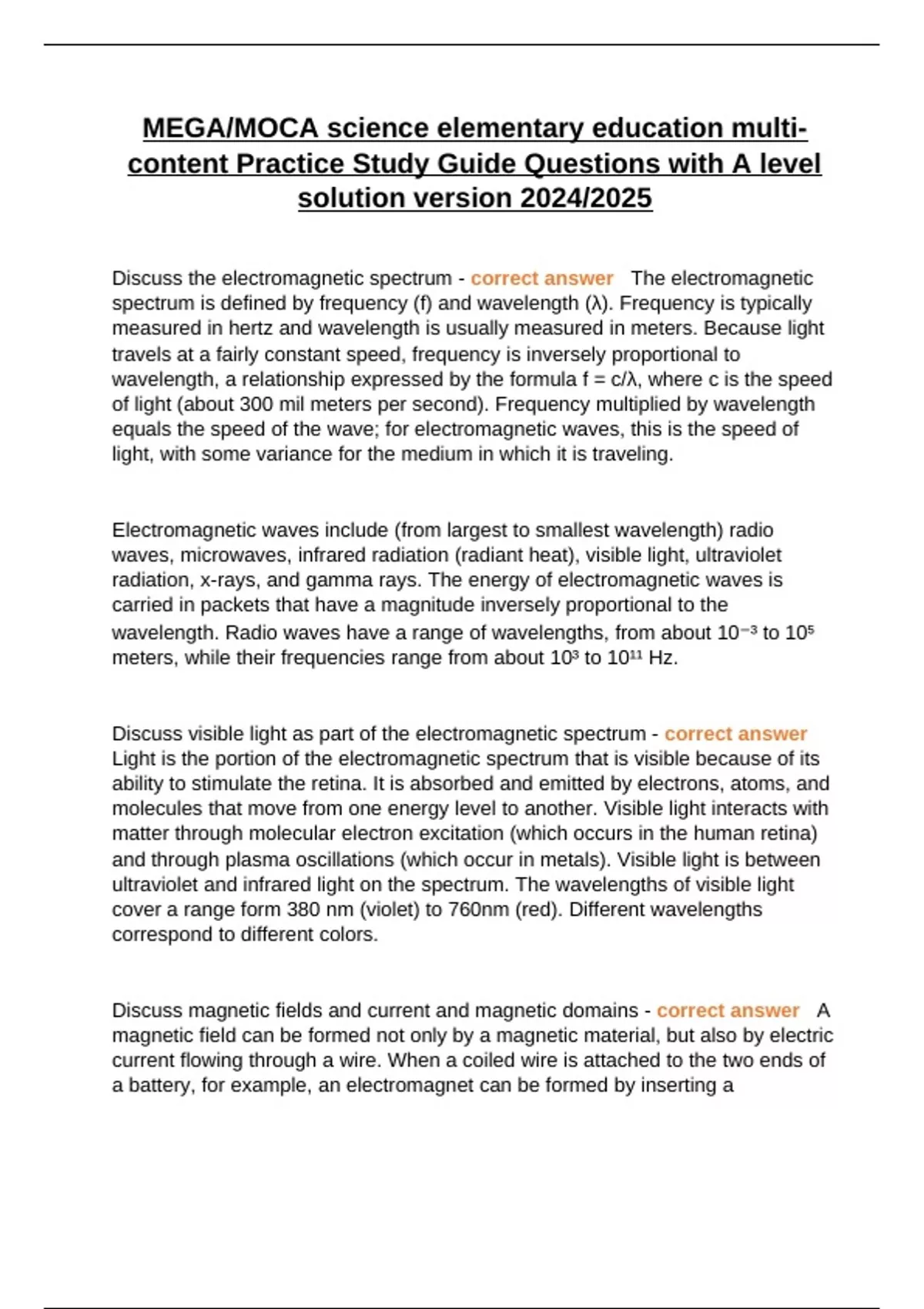

MEGA/MOCA science elementary education multi-
content Practice Study Guide Questions with A level
solution version 2024/2025
Discuss the electromagnetic spectrum - correct answer The electromagnetic
spectrum is defined by frequency (f) and wavelength (λ). Frequency is typically
measured in hertz and wavelength is usually measured in meters. Because light
travels at a fairly constant speed, frequency is inversely proportional to
wavelength, a relationship expressed by the formula f = c/λ, where c is the speed
of light (about 300 mil meters per second). Frequency multiplied by wavelength
equals the speed of the wave; for electromagnetic waves, this is the speed of
light, with some variance for the medium in which it is traveling.
Electromagnetic waves include (from largest to smallest wavelength) radio
waves, microwaves, infrared radiation (radiant heat), visible light, ultraviolet
radiation, x-rays, and gamma rays. The energy of electromagnetic waves is
carried in packets that have a magnitude inversely proportional to the
wavelength. Radio waves have a range of wavelengths, from about 10⁻³ to 10⁵
meters, while their frequencies range from about 10³ to 10¹¹ Hz.
Discuss visible light as part of the electromagnetic spectrum - correct answer
Light is the portion of the electromagnetic spectrum that is visible because of its
ability to stimulate the retina. It is absorbed and emitted by electrons, atoms, and
molecules that move from one energy level to another. Visible light interacts with
matter through molecular electron excitation (which occurs in the human retina)
and through plasma oscillations (which occur in metals). Visible light is between
ultraviolet and infrared light on the spectrum. The wavelengths of visible light
cover a range form 380 nm (violet) to 760nm (red). Different wavelengths
correspond to different colors.
Discuss magnetic fields and current and magnetic domains - correct answer A
magnetic field can be formed not only by a magnetic material, but also by electric
current flowing through a wire. When a coiled wire is attached to the two ends of
a battery, for example, an electromagnet can be formed by inserting a
,ferromagnetic material such as an iron bar within the coil. When electric current
flows through the wire, the bar becomes a magnet. If there is no current, the
magnetism is lost.
A magnetic domain occurs when the magnetic fields of atoms are grouped and
aligned. These groups form what can be thought of as miniature magnets within
a material. This is what happens when an object like an iron nail is temporarily
magnetized.
Prior to magnetization, the organization of atoms and their various polarities are
somewhat random with respect to where the north and south poles are pointing.
After magnetization, a significant percentage of the poles are lined up in one
direction, which is what causes the magnetic force exerted by the material.
Explain magnetic fields as they related to atomic structures - correct answer
The motions of subatomic structures (nuclei and electrons) produce a magnetic
field. It is the direction of the spin and orbit that indicate the direction of the field.
The strength of a magnetic field is known as the magnetic moment. As electrons
spin and orbit a nucleus, they produce a magnetic field. Pairs of electrons that
spin and orbit in opposite directions cancel each other out, creating a net
magnetic force of zero.
Materials that have an unpaired electron are magnetic. Those with a weak
attractive force are referred to as paramagnetic materials, while ferromagnetic
materials have a strong attractive force. A diamagnetic material has electrons
that are paired, and therefore does not typically have a magnetic moment. There
are, however, some diamagnetic materials that have a weak magnetic field.
Discuss the basics of a magnet, including composition, poles, and permanence -
correct answer A magnet is a piece of metal, such as iron, steel, or magnetite
(lodestone) that can affect another substance within its field of force that has like
characteristics.
,Magnets can either attract or repel other substances. Magnets have two poles:
north and south. Like poles repel and opposite poles (pairs of north and south)
attract. The magnetic field is a set of invisible lines representing the paths of
attraction and repulsion.
Magnetism can occur naturally, or ferromagnetic materials can be magnetized.
Certain matter that is magnetized can retain its magnetic properties indefinitely
and become a permanent magnet. Other matter can lose its magnetic properties.
For example, an iron nail can be temporarily magnetized by stroking it repeatedly
in the same direction using one pole of another magnet. Once magnetized, it can
attract or repel other magnetically inclined materials, such as paperclips.
Dropping the nail repeatedly will cause it to lose its charge.
Discuss models for the flow of electric charge - correct answer Models that can
be used to explain the flow of electric current, potential, and circuits include
water, gravity, and roller coasters. For example, just as gravity is a force and a
mass can have a potential for energy based on its location, so can a charge
within an electrical field. Just as a force is required to move an object uphill, a
force is also required to move a charge from a low to a high potential.
Another example is water. Water does not flow when it is level. If it is lifted to a
point and then placed on a downward path, it flows. A roller coaster car requires
work to be performed to transport it to a point where it has potential energy (the
top of a sloping track). Once there, gravity provides the force for it to flow (move)
downward. If either path is broken, the flow or movement stops or is not
completed.
Explain the basics of electric current movement through circuits as it relates to
potential - correct answer Electric current is the sustained flow of electrons that
are part of an electric charge moving along a path in a circuit. This differs from a
static electric charge, which is a constant non-moving charge rather than a
continuous flow.
, The rate of flow of electric charge is expressed using the ampere (amp or A) and
can be measured using an ammeter. A current of 1 ampere means that 1
coulomb of charge passes through a given area every second.
Electric charges typically only move from areas of high electric potential to areas
of low electric potential. To get charges to flow into a high potential area, you
must connect it to an area of higher potential by introducing a batter or other
voltage source.
Provide an example of a simple circuit - correct answer Movement of electric
charge along a path between areas of high electric potential and low electric
potential, with a resistor or load device between them, is the definition of a simple
circuit. It is a closed conducting path between the high and low potential points,
such as the positive and negative terminals on a battery. One example of a
circuit is the flow from one terminal of a car battery to the other. The electrolyte
solution of water and sulfuric acid provides work in chemical form to start the
flow. A frequently used classroom example of circuits involves using a D cell (1.5
V) battery, a small light bulb, and a piece of copper wire to create a circuit to light
the bulb.
Discuss what matter is and describe its properties - correct answer Matter
refers to substances that have mass and occupy space (or volume). The
traditional definition of matter describes it as having three states: solid, liquid, and
gas, These different states are caused by differences in the distances and angles
between molecules or atoms, which result in differences in the energy that binds
them.
Solid structures are rigid or nearly rigid and have strong bonds. Molecules or
atoms of liquids move around and have weak bonds, though not weak enough to
readily break. Molecules or atoms of gases move almost independently of each
other, are typically far apart, and do not form bonds.
The current definition of matter describes it as having four states. The fourth is
plasma, which is an ionized gas that has some electrons that are described as
free because they are not bound to an atom or molecule.
