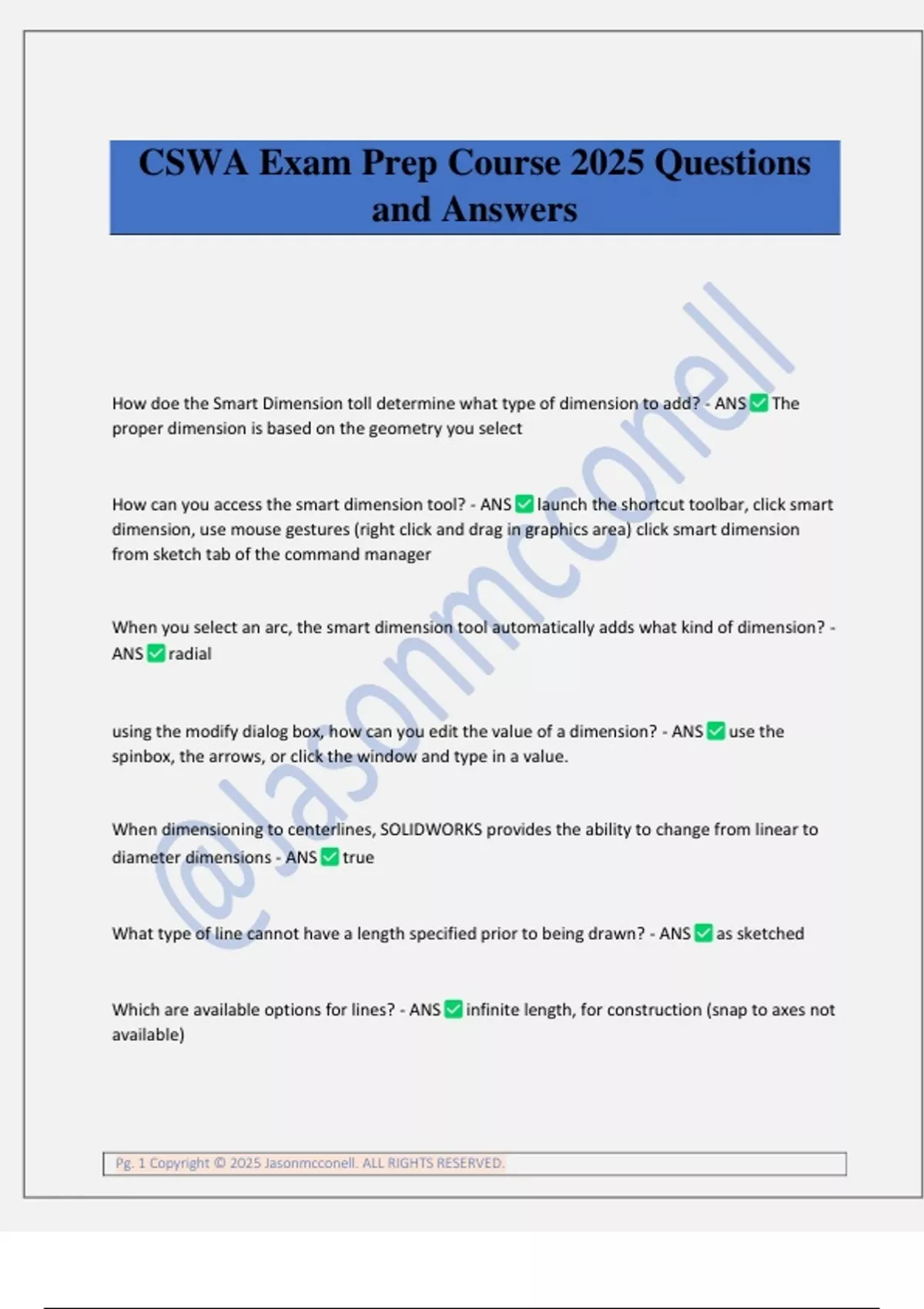

CSWA Exam Prep Course 2025 Questions
and Answers
How doe the Smart Dimension toll determine what type of dimension to add? - ANS The
proper dimension is based on the geometry you select
How can you access the smart dimension tool? - ANS launch the shortcut toolbar, click smart
dimension, use mouse gestures (right click and drag in graphics area) click smart dimension
from sketch tab of the command manager
When you select an arc, the smart dimension tool automatically adds what kind of dimension? -
ANS radial
using the modify dialog box, how can you edit the value of a dimension? - ANS use the
spinbox, the arrows, or click the window and type in a value.
When dimensioning to centerlines, SOLIDWORKS provides the ability to change from linear to
diameter dimensions - ANS true
What type of line cannot have a length specified prior to being drawn? - ANS as sketched
Which are available options for lines? - ANS infinite length, for construction (snap to axes not
available)
