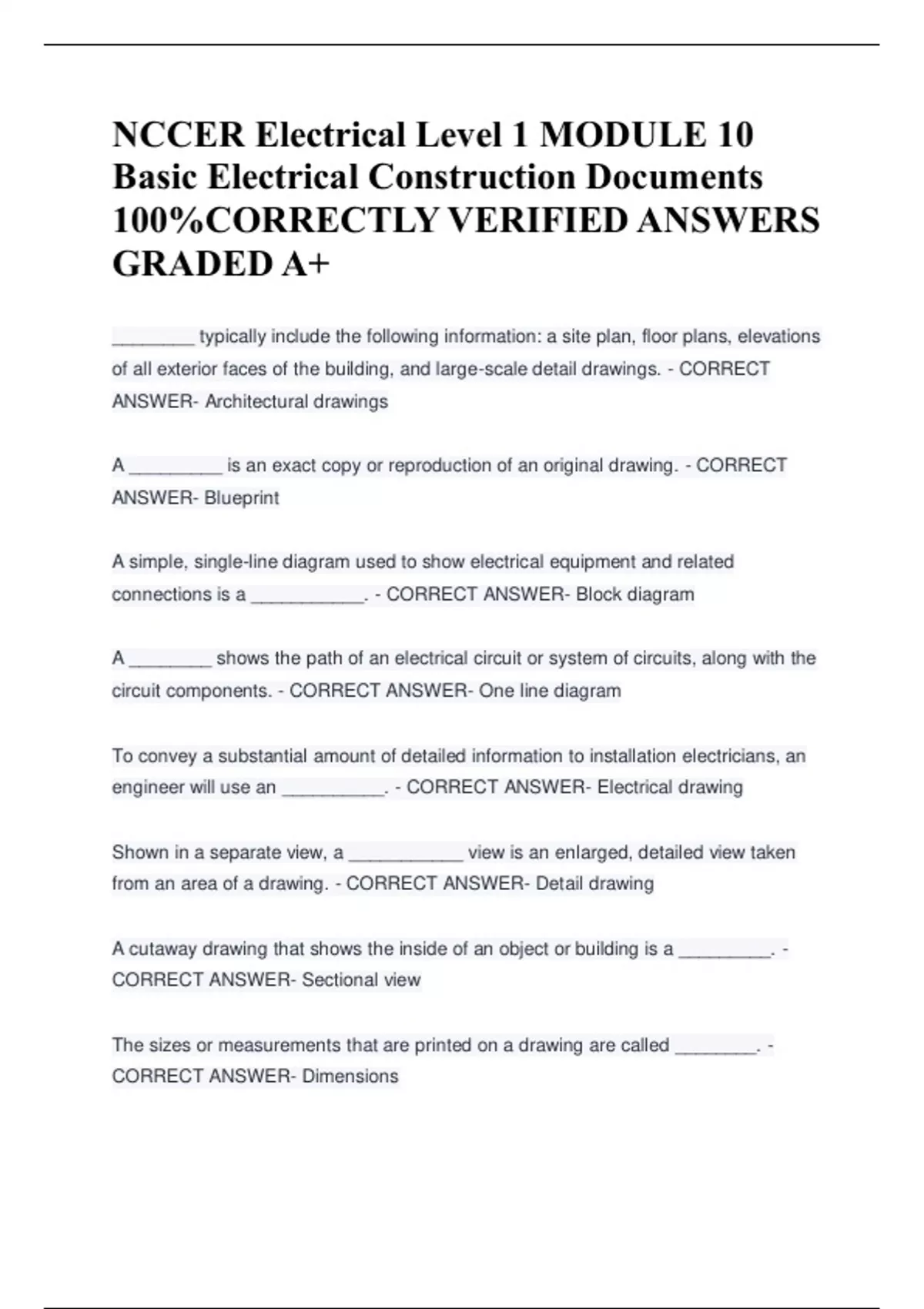

NCCER Electrical Level 1 MODULE 10
Basic Electrical Construction Documents
100%CORRECTLY VERIFIED ANSWERS
GRADED A+
________ typically include the following information: a site plan, floor plans, elevations
of all exterior faces of the building, and large-scale detail drawings. - CORRECT
ANSWER- Architectural drawings
A _________ is an exact copy or reproduction of an original drawing. - CORRECT
ANSWER- Blueprint
A simple, single-line diagram used to show electrical equipment and related
connections is a ___________. - CORRECT ANSWER- Block diagram
A ________ shows the path of an electrical circuit or system of circuits, along with the
circuit components. - CORRECT ANSWER- One line diagram
To convey a substantial amount of detailed information to installation electricians, an
engineer will use an __________. - CORRECT ANSWER- Electrical drawing
Shown in a separate view, a ___________ view is an enlarged, detailed view taken
from an area of a drawing. - CORRECT ANSWER- Detail drawing
A cutaway drawing that shows the inside of an object or building is a _________. -
CORRECT ANSWER- Sectional view
The sizes or measurements that are printed on a drawing are called ________. -
CORRECT ANSWER- Dimensions
, The relationship between an object's size in a drawing and the object's actual size is the
_____. - CORRECT ANSWER- Scale
The height of the front, rear, or sides of a building is shown in an ____________. -
CORRECT ANSWER- Elevation view
A building's location on the site is shown in a _________. - CORRECT ANSWER- Site
plan
A drawing that has a top-down view of a building is a _________. - CORRECT
ANSWER- Floor plan
A drawing that has a top-down view of a single object is a ____. - CORRECT
ANSWER- Plan
A _____ is a single-line block diagram used to indicate the electric service equipment,
service conductors and feeders, and subpanels. ** - CORRECT ANSWER- Power-riser
diagram
Owners, architects, and engineers use_________to specify material and workmanship
requirements. - CORRECT ANSWER- Written specifications
A ____ is a systematic way of presenting equipment lists on a drawing in tabular form. -
CORRECT ANSWER- Schedule
Complicated circuits, such as control circuits, are shown in a _______. - CORRECT
ANSWER- Schematic diagram
Basic Electrical Construction Documents
100%CORRECTLY VERIFIED ANSWERS
GRADED A+
________ typically include the following information: a site plan, floor plans, elevations
of all exterior faces of the building, and large-scale detail drawings. - CORRECT
ANSWER- Architectural drawings
A _________ is an exact copy or reproduction of an original drawing. - CORRECT
ANSWER- Blueprint
A simple, single-line diagram used to show electrical equipment and related
connections is a ___________. - CORRECT ANSWER- Block diagram
A ________ shows the path of an electrical circuit or system of circuits, along with the
circuit components. - CORRECT ANSWER- One line diagram
To convey a substantial amount of detailed information to installation electricians, an
engineer will use an __________. - CORRECT ANSWER- Electrical drawing
Shown in a separate view, a ___________ view is an enlarged, detailed view taken
from an area of a drawing. - CORRECT ANSWER- Detail drawing
A cutaway drawing that shows the inside of an object or building is a _________. -
CORRECT ANSWER- Sectional view
The sizes or measurements that are printed on a drawing are called ________. -
CORRECT ANSWER- Dimensions
, The relationship between an object's size in a drawing and the object's actual size is the
_____. - CORRECT ANSWER- Scale
The height of the front, rear, or sides of a building is shown in an ____________. -
CORRECT ANSWER- Elevation view
A building's location on the site is shown in a _________. - CORRECT ANSWER- Site
plan
A drawing that has a top-down view of a building is a _________. - CORRECT
ANSWER- Floor plan
A drawing that has a top-down view of a single object is a ____. - CORRECT
ANSWER- Plan
A _____ is a single-line block diagram used to indicate the electric service equipment,
service conductors and feeders, and subpanels. ** - CORRECT ANSWER- Power-riser
diagram
Owners, architects, and engineers use_________to specify material and workmanship
requirements. - CORRECT ANSWER- Written specifications
A ____ is a systematic way of presenting equipment lists on a drawing in tabular form. -
CORRECT ANSWER- Schedule
Complicated circuits, such as control circuits, are shown in a _______. - CORRECT
ANSWER- Schematic diagram
