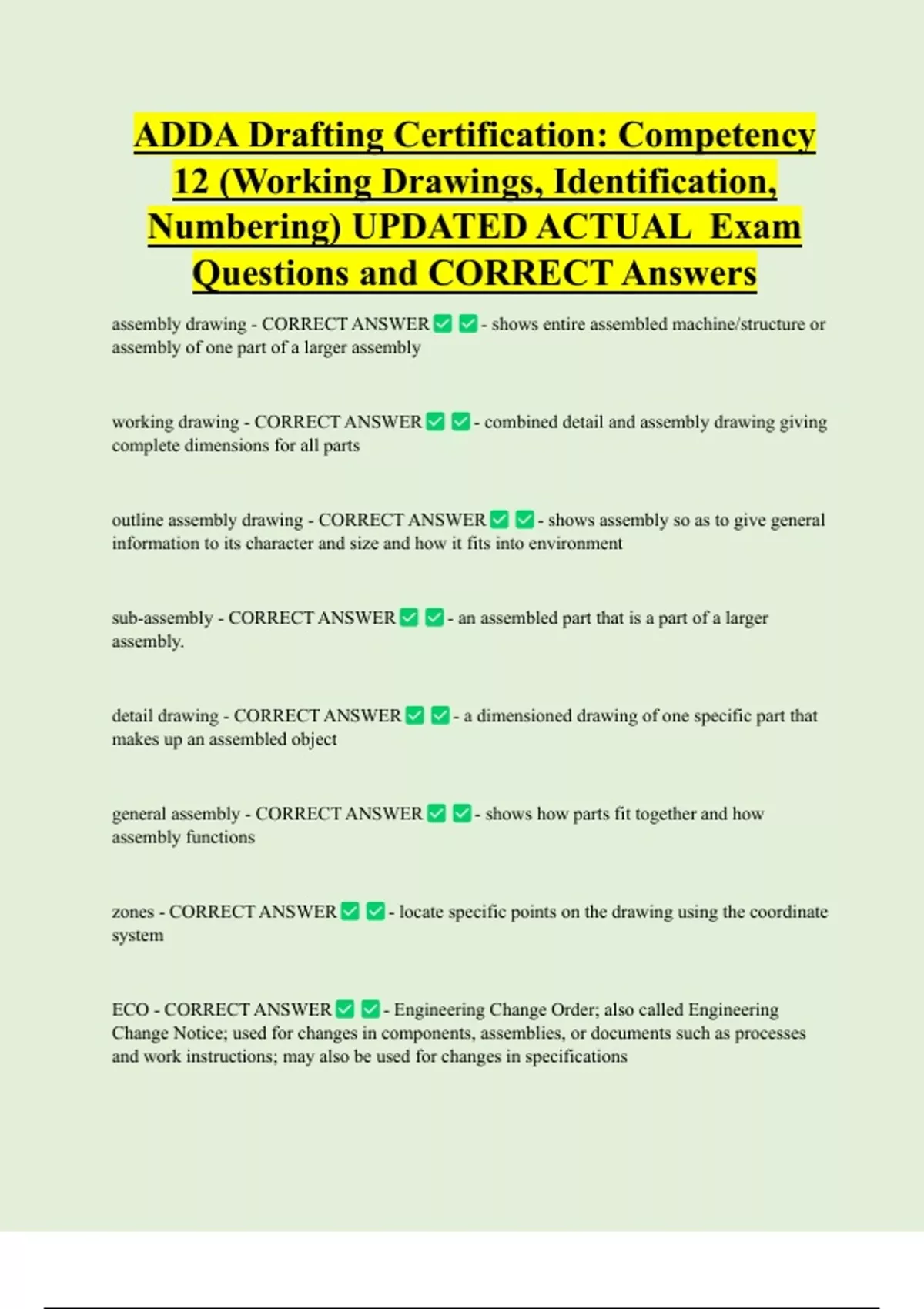

ADDA Drafting Certification: Competency
12 (Working Drawings, Identification,
Numbering) UPDATED ACTUAL Exam
Questions and CORRECT Answers
assembly drawing - CORRECT ANSWER - shows entire assembled machine/structure or
assembly of one part of a larger assembly


working drawing - CORRECT ANSWER - combined detail and assembly drawing giving
complete dimensions for all parts


outline assembly drawing - CORRECT ANSWER - shows assembly so as to give general
information to its character and size and how it fits into environment


sub-assembly - CORRECT ANSWER - an assembled part that is a part of a larger
assembly.


detail drawing - CORRECT ANSWER - a dimensioned drawing of one specific part that
makes up an assembled object


general assembly - CORRECT ANSWER - shows how parts fit together and how
assembly functions


zones - CORRECT ANSWER - locate specific points on the drawing using the coordinate
system


ECO - CORRECT ANSWER - Engineering Change Order; also called Engineering
Change Notice; used for changes in components, assemblies, or documents such as processes
and work instructions; may also be used for changes in specifications
