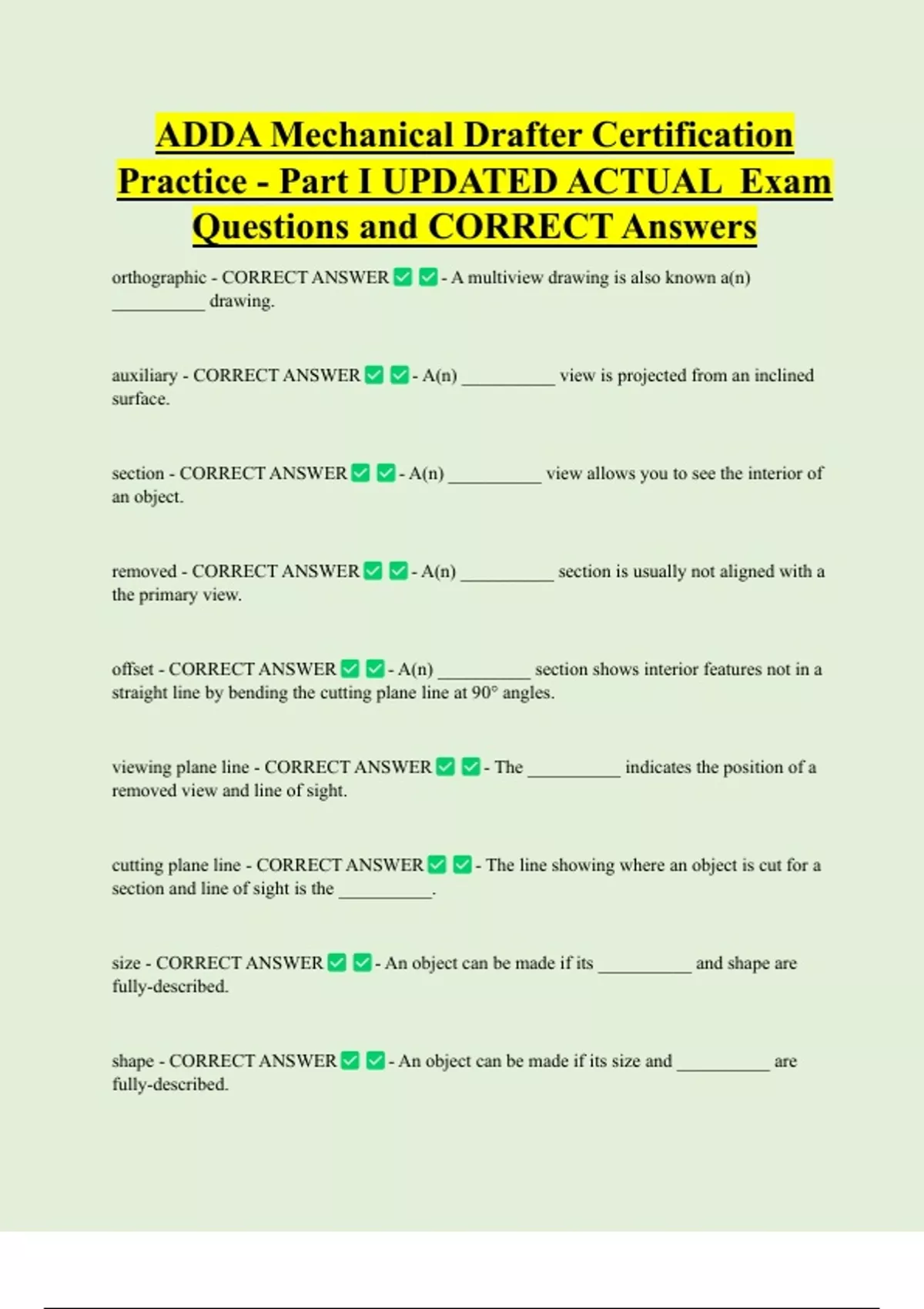

ADDA Mechanical Drafter Certification
Practice - Part I UPDATED ACTUAL Exam
Questions and CORRECT Answers
orthographic - CORRECT ANSWER - A multiview drawing is also known a(n)
__________ drawing.


auxiliary - CORRECT ANSWER - A(n) __________ view is projected from an inclined
surface.


section - CORRECT ANSWER - A(n) __________ view allows you to see the interior of
an object.


removed - CORRECT ANSWER - A(n) __________ section is usually not aligned with a
the primary view.


offset - CORRECT ANSWER - A(n) __________ section shows interior features not in a
straight line by bending the cutting plane line at 90° angles.


viewing plane line - CORRECT ANSWER - The __________ indicates the position of a
removed view and line of sight.


cutting plane line - CORRECT ANSWER - The line showing where an object is cut for a
section and line of sight is the __________.


size - CORRECT ANSWER - An object can be made if its __________ and shape are
fully-described.


shape - CORRECT ANSWER - An object can be made if its size and __________ are
fully-described.
