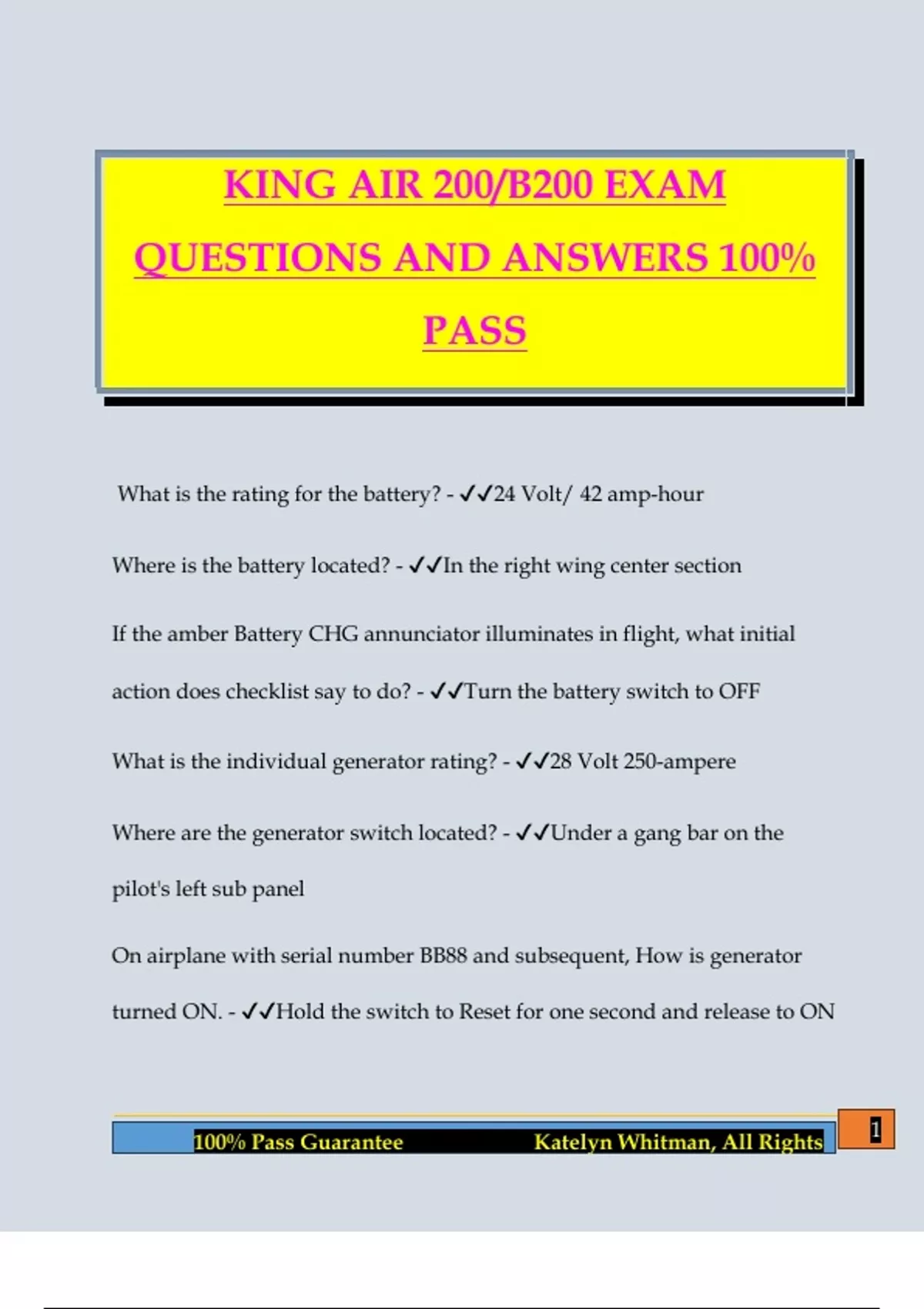

KING AIR 200/B200 EXAM
QUESTIONS AND ANSWERS 100%
PASS
What is the rating for the battery? - ✔✔24 Volt/ 42 amp-hour
Where is the battery located? - ✔✔In the right wing center section
If the amber Battery CHG annunciator illuminates in flight, what initial
action does checklist say to do? - ✔✔Turn the battery switch to OFF
What is the individual generator rating? - ✔✔28 Volt 250-ampere
Where are the generator switch located? - ✔✔Under a gang bar on the
pilot's left sub panel
On airplane with serial number BB88 and subsequent, How is generator
turned ON. - ✔✔Hold the switch to Reset for one second and release to ON
1
100% Pass Guarantee Katelyn Whitman, All Rights
,When an engine started, in what position should it's GEN switch be? -
✔✔Off
When a generator is off line, what indication is present? - ✔✔An amber DC
GEN light is ON
Where is the external power connector located? - ✔✔Under the right wing,
outboard of the engine nacelle.
How much continuous current should the external power unit be capable
of supplying? - ✔✔1000 amperes
What indications is provided to alert the operator that an external power
plug is connected to the airplane? - ✔✔An EXT PWR light
What is the minimum required battery voltage before using an external
power unit? - ✔✔20 Volts
Why should the BAT switch be left on during use of external power? -
✔✔To protect against voltage spikes
2
100% Pass Guarantee Katelyn Whitman, All Rights
, To protect the battery from damage, the external power voltage must not
go over what value for more than two minutes? - ✔✔30 volts for more than
2 minuets
Prior to BB_1632, if the BATTERY CHG light does not extinguish in flight
when the battery control switch is placed to OFF, what action should be
taken ? - ✔✔Land at nearest suitable airport
How many inverters are there? - ✔✔2
What is the rating of each inverter? - ✔✔115-volt and 26 volt 400Hz
Where is the INVERTER switch located? - ✔✔On the pilot's left sub panel
After starting the right engine and turning the right generation on, what
should the load meter reading reading decrease to before starting the left
engine? - ✔✔50%
What are the starter limit? - ✔✔40 seconds ON 60 seconds OFF
Where are the majority of cockpit lighting control? - ✔✔Overhead panel
3
100% Pass Guarantee Katelyn Whitman, All Rights
