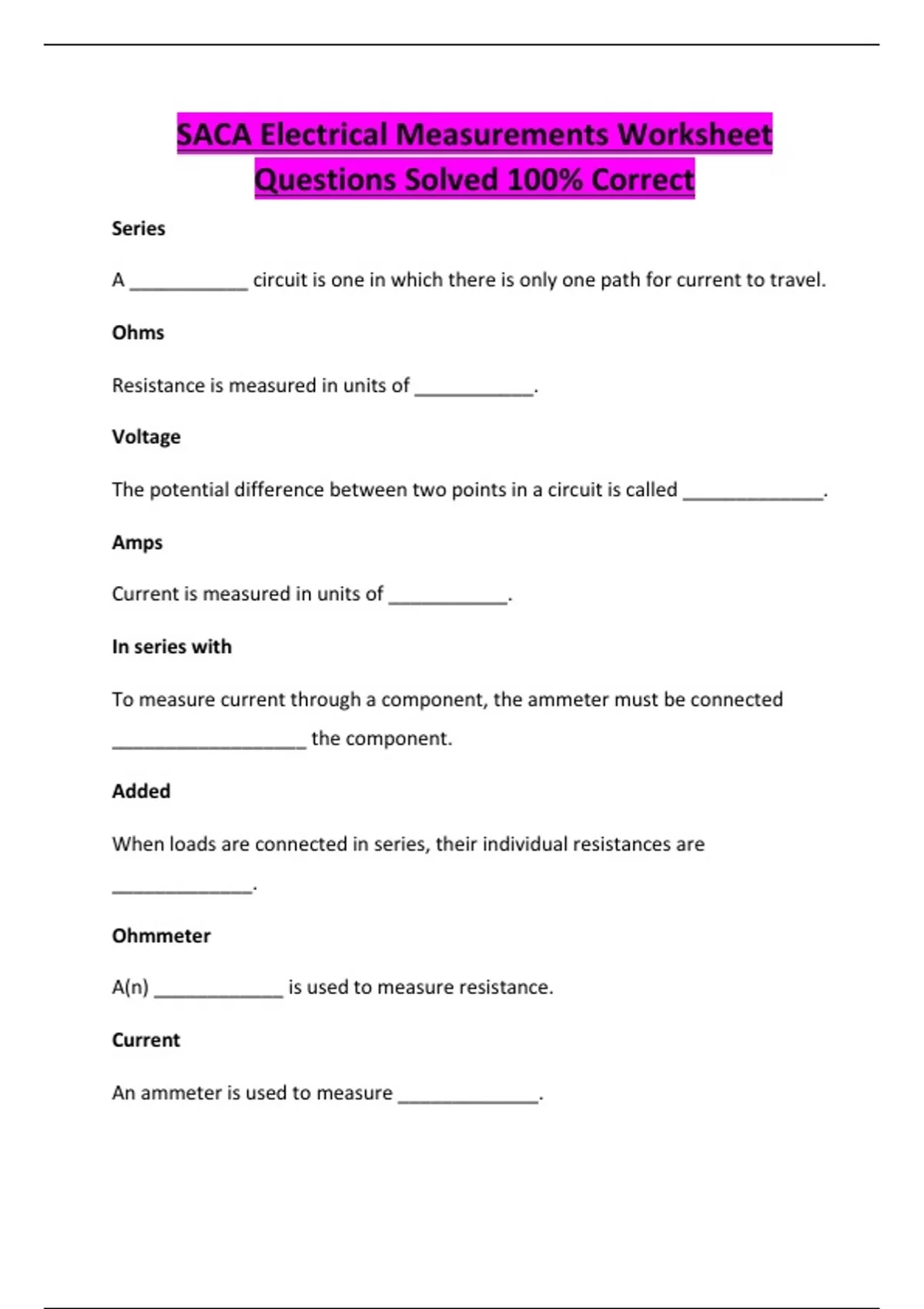

SACA Electrical Measurements Worksheet
Questions Solved 100% Correct
Series
A ___________ circuit is one in which there is only one path for current to travel.
Ohms
Resistance is measured in units of ___________.
Voltage
The potential difference between two points in a circuit is called _____________.
Amps
Current is measured in units of ___________.
In series with
To measure current through a component, the ammeter must be connected
__________________ the component.
Added
When loads are connected in series, their individual resistances are
_____________.
Ohmmeter
A(n) ____________ is used to measure resistance.
Current
An ammeter is used to measure _____________.
